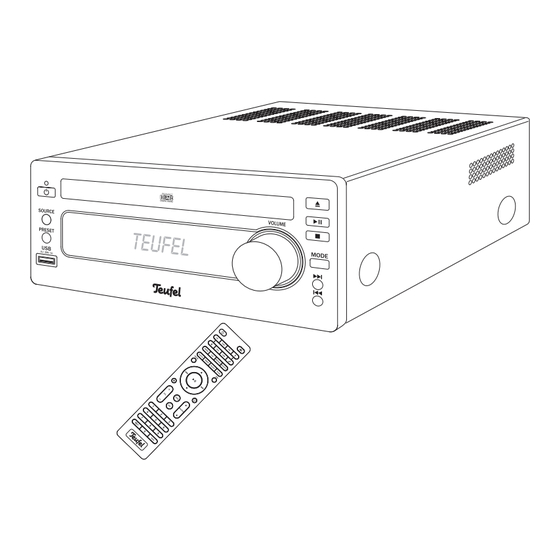

- Page 1 Technical Description And User Manual Kombo 11 CD receiver with FM, DAB/DAB+, ® USB playback and Bluetooth...
-
Page 2: Table Of Contents
Troubleshooting ......38 Power supply ....... 17 Declaration Of Conformity ..39 Operation ........18 Activating and deactivating ..18 Technical Data ......40 EcoPower mode ......18 Selecting a source ......19 Adjusting the volume ....20 Adjusting the sound ....21 Adjusting the balance ....21 • Kombo 11... -
Page 3: General Notes And Information
® Located on the back side of Bluetooth symbol are registered the device, e.g. serial no.: trademarks of Bluetooth SIG, Inc. KB20240129A-123. and any use by Lautsprecher Teufel is licensed. Thank you for your support! • Kombo 11... -
Page 4: Contact
Fax: +49 (0)30 / 300 930 930 Check that all items have Online support: been delivered and that www.teufelaudio.com/service nothing is damaged. If you Contact form: find any damage, do not www.teufelaudio.com/contact operate the device; instead contact our customer service department. • Kombo 11... -
Page 5: For Your Safety
• If the unit emits smoke or smells of potential damage. burning or emits unusual sounds, disconnect it immediately from the mains and do not operate it anymore. • Never open the housing of the device or mains adapter. • Kombo 11... - Page 6 Extended listening at high volumes socket. Then send the device to our may lead to hearing loss. service address. To avoid damage to health, avoid extended listening at high volumes. • Kombo 11...
- Page 7 • If your Kombo 11 is set to full volume, • Never attempt to recharge it may produce very high sound batteries.
-
Page 8: Explanation Of Symbols
You can hand old electrical devices over to the local reusable materials/ recycling centre. Please contact your vendor directly for more information about this topic. • Kombo 11... -
Page 9: Overview
Unpacking • Carefully open the box and care- fully lift the device out of the box. Package contents (1) 1× Kombo 11 (2) 1× remote control KB 11 RC 19 (3) 1× mains adapter (4) 1× FM/DAB throw-out antenna (5) 2× speaker cable (6) 2×... -
Page 10: Operational Controls And Connections
(20) SOURCE – Select audio source CD and USB playback: Adjust (21) – switch the device on and to repeat standby mode (13) – Radio: Set a station, CD and USB playback: Fast forward/skip ahead • Kombo 11... -
Page 11: Kombo
(24) (23) (22) (22) ANTENNA – F-connector jack for the antenna (23) AUX IN – RCA jacks for connecting an audio source (24) POWER – Connector jack for the mains adapter (25) SPEAKER – Speaker connec- tions • Kombo 11... -
Page 12: Remote Control
Remote Control (27) (28) (29) (30) (26) (59) (42) (31) (41) (32) (40) (33) (39) (34) (58) (43) (38) (37) (36) (35) (44) (57) (45) (56) (46) (55) (47) (48) (54) (49) (50) (51) (53) (52) • Kombo 11... - Page 13 10 seconds (41) AUX – Select AUX IN as source (42) – Open/close the CD tray (43) DIM – Set the brightness of the display panel (44) – Set the values, Radio: Select station memory • Kombo 11...
-
Page 14: Inserting/Changing The Batteries
4. Place the cover back on the side of the remote control towards compartment and push it closed. the Kombo 11. Make sure that the infrared light is not obstructed by objects. • Kombo 11... -
Page 15: Set Up/Connection
(www.teufelaudio.com) in – In this case, wait approx. the “Accessories” area. On the back side of the Kombo 11 2 hours before you connect are the SPEAKER connecting termi- and activate it. nals (25) for the “Right” and “Left”... -
Page 16: Audio Input
RCA jack or a 3.5 mm jack plug socket. Connect these units to the AUX IN jacks (23) using an appropriate connector cord. Cables are available from our online shop (www.teufelaudio.com) in the “Accessories” section. (23) (22) • Kombo 11... -
Page 17: Power Supply
(see section tion. “Setting the time”). – You can also use an antenna Thus, the Kombo 11 is operational. adapter to connect the Kombo 11 with a cable connection. However, DAB+ reception is not possible in all networks. -
Page 18: Operation
Operation Activating and (16) deactivating – Turn the Kombo 11 on or to standby (21) with the button (21)/(59). – To turn it on, you can also use the (20) TEUFEL source buttons CD (27), DAB (28), FM (29), (30), AUX (41) and USB (32) as well as the SOURCE button (20). -
Page 19: Selecting A Source
• BT – digital source via wireless ® ® Bluetooth (see „Bluetooth Mode“ on page 25). • AUX – analogue source via the AUX IN jacks (23). • USB – playback of USB storage devices (see „USB playback“ on page 31). • Kombo 11... -
Page 20: Adjusting The Volume
(16) while (26) making the setting. The volume setting of an external player often affects the volume of the Kombo 11. Mute – Use the button (26) to turn the sound off. The message “MUTING” will flash on the display panel (16). -
Page 21: Adjusting The Sound
By pushing the CLOCK button (38), operation after two seconds of button you can show the time, also when the inactivity. Kombo 11 is in standby. Adjusting the balance • With the balance, you set the sound level ratio between the right and left speaker. -
Page 22: Radio Playback
Radio Playback The Kombo 11 is equipped with a If the station transmits an RDS radio for DAB+ and FM/USW. signal, the name of the station and, if applicable, the radio text will appear • DAB – Reception of digital radio on the display panel (16) after a few stations in the band from 174.928... -
Page 23: Station Memory
“10+” button (53). (51) The message “P xx SAVE” (the slot number will appear instead of “xx”) (53) (52) will be shown on the display panel (16). The station has now been saved. • Kombo 11... - Page 24 (35) – Hold the SCAN button (35) on the remote control or the MODE button (12) on the Kombo 11 down for a few seconds to start the automatic station scan. The device saves the first 20 stations for the mode.
-
Page 25: Bluetooth ® Mode
10 metres that is limited by walls and furnishings. If the connection is cut off, the Kombo 11 will attempt to re-establish a connection until you select another source. NOTICE – Only use the Bluetooth ®... -
Page 26: Pairing
Pairing VOLUME To play the audio of your external TEUFEL player on your Kombo 11 via Blue- ® tooth , connect the devices with each other. This is called “Pairing”. (20) (16) 1. Push the button (30) or select “BT” with the SOURCE buttons (20)/(49). - Page 27 Playback Interruption of connection The volume setting of the If your external player moves out external player affects the of the range of your Kombo 11, the volume of the Kombo 11. Bluetooth ® connection will be inter- rupted. If you are back within range 1.
-
Page 28: Cd Mode
CD Mode Only use commercially-available CDs carrying one of the adjacent symbols. The Kombo 11 can read normal CDs with a diameter of 80 and 120 mm as well as music files in the audio CD, MP3, M4A and WMA formats saved on them. -
Page 29: Disc Playback
(“Txxx”) on the display panel. – Stop playback: Push the button (11)/(55). Now, the display panel (16) will (10) show the number of folders (“Axx”) (11) VOLUME and tracks (TO xx) on the CD. TEUFEL (12) (13) (14) (16) • Kombo 11... -
Page 30: Ejecting The Disc
“A-B” on the display panel. Push the A-B button (39) to stop (42) repeat. (40) (33) Random playback (39) (34) Use the SHUFFLE button (33) to switch random playback on and off. The message “SHUF” will appear on the display panel. • Kombo 11... -
Page 31: Usb Playback
Up to 5,000 files can be saved on it in select “USB” with the SOURCE up to 8 directory levels. buttons (20)/(49). 3. The Kombo 11 will read the USB device. The message “Loading” will (16) appear on the display panel (16). Playback will automatically start... - Page 32 (“Txxx”) on the display panel. – Stop playback: Push the button (11)/(55). Now, the display panel (16) will briefly show the number of folders (57) (45) (“Axx”) and tracks (TO xx) on the USB device. (56) (47) (55) (51) (53) • Kombo 11...
-
Page 33: Removing The Usb Device
– Never remove the USB folder/directory of the CD are played back endlessly in order. device while the Kombo 11 is • RREP ALL – all tracks on the CD still accessing it! will be played back in order. After- 1. -
Page 34: Clock
The time is now set. Automatically via radio Set an FM radio station with RDS signal or a DAB radio station. After a few minutes, the Kombo 11 will pick up the time signal from the radio station and set the clock accordingly. Manually... -
Page 35: Displaying The Time
5. Set the number of hours with the buttons (46) and (44). 6. Tap the TIMER button (37) once. The display panel will flash the minutes. 7. Set the number of minutes with the buttons (46) and (44). • Kombo 11... -
Page 36: Sleep Function
Sleep function VOLUME TEUFEL This function allows the Kombo 11 to switch itself off after a preset period of time. (16) 1. Start the desired playback. 2. Push the SLEEP button (36). The message “Sleep 5 min” will appear on the display panel (16). -
Page 37: Care And Cleaning
In case of stubborn marks, a mild soap solution may be used. – Do not use caustic cleaning products, white spirit, thinners, petrol or similar under any circumstances. Such cleaning agents may damage the delicate surface of the housing. • Kombo 11... -
Page 38: Troubleshooting
® tooth Kombo 11 has not On the external player, select ® been selected as the “Teufel KB 11 CR 19” as the Bluetooth output device. output device. Bluetooth ® connection Set up the Kombo 11 and/or external impaired by another player in another location. -
Page 39: Declaration Of Conformity
(e.g. from MP3 files). Declaration Of Conformity Lautsprecher Teufel GmbH hereby declares that this product complies with the requirements of the directives 2014/30/EU, 2014/35/EU and 2014/53/EU to the extent they are installed and used in accord- ance with the instructions of the manufacturer. -
Page 40: Technical Data
100–240 V~, 50–60 Hz, 120 W max. You can find further technical data on our website. Technical changes reserved! Please contact our customer service department with any questions, suggestions, or complaints: Lautsprecher Teufel GmbH BIKINI Berlin Budapester Str. 44 10787 Berlin (Germany)
