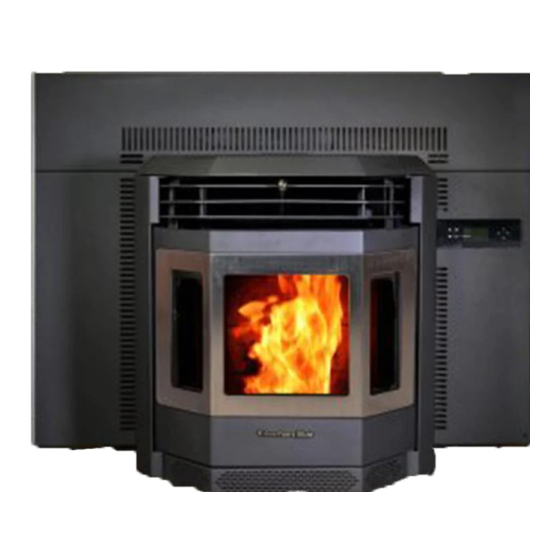

- Page 1 Operator's Manual HP22i Pellet Stove Insert WWW.COMFORTBILT.NET...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions............3-6 Introduction and Pellets..........7 Safety and Other Features..........8 Specifications..............9 Installation Overview............10 General Venting............11 Minimum Termination Clearances......12 Masonry Heater Installation.........13 Factory Built (Metal) Heater Installation.....14 Installation into Combustible Enclosure....15 Framing................15 Minimum Enclosure Clearances........16 Minimum Clearance to Combustibles......16 Minimum Mantel Clearances........17 Insert Finishing (Shroud)..........18 Controller...............19... - Page 3 WARNING WARNING Please read this entire manual before HOT! Do not touch. Severe burns installation or use of this pellet fuel- and/or the ignition of clothing may burning room heater. Failure to follow occur. Glass and other surfaces are hot these instructions may result in property during operation and cool down.
-
Page 4: Safety Precautions
WARNINGS AND SAFETY IMPORTANT SAFETY PRECAUTIONS PRECAUTIONS This symbol points out important safety instructions which, if not Please read this section carefully. followed, could endanger your Operate the stove according to the safety personal safety. Read and follow all instructions and recommendations outlined here instructions in this manual before and inserted throughout the text. - Page 5 WARNING WARNING Read this entire manual before you install and DO NOT use your new pellet stove. Failure to follow Burn garbage in this unit. The burning of instructions may result in property damage, other solid fuels such as cord wood or wood bodily injury, or even death.
- Page 6 CAUTION CAUTION Installation and repair of this pellet stove All applicable building codes for your location should be done by a qualified service person. must be followed. In areas where building codes The appliance should be inspected before require additional steps to the installation of this use and at least once per year by a qualified product that are not included in this manual, the service person.
-
Page 7: Introduction And Pellets
INTRODUCTION PELLETS Congratulations on your investment in quality. We This pellet stove is designed and approved to have worked hard to ensure that this pellet stove burn wood pellets, that comply with pellet fuels meets the highest standards for usability and industry standards. -
Page 8: Safety And Other Features
AUTOMATIC SAFETY FEATURES UNDERSTANDING YOUR STOVE Your stove utilizes a vertical auger fuel feed system POWER OUTAGE that is operated by a microprocessor controlled During a power outage, the stove will shut down digital circuit board. The digital circuit board allows safely. -
Page 9: Specifications
SPECIFICATIONS WARNING Model Number HP22i BTU/Hour Output (1) 20,000-50,000 This stove has a manufacturer set minimum low Heating Capacity (2) Up to 2,800 sq. ft. burn rate that must not be altered. It is against Particulate Emissions 1.511 g/hr federal regulations to alter this setting or otherwise Efficiency 73.2%... -
Page 10: Installation Overview
INSTALLATION OVERVIEW... -
Page 11: General Venting
GENERAL VENTING WARNING 1) Type of Vent Must be an approved 3" or 4" diameter type "L" or Pellet vent must maintain a minimum 3" "PL" vent, vented to the outside or connect the clearance to any combustible. (Install vent to a factory built type "A" chimney using an vent at clearances specified by the vent adaptor;... -
Page 12: Minimum Termination Clearances
MINIMUM TERMINATION CLEARANCES... -
Page 13: Masonry Heater Installation
WARNING INSTALLATION MASONRY HEATER INSTALLATION: Do not remove bricks or mortar from Prior to installation: Stand-offs may be removed to fit the fireplace. the insert into the fireplace. When installing the insert into a masonry fireplace, do not remove any brincks or masonry. Do not weaken the structure, or reduce the protection for combustible materials to less then that required by the National Building Code. -
Page 14: Factory Built (Metal) Heater Installation
FACTORY BUILT (METAL) HEATER INSTALLATION Prior to installation: Stand-offs may be removed to fit the insert into the fireplace. When installing the insert into a masonry fireplace, do not remove any brincks or masonry. Do not weaken the structure, or reduce the protection for combustible materials to less then that required by the National Building Code. -
Page 15: Installation Into Combustible Enclosure
C. Refer to the vent manufacturer's installation instructions and to "General Venting" section. Connect the vent. D. Install surrounding panel. See "HP22I Finishing - surrounding Panel Installation" section. E. Consideration must be taken during installation that removal of the insert is necessary for... -
Page 16: Minimum Enclosure Clearances
2) MINIMUM ENCLOSURE CLEARANCES 3) MINIMUM CLEARANCES TO COMBUSTIBLES Side wall to heater 8" Mantel to top of heater 8" Top facing to heater 6 3/8" Side facing to heater 6" Floor protection* 6" *Floor Protection: Minimum 6" in front of door and to either side... -
Page 17: Minimum Mantel Clearances
4) MINIMUM MANTEL CLEARANCES... -
Page 18: Insert Finishing (Shroud)
INSERT FINISHING (SHROUD) 1) Surrounding Panel Installation Slide the surrounding panel assembly Secure the panel using the six M6x20 down over the insert body. screws. Connect the cable to the control panel. -
Page 19: Controller
BECOMING FAMILIAR WITH YOUR CONTROLLER Figure 17: Control keypad CONTROLLER BUTTONS Infrared Receiver: Receives signal from remote control. (Available separately) Power Indicator: Illuminates when main power is switched on. Alarm Light: Illuminates if stove is not operating correctly. On/Off Button: Starts and stops operation of stove. Timer Button: Allows you to choose the start or shutdown time of the stove. -
Page 20: Screen Display
MAIN OPERATION CONTROLLER SCREEN DISPLAY Figure 19: Display Screen Date and Time: Displays time and 7. Igniter Indicator: Indicates when the date. igniter is being fired. Heating Power Level: Indicates the 8. Combustion Blower Indicator: Indicates level of power at which the stove is when the exhaust/combustion fan is running. -
Page 21: Pre-Operation
Make sure the hopper is clean and free of WARNING foreign matter, including pellet fines and dust. Fill the hopper with wood pellets, making sure Never use flammable liquids such as gasoline, that NO parts of the bag or any foreign objects gasoline-type lighter fuel, charcoal, lighter enter the hopper, as this may cause harm to fluid, or fire starting gels in or around the... -
Page 22: Operation
TEMPERATURE CONTROL MODE OPERATION After you have chosen the desired operation The Thermostat Mode allows you to set the mode for your stove, press the ON/OFF button temperature of the room. The stove will increase or decrease the level of heat it outputs automatically to start the stove ignite cycle. -
Page 23: Setting Data
SETTING DATA ON YOUR CONTROLLER SETTING THE TIME AND DATE Press and hold the "Enter" button. This will take you to the "Set Data" screen. See Figure 22 Press "Enter" again to enter the "Set Clock" screen. See Figure 23 To change the hour, press "Enter". - Page 24 5. "Yes" will be highlighted. Pressing "Enter" will TIP: If at any point, you need to leave the confirm your selection and will take you out of weekly schedule screen or once you have your first set time. finished setting all of your times, select the If you wish to erase a scheduled time, use the "Exit"...
- Page 25 To Set Blower Voltage: IMPORTANT: Changing the exhaust voltage does Press and hold the "Enter" button. This will take NOT change the feed rate. Therefore, on high heat you to the "Set Data" screen. power levels, where the feed rate is faster, a low Using the "Scroll Down"...
-
Page 26: Diagnostics
Component Keywords: DIAGNOSTICS Your stove's controller comes equipped with an Stalls: Changing the stall # will allow you to test on-board diagnostics option that will let you test the components in the various heating power levels. some components of the stove. NOTE: You will only be able to enter the Fire: Tests whether the igniter is working diagnostic screen when the stove is turned... -
Page 27: Maintenance
MAINTENANCE SOOT AND FLY ASH The products of combustion will contain small NORMAL CARE AND MAINTENANCE particles of fly ash. The fly ash will collect in the A majority of all problems with pellet stoves are exhaust venting system and restrict the flow of either directly or indirectly related to general the flue gasses. - Page 28 DAILY MAINTENANCE BURN POT Remove and clean the burn pot daily. Make sure all of the airflow holes in the burn pot are unobstructed. Using a small metal pick or drill bit can aid you if these get plugged through general use.
- Page 29 REAR AIRFLOW/EXHAUST CHAMBER In addition to daily and weekly maintenance tasks, the exhaust chamber covers should be removed and the entire chamber vacuumed thoroughly once every 1.5 tons of pellets burned. First, you will need to locate the cover plates to the rear exhaust chambers.
-
Page 30: Warranty Information
TROUBLESHOOTING & REPAIR We build quality and durability into the design of our products; but no amount of careful design by us, and careful maintenance by you, can guarantee a repair free life for your stove. Most repairs will be minor, and easily fixed by following the suggestions in the troubleshooting guides on our website.
Need help?
Do you have a question about the HP22i and is the answer not in the manual?
Questions and answers

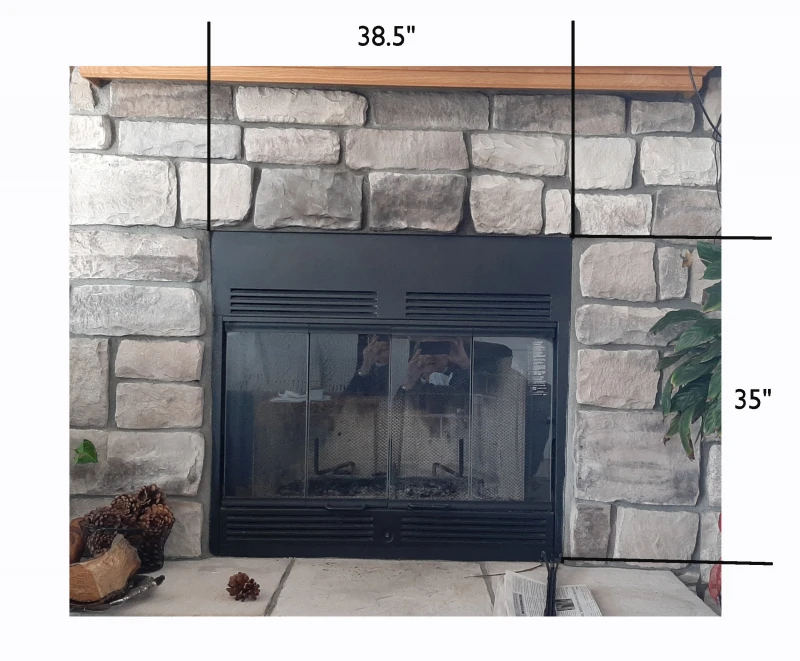

We have a wood fireplace and would like to install the HP22i. Does the shroud on the HP22I have to seal tightly against the face of an existing fireplace? (See photo for more clarity) Thanks!
