Replacing the stylus

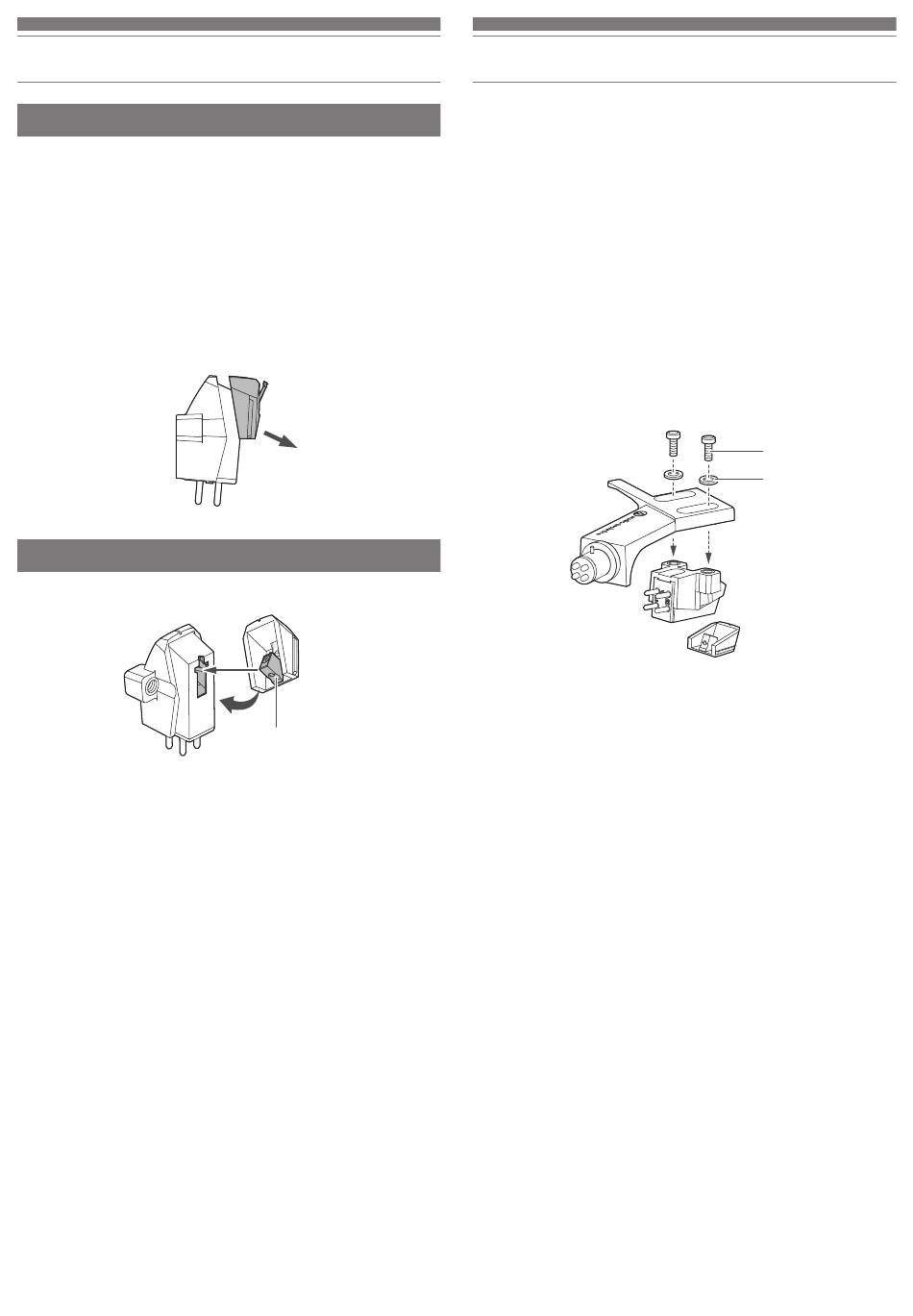

Removing the stylus
• In addition to the deterioration of sound quality, records may also be
damaged as the cartridge's stylus tip wears down.
• As a rule of thumb, replace the stylus after 300 hours of use.
• Be sure to disconnect the product's AC adapter from the outlet.
• When replacing the stylus, hold the headshell and the cartridge body
tightly.
1. Release the headshell from the tonearm.
• Fix the tonearm with the clamp and then remove the headshell gently.
2. After removing the cartridge's protector, remove the stylus
by pulling in the direction of the arrow without touching the
cantilever, stylus tip, and magnets.
Installing a new replacement stylus
1. Mount the new replacement stylus to the cartridge.
2. Mount the headshell onto the tonearm.
Pull
Align the position of the inner
protrusion.

Replacing a cartridge

Refer to the user manual for the cartridge that you will be using if you
are replacing the cartridge included with this product with another,
commercially available cartridge. After you replace the old cartridge
with a new one, you must readjust the overhang and the tonearm's
balance and tracking force.
1. Release the headshell from the tonearm.
• Use the clamp to secure the tonearm and then remove the headshell
gently.
2. Remove the stylus from the cartridge.
3. Remove the lead tips.
• Be careful not to damage the lead tips.
4. Using a commercially sold, non-metallic slotted screwdriver,
remove the installation screws, and then remove the cartridge
from the headshell.
5. Refer to the user manual for the new cartridge for mounting
instructions and connecting to the lead tips.
6. Using a commercially sold, non-metallic slotted screwdriver,
tighten the screws in both places, and then adjust the overhang.
• Refer to "Adjusting the overhang" on p. 14.
• After the adjustments are complete, tighten the screws securely.
7. Attach the headshell to the tonearm.
8. Adjust the tonearm balance and tracking force.
• Refer to "Setting tonearm balance" on p. 7 and "Setting tracking force"
on p. 8.
12
Installation screws
Plastic washers
