*941148-00*
941148-00

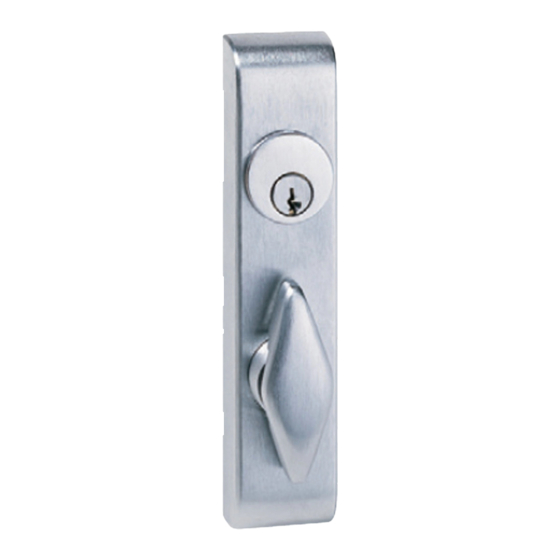

Control for Metal Door Application
1. Prepare door for exit device. See exit
device instructions for locations of
holes, backset (line X-X), and center
lines.
2. Prepare door for control:
A. Transfer line X-X from inside (exit
device side) of door to outside
(control side) of door. Use extra
care if edge of door is beveled.
Be sure line X-X is parallel to edge
of door.
B. Locate and prepare holes as
indicated.
3. Reverse cam on back of control if reqd.
(see Figure 1 on backside of sheet).
4. Install rod member (Figure 2):
A. Slip top rod assembly in door until
bottom of rod is visible in control
cutout.
B. Slip rod member on top rod
according to handing of door. Keep
rod member visible in cutout and
lower top rod assembly until latch
release is in position on latch release
reinforcement. Slightly tighten socket
set screws in rod member to
maintain this position.
C. Install and adjust top and bottom rod
assemblies. See installation
instructions for vertical rod device.
D. Adjust member so that the bottom
surface is 1/8" below the centerline
of thumbturn. Secure rod member
by tightening socket set screws.
5. Complete the device installation.
6. Install cylinder if required (Figs. 3 & 4).
Insure cylinder cam is set for required
function and replace if necessary.
7. Retract latch bolts by depressing
device crossbar.
8. Apply control and test key, control,
and device action.
376-T, 376-T-BE
C L
of vertical rod
Omit cylinder
for BE function
7/16"
1/2" dia.
1/4"
2 places
11/16" R, 2 places
(omit for BE)
3"
6-1/4"
1-3/8" dia.
(BE only)
1-7/8"
53-1/2"
to finished
C L
of control
Outside
face of
lock stile
For cutouts on inside face
of door see instructions in
device carton
C L
Corresponds to
center line of
Thumbturn
floor
LHR shown
RHR opposite
Device Application Schedule
5547-F Vertical Rod Exit Device
8847-F Vertical Rod Exit Device
Customer Service
1-877-671-7011
www.allegion.com/us
Installation Instructions
C L
of vertical rod
5/16" dia.
2 places
Inside
face of
lock stile
© Allegion 2014
Printed in U.S.A.
941148-00 Rev. 01/14-b

Advertisement

loading
Need help?

Need help?

Do you have a question about the 376-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Von Duprin 376-T

  • Page 1 *941148-00* 376-T, 376-T-BE 941148-00 Control for Metal Door Application Installation Instructions 1. Prepare door for exit device. See exit of vertical rod of vertical rod device instructions for locations of holes, backset (line X-X), and center Omit cylinder lines. for BE function 7/16”...
  • Page 2 TL Function - Control remains unlocked when key is removed. NL Function - Control relocks when key is removed. Requires use of key to operate. Control cam For NL function replace TL cylinder plate (std. Screw on all controls) with NL cylinder plate (included in polybag) replacing screw and washer.
