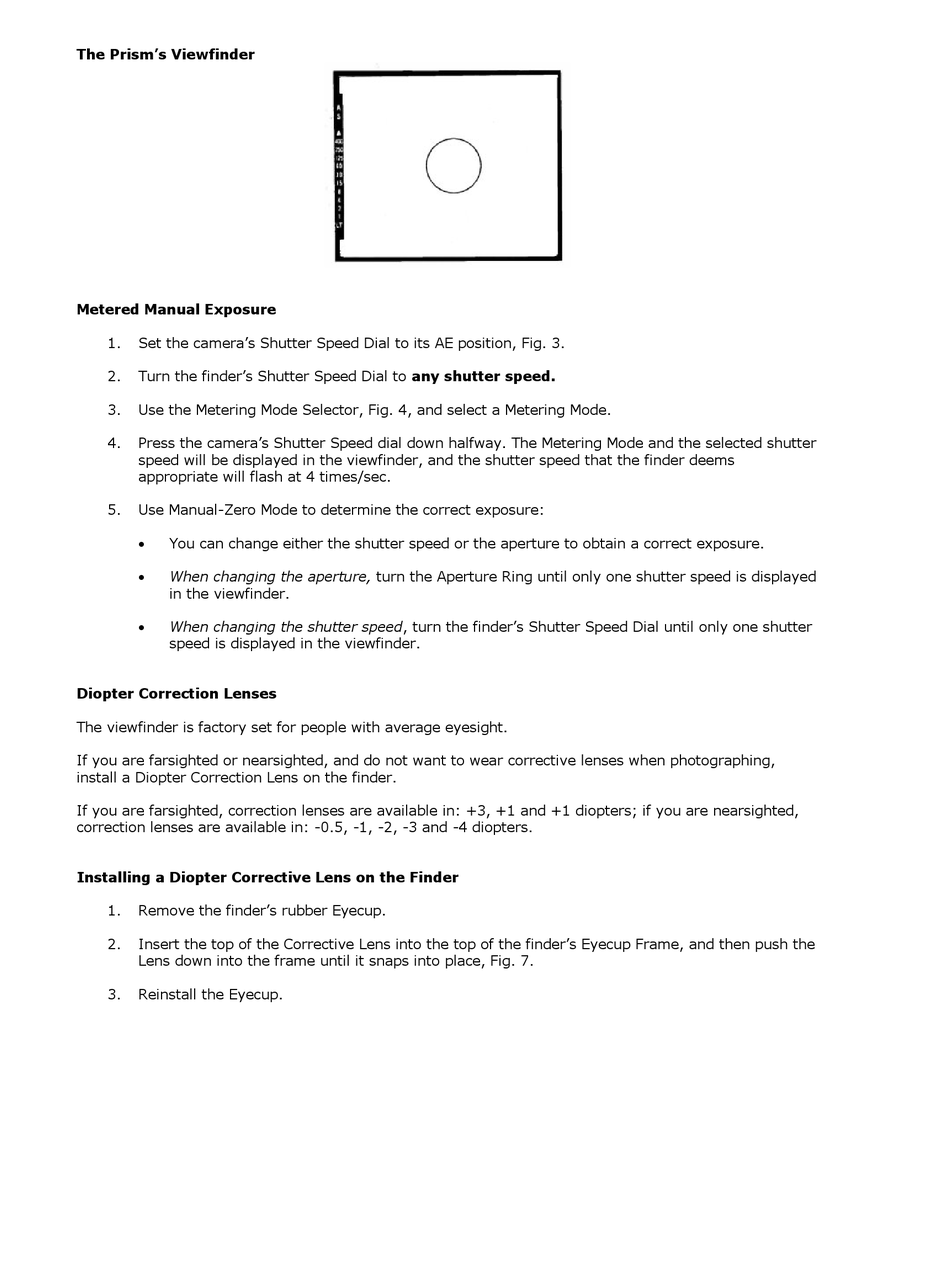

The Prism's Viewfinder

Metered Manual Exposure

1. Set the camera's Shutter Speed Dial to its AE position, Fig. 3.
2. Turn the finder's Shutter Speed Dial to any shutter speed.
3. Use the Metering Mode Selector, Fig. 4, and select a Metering Mode.
4. Press the camera's Shutter Speed dial down halfway. The Metering Mode and the selected shutter
speed will be displayed in the viewfinder, and the shutter speed that the finder deems
appropriate will flash at 4 times/sec.
5. Use Manual-Zero Mode to determine the correct exposure:
 You can change either the shutter speed or the aperture to obtain a correct exposure.
 When changing the aperture, turn the Aperture Ring until only one shutter speed is displayed
in the viewfinder.
 When changing the shutter speed, turn the finder's Shutter Speed Dial until only one shutter
speed is displayed in the viewfinder.

Diopter Correction Lenses

The viewfinder is factory set for people with average eyesight.
If you are farsighted or nearsighted, and do not want to wear corrective lenses when photographing,
install a Diopter Correction Lens on the finder.
If you are farsighted, correction lenses are available in: +3, +1 and +1 diopters; if you are nearsighted,
correction lenses are available in: -0.5, -1, -2, -3 and -4 diopters.

Installing a Diopter Corrective Lens on the Finder

1. Remove the finder's rubber Eyecup.
2. Insert the top of the Corrective Lens into the top of the finder's Eyecup Frame, and then push the
Lens down into the frame until it snaps into place, Fig. 7.
3. Reinstall the Eyecup.
