Treasure Cove Vibra-iking 750 Quick Start Manual

TREASURE
detectors with a pulse
P R O D U C T S
TM
Vibra iking
750

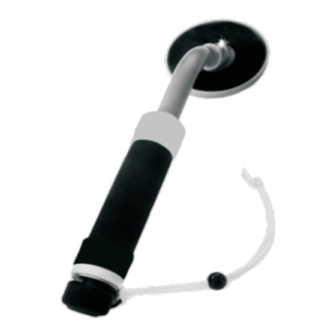

Pinpointer Metal Detector
Thank you for choosing the Vibra- iking 750 ™
. The unique sealed design
made by TianXun
detecting in any environment including grass, mud,
sand, black sand, or even in fresh or salt water.

PRODUCT FEATURES

·Communicates with vibration & light - When a target
is located the Vibra- iking ™ 750 signals with pulses of
vibration and flashes of bright light from a white L.E.D.
·Pulse Induction Technology (PI) - Allows hunting in
salt water or in any type of soil, including black sand.
·Detection depth stability - Advanced circuitry maintains
detection distance throughout the life of the battery.
·Target distancing - As you get closer to the target the
pulses of vibration and light will increase in quantity .
·Automatic tuning - The state of the art microprocessor
controlled design requires no adjustments of any kind.
·Waterproof - Sealed design allows hunting in the rain
or under water to a depth of 100 feet. Great for divers!

BATTERY INSTALLATION

When the knob of the battery compartment seal is rotated
clockwise, the plug expands and presses against the inside
wall of the battery compartment, sealing the unit.
TM
To open the battery compartment seal, rotate the knob
counter-clockwise a few turns, then pull to remove.
Connect a standard 9v battery to the battery clip and insert
the battery into the detector, clip side first.
To replace the seal, insert all the way in. Then turn the
knob clockwise until hand tight to assure a water-tight seal.
Before submerging the Vibra-
sure the battery compartment seal is secure.

OPERATING INSTRUCTIONS

Turn on sequence: Hold unit with the search coil up for
at least 5 seconds. Light will blink. Two short pulses of
vibration and a steady dim light indicate unit is on.
Turn off sequence: After use, hold unit with the search
coil up for at least 5 seconds. Light will blink. Two long
pulses of vibration and no light indicate the unit is off.
Low battery turn off: When the battery is low the unit will
shut down automatically indicated by four long pulses.
Operation: The Vibra-
metal detector
allows
of vibration and bright light. These pulses increase in
dirt, quantity the closer the search coil is to a target.
The quantity of pulses is proportional to the target size
and distance. The bigger the target, or the closer the search
coil is to the target, the higher the pulse count.
The detection field projected resembles a cone shape, with
the deepest depth of detection in the center of the coil.
Move the search coil in a sweeping motion along the
surface of the area you are searching. The slower the
sweep the deeper the detection depth.
Vibra-iking 730
Arms and shoulders tired from
swinging that heavy detector?
,
That s why we created it.
· Fully adjustable
iking ™ make
iking ™ communicates through pulses
Other fine products from Kingdetector
TM
IMPORTANT NOTES
Raising the detectors coil up while in use will start the
turn-off sequence, indicated by a blinking light. Lower
the detectors coil within 5 seconds to continue detecting.
Unit will not detect when the light is blinking in either the
turn-on or turn-off sequence.
As with any new detector you should practice with known
targets to develop your technique.
HELPFUL HINTS
If you continue to hold the detector with the coil up after
turn on, then the detector will remain on indefinitely. This
feature may be useful if searching with the detectors coil
in a vertical position is necessary.
You can secure the Vibra- iking ™ to your wrist using the
attached wrist strap. To adjust fit, press down on the cord
lock button and move it to the desired location.
CARE AND MAINTANANCE
Your Vibra- iking ™ is a sensitive electronic instrument.
Although it is rugged, care in transporting and handling
will extend its life and result in optimum performance.
When the Vibra- iking ™ is off there is no drain on the battery.
However, if stored for long periods of time, we recommend
that the battery be removed to prevent damage to the
detector due to a potential battery leak.
If the detector has been exposed to salt water always rinse
with fresh water and check the battery compartment for
any leaks. If water has entered the battery compartment
carefully wipe dry and leave open until completely dry.
Always use high quality batteries such as
alkaline or nickel metal hydride (NiMH).
