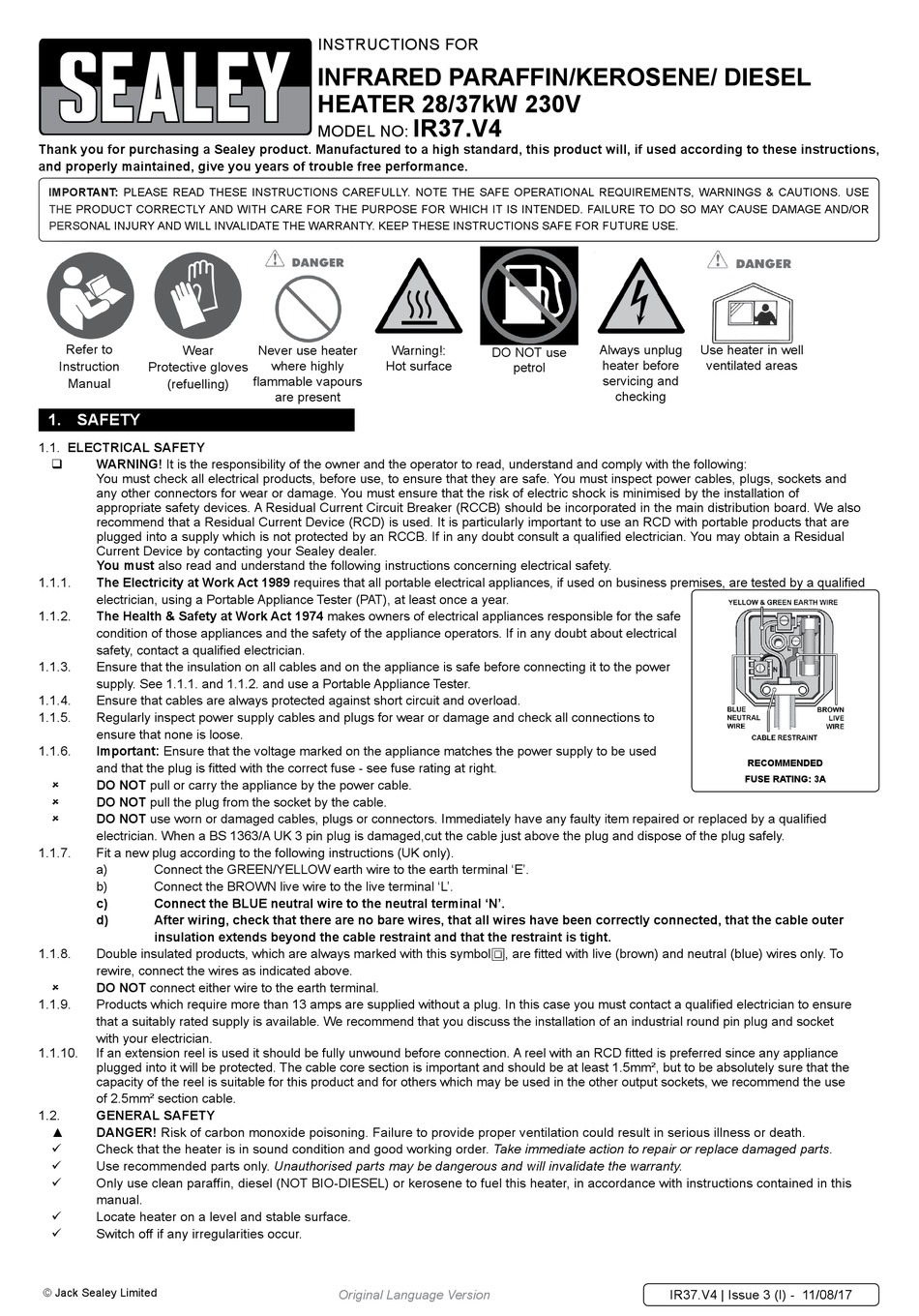

Sealey IR37.V4 Instructions Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear
instruction Protective gloves
manual
(refuelling)
1. SAFETy
1.1. ELECTRICAL SAFETy
‰ ‰ WARNING! it is the responsibility of the owner and the operator to read, understand and comply with the following:
‰
‰
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A residual current circuit Breaker (rccB) should be incorporated in the main distribution board. We also
recommend that a residual current device (rcd) is used. it is particularly important to use an rcd with portable products that are
plugged into a supply which is not protected by an rccB. if in any doubt consult a qualified electrician. You may obtain a residual
current device by contacting your sealey dealer.
you must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance tester (PAt), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe
condition of those appliances and the safety of the appliance operators. if in any doubt about electrical
safety, contact a qualified electrician.
1.1.3. ensure that the insulation on all cables and on the appliance is safe before connecting it to the power
supply. see 1.1.1. and 1.1.2. and use a Portable Appliance tester.
1.1.4. ensure that cables are always protected against short circuit and overload.
1.1.5. regularly inspect power supply cables and plugs for wear or damage and check all connections to
ensure that none is loose.
Important: ensure that the voltage marked on the appliance matches the power supply to be used
1.1.6.
and that the plug is fitted with the correct fuse - see fuse rating at right.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. immediately have any faulty item repaired or replaced by a qualified
8
electrician. When a Bs 1363/A uK 3 pin plug is damaged,cut the cable just above the plug and dispose of the plug safely.
1.1.7. fit a new plug according to the following instructions (uK only).
a) connect the Green/YelloW earth wire to the earth terminal 'e'.
b) connect the BroWn live wire to the live terminal 'l'.
c) Connect the BLUE neutral wire to the neutral terminal 'N'.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.
1.1.8. double insulated products, which are always marked with this symbol
rewire, connect the wires as indicated above.
DO NOT connect either wire to the earth terminal.
8
1.1.9. Products which require more than 13 amps are supplied without a plug. in this case you must contact a qualified electrician to ensure
that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket
with your electrician.
1.1.10. if an extension reel is used it should be fully unwound before connection. A reel with an rcd fitted is preferred since any appliance
plugged into it will be protected. the cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use
of 2.5mm² section cable.
1.2. GENERAL SAFETy
DANGER! risk of carbon monoxide poisoning. failure to provide proper ventilation could result in serious illness or death.
▲
‰ check that the heater is in sound condition and good working order. Take immediate action to repair or replace damaged parts.
9
‰
‰ ‰ use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
‰
‰ ‰ Only use clean paraffin, diesel (NOT BIO-DIESEL) or kerosene to fuel this heater, in accordance with instructions contained in this
9
‰
manual.
‰ ‰ locate heater on a level and stable surface.
9
‰
switch off if any irregularities occur.
9
© Jack sealey limited
instructions for
INFRARED PARAFFIN/KEROSENE/ DIESEL
HEATER 28/37kW 230V
IR37.V4
model no:
never use heater Warning!:
where highly Hot surface
flammable vapours
are present
Original Language Version
Always unplug
do not use
heater before
petrol
servicing and
checking
, are fitted with live (brown) and neutral (blue) wires only. to
use heater in well
ventilated areas
RECOMMENDED
FUSE RATING: 3A
ir37.V4 | issue 3 (i) - 11/08/17
