AUTOMATE

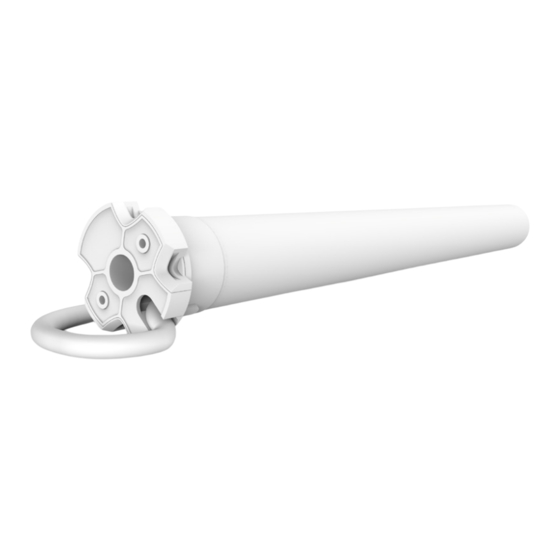

AC MECHANICAL LIMIT TUBULAR MOTOR
AUTOMATE
| mechanical limit AC motors come in 35mm and 45mm diameters with
™
various torque and speeds, including models with Quiet Operation. A "Slim Head" design
minimizes light gap.
FEATURES:
• Line Voltage (available for both 100V-120V & 220V-240V applications)
• "Slim Head" design minimizes light gap
• Low Operating Noise Levels.
• Adjustable Mechanical Limits
™
MECHANICAL
LIMIT
QUIET
OPERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE and is the answer not in the manual?

Questions and answers

Related Manuals for rollease acmeda AUTOMATE

Summary of Contents for rollease acmeda AUTOMATE

  • Page 1 AUTOMATE ™ AC MECHANICAL LIMIT TUBULAR MOTOR MECHANICAL QUIET LIMIT OPERATION AUTOMATE | mechanical limit AC motors come in 35mm and 45mm diameters with ™ various torque and speeds, including models with Quiet Operation. A “Slim Head” design minimizes light gap.
  • Page 2 For use within tubular blinds. • Ensure correct crown and drive adapters are used for the intended system. • Use only Rollease Acmeda hardware. • Before installation, remove any unnecessary cords and disable any equipment not needed for powered operation. •...

  • Page 3: Table Of Contents

    CONTENTS ASSEMBLY WIRING 2.1 Power options 2.2 Check direction ADJUST LIMITS 3.1 Adjust Upper Limit 3.2 Adjust Lower Limit MOTOR OPERATION TROUBLE SHOOTING 3 | Automate ROLLEASE ACMEDA Programming Instructions | AC Mechanical ™...

  • Page 4: Assembly

    ASSEMBLY Please refer to Rollease Acmeda System Assembly Manual for full assembly instructions relevant to the hardware system being used. Step 1. Cut roller tube to required length. Step 2. Ensure roller tube is clean and free from burrs. Step 3.

  • Page 5: Wiring

    “UP” or “DOWN” mark, swap the brown and black or red and black wires to those two buttons. Ensure mains power supply is off if you are adjusting cables During operation DO NOT turn on 2 switches at the same time 5 | Automate Programming Instructions | AC Mechanical ROLLEASE ACMEDA...

  • Page 6: Adjust Limits

    FRONT ROLL Upper limit is lowered Upper limit is raised BACK ROLL Upper limit is lowered Upper limit is raised 6 | Automate Programming Instructions | AC Mechanical ROLLEASE ACMEDA ™...

  • Page 7: Adjust Lower Limit

    FRONT ROLL Lower limit is lowered Lower limit is raised BACK ROLL Lower limit is lowered Lower limit is raised 7 | Automate ROLLEASE ACMEDA Programming Instructions | AC Mechanical ™...

  • Page 8: Motor Operation

    T +1 800 552 5100 | F +1 203 964 0513 ROLLEASE ACMEDA EUROPE Via Conca Del Naviglio 18, Milan (Lombardia) Italy T +39 02 8982 7317 | F +39 02 8982 7317 info@rolleaseacmeda.com rolleaseacmeda.com 8 | Automate Programming Instructions | AC Mechanical ™...
