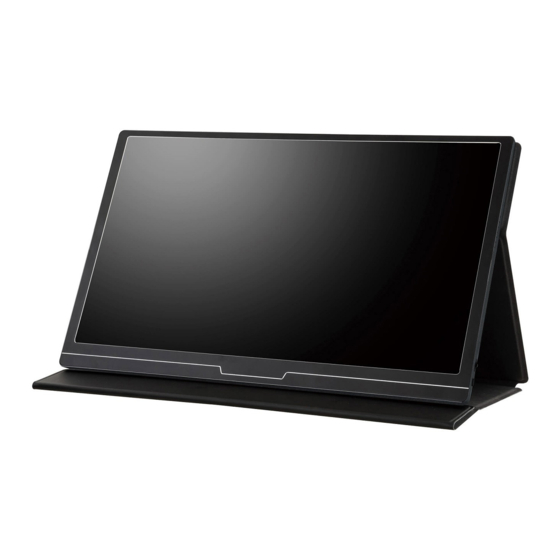

15.6 inch portable display

Advertisement

USER MANUAL

15.6 INCH PORTABLE DISPLAY
eiQ-15FHDPM
Thank you for choosing electriQ
Please read this user manual before using this portable
display and keep it safe for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-15FHDPM and is the answer not in the manual?

Questions and answers

Summary of Contents for ElectrIQ eiQ-15FHDPM

  • Page 1: User Manual

    USER MANUAL 15.6 INCH PORTABLE DISPLAY eiQ-15FHDPM Thank you for choosing electriQ Please read this user manual before using this portable display and keep it safe for future reference...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRODUCT OVERVIEW OPERATION MAIN MENU CONNECTING A DEVICE TROUBLESHOOTING TECHNICAL INFORMATION SUPPORT CLEANING AND MAINTENANCE...
  • Page 3: Safety

    SAFETY INSTRUCTIONS • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The manual should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered •...
  • Page 4: Product Overview

    PRODUCT OVERVIEW Speaker Speaker Secondary USB Type C (Power Only) HDMI Input Rocker Switch Main USB Type C Input (Power and Video ) Power/ Return button 3.5 mm Headphone Socket...
  • Page 5: Operation

    OPERATION Press and hold the power button for 3 seconds to turn the monitor ON and OFF. The screen will enter power saving mode when turned on unless there is a suitable device connected. The ROCKER SWITCH is used to increase or decrease the volume and adjust the brightness.
  • Page 6 COLOR TEMP COLOUR TEMP – Change between USER, WARM and COOL. In USER the individual RED, GREEN and BLUE values can be adjusted. OSD SETTING LANGUAGE – Change the language of the Menus. OSD TIMER – Adjust the amount of time the menu is shown before the display returns to normal operation.
  • Page 7: Connecting A Device

    CONNECTING A DEVICE COMPUTER – VIA USB TYPE C The portable display can be connected to a compatible computer using the supplied USB C cable. This must be connected to the Main USB socket on the left of the display. The computer will provide power and signal to the monitor and can be used for extended display or duplicated display use.
  • Page 8 MOBILE PHONE – VIA USB TYPE C When there is no external power supply connected to the secondary USB Type C socket on the right of the display, the mobile phone battery will supply power to the display. To reduce power usage the energy-saving mode will be activated and the display brightness will be reduced to 30%, and the user can adjust the brightness and volume of the display according to the output power of the mobile phone).
  • Page 9: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION • Make sure the video cable between the monitor and No video/ picture (led not lit) computer is connected properly and securely. • Use other electrical equipment to confirm that the power outlet is working properly. • Make sure the power button is pressed correctly. •...
  • Page 10: Technical Information

    TECHNICAL INFORMATION Product type: Portable Display Model No: eiQ-15FHDPM Visual area: 344.16*194.59mm Screen Size: 15.6 inch Panel type: Dimension: 368 * 225 * 9.0 mm Aspect ratio: 16:9 Resolution: 1920*1080 Colour Display color: 16.7M 6800K temperature: H:85°/85°Min V:85°/85°Min Visual angle: 1000:1...
  • Page 11: Cleaning And Maintenance

    • If you find white powder when you unpack your monitor, wipe it off with a cloth. • Be careful when operating the monitor, as dark monitors are easier to scratch and leave visible scratches than light monitors. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0871 984 4416 Office hours: 9AM - 5PM Monday to Friday...
