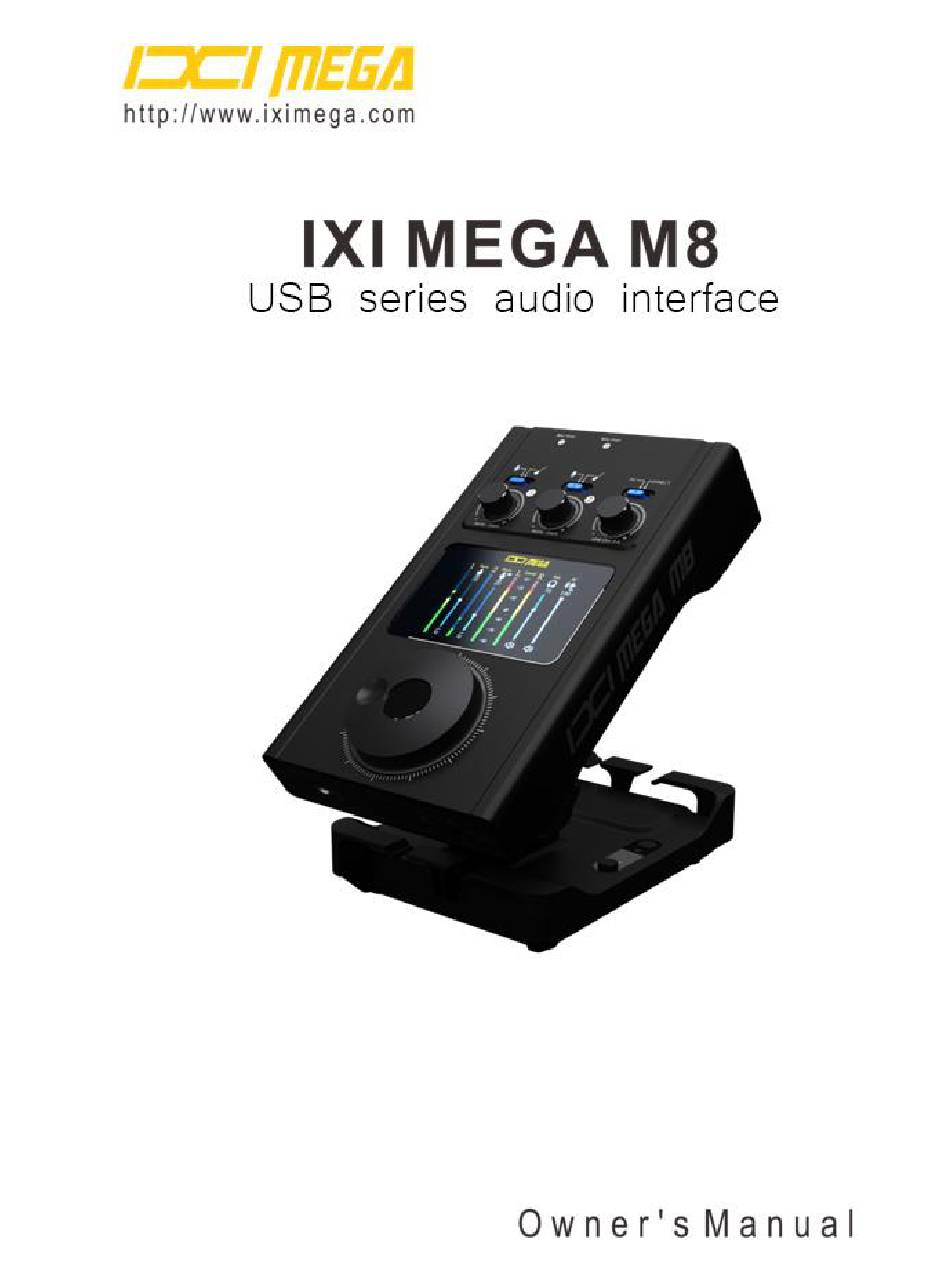

IXI MEGA M8 Owner's Manual

Usb series audio interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M8 and is the answer not in the manual?

Questions and answers

Related Manuals for IXI MEGA M8

Summary of Contents for IXI MEGA M8

  • Page 2: Table Of Contents

    IXI MEGA Pte Ltd Directory 1. An overview of the ....................1 1.1. Introduction ......................1 1.2. Product features ....................1 1.3. Hardware overview ....................1 1.4. Routing application summary ................2 1.5. Packing list ......................3 2. Control、 interface、 connection ................ 4 2.1.

  • Page 3: Introduction

    The 2.8-inch TFT LCD display provides detailed equipment signal status and product information. The base is equipped in the IXI MEGA M8 audio interface to facilitate user operation and view screen information by adjusting the Angle. You can also select the base with functions, wireless monitoring, and interface extension functions.

  • Page 4: Routing Application Summary

    IXI MEGA Pte Ltd LINE OUT balanced output *2 Stereo LINE OUT 3/4 output *1 Mobile phone interface Micro USB*1 (support digital OTG and analog communication) Fiber input/fiber output Bottom extension interface *1 (optional has a functional base, which can...
  • Page 5 IXI MEGA Pte Ltd Drag and drop routing interface 页 4...

  • Page 6: Packing List

    IXI MEGA Pte Ltd Matrix routing interface 1.5. Packing list One audio interface host, one usb-b data cable, one Micro USB power cord, one Micro USB to 3.5mm audio cable, one special adapter, quick installation guide card, after-sales and service card 。...

  • Page 7: Control、Interface、 Connection

    IXI MEGA Pte Ltd 2. Control、interface、 connection 2.1. Control is introduced 页 6...
  • Page 8 IXI MEGA Pte Ltd Knob function and hidden function, control mode, toggle switch function introduction. Multi-function knob and switch Turn the knob to control the input volume, the LCD screen displays the volume adjustment size, and the letter "G" is displayed below. When the input signal is overloaded, the knob backlight will be bright red, and green and yellow are normal.
  • Page 9 IXI MEGA Pte Ltd Turn the switch on PC position, rotate the control Line Out 3-4 3.5mm interface volume, and the green backlight is long on. Press the next time the knob mute Line Out 3-4 3.5mm interface volume, the red backlight is long on, and the volume icon on the LCD screen indicates X.
  • Page 10 IXI MEGA Pte Ltd DIRECT STATE 页 9...
  • Page 11 IXI MEGA Pte Ltd 1. IC/INST1 power frequency signal display 2. MIC/INST1 volume adjustment display 3. MIC/INST2 power frequency signal display 4. MIC/INST2 volume adjustment display 5. Hardware output 1/2 electrical frequency signal display 6. Hardware output 1/2 volume adjustment display 7.
  • Page 12 IXI MEGA Pte Ltd 10. MIC/INST2 status prompts "G" gain, "M" mute, and "A" automatic 11. Hardware output 1/2 status prompt, "X:" status is mute Hardware output 3/4 state prompt, "X" state is mute state Earphone volume knob 1、 Turn and adjust the volume of the headset。...
  • Page 13 IXI MEGA Pte Ltd 2.2. The interface is introduced Back plate interface Microphone/instrument composite interface XLS/TRS 页 12...
  • Page 14 IXI MEGA Pte Ltd Line input interface TRS 6.35mm Line output interface TRS 6.35mm USB - B Optical fiber I/o interface 页 13...
  • Page 15 IXI MEGA Pte Ltd External power supply interface Front panel interface Headphone jack TRS 6.35mm Digital and analog Micro USB interface for mobile devices 页 14...
  • Page 16 IXI MEGA Pte Ltd Line output Line Out 3-4 3.5mm interface 2.3. Wiring diagram 页 15...
  • Page 17 IXI MEGA Pte Ltd 页 16...

  • Page 18: Connect To Computer

    IXI MEGA Pte Ltd 3. Connect to computer 3.1.WINDOWS Installation and setup Driver download address：http://www.iximega.com/Download.html 页 17...
  • Page 19 IXI MEGA Pte Ltd 页 18...
  • Page 20 IXI MEGA Pte Ltd 页 19...
  • Page 21 IXI MEGA Pte Ltd Save routing information Import routing information Language selection Sound card Settings 页 20...
  • Page 22 IXI MEGA Pte Ltd Sampling rate selection Support：44100Hz、48000Hz、88200Hz、96000Hz、176400Hz、192000Hz Sampling rate setting Buffer size selection 8、16、32、64、128、256、512、1024、2048 samples setting Safe mode Select the safe mode and the system will automatically set a relatively safe size in the current buffer size Format selection...
  • Page 23 IXI MEGA Pte Ltd Input channels are provided with firmware, and output channels are available in 16bit and 24bit formats Clock selection Displays current clock source status and sampling 页 22...
  • Page 24 IXI MEGA Pte Ltd 页 23...

  • Page 25: Macos Installation

    MACOS system. After successful connection, turn on the system preference Settings in the MACOS system and select the sound. The input and output are set to the IXI MEGA series audio interface. Multi-channel input and output channels can be directly invoked in professional audio applications.

  • Page 26: Connect Ios And Android System

    IXI MEGA Pte Ltd 4.Click ok to finish setting Connect IOS and Android Digital transmission requires The mobile phone to support On The Go function and support 44.1kHz,48kHz and 16bit stereo. Analog output provides mono signal, input provides stereo, frequency response range is determined by mobile analog signal input.
  • Page 27 IXI MEGA Pte Ltd 4.3. Analog connection 页 26...

  • Page 28: Working Principle Block Diagram

    IXI MEGA Pte Ltd 4.4. Working principle block diagram 页 27...

  • Page 29: Communication With Mobile Devices Application Example

    4.5. Communication application with mobile devices Example: "communicate with the mobile effector software, connect the mobile phone to the IXI MEGA M8 mobile phone interface, and transmit the signal to the mobile phone APP, which is processed by the APP and returned to the IXI MEGA M8 audio interface.

  • Page 30: Technical Information Specification

    IXI MEGA Pte Ltd 5. Technical information specifications The ADC/DAC specifications: ADC:114 dB dynamic range /-105 dB THD+N DAC:114 dB dynamic range /-100 dB THD+N Microphone input 1/2 (balance) Maximum input level: +/ -0dbu (0.7746 Vrms) Input impedance: 2.4 Kohm...
  • Page 31 IXI MEGA Pte Ltd Maximum output level (single channel) : -7.954 dBu (0.31 VRMS) Mobile phone input/output (OTG) 5/6 Connect a USB host that supports USB 1.1 stereo codec Wireless and audio input/output 7/8 (with multi-function base) Bibalanced input and output...

  • Page 32: Warranty Information

    0 ~ 50 ° C, 32-122 ° F. 7. Warranty information IXI MEGA Pte Ltd.（ “IXI MEGA” ） Ensure that this retail hardware product is free of material and process defects and will not fail under normal use. The specific contents of the terms are as follows: 1.
  • Page 33 B. As of the date of purchase, the IXI MEGA will bear the human costs arising from the replacement or repair of the parts within the warranty period.
  • Page 34 IXI MEGA will bear the transportation cost of returning the product to you. C. return only the faulty parts. IXI MEGA is not responsible for any other products or accessories returned with the faulty parts. 8. The following situations are not covered by the warranty agreement: A.
  • Page 35 IXI MEGA Pte Ltd purchase value of the product minus the reasonable wear and tear cost). The IXI MEGA is not responsible for any other loss or damage. The above indemnity is the exclusive indemnity for breach of warranty agreement. Any action or lawsuit for breach of warranty agreement must commence within eighteen (18) months/eighteen months from the date of purchase.
