Summary of Contents for Estyma Vide

  • Page 2 page 2 PL20130524...
  • Page 3: Table Of Contents

    3.3.1 Commands of queries about the parameters of boiler controller......10 4 Main display 5 Main menu 5.1 Sensors 5.2 Binary output 5.3 GSM settings 5.4 Settings 5.5 Notices 5.6 Language 5.7 Remote control panel 6 Specification estyma electronics page 3 PL20130524 www.estyma.pl...
  • Page 4: General Information

    Using mobile, you can also read out current parameters of module as well as make chnages in settings. By means of CAN interface, the Vide GSM module can remotely control the operation of heating controller of IGNEO line, and make changes in the operation modes of boiler, burner and 16 central heating circuits at most.
  • Page 5: Precautions

    Before starting any maintenance operations, you must absolutely disconnect the device from power supply. • No benzine, solvents or other chemical agents, which can damage the housing of device can be used for cleaning the device. A soft cloth is recommended for this purpose. estyma electronics page 5 PL20130524 www.estyma.pl...
  • Page 6: Procedure With The Used Equipment

    1 General information 1. General information * Any connections must be compatible with the assembly electrical wiring diagram of installation and national or local regulations as regards electrical connections. * There is no part in this device, which the user can replace himself. All service operations except cleaning or setting up the function, should be carried out only by the authorized service staff.
  • Page 7: Location

    It is recommended that the module be mounted at a height not less than 1,5 m over the floor. estyma electronics page 7 PL20130524...
  • Page 8: Description Of Connections

    2 Connection 2.4 Description of connections DESCRIPTION OF OUTLETS Name Description Power supply 5V Power (connect the power unit 5V/1.2A) Communication interface CAN for connecting the controller of boiler/burner Binary output Binary output of open collector type Current efficiency 100mA. Contact Contact input of open/closed type Sensor of room temperature T2...
  • Page 9: Review Of Functions

    PIN 1 x; x – binary output condition [0 lub 1], PIN – number assigned in GSM settings. 3.2 Information about input condition Query command about the input condition T1, T2, STYK module VIDE GSM: Example of reply: estyma electronics...
  • Page 10: Information About The Controller Of Boiler

    3 Review of functions 3.3 Information about the controller of boiler Using the mobile you can easily read out or change the parameters of heating controller from any place. 3.3.1 Commands of queries about the parameters of boiler controller Command Description Boiler? Query about the parameters of boiler...
  • Page 11 ON/OFF of controller ON = 1, OFF = 0] Range of setting: [ Example of command: 1111 Boiler:Ctrl=1; Burner Consent for the operation of burner [consent = 1, lack = 0] Range of setting: estyma electronics page 11 PL20130524 www.estyma.pl...
  • Page 12: Main Display

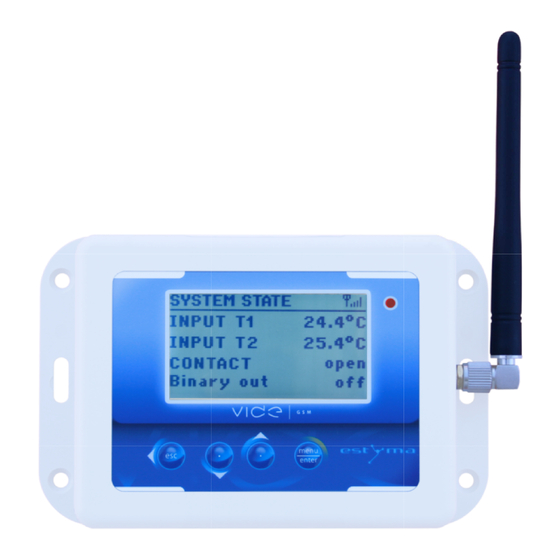

    4 Main display On the main display you will find the information about the condition of VIDE GSM module, its sensor inputs T1, T2 and contact input and about binary output condition. Your own names can be given to the inputs in menu 5.1. Sensors page 13.
  • Page 13: Main Menu

    Temp. T2. Exceeding this threshold will cause the sending of alarm SMS Name of contact input Allows you to give your own name to contact input Alarm in contacts when Allows you to choose when the alarm of estyma electronics page 13 PL20130524 www.estyma.pl...
  • Page 14: Binary Output

    5 Main menu contact input is triggered. Alarm with closed or open contact is possible. Contact input active Correction T1 Allows you to correct the temperature readout from input T1 by the value set (±3°C). Correction T2 Allows you to correct the temperature readout from input T2 by the value set (±3°C).
  • Page 15: Gsm Settings

    2 indicated. * The Vide GSM module has been equipped with Li-ion battery with the capacity of 600 mah. In case the external power supply is lost, the module is capable to operate on its own up to 4 hours.
  • Page 16: Language

    5 Main menu 5.6 Language Polish or English at your discretion. 5.7 Remote control panel By connecting CAN bus, vide GSM module can supervice the operation of boilers and make changes in settings from each place at home. REOMOTE CONTROL PANEL Name...
  • Page 17: Specification

    Information about the condition of solar Information about the number of alarms in Alarms the boiler controller 6 Specification Power supply 5v/1.2A Ambient temperature allowed 0-60 Dimensions (length height 145mm x 94mm x 32mm width) Weight of controller 215g estyma electronics page 17 PL20130524 www.estyma.pl...
  • Page 18: Estyma Electronics

    6 Specification Manufacturer: Estyma electronics tel. +48 87 429 86 75 al. Lipowa 4 fax +48 87 429 86 75 11-500 Giżycko biuro@estyma.pl POLAND www.estyma.pl page 18 PL20130524...
