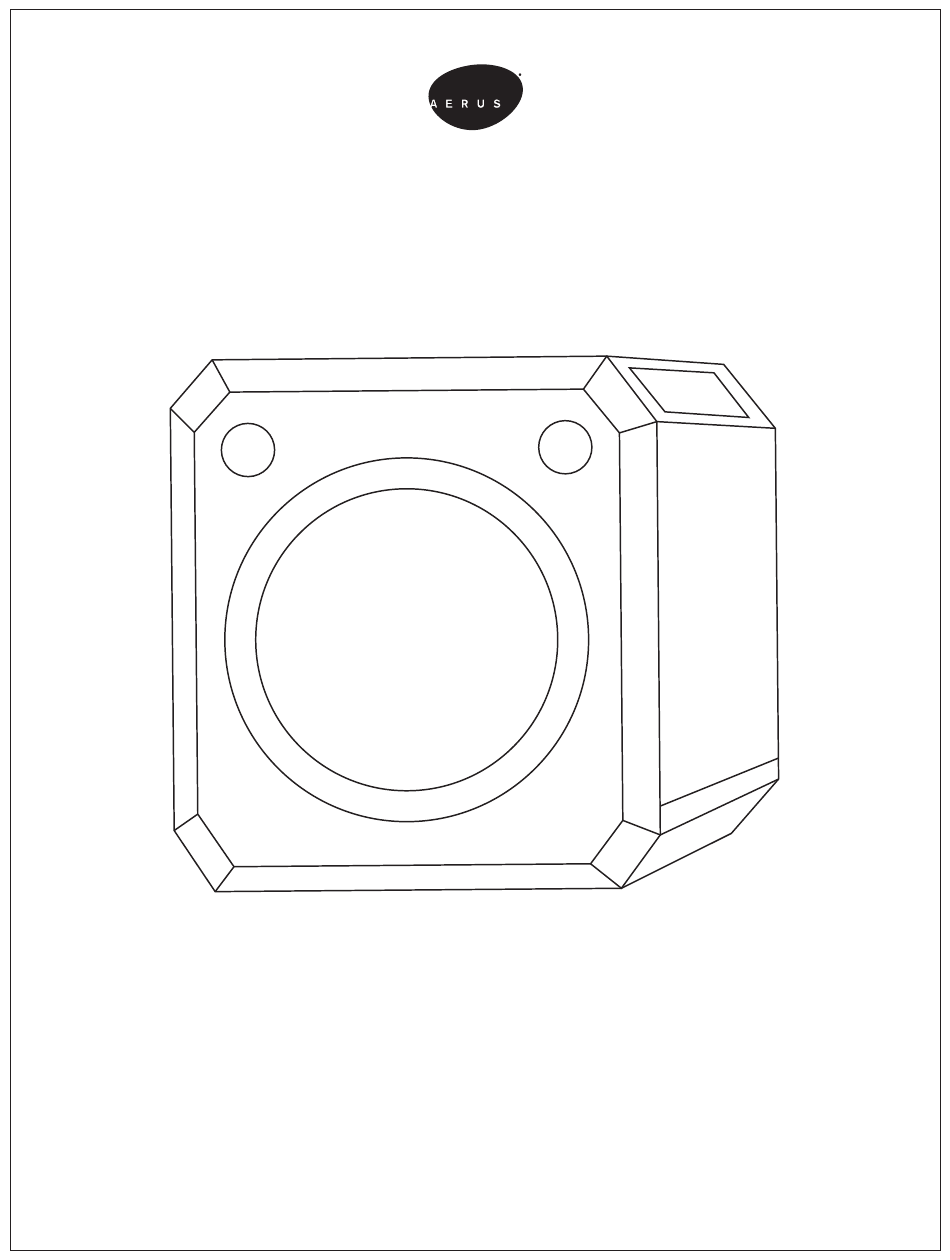

- Page 1 Aerus PowerP ® AP03 HEPA Air Purifier & Ultrasonic Humidifier CAUTION: READ MANUAL CAREFULLY FOR PROPER PROCEDURES AND OPERATION.
-
Page 2: Table Of Contents
The Aerus PowerPure® AP03 features quiet HEPA air purification as well as a robust granulated carbon filter for the reduction of VOCs such as Formaldehyde, cooking odors and other chemicals. The Aerus PowerPure AP03 is designed for both living and sleeping areas and purifies and humidifies any area up to 400 sq. - Page 3 SPECIFICATIONS Model: AP03 Rated Voltage: 120VAC Rated Frequency: 60Hz Rated Power: Air Purifier: 35 watts Humidifier: 18 watts Rated Airflow: 124 cfm 5,650 ft3 per hour (94 CFM) CADR value (CFM) (0.583*m3/h=1cfm) Air Purification Efficiency (PM 2.5)* Up to 400 sq. ft. Coverage Area 13.8 lbs.
-
Page 4: Important Safety Instructions
WARNING: Important Safety Instructions to reduce the risk of fire, electrical shock, or injury. WARNING: Only use the Aerus PowerPure® AP03 HEPA Air Purifier & Ultrasonic Humidifier indoors. Improper use can be hazardous for your health and can lead to injury. -
Page 5: Operational Placement & Parts Diagram
OPERATIONAL PLACEMENT & PARTS DIAGRAM OPERATIONAL PLACEMENT: The AP03 should be placed on the floor in the center or corner of a room. It should be placed at least 8 inches away from the wall—its airflow design requires adequate clearance between the air purifier and the wall to allow the purified air to thoroughly circulate through the room. -
Page 6: Getting Started
GETTING STARTED NOTE: Before using your purifier/humidifier, remove all packaging from the filters. WARNING: Disconnect plug from power source! Step 1: Open the front panel. To do this, hold the top of the front panel on the upper left- and right hand side of the front panel with both hands, then pull the panel towards you until it is fully removed from the main body of the unit. - Page 7 GETTING STARTED (CONTINUED) LIFTING YOKE HOW TO ADD WATER TO THE WATER TANK FOR HUMIDIFICATION: WARNING: Disconnect plug from power source! Step 1: Put your finger inside the lifting yoke and lift up the water tank to remove. Step 2: Turn the water tank upside down and remove the cap by turning counter clockwise.
-
Page 8: Control Panel/ Product Operation
CONTROL PANEL/ PRODUCT OPERATION ON/OFF BUTTON Press the ON/OFF button to turn the Aerus PowerPure AP03 on or off. The AP03 always starts in Purification mode, low speed. PURIFICATION BUTTON Press the PURIFICATION button to control the fan speed while in Purification mode. Use this button to toggle between Low, Medium, High, or Off. -
Page 9: Features
FEATURES PRODUCT OVERVIEW: The Aerus PowerPure AP03 is a combination air purifier and ultrasonic humidifier that utilizes a Pre-Filter, HEPA Filter and an Activated Carbon Filter to reduce contaminants and other volatile organic compounds (VOCs), plus other allergens and irritants including smog, pollen, dust, mold, pet dander, and odor-causing bacteria. Air is drawn in through the intake cover at the front of the air purifier and then it is purified by passing through the Pre-Filter, HEPA Filter and Activated Carbon Filter. -
Page 10: Product Maintenance
Depending upon environmental conditions, the filters may need to be changed more frequently. PURCHASING REPLACEMENT FILTERS To purchase replacement filters contact Aerus Customer Service by calling toll free 1-888-764-0693 or via email at support@aerusonline.com. -
Page 11: Troubleshooting
TROUBLESHOOTING WARNING: Please do not disassemble the air purifier or service yourself. If these corrective actions do not solve the problem, please contact Aerus Customer Service by calling toll free 1-888-764-0693 or via email at support@aerusonline.com. POSSIBLE ISSUE POSSIBLE REASONS WHAT TO DO 1. -
Page 12: Warranty
LIMITED 1 YEAR WARRANTY Customer should not repackage and ship the Aerus PowerPure AP03 unit due to possibility of irreparable damage. For warranty service, please contact Aerus Customer Service by calling 1-888-764-0693 or via email at support@ aerusonline.com. WHAT IS COVERED BY THIS WARRANTY We warrant the Aerus PowerPure AP03 to the Customer, subject to the conditions herein, against defects in workmanship and material, for a period of one (1) year from the date of Customer’s original retail purchase. - Page 13 This entire warranty shall continue to be valid, legal, and enforceable in any jurisdiction where a similar determination has not been made. This warranty is provided by: Aerus Health Direct, LLC 300 East Valley Drive Bristol, VA 24201 (in US) Aerus Canada, Inc.
- Page 16 Consult Customer Service or an experienced radio/ TV technician for help. www.PowerPure.com For information regarding the use of this product contact Customer Service. support@aerusonline.com. (888) 764-0693 Aerus Health Direct, LLC 300 East Valley Drive, Bristol, VA 24201 Made in P.R.C ©Aerus Health Direct, LLC 2017...
