Summary of Contents for Cambridge Audio CXA61

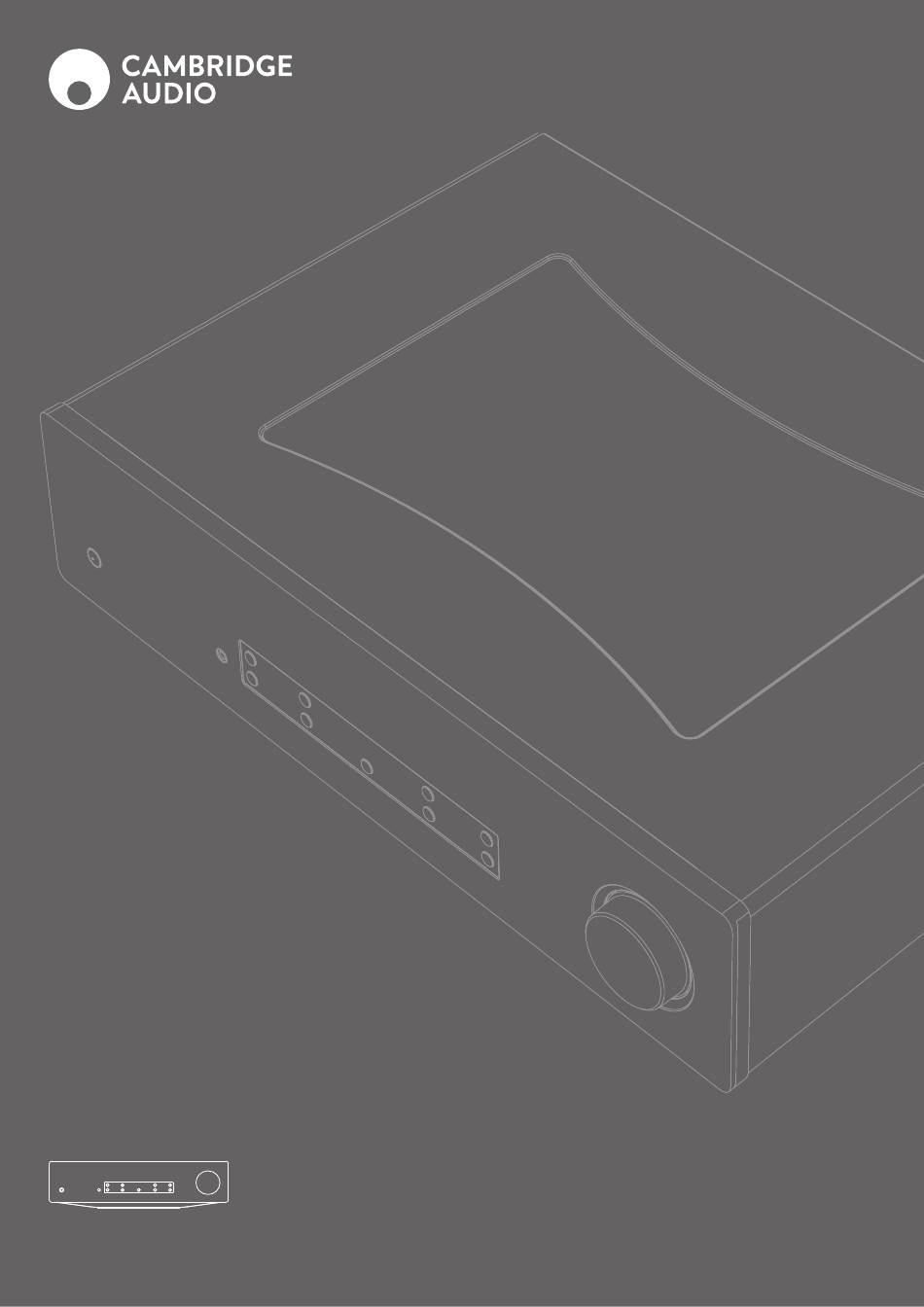

- Page 1 CXA61/81 CXA61 / 81 INTEGRATED AMPLIFIER...
-
Page 2: Table Of Contents
This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for LIMITED WARRANTY accuracy at the time of printing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are REAR PANEL CONNECTIONS subject to change without prior notice. -
Page 3: Important Safety Instructions
CXA61/81 Important safety instructions For your own safety please read the following important safety instructions carefully before attempting to connect this unit to the mains power supply. They will also enable you to get the best performance from and prolong the... - Page 4 The FCC requires the user to be notified that any changes or modifications RCM (REGULATORY COMPLIANCE MARK) to this device that are not expressly approved by Cambridge Audio, may This product meets Australia, New Zealand Safety, EMC and void the user’s authority to operate the equipment.
-
Page 5: Limited Warranty
To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. -
Page 6: Rear Panel Connections
Note: To obtain the best results from your system we recommend using 7. SUB OUT only high quality Cambridge Audio interconnects. This will ensure that Connect to the input on an active subwoofer if required. you hear your system as we designed it. Please ask you dealer for details. -
Page 7: Front Panel Controls
See the 'Setup menu' section for further details. inputs. The USB audio is shown by the symbol being lit orange. 2. MP3 INPUT (CXA61 ONLY) 9. VOLUME This source input allows you to connect a portable audio device such as an Use to increase/decrease the level of the sound from the outputs of the MP3 player directly into the front of the unit using the 3.5mm stereo-jack. -
Page 8: Remote Control
Remote control The CXA is supplied with a remote control handset that duplicates the front panel control functions and is also able to control other CX series products. The supplied AAA batteries must be fitted before the remote control can be used. The handset buttons function as described below: 1. -
Page 9: Connections
Balanced Audio inputs via three pin XLR connectors. your system depending on your requirements. The CXA81 can also be connected to non-Cambridge Audio sources with balanced outputs. Important Note: When using a banana plug, make sure the speaker terminals are completely tightened before inserting the plug. -
Page 10: Setup Menu
CXA is automatically put into the standby mode. settings many pitfalls can be avoided. CLIPPING FUNCTION Windows based PC’s required a Cambridge Audio USB driver to be installed A3 on – Clipping function enabled. The volume nudges down if signal before connection. -
Page 11: Control Bus
CXA61/81 Control Bus The Control Bus allows any compatible Cambridge products to synchronise CXA WITH CXN AND CXC when powering up the units. See the following diagrams when connecting Using the CXA as the primary power controller, see the diagram below. -
Page 12: Cap5 - Five Way Protection System
CAP5 - Five way protection system 5. INTELLIGENT CLIPPING DETECTION Cambridge Audio has developed a proprietary protection system to ensure reliability and a long life for its amplifiers and the speakers they are Indication - Volume is reduced automatically. connected to. This protection system comprises of five main protection... -
Page 13: Technical Specifications
Technical specifications CONTINUOUS POWER OUTPUT CXA81: 80W RMS into 8 Ohms, 120W RMS into 4 Ohms CXA61: 60W RMS into 8 Ohms, 90W RMS into 4 Ohms THD (UNWEIGHTED) <0.002% 1kHz at 80% of rated power <0.02% 20Hz – 20kHz at 80% of rated power FREQUENCY RESPONSE <5Hz –... - Page 14 W W W.C A M B R I D G E AU D I O.C O M Gallery Court, Hankey Place London se1 4bb United Kingdom Cambridge Audio is a brand of Audio Partnership Plc. Registered in England No. 2953313 AP36766/1...
