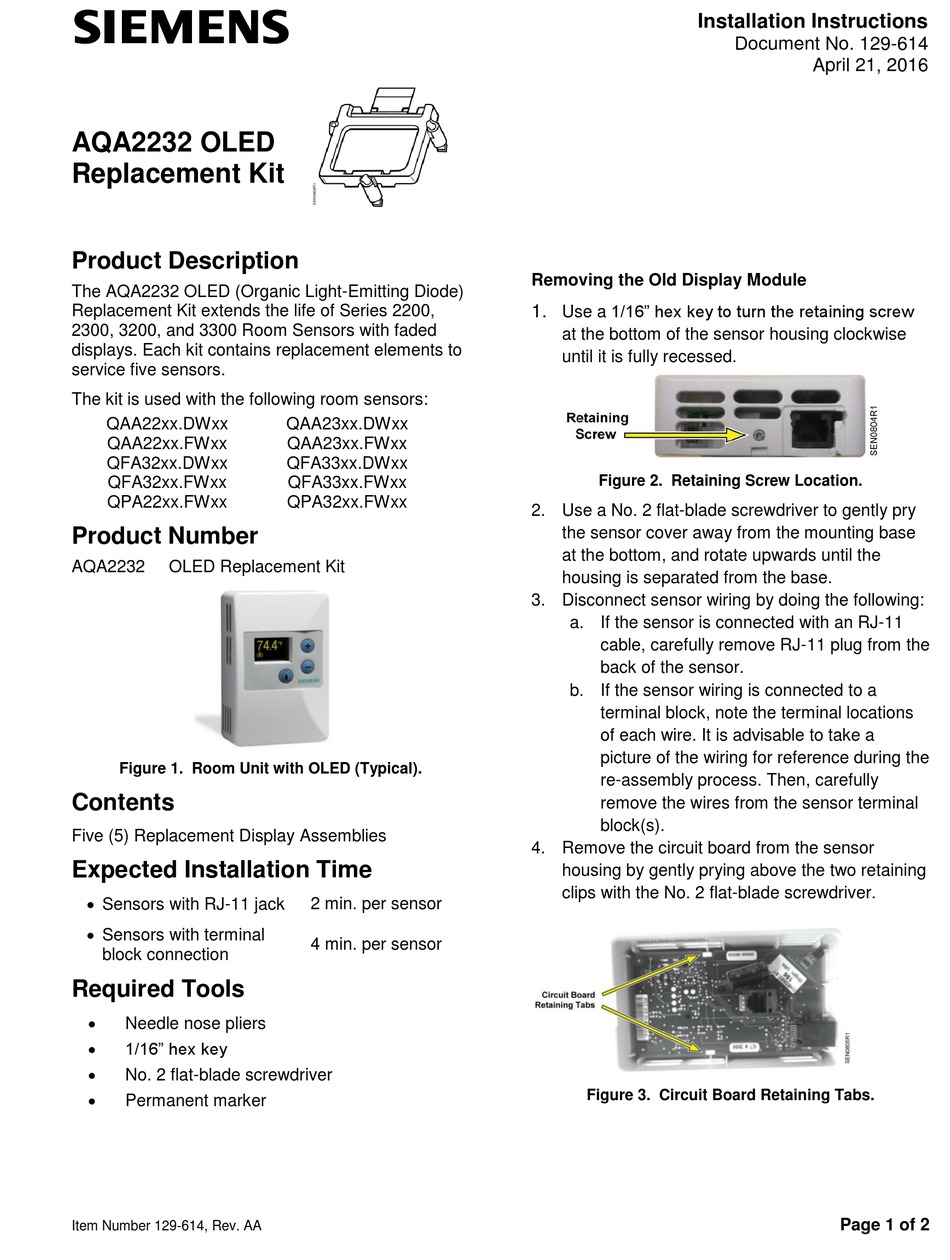

Siemens AQA2232 OLED Installation Instructions

AQA2232 OLED
Replacement Kit

Product Description

The AQA2232 OLED (Organic Light-Emitting Diode)
Replacement Kit extends the life of Series 2200,
2300, 3200, and 3300 Room Sensors with faded
displays. Each kit contains replacement elements to
service five sensors.
The kit is used with the following room sensors:
QAA22xx.DWxx
QAA22xx.FWxx
QFA32xx.DWxx
QFA32xx.FWxx
QPA22xx.FWxx
Product Number
AQA2232 OLED Replacement Kit
Figure 1. Room Unit with OLED (Typical).
Contents
Five (5) Replacement Display Assemblies
Expected Installation Time
 Sensors with RJ-11 jack
 Sensors with terminal
block connection
Required Tools

Needle nose pliers

1/16" hex key

No. 2 flat-blade screwdriver

Permanent marker
Item Number 129-614, Rev. AA
QAA23xx.DWxx
QAA23xx.FWxx
QFA33xx.DWxx
QFA33xx.FWxx
QPA32xx.FWxx
2 min. per sensor
4 min. per sensor
Installation Instructions
Removing the Old Display Module
Use a 1/16" hex key to turn the retaining screw
1.
at the bottom of the sensor housing clockwise
until it is fully recessed.
Figure 2. Retaining Screw Location.
2. Use a No. 2 flat-blade screwdriver to gently pry
the sensor cover away from the mounting base
at the bottom, and rotate upwards until the
housing is separated from the base.
3. Disconnect sensor wiring by doing the following:
a. If the sensor is connected with an RJ-11
cable, carefully remove RJ-11 plug from the
back of the sensor.
b. If the sensor wiring is connected to a
terminal block, note the terminal locations
of each wire. It is advisable to take a
picture of the wiring for reference during the
re-assembly process. Then, carefully
remove the wires from the sensor terminal
block(s).
4. Remove the circuit board from the sensor
housing by gently prying above the two retaining
clips with the No. 2 flat-blade screwdriver.
Figure 3. Circuit Board Retaining Tabs.
Document No. 129-614
April 21, 2016
Page 1 of 2
