Smart display unit

Advertisement

Quick Links

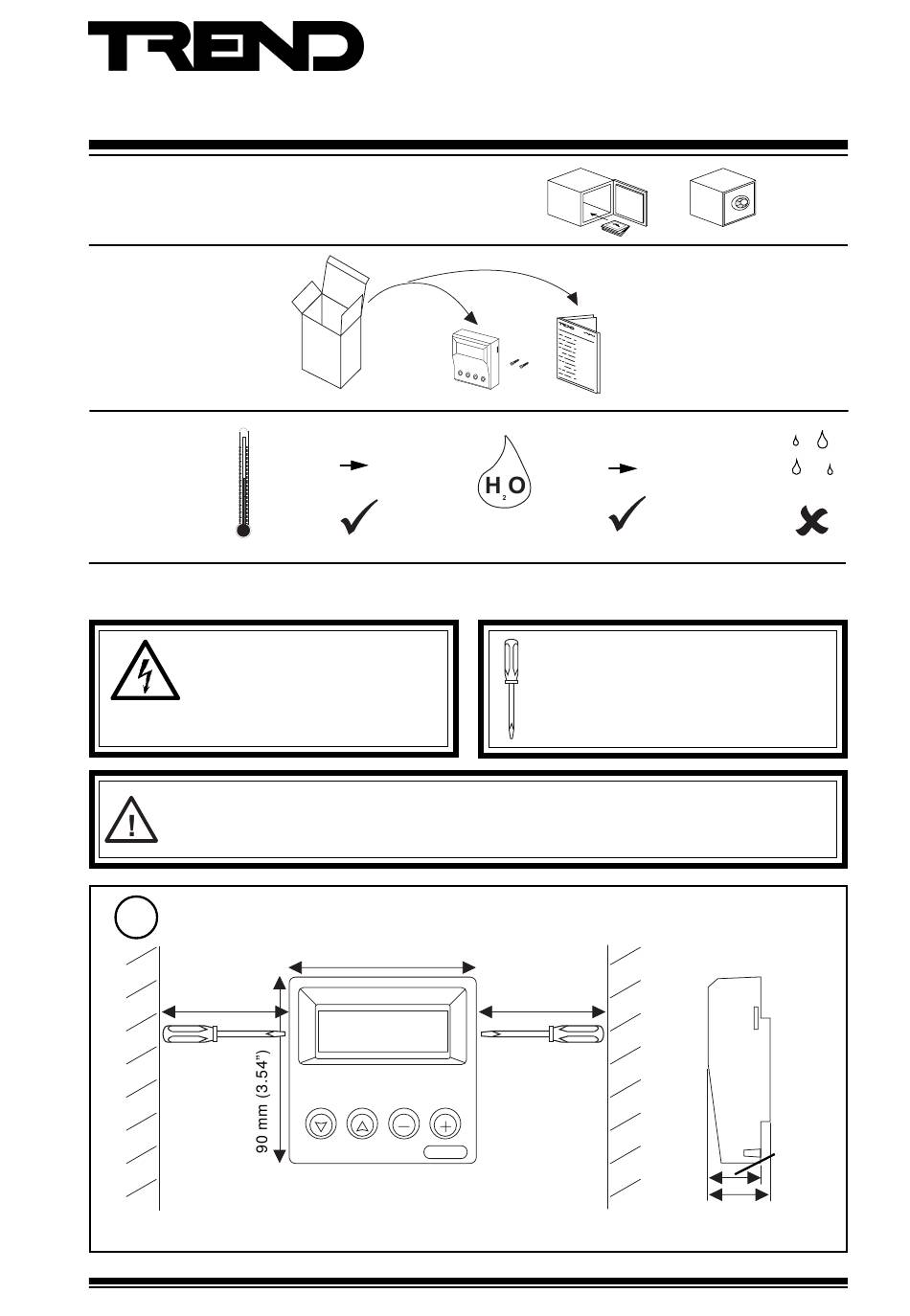

Important: Retain these instructions
1
Unpacking
2
Storing
3
Installation
WARNING: Other than removing
front panel (step 3), do not open unit.
DANGER high voltage. No
serviceable parts inside.
Note that this product may involve Lonworks system integration as referred to in step 12:
this procedure should only be performed by an installer with LonWorks engineering
expertise.
1
Dimensions
150 mm (6")
SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06
-10 °C
+50 °C
+14 °F
+122 °F
90 mm (3.54")
Installation Instructions
Smart Display Unit
SDU-LON Installation
Instructions TG200599
0 %RH
95 %RH
It is recommended that the installation should
comply with the HSE Memorandum of Guidance
on Electricity at Work Regulations 1989.
For USA install equipment in accordance with
the National Electric Code.
150 mm (6")
SDU-Lon
25 mm
(0.98")
30 mm (1.18")
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDU-Lon and is the answer not in the manual?

Questions and answers

Summary of Contents for TREND SDU-Lon

  • Page 1 Note that this product may involve Lonworks system integration as referred to in step 12: this procedure should only be performed by an installer with LonWorks engineering expertise. Dimensions 90 mm (3.54”) 150 mm (6”) 150 mm (6”) 25 mm (0.98”) 30 mm (1.18”) SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 2: Installation

    +24 Vac (L) Supply 15 mA +24 Vac (N) * If one side of the 24 Vac input power is connected to 0 V, that side must be connected to the SDU - (negative) terminal SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 3 SDU Data Sheet TA200559 SDU Tool Manual TE200600 SP - service pin g Download Completed Set SDU into Download Mode Config Update Download Complete Transfer Completed Switch off Input Power 24 V Config Update SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 4 (i.e. on the same section of LonWorks separated by routers). If the system is installed on a LonWorks Management Tool (as in step 12), this rule does not apply. SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 5 Check Start Up Reset Connect to IQ Firmware version communications failure or no sensor set up Check LonWorks Connected LonWorks (green) SDU faulty failed to install on Lon; check step 7 installed on Lon SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 6: Mount Unit

    Install on Lon Management Tool If other IQ System devices on LonWorks are installed on LonWorks Management Tool. When installing SDU-LON on LonWork Management Tool, push service pin button when requested. See LonWorks network management tool manual. See IQ System LonWorks Products Engineering Manual (TE200292).
  • Page 7: Replace Front Panel

    Note that the full sequence listed here may only be shown in Unrestricted modes. The Restricted modes show only those pages on the Restricted list. The Home page is optional (see step 6d). SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 8 Knob 1 Knob 1 Room 1 Setpoint Room 1 Setpoint Room 1 Setpoint 20.01 DegC 20.01 DegC 20.01 DegC Digital if PIN required see step 19 20.32 Units Analogue 20.32 Tenths 20.32 Hundreths SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 9: Enter Pin

    Installation Instructions SDU-Lon Installation (Continued) Enter PIN If required 5 * * * X 5 * * X X 5 * X X X 5 SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 10 Installation Instructions Installation (Continued) Note that the alarm log is permanently disabled Set SDU Mode for SDU-LON so the SDU mode selects restricted/ If required unrestricted and home page Remove front panel - see step 3 Set mode Default - Display Mode 0:...
  • Page 11: Setup Parameters

    Note that if a 963 is to centrally control the IQL’s occupation state, then the SDU time zone’s times should be left nulled at 00:00. Note that if a 963 is centrally synchronising time, it should do so using a timemaster which will in turn synchronise the SDU. SDU-Lon Installation Instructions TG200599 Issue 1/C 20/11/06...
  • Page 12: Weee Directive

    Bois 37,Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
