Teac DV-W28SS-R Product Information

92.4±0.2
65.1±0.2
52.6±0.2
3.8±0.2
6.25±0.2
36.25±0.2
SATA CONNECTOR
10±0.2
21.25
DRIVE LEFT EDGE TO CONNECTOR CENTER
43.5
10.6
0.2
2.4
EMERGENCY HOLE(∅1.5）
81.5
85.5
(NOTE) THIS SIDE VIEW IS FOR BEZEL ONLY
External view of the drive
Corporate and product names are the respective trademarks or registered trademarks of the companies mentioned. Features and specifications are subject to change without notice. Precaution : To ensure safe handling and operation, read the Instruction Manual before use.
TEAC CORPORATION ( http://www.teac.co.jp ) 1-
TEAC AMERICA, INC. ( http://www.teac.com )
TEAC EUROPE GmbH. ( http://www.teac.de )
TAIWAN TEAC CORPORATION ( http://www.teac.com.tw )
TEAC ELECTRONICS ( M ) SDN BHD ( http://www.teac.com.my )
© Copyright TEAC CORPORATION 2008
Slot Loading
102.6
4-M2 tapped holes
for installation
depth 2.5MAX,1.4Min
4-M2 tapped holes
CLAMPING &TORQUE:0.255N・m MAX （ ２． ６ｋｇ・ｃｍ MAX）
for installation
RECOMMENDATION TORQUE:0.176N・m∼0.235N・m
depth 2.0MAX,1.4MIN
(1.8kg・cm∼2.4kg・ｃｍ）
(Left sideX2,Right sideX2)
CLAMPING &TORQUE ０． ２５５N・m MAX （ ２． ６ｋｇ・ｃｍ MAX)
RECOMMENDATION TORQUE:０． １７６N・m∼０． ２３５N・m
（１． ８ｋｇ・ｃｍ∼２． ４ｋｇ・ｃｍ）
SATA CONNECTOR
128
(25.4)
41
9.4
CONVEX:0.6
123.4
EJECT BUTTON
ACCESS INDICATOR
94
128.4
Data Storage Products Division
47 Ochiai, Tama-shi, Tokyo 206-8530 Japan Phone:81-42-356-9153 Fax:81-42-356-9184
7733 Telegraph Road, Montebello, California 90640, U.S.A. Phone:1-323-726-0303 Fax:1-323-727-7656
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone:49-611-71580 Fax:49-611-7158-392
3F No.45, Sec.1 Min Chuan E. Road, 104 Taipei, Taiwan R.O.C. Phone:886-2-2597-8608 Fax:886-2-2597-8591
Lot 22, Batu Berendam Ftz Ⅲ, Batu Berendam, 75350 Melaka, Malaysia. Phone:60-6-2843402 Fax:60-6-2843471

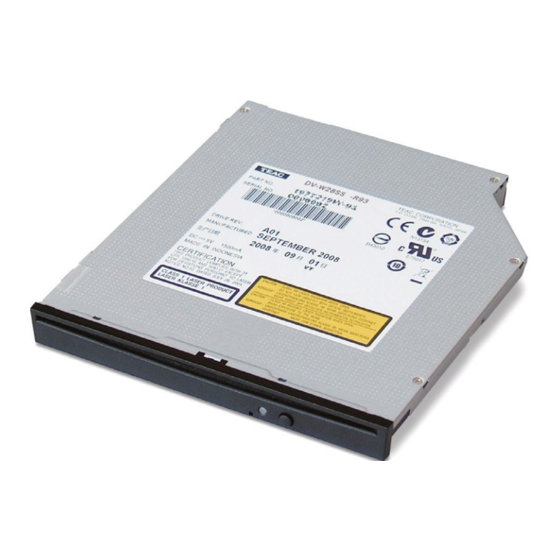

DV-W28SS-R
Slot-Loading Drive
4.7GB / 8.5GB Half-inch-height DVD Super Multi Drive
8x DVD R
8x DVD R
6x DVD R DL
6x DVD R DL
■ Slim type Slot Loading design
■ Buffer underrun Prevention
■ Supporting disc-at-once, session-at-once, packet write, incremental,
over write, track-at-once recording mode, sequential write, multi-session,
and back ground format
■ Horizontal and vertical mounting for most system configuration
■ Emergency Eject Function
Write Speed
Read Speed
( Max Speed )
Disc Diameter
Interface
Data Transfer Rate
12.7
Access Time
3±0.2
Data Buffer
Loading Mechanism
Environmental Conditions
Ambient Temperatures
Ambient Humidity
Power Requirements
Loading / Ejecting Life
Current Consumption
MTBF
Safty/EMI Standards
Dimensions
Mass ( Weight )
RoHS Directive
Remarks
Please check the specification sheets for detailed conditions and other information.
＊ The maximum wet-bulb temp. is 29.4℃ or less
is a trademark of DVD Format/Logo Licensing Corporation registered
in the U.S., Japan and other countries.
(±0.4)
Unit:mm
and
8x DVD＋RW
8x DVD＋RW
6x DVD­RW
6x DVD­RW
DVD+R 8x ( ZCLV ), 3x ( CLV ),
DVD+R DL 6x ( ZCLV ), 3x ( CLV ),
DVD-R 8x ( ZCLV ), 3x ( CLV ),
DVD-R DL 6x ( ZCLV ), 3x ( CLV ),
DVD+RW 8x ( ZCLV ), 3x ( CLV ),
DVD-RW 6x ( ZCLV ), 3x ( CLV ),
DVD-RAM 5x ( PCAV ), 3x ( CLV ), 2x ( CLV )
CD-R 24x ( ZCLV ), 10x ( CLV )
CD-RW US+ 16x ( ZCLV ), 10x ( CLV )
US 24x ( ZCLV ), 10x ( CLV )
HS 10x ( CLV )
MS 4x ( CLV )
DVD-ROM 8x ( CAV )
DVD R 8x ( CAV )
DVD R DL ( Finalized Disc ) 8x ( CAV )
DVD-RAM ( 4.7G ) 5x ( CAV )
CD-ROM 24x ( CAV )
CD-R 24x ( CAV )
CD-RW 24x ( CAV )
CD-DA ( DAE ) 24x ( CAV )
12cm, 8cm
SerialATA Revision2.6
Gen1ｉ 1.5GB/sec
130ms ( typ ) DVD-ROM
130ms ( typ ) CD-ROM
2MB
Slot Loading Type
Operating 5 to 45℃
Non Operating -20 to 60℃
Transportation -40 to 65℃
Operating 10 to 80% ( non-condensing ) *
Non Operating 10 to 90% ( non-condensing ) *
Transportation 10 to 90% ( non-condensing ) *
DC5V 5%
10,000 times or more
Standby / Sleep 60mA / 60mA ( Average current max )
During starting / Seek 1600mA / 1500mA ( Max, Spikes less 2ms )
60,000POH ( 10% duty )
UL, CUL, TUV, CB, CE and BSMI
128.0W x 12.7H x 129.4D ( mm )
180g or less
Complied
are trademarks of Koninklijke Philips Electronics N.V .
PRINTED IN JAPAN Jan.'09 PDF . DS-269
