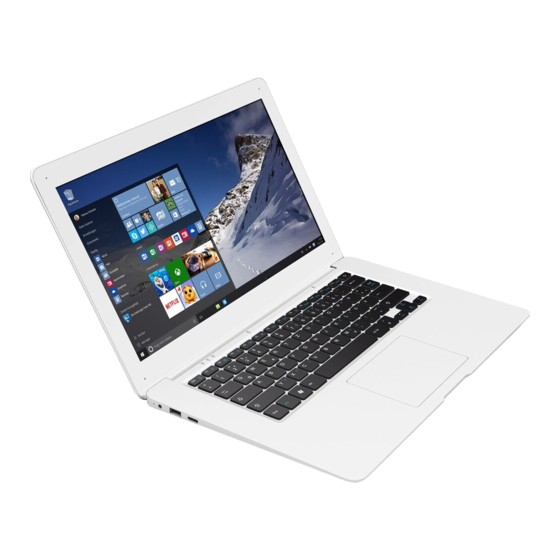

Odys Trendbook 14 Quick Start

Introduction
Please observe the information and warnings from the user manual.
‐ Please refer to the user manual for detailed instructions, conformity and support information.
‐ The manual can be found at http://www.odys.de/web/personal‐computer_de.html.
‐ Use the hyperlink at „Einstellungen – PC und Geräte – PC‐Info".
‐ There you will also find a guide on how to change the system language.
‐ Use the installation assistant to easily configure the device.
Important! Please note: In order to use all features available, a Microsoft user account must be
created and it is necessary to activate your system later on. To reset a forgotten password please visit
www.live.com.
To prevent conflicts with other systems we recommend creating a new account.
Please close unused apps to extend the battery lifetime as described on the right.
Turn off the device when not in use.
Turning On/Off
To turn on the device, press and hold the Power button on the unit until you see the boot‐up screen
then release. It may take a few minutes to start up the system, please wait before you proceed.
To turn off the device, press and hold the Power button until you see the Power Off screen, click on
it and slide it down to turn off.
Tip: This device will sleep with the screen off if it stays inactive for a few seconds. You can briefly
press the Power button to turn on the screen and wake it up.
Power On and Off the Display
‐ Shortly press the [Power] button or close the device to turn off the display.
‐ Press the [Power] button again shortly turn the display on again.
Getting Started
1. Front Camera
Front‐facing camera for taking avatar pictures
2. Charge Indicator Stays red during charging and turns off after the battery is fully charged.
3. Power jack
Charge and power the device with the included power adapter.
4. USB
Support for USB stick or Surf stick
5. Mini HDMI Connect to a TV or other display.
6. Speaker
7. Status Indicator
Stays green when turned on.
8. Num Lock Indicates if the Numeric keypad is enabled
9. Caps Lock Indicates enabled capital letters
10. Microphone
11. Power Button
Press and hold the power switch to turn on or off the device;
Briefly press the switch to turn the screen on or off.
12. Headphone jack
Audio output connection for head‐phones
Note: Speaker output is automatically disabled when headphones are
connected to the player.
13. Micro SD Slot
Accommodates any micro SD/SDHC memory card.
Card
14. Touchpad
15. Left Mouse Key
16. Right Mouse Key
Charging Battery
The device has a built‐in rechargeable battery. No extra battery installation is required. Just charge
the device when it indicates low battery.
To charge the battery, connect the device to any standard wall outlet via the DC port using the
provided power adaptor. It takes about 5 hours to fully charge the battery.
Note:
a. We advice to use only the delivered power adapter with this device.
b. You can operate the device even when it is being charged.
c. It is recommended to charge the battery before you use the device for the first time.
d. For maximum performance, lithium‐ion batteries need to be used often. If you don't use the
device often, be sure to recharge the battery at least once per month.
e. Should the rechargeable battery of the device discharge completely, connect the device (using
the adapter) to the main power source for approximately 5‐10 minutes before attempting
normal operation.
f. In some cases, devices which have been charged for longer periods of time may not be able to be
switched back on. Should this occur you have to make a Reset.
ODYS Trendbook 14 – Quickstart
Installing Memory Card
-
To use a memory card, find the card slot at the side of the device and
then insert the memory card into the slot in the correct orientation as
shown. Check that the Micro SD card is in the correct position with the
contact pin facing downwards as illustrated. You may damage the card
and the reader if Micro SD card is not inserted in correct position.
-
Push the Micro SD card into the card slot until it clicks.
-
To access the files stored in the memory card, enter the Explorer mode
by clicking the Explorer icon and select the "SD Card" directory.
-
To remove Micro SD card, push the card once again until it clicks.
Note: We recommend using only Micro SD or SDHC cards up to 128GB capacity.
‐ When a Micro SD card is inserted in or ejected from the device, it may take few seconds for the
device to update the content.
‐ Please avoid inserting or ejecting Micro SD card when other operation is running as this may cause
the system hang.
‐ Do Not remove the card if the content inside the card is being played. This will halt the
operation of the device and might cause a system hang.
‐ Please use your fingernails to properly insert or remove the card.
Connecting to the Internet
(1) Move the mouse cursor to the upper right corner and drag it downwards to open the
function bar like this.
Click the icon to open All settings and select „Network and Internet".
(2)
Click on the network you wish to connect to and then click on "Connect". Your Device will
(3)
now attempt to establish a connection to that 3G network. If the connection is successful,
the message "Connected" will appear below the network.
Note:
If there is no internet connection please recheck this setting and verify that you are connected to an
avilable wifi or 3G Network.
Support
On our website you will find the latest information about this product, other products of our
enterprise, our company itself and valid warranty terms. The latter you will find under Service ‐
Downloads.
Axdia International GmbH
Formerweg 9
D‐47877 Willich (Germany)
Support‐Hotline (9.00am – 1.00pm):
E‐Mail: support@odys.de
Note:
Please address any further questions directly to our Customer Service Department at the following
e‐mail address: support@axdia.de
In order to be able to process your request quickly, we ask you to have the following information
ready:
‐ Product description
‐ Purchase date
‐ Description of problem
Tel: +49(0) 2154 / 8826‐0
Fax: +49(0) 2154 / 8826‐100
+49 (0)2154 / 8826‐101
Disposal
Do not dispose of this item with normal household waste. Please return any
defective device to your dealer or to a collection point for environmentally sound
disposal.
Compliance
Axdia International GmbH hereby declares that this device is in accordance
with the essential requirements and other relevant provisions of Directive
2004/108/EC. The CE declaration of conformity for this product can be found
on the internet at: www.odys.de – Service – downloads
