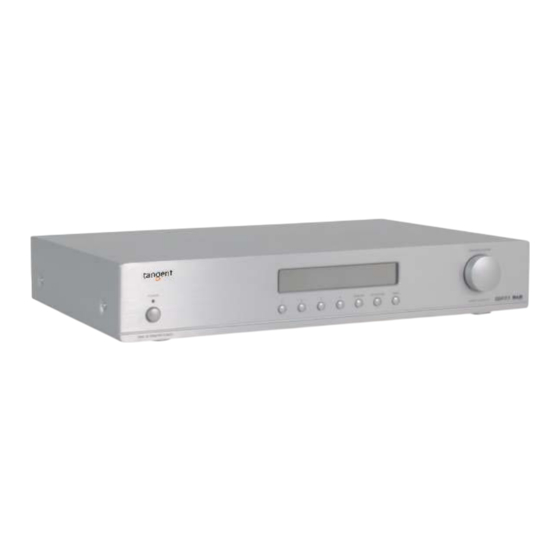

- Page 1 DAB-50 Operation Manual DAB/FM Tuner...
-
Page 2: Accessories
2 x Batteries (Optional) 1 x DAB/FM Antenna (Optional) 1 x Operation Manual This operation manual supplies all the information that you need to have about your Tangent DAB-50. Please read this operation manual carefully before you start using the unit! ACCESSORIES... -
Page 3: Table Of Contents
ACCESSORIES Accessories CONTENTS Contents SAFETY PRECAUTIONS Safety precautions IMPORTANT SAFETY INSTRUCTIONS Important safety instructions IMPORTANT INFORMATION Important information CONNECTION Connection to the mains REMOTE CONTROL Installation of batteries Using the remote control Remote control functions FRONT PANEL AND CONNECTIONS Front panel Connections CONNECTION Audio connection layout... -
Page 4: Safety Precautions
WARNING: TO MINIMISE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET AS IT CONTAINS DANGEROUS VOLTAGE. ONLY QUALIFIED TECHNICIANS ARE ALLOWED TO CARRY OUT REPAIR AND SERVICE. CAUTION: If the plug of the power cord needs to be replaced, it is important that the replacement is identical to the plug to be replaced, or that the new plug has been recommended by... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: IT IS IMPORTANT THAT YOU READ AND OBSERVE BOTH THE INSTRUCTIONS IN THIS MANUAL AND THE INSTRUCTIONS ON THE UNIT. KEEP THIS MANUAL FOR FUTURE REFERENCE. This unit was designed and manufactured with a view to providing maximum safety for the user. Incorrect use of the unit may cause electrical shock or fire. - Page 6 IMPORTANT SAFETY INSTRUCTIONS Lightning Unplug the unit for additional protection during thunder or when the unit is not used for prolonged periods. This will prevent damage to the unit from lightning and power surges. Penetration of objects and liquid Never push any foreign objects through the openings into the unit, as they may touch dangerous voltage points or short-circuit parts...
-
Page 7: Important Information
Handling instructions The top and back panel of the unit may become warm after prolonged use. This is not due to a defect. Turn off the power when the unit is not used. Protect the power cord Follow the instructions below to prevent abnormal operation, electrical shock, fire or personal injury: Hold the plug firmly when inserting it into the... -
Page 8: Connection
Then insert the plug into a suitable socket. If the unit is to be used abroad, you may need an adapter. Antenna Contrast Model: DAB-50 Power Rating 230-240 V AC~50Hz Max Power Consumption: 30W Item No.: 11048.01 Serial No.:... -
Page 9: Remote Control
Make sure that there are no obstacles between remote control and unit. Do not position the unit behind tinted glass as it may reduce the maximum range of the remote control. REMOTE CONTROL Replace the cover. POWER DAB/FM DAB-50 DAB/FM-TUNER Infrared- Sensor CONTROL/TUNING AUTOTUNE INFO... -
Page 10: Remote Control Functions
1-4 : : Selects stored stations. If depressed for more than 2 seconds, a station is stored under the number concerned. Power: : Sets the DAB-50 in standby mode. Autotune: : Press once to automatic tune in to DAB stations. Depress button for 2 seconds to initiate an international search. -
Page 11: Front Panel And Connections
FRONT PANEL AND CONNECTIONS Front panel POWER DAB-50 DAB/FM-TUNER Mains switch: Used to interrupt the mains voltage. LED indicator: Lights green when the unit is turned on. Lights red when the unit is in standby mode or in operation. Preset no. 1: Selects the station saved under no. 1. If the button is depressed for more than two seconds, a station is saved under the current number. -
Page 12: Connections
AC input t : For connection of mains voltage. Make sure that the plug has been correctly inserted, and that the voltage corresponds to the text printed on the back panel of the cabinet. Contrast Model: DAB-50 Power Rating 230-240 V AC~50Hz Max Power Consumption: 30W Item No.: 11048.01... -
Page 13: Connection
Audio connection layout Stereo Output Optical Output Digital amplifier/receiver Analog amplifier/receiver This page only contains suggestions for connection of your Eltax DAB-50. Note that the accessories in the pictures on this page are not included in the supply. Antenna Contrast Model: DAB-50... -
Page 14: Adjusting The Antenna
Adjusting the antenna As it applies to all other radios, the sound quality depends on the signal strength of the antenna inputs. The position of the radio in relation to the transmitter thus directly influences the quality of the signal received. -
Page 15: Operation And Functions
If you wish to turn off the unit to avoid any power consumption, you must press the mains switch. POWER DAB-50 DAB/FM TUNER Protect the environment and turn off the unit after use. Info and function As this tuner can receive both normal FM radio... -
Page 16: Dab Tuning
DAB tuning When the unit is turned on for the first time, all settings will be default settings. The settings can be changed according to your preference. When the unit is turned off the next time, these settings will naturally be saved as the new default settings. This also applies if you unplug the unit. When the unit has been turned on, channels must be saved. -
Page 17: Fm Tuning
FM tuning The DAB-50 offers both manual and automatic tuning on the FM band. This makes it possible to save just one specific channel. It also makes it possible to adjust the supplied antenna for the best possible signal. Automatic tuning... -
Page 18: Troubleshooting
No power when the unit is turned on. - Switch on the electric current at the socket. No sound. The display does not show DAB/RDS - The DAB-50 has not found any stations on DAB/FM. information. I cannot hear the station selected I can hear “tick/blob”... -
Page 19: Technical Data
Technical data RF section: Tuner bands Sensitivity Display: : Presets s Audio outputs s Optical SPDIF output t Voltage and power consumption n Dimensions (WxDxH) ) Weight t We reserve the right to change the technical data and the design of the product without notice as a result of further development. - Page 20 .com...
