Motor Sound Unit
GENERAL
This product is a powerful vehicle sound simulation system with an efficient high-power amplifier. The special acoustics of the speaker create a perfect and realistic simulation effect.
SCOPE OF SUPPLY
· Sound simulator
· T-Plug connecting cable
· Tamiya connecting cable
· Y-cable (JR connector/socket)
· Adhesive tape 2x (for attaching the simulator)

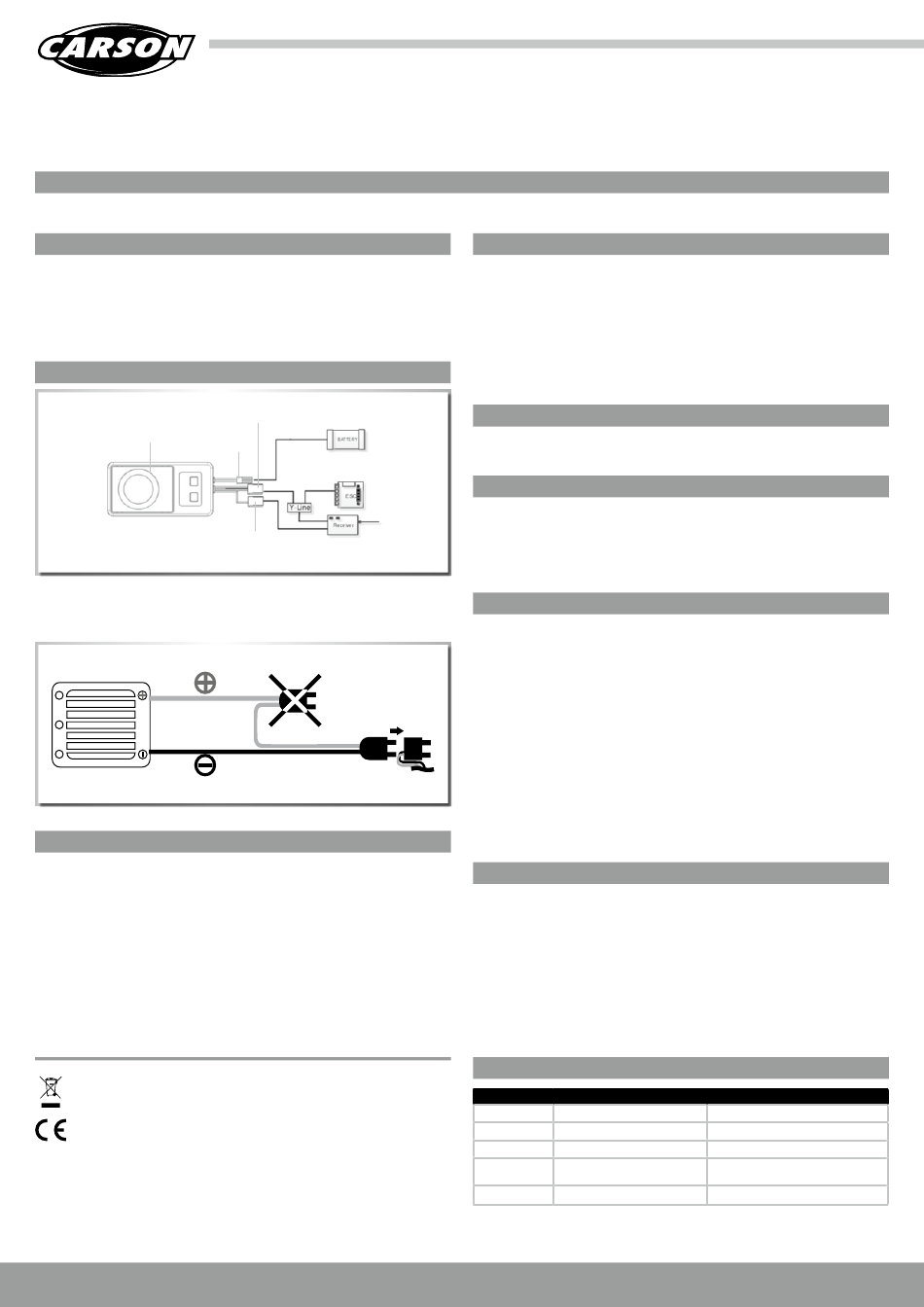

PRODUCT DESCRIPTION/CONNECTION PLAN
Amplifier BEC connector
(power supply)
AUX connecting cable
Warning!
If 2 drive batteries are used in series, the engine sound simulator must be fitted to the connector
of the negative lead of the drive controller.
VOLUME SETTING
Important!!!
The sound simulator is basically intended for operation with 2-3 cell LiPo or 5-9 cell NiMh batte-
ries. Batteries with a greater number of cells or higher voltage may be used. However, in this case
it must be noted that the volume control may only be used up to level 5 !!!!
· Activate sound simulator by briefly operating the accelerator lever
· The simulator has 8 volume levels
· Button "+" increase volume
· Button "+" reduce volume
Important:
The simulator has electronic temperature monitoring. If too much heat builds up, the volume is
too loud or there is not enough cooling, the equipment will shut off.
Meaning of the symbol on the product, packaging or instructions for use: Electrical
appliances contain valuable recyclable materials and should not be discarded in the
domestic waste at the end of their life! Help us protect the environment and conserve
resources by taking this appliance along to the appropriate local recycling centre. Your
local waste management organisation or specialist dealer will be able to answer any
queries you may have.
GB // Service-Hotline for Germany: 03675 7333 343 // www.carson-modelsport.de
Actuation of receiver
(3rd channel)
500906267 Truck / 500906265 On-Road / 500906266 Off-Road // Status: June 2017
SAFETY NOTICES
This product is not a toy. The volume that can be reached with this product can cause hearing
damage. Please be sure to maintain a sufficient distance from the speaker. Please read the
instructions in the manual carefully, since erroneous settings can damage the product. Please
ensure that sufficient ventilation and heat removal is provided when the product is installed.
Applying too much voltage can destroy the product, please pay attention to the manufacturer's
specifications.
Please ensure that the sound is not overloaded or sounds distorted when adjusting the volume.
(reduce the volume !!!) Disconnect the motor cable to prevent injuries caused by rotating parts
when programming the simulator. The volume setting depends on the input voltage !! (see
volume setting)
INSTALLATION
The sound simulator is attached using the adhesive tape included in the scope of delivery.
Please ensure that this is securely attached during motion.
CONNECTING THE SOUND SIMULATOR
· Connect battery using the BEC connection (power supply). The connecting cable included
in the scope of supply is used for this. (use T-Plug or Tamiya connecting cable depending on
battery)
· Use Y-cable to connect the simulator, the drive controller and the receiver
· Connect AUX connector to free slot of receiver (e.g. 3rd channel)
SETTING/PROGRAMMING
Important!!!
The sound simulator must be paired with the remote control before starting up.
Programming steps:
· Switch on remote control and model
· Press button "+" for longer than 1 second until a beep is heard
· Simulator is now in programming mode
· Programming of neutral position / full speed forwards/ full speed reverse
· Move remote control to neutral position and press button "+" – confirmed with beep
· Move remote control to full speed forwards position and press button "+" - confirmed with
beep
· Move remote control to full speed reverse position and press button "+" - confirmed with
beep
· Move remote control to neutral position again - programming is confirmed with a long beep
TECHNICAL DATA
· Operating voltage: 5 Volts-25Volts
· Output: max. 30 W (for a short time)
· Output: max. 20 W (with 12 V) (for a short time)
· Speaker impedance: 4 Ohms
· Volume control: 8 levels (switched off+7 levels)
· Volume control: 12 V Level 1-8
· Volume control: 13-25V level 1-max.5
· Dimensions (L x W x H): 90x40x27mm)
· Weight approx. 70g
TROUBLESHOOTING
Problem Cause
Not working Battery not connected properly
No sound Not enough volume
Bad sound Speaker overloaded/distorted
Sound switches Battery empty
off by itself
Overheating
Solution
Check connection/plug connection
Increase volume
Reduce volume
Charge battery
Allow to cool down
