EVOLVE POCKET
DOOR PRO
Fitting Instructions
About this document
ABOUT THIS DOCUMENT
This document addresses qualified personnel only. The mounting must be done by technically educated, trained and qualified
personnel. Electrical wirings have to be completed by suitably qualified specialists.
These instructions describe how to install the track and sliding door hardware. For installation of the drive motor, switches or
sensors - please refer to the operating instructions for the Evolve Motor and Wiring Instructions.
The manufacturer's specification must be respected in especially maximum weight restriction of door leaf. Any other use of
this product is considered inappropriate use.
It is not guaranteed that this product will work in conjunction with fittings, motors or other electronic devices supplied by other
manufacturers.
The appliance is only to be used with the power supply unit provided.
Before you commence work, please read through these instructions. Please store these instructions in a safe place and pass
them on to any future owners. Damage resulting from non-compliance with these instructions and safety instructions will void
the warranty. PC Henderson nor the motor unit manufacturer will assume liability for any consequential damage.
KIT AND DOOR SPECIFICATION
Kit Short Code
EVOPRO1/***
EVOPRO2/***
EVOPRO3/***
EVOPRO4/***
EVOPRO6/***
EVOPRO7/***
EVOPRO10/***
*** For full short code replace with required finished wall thickness size – 120 or 125 (mm)
Note: If installing a liner kit with this kit please refer to Pocket Door Pro Liner Kit fitting instructions – this should be installed last.
ELECTRICAL COMPONENTS
Max. Door Height
Max. Door Width
1981mm (78")
610mm (24")
1981mm (78")
686mm (27")
1981mm (78")
762mm (30")
1981mm (78")
838mm (33")
2040mm (80")
826mm (32.5")
2040mm (80")
726mm (28.5")
2315mm (91")
930mm (36.5")

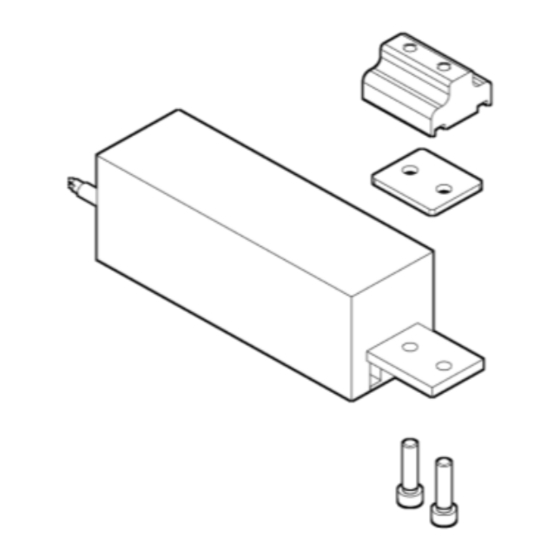

1 x Motor Connector
Block
1 x Motor Spacer
Plate
1 x Motor
2 x M6x25 Socket
Head Screw
Door Thickness Range
28 – 44mm
28 – 44mm
28 – 44mm
28 – 44mm
28 – 44mm
28 – 44mm
28 – 44mm
1 x Wall Control
Socket
1 x Fused
1 x 24V Transformer
Connector
Max. Door Weight
80kg
80kg
80kg
80kg
80kg
80kg
80kg
1 x Wall Socket &
1 x Cover Plate
2 x Socket Surround
1
