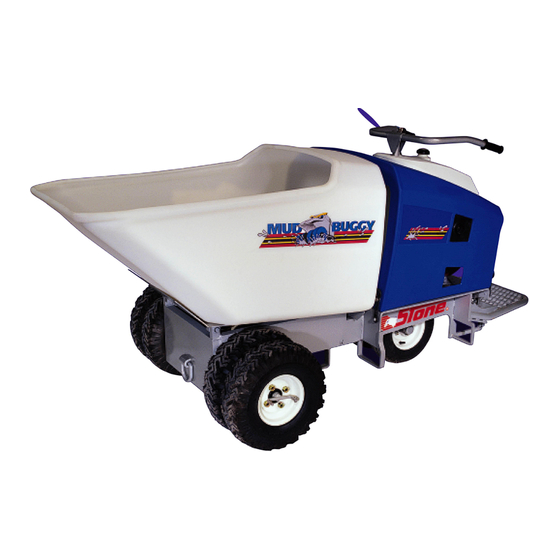

Stone Mud Buggy SB1600 Operator's Manual
Hide thumbs
Also See for Mud Buggy SB1600:
- Operator's manual (112 pages) ,
- Operator's manual (60 pages) ,
- Service & parts manual (68 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Operator's Manual
Advertisement
Table of Contents
Related Manuals for Stone Mud Buggy SB1600
Summary of Contents for Stone Mud Buggy SB1600

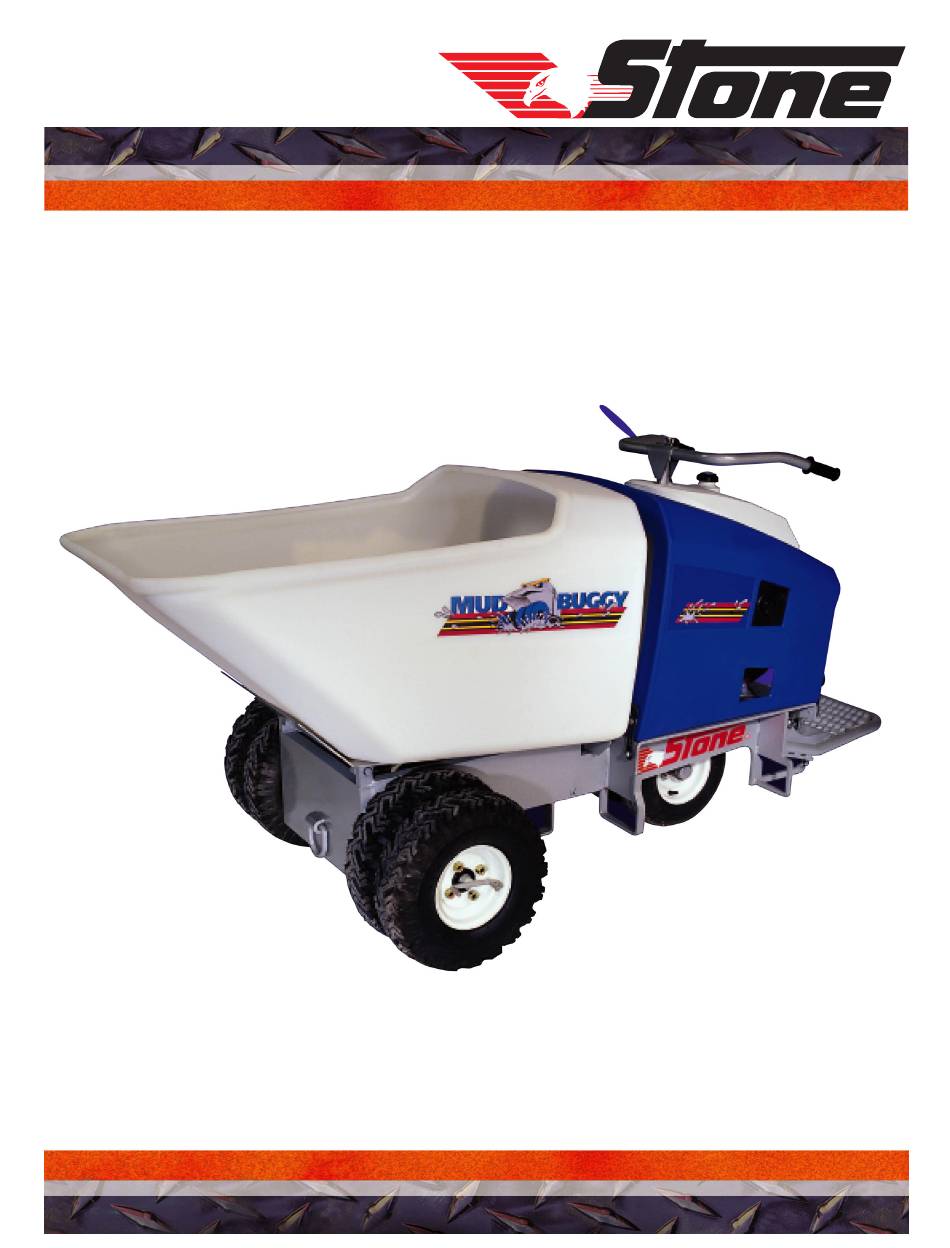

- Page 1 ® OPERATOR MANUAL MODELS: SB1600, FB1000 Mud Buggy™ A 100% employee-owned American manufacturer REVISION: H 6/2005 PN 56486...
-
Page 3: Table Of Contents
Table of Contents Mud Buggy FOREWORD ........................4 LIMITED WARRANTY ....................5 TECHNICAL DATA ......................6 - 10 Machine Specifications....................6 Engine Specifications ..................... 7 Lubrication Specifications ....................7 Machine Sound Level Specifications ................8 Engine Controls ......................9 Machine Operation Controls ..................10 HEALTH &... -
Page 4: Foreword
Battery Type: _______________________________ operation and the pertinent regulations for the prevention of accidents. Battery S/N: ________________________________ Stone Construction Equipment, Inc. is not Location of above information: liable for the function of the machine when used in an improper manner or for other 1. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective January 2004. Stone Construction Equipment, Inc. • 8662 Main Street, P. O. Box 150 •... -
Page 6: Technical Data
Technical Data Specifications Mud Buggy – Specifications Model SB1600 FB1000 Capacity (m 16 Cu. Ft. (.45) 10 Cu. Ft. (.28) Weight (kg) 1370 lbs. (621) 1520 lbs. (689) Length (cm) 105.5 in. (268) 105.5 in. (268) Width (single wheel) (cm) 33.75 in. -
Page 7: Engine Specifications
Technical Data Engine & Lubrication Specs ENGINE SPECIFICATIONS Engine Type 13hp 4-cycle Overhead Valve Engine Make Honda Engine Model GX390 Power @ 2500 RPM 19.5 ft.lb. (26.5 Nm) Operating RPM 3900 Battery 165 amp Fuel Type Unleaded Gas Fuel Tank Capacity 7 gal (26.5 liter) Fuel Consumption 1.14 gph (4.2 liter) -
Page 8: Machine Sound Level Specifications
Machine Sound Level Technical Data Specifications Machine Type: Mud Buggy Material Handler Sound Level Meter Calibration Date: February 15, 2000 Meter Type: Simpson Model 886-2 Type 2 Test Date: September 20, 2001 Test Conditions Temperature: 31 degrees Fahrenheit / 1 degree Celsius Ambient Sound: dba fast mode Moisture Limit:... -
Page 9: Engine Controls
Technical Data Engine Controls Engine Fuel Engine Choke Throttle Stop Switch Manual Recoil Start Valve Throttle Engine Start Choke Button Key Switch ‘on’ Gas Valve Engine Controls (carburetor) Engine Fuel Stop Switch Electric Option - 9 -... -
Page 10: Machine Operation Controls
Technical Data Machine Operation Controls Reverse Speed Control Forward Speed Handle Control Handle Dump Handle Parking Brake Dump Pedal Brake Pedal - 10 -... -
Page 11: Health & Safety
Health & Safety Safety Precautions Before using this equipment, study this entire manual to When warning decals are destroyed or missing, contact become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially children, replacement. -
Page 12: Operation
Health & Safety Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •... - Page 13 Health & Safety Safety Precautions • Never perform any work on the equipment while it is running. • Before working on the equipment, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the equipment. •...
- Page 14 Health & Safety Safety Precautions Warning-Eye Protection Always wear splash goggles when operating equipment. • • Starting fluid (ether) is highly flammable, do not use or an explosion or fire may result. • Never operate unit in a poorly ventilated or enclosed area. •...
- Page 15 Health & Safety Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
-
Page 16: Health & Safety
Health & Safety Safety Precautions BATTER TTER TTER TTERY CHAR TTER Y CHAR Y CHAR Y CHARGING Y CHAR GING GING GING GING § Read and understand the Maintenance Section of this manual before attempting to charge the battery. § Before using a charger, read all the manufacturers’... -
Page 17: Engine
Operation Starting and Stopping the Engine ENGINE figure 1 Refer to engine manual for specific engine infor- mation. Parking Brake ‘On’ Pre-Start Checklist • Read Operator Manual and check that operator and engine controls function properly before starting. • Check the oil level before starting the engine. Warranty is VOID if run without oil. -
Page 18: Machine Operation
Operation Machine Operation MACHINE OPERATION figure 3 1. Start engine as described under section Starting and Stopping the Engine. Reverse 2. Turn throttle lever to desired RPM (figure 2). Speed Forward 3. Release parking brake lever to off position Control (figure 4). -
Page 19: Quick Release Dual Wheels
Operation Quick Release Dual Wheels CHANGING DUAL WHEEL TO SINGLE WHEEL Standard Machine 1. Jack machine up. Apply parking brake. 2. Remove five (5) lug bolts. 3. Remove outer wheel. 4. Remove five (5) lug nuts from inner dual wheel adapter then remove adapter. -
Page 20: Lifting Points/Transporting/Storage
Operation Lifting Points/Transporting/Storage Cold Weather Starting middle position. The transmission is also provided Hard starting may occur in temperatures below 35 with a bypass valve. degrees Fahrenheit. Using a lighter grade of oil in both the engine and hydraulic tank is recommended. Transporting Machine--When transporting unit, Return oil to the proper grade when temperatures are observe overall height for proper clearance of... -
Page 21: Hydraulic Oil/Fuel/Hardware
Operation Hydraulic Oil/Fuel/Hardware Check oil sight gauge (see figure Hydraulic Oil - Proper Lifting Points--There are two ways of 7) located on the side of the hydraulic oil tank in lifting the unit, from the side or from the front. the engine compartment. -
Page 22: Cleaning/Storage
Operation Cleaning/Storage CLEANING CLEANING CLEANING CLEANING CLEANING WARNING NEVER POUR OR SPRAY WATER OVER THE ENGINE. Cleaning the Equipment - For consistent perfor- mance, long life and continued high quality use of this mud buggy, thoroughly clean the bucket inside and out at the end of each day’s operation. -
Page 23: Warning Decals
Operation Warning Decals 55200 55485 55592 55593 - 23 -... -
Page 24: Lubrication
Lubrication Lubricating the Mud Buggy Daily 1. Check the oil levels in the engine. If required, add a good grade of 10W30 oil. The engine warranty is VOID if run without oil. 2. Check oil level in hydraulic tank. Oil should be visible in the sight gauge. - Page 26 Lubrication - 26 -...
-
Page 27: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Operation of this equipment and/or engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - Page 28 Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@stone-equip.com www: stone-equip.com A 100% employee-owned American manufacturer © 1995 Stone Construction Equipment, Inc. Printed in U.S.A.
