Summary of Contents for NEXALIN ADI

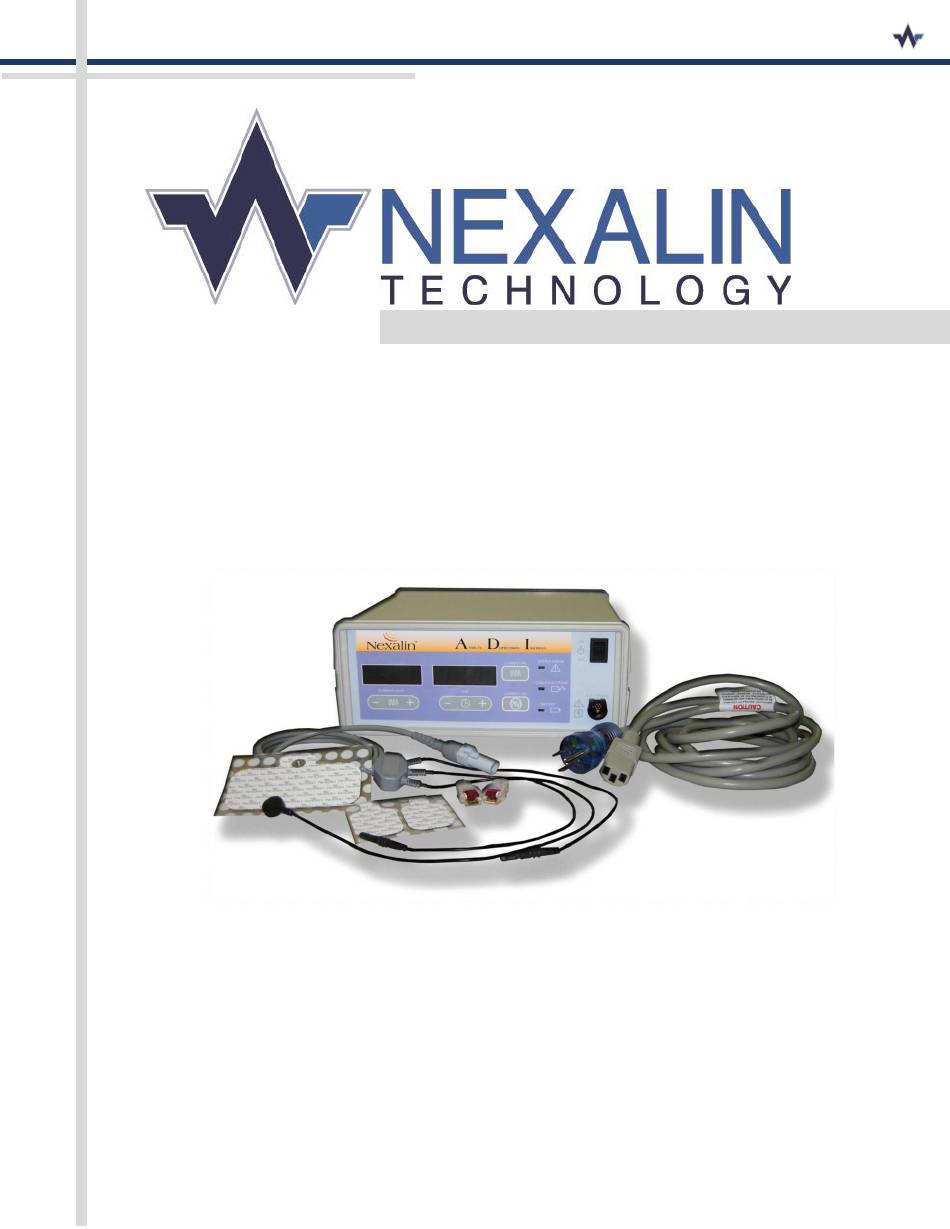

- Page 1 Future of Brain-Based Health OPERATING INSTRUCTIONS Nexalin® ADI Device Nexalin Support Center 1776 Yorktown Ave #550 Houston, TX 77056 Telephone: (714) 916-9290 Website: www.nexalintechnology.com...
- Page 2 Advisory Notices. Nexalin® is a registered trademark of Nexalin Technology, Inc. The Nexalin ADI Device is manufactured by Nexalin Technology, Inc. and marketed by Nexalin Technology, Inc. for exclusive use at Nexalin Advanced Therapy Centers.
-
Page 3: Table Of Contents
Preparing the Patient ........................11 Applying the Nexalin Electrodes ....................11 Attaching the Nexalin Electrode Clips ..................12 The Nexalin ADI Therapy Session ....................12 Completing the Nexalin ADI Therapy Session ................12 Pause Mode ..........................12 Default Nexalin ADI Device Parameters ..................13 Nexalin ADI Device Status Indications ..................14 Check Electrode LED........................14... - Page 4 Cleaning the Nexalin ADI System ....................18 SECTION 6 Nexalin ADI Device Accessories ....................19 SECTION 7 Limited Warranty and Expected Life ....................19 Nexalin ADI Device Returns ......................19 Contact Information ........................20 Disposal of the Nexalin ADI System Products ................20 (This Space Intentionally Left Blank)
-
Page 5: The Nexalin Adi Device
The Nexalin ADI Device is intended for use by or on the order of a licensed healthcare practitioner. Only a Nexalin Certified Technician (NCT) is qualified to operate and administer a Nexalin ADI Therapy Treatment session. -
Page 6: Possible Adverse Side Effects
The Nexalin ADI Device is intended for external use only. Keep fluids away from a Nexalin ADI Device as there is no protection against the ingress of water or cleaners. Clean with alcohol swabs only. (NOTE: IEC 60529 rating is IPX0.) Never power the Nexalin ADI Device on or off with a patient connected. -
Page 7: Explanation Of Symbols
Explanation of Symbols The symbols below can be found within this document or on the Nexalin ADI Device. CAUTION! Indicates a potential for bodily harm or a reminder that specific instructions must be followed to avoid a potential problem. ATTENTION! Indicates an area of the operating instructions that requires special attention. -
Page 8: Nexalin Adi Device Specifications
SECTION 2 Nexalin ADI Device Specifications The Nexalin ADI Device, its components, and all accessories are latex-free. Applicable Standards The Nexalin ADI Device complies with the following standards: AAMI/ANSI SW68 IEC 60601-1, IEC 60601-1-2 CAN/CSA C22.2 No. 601.1-1-M90 IEC 60601-1-4... -
Page 9: The Nexalin Adi System
1. Place the Nexalin ADI Device on a flat, secure surface. 2. Make sure the device is switched OFF. Attach one end of the power cord to the back of the Nexalin ADI Device. Plug the opposite end of the power cord into a universal power supply (if available) or... -
Page 10: Nexalin Adi System Operations
Nexalin ADI System Operations Instructions for the Patient The patient should be in a relaxed state, both mind and body, to receive the maximum benefit from a Nexalin ADI Therapy session. 1. Encourage the patient to use the restroom prior to the therapy session. -
Page 11: Preparing The Patient
2. Arrange the patient cable across the back of the patient’s shoulders, with the electrode clips hanging across each shoulder. 3. Open a Nexalin Electrode Set and remove one forehead and two mastoid electrodes. 4. Peel the hard plastic backing off of one mastoid electrode. -
Page 12: Attaching The Nexalin Electrode Clips
9. Upon their return you will simply put the cable back into the Nexalin Device and hit the start button. Figure 10. CURRENT LEVEL window readout Figure 11. -
Page 13: Pause Mode
NCT. However, if required, it is possible to pause the therapy session. While in Pause Mode, the Nexalin ADI Device will continually beep and the CURRENT LEVEL and TIME windows will flash. 1. To pause a Nexalin ADI Therapy session, press the CURRENT OFF button at any time during the treatment. -
Page 14: Nexalin Adi Device Status Indications
Nexalin ADI Device Status Indications The Nexalin ADI Device has three warning LEDs on the right side of the front panel (Figure 12). All three lights will briefly flash during the diagnostic start-up self-test. Also, the LEDs will flash individually to warn the NCT when a situation occurs requiring attention. -
Page 15: Battery Led
Nexalin ADI Device. If a universal power supply or alternate power source is being used, verify that it is connected properly. 3. If the BATTERY LED is still lit or flashing, refer to Section 5 - Replacing the Nexalin ADI De- vice Fuses, or contact the Nexalin Support Center for assistance. -
Page 16: System Error Led
If error code 9 is displayed in the TIME window, it means: The allowed number of Nexalin ADI Therapy sessions has been reached; or The expiration date of the Nexalin ADI Device has passed and the device has been de- activated and will no longer function. -
Page 17: All Other Error Codes
1. Ensure the patient is disconnected from the Nexalin ADI Device. 2. Power off the Nexalin ADI Device using the ON/OFF switch. 3. Verify the Nexalin ADI Device is properly plugged into a functioning power source. 4. Wait approximately ten seconds, then power the device on. -
Page 18: Service And Maintenance
Section 6 - Nexalin ADI Device Accessories. 2. Never spray any liquid directly onto a Nexalin ADI Device or any of its accessories. The Nexalin ADI Device and its accessories are not designed to withstand directly-applied liquids. -
Page 19: Nexalin Adi Device Accessories
Limited Warranty and Expected Life The expected life of the Nexalin ADI Device is five (5) years from the date of original manufacture. The Nexalin Patient Cable is not warranted; however, the expected life of the Nexalin Patient Cable is one (1) year from the date of first use. -
Page 20: Contact Information
Mastoid electrodes Patient cables Electrode clips Power cords Nexalin® Support Center Telephone: (714) 916-9290 Website: www.nexalintechnology.com © 2013 Nexalin Technology, Inc. All rights reserved. Reproduction without the written permission of Nexalin Technology, Inc. is strictly forbidden.
