Sealey SA5/S.V3 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 Follow all Health & Safety and general workshop rules, regulations and conditions when using
the wrench.
 WARNING! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine
parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use
and ensure that all connections are secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders and hand protection.
 WARNING! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection.
 Maintain correct balance and footing. Ensure that the floor is not slippery and wear non-slip shoes.
 Keep children and non-essential persons away from the work area.
 DO NOT use the wrench for a task that it is not designed to perform.
 WARNING! DO NOT use wrench if damaged or thought to be faulty (contact your Service Agent).
 DO NOT use wrench unless you have been instructed in its use by a qualified person.
 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
 DO NOT operate the wrench if you are tired or under the influence of alcohol, drugs or
intoxicating medication.
 To avoid unintentional starting DO NOT carry the wrench with your finger on the trigger.
 DO NOT direct air from the air hose at yourself or others.
 When not in use, disconnect from the air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATION
2.1. Introduction
Fitted with power-pin type clutch giving up to 50% better performance than standard rocking-dog
clutch. Suitable for heavy garage and tyre shop use. Features 4-position adjustable air/torque
control, reversible action and spring balance anchorage point.
2.2. Specification
Drive: . . . . . . . . . . . . . . . . . . . . . . . . 1/2"Sq
Working/Max Torque: . . . . . . . . 420/520lb.ft
Ultimate Torque: . . . . . . . . . . . . . . . 600lb.ft
Air Consumption: . . . . . . . . . . . . . . . . .4cfm
Operating Pressure: . . . . . . . . . . . . . . 90psi
Speed: . . . . . . . . . . . . . . . . . . . . . 7000rpm
© Jack Sealey Limited

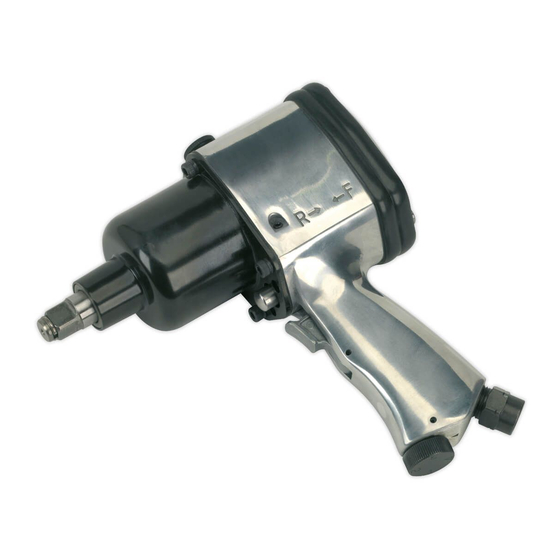

INSTRUCTIONS FOR:
1/2" SQ. DRIVE EXTRA HEAVY DUTY
AIR IMPACT WRENCH
MODEL No: SA5/S.V3
Air Inlet: . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Weight: . . . . . . . . . . . . . . . . . . . . . . . . 2.7kg
Noise Power: . . . . . . . . . . . . . . 103.8dB(A)
Noise Pressure: . . . . . . . . . . . . . 92.8dB(A)
Vibration Figure: . . . . . . . . . . . . . . . .7.7m/s
Uncertainty Value: . . . . . . . . . . . . .1.65m/s
Original Language Version
2
2
SA5/S.V3 Issue:(4)SP-25/07/13
