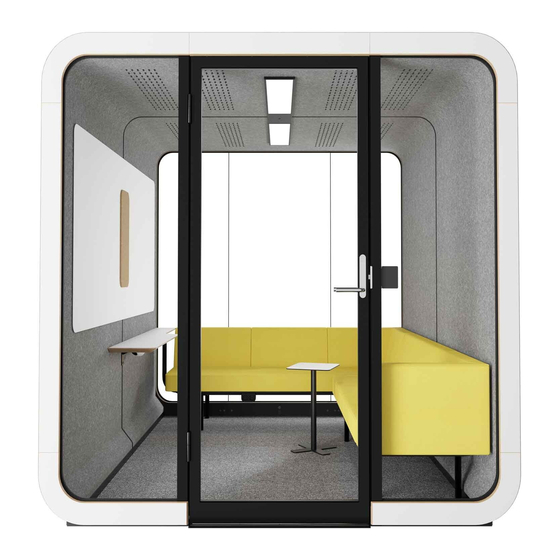

Framery 2Q Installation Instructions Manual

Hide thumbs Also See for 2Q:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Framery 2Q
English
Installation Instructions
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Framery 2Q

Summary of Contents for Framery 2Q

  • Page 1 Framery 2Q English Installation Instructions Version 1.0...

  • Page 3: Table Of Contents

    Contents 1 Safety.........................5 2 Installation requirements................7 2.1 Tools and accessories....................7 2.2 Main dimensions......................8 2.3 Installation space......................9 2.4 Operating space......................9 3 Install the backside module................11 3.1 Install the floor module of the backside module............11 3.2 Install the roof module of the backside module............15 3.2.1 Join the roof modules (back)................
  • Page 4 7 Install the frontside frames and glasses............. 72 7.1 Install the corner and side frames................72 7.2 Install the side glasses....................75 7.3 Finalize the installation of the frontside frames and glasses........78 8 Install the door....................81 8.1 Prepare the door installation..................81 8.2 Install the door......................83 8.3 Install the door handles.....................87 8.4 Adjust the door height....................

  • Page 5: Safety

    Note: Do not place heavy objects on the floor or roof of the pod. Note: Do not attach or hang extra weight from the door. Warning: Always unplug the pod from the electrical outlet before performing any maintenance. To disconnect, remove plug from outlet. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 6 Installation environment The pod is intended to be used in the following conditions. • Ambient temperature: +15°C ... +30°C (59°F ... 86°F) • Humidity: max. 50% Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 7: Installation Requirements

    2 Installation requirements 2.1 Tools and accessories Figure 1: Tools and accessories needed for installation and maintenance Note: Use a white rubber mallet to not leave marks on the body covers. Note: Use a plastic chisel. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 8: Main Dimensions

    Note: Use a mat in the door installation. Tip: You can use glass washing liquid as a lubricant to help with the installation of the seal. 2.2 Main dimensions Figure 2: Main dimensions of the 2Q pod Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 9: Installation Space

    When in use, the pod needs an area of 2.45 m (8 ft 7/16 in) X 3.7 m (12 ft 1 11/16 in) X 2.42 m (7 ft 11 5/16 in). The dimensions for 2Q include the minimum recommended space for the air to circulate: 200 mm (7 7/8 in) above the pod and 50 mm (1 15/16 in) around the pod.
  • Page 10 Figure 4: Operating space measurements Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 11: Install The Backside Module

    Stand two corner pieces on their wide ends. Note: Support the pieces at all times. Make sure that the nut in the I-beam faces the inside of the module. Join the wooden pins into the holes in the corner pieces. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 12 Press wooden pins (14 pcs) into the corner pieces. Press the floor board onto the corner pieces. Note: Make sure that the narrow end of the floor module is at the open end of the module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 13 Note: Make sure that the screw heads are level with the floor or deeper. Lay down the floor module. Install guide pins (4 pcs) to the installation holes. There are two guide pins for each floor corner piece. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 14 Position the backside module at the intended final location. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 15: Install The Roof Module Of The Backside Module

    Note: Make sure that the black ABS strips are against the ground. Note: Make sure that you join the correct roof module pair. The two backside roof modules have square holes in two corners of the ceiling felt. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 16 Unscrew the 4x30 screws (8 pcs) and remove the cover plates (8 pcs). Set the cover plates and screws aside. Install guide pins (2 pcs) into the installation holes. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 17: Fix The Roof Modules Together (Back)

    Join the roof modules together. 3.2.2 Fix the roof modules together (back) Install M8x55 bolts (5 pcs), M8 washers (5 pcs), and M8 nuts (5 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 18 Note: Use a hex key to fully tighten the screws. Make sure that the screws are properly tightened. Lay down the joined module and lift it up to stand on the other side. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 19: Install The Top Center Frame Piece (Back)

    Note: Use a hex key to fully tighten the screws. Make sure that the screws are properly tightened. 3.2.3 Install the top center frame piece (back) Install guide pins (2 pcs) into the installation holes. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 20 Note: Press the acoustic panel aside to reach the bolt holes. Make sure that the acoustic panel returns to the original position. Note: To make installation easier, push the modules in the middle when you install the frame piece. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 21: Install The Roof And Wall Modules Of The Backside Module

    Install the extra support with 5x50 bolts (4 pcs) in the middle of the support beams. Assemble two support beams. Unscrew the 4x30 screws (20 pcs) and remove the cover panels (8 pcs). Set the cover panels and screws aside. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 22: Assemble The Roof Support Beams (Back)

    3.3.2 Assemble the roof support beams (back) Install the angle irons to the roof support beams with M8x90 bolts (2 pcs), M8 washers (2 pcs) and M8 nuts (2 pcs). Place the angle irons on top of the blue foam covering. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 23: Fix The Roof Modules To The Wall Modules (Back)

    3.3.3 Fix the roof modules to the wall modules (back) Install guide pins (4 pcs) to the installation holes at the top of the wall modules. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 24 Install the roof support beams to the roof with M8x55 bolts (2 pcs each) and M8 nuts (2 pcs each). Place the blue foam covering against the ceiling felt. Note: Install the bolt on the inside and the nut on the outside. Tighten the bolts by hand. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 25 Warning: Keep the installation area clear of obstacles that you may stumble over. Note: Make sure that the ABS strips meet at the outer sides of the roof and wall modules. Note: Make sure that the guide pin meets the installation hole in the roof module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 26 Install M8x35 bolts (4 pcs each side) and M8 washers (4 pcs each side). Tighten the bolts by hand. Remove the roof support beams and keep them for later use. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 27: Fix The Combined Roof And Wall Module To The Floor Modules (Back)

    Lifting requires four persons. Warning: Keep the installation area clear of obstacles that you may stumble over. Note: Make sure that the guide pin meets the installation hole in the roof module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 28 Install M8x35 bolts (4 pcs each side) and M8 washers (4 pcs each side). Tighten the bolts by hand. Remove the support beams and store them for later use. Warning: Do not go inside the module after removing the support beams before you tighten the bolts. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 29: Check Module Straightness

    Check the straightness of the lower left side with a spirit level slightly above the floor and wall module junction. Note: Check straightness from the back part of the module. Push the module as needed and hold straight. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 30 Tighten the bolts (4 pcs) on the floor and wall module junction. Check the straightness of the lower right side with a spirit level slightly above the floor and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 31 Push the module as needed and hold straight. Tighten the bolts (4 pcs) on the floor and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 32 Check the straightness of the upper right side with a spirit level slightly below the roof and wall module junction. Push the module as needed and hold straight. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 33 Tighten the bolts (4 pcs) on the roof and wall module junction. 10. Check the straightness of the upper left side with a spirit level slightly below the roof and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 34 11. Push the module as needed and hold straight. 12. Tighten the bolts (4 pcs) on the roof and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 35: Install The Frontside Module

    4 Install the frontside module 4.1 Install the floor module of the frontside module Stand two corner pieces on their wide ends. Note: Support the pieces at all times. Press wooden pins (12 pcs) in the corner pieces. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 36 Note: Install the screws from the middle of the floor module to the end. Make sure that the pins are in place. Note: Make sure that the screw heads are level with the floor or deeper. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 37 Lay down the floor module. Install guide pins (4 pcs) to the installation holes. There are two guide pins for each floor corner piece. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 38: Install The Roof Module Of The Frontside Module

    Note: Make sure that the black ABS strips are against the ground. Note: Make sure that you join the correct roof module pair. The two frontside roof modules have a square hole in one corner of the ceiling felt. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 39 Unscrew the 4x30 screws (8 pcs) and remove the cover plates (8 pcs). Set the cover plates and screws aside. Install guide pins (2 pcs) into the installation holes. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 40: Fix The Roof Modules Together (Front)

    Join the roof modules together. 4.2.2 Fix the roof modules together (front) Install M8x55 bolts (5 pcs), M8 washers (5 pcs), and M8 nuts (5 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 41 Note: Use a hex key to fully tighten the screws. Make sure that the screws are properly tightened. Lay down the joined module and lift it up to stand on the other side. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 42 Note: Pull the roof modules straight to fit the support plate in place. Tighten the screws by hand and bend the modules further, if needed. Note: Use a hex key to fully tighten the screws. Make sure that the screws are properly tightened. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 43: Install The Roof And Wall Modules Of The Frontside Module

    4.3 Install the roof and wall modules of the frontside module 4.3.1 Fix the support beam to the wall modules (front) Unscrew the 4x30 screws (20 pcs) and remove the cover panels (8 pcs). Set the cover panels and screws aside. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 44 Install one support beam on each side of the wall modules with flanged M8x50 bolts (4 pcs). The support beams extend past the sides of the wall modules. Warning: Support the walls continuously until the support beams are installed. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 45: Fix The Roof Modules To The Wall Modules (Front)

    Install the roof support beams to the roof with M8x55 bolts (2 pcs each) and M8 nuts (2 pcs each). Place the blue foam covering against the ceiling felt. Note: Install the bolt on the inside and the nut on the outside. Tighten the bolts by hand. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 46 Warning: Keep the installation area clear of obstacles that you may stumble over. Note: Make sure that the ABS strips meet at the outer sides of the roof and wall modules. Note: Make sure that the guide pin meets the installation hole in the roof module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 47 Install M8x35 bolts (4 pcs each side) and M8 washers (4 pcs each side). Tighten the bolts by hand. Remove the roof support beams and keep them for later use. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 48: Fix The Combined Roof And Wall Module To The Floor Modules (Front)

    Lifting requires four persons. Warning: Keep the installation area clear of obstacles that you may stumble over. Note: Make sure that the guide pin meets the installation hole in the roof module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 49 Install M8x35 bolts (4 pcs each side) and M8 washers (4 pcs each side). Tighten the bolts by hand. Remove the inner support beam and store it for later use. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 50: Connect The Backside And Frontside Modules

    5 Connect the backside and frontside modules Install guide pins (14 pcs) to the installation holes in the backside module. Install the "H" shaped profile to the groove in the floor board of the backside module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 51 Use the support beam as leverage. Press the floor board if it does not fit easily into the H profile. Make sure that the modules connect fully at all points. Check that there is nothing on or under the floor boards. Note: Avoid lifting the module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 52 Note: Install the two bolts located at the center of the roof modules from the inside of the pod. Press the acoustic panel aside to reach the bolt holes. Make sure that the acoustic panel returns to the original position. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 53: Check Module Straightness After Connecting The Modules

    5.1 Check module straightness after connecting the modules Check the straightness of the lower left side with a spirit level slightly above the floor and wall module junction. Note: Check straightness from the front part of the module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 54 Push the module as needed and hold straight. Tighten the screws (4 pcs) on the floor and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 55 Check the straightness of the lower right side with a spirit level slightly above the floor and wall module junction. Push the module as needed and hold straight. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 56 Tighten the screws (4 pcs) on the floor and wall module junction. Check the straightness of the upper right side with a spirit level slightly below the roof and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 57 Push the module as needed and hold straight. Tighten the bolts (4 pcs) on the roof and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 58 10. Check the straightness of the upper left side with a spirit level slightly below the roof and wall module junction. 11. Push the module as needed and hold straight. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 59 12. Tighten the bolts (4 pcs) on the roof and wall module junction. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 60: Install The Backside Frames And Glasses

    Tip: Line the piece with the other frame pieces with a rubber mallet. When the frame piece is in place, tighten the screws fully. 6.1 Install the left-hand side frames Install guide pins (8 pcs) to the installation holes. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 61 LAN cords through the hole in the backside floor module before installing the lower center frame piece. Make sure that there is at least 2.75 m/9 ft (maximum 3.0 m/10 ft) of the main power cord inside the pod. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 62 Install the left-hand side upper corner frame piece with M8x55 screws (3 pcs) and M8 washers (3 pcs). Note: Press the acoustic panel aside to reach the screw holes. Make sure that the acoustic panel returns to the original position. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 63: Install The First And Center Glasses

    Install the left-hand side frame piece with M8x55 screws (3 pcs) and M8 washers (3 pcs). 6.2 Install the first and center glasses Guide the first side glass almost fully into the grooves. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 64 Note: Install the seal all the way from the top to the bottom of the glass and cut off the excess. Slide the first side glass into place. Guide the center side glass almost fully into the grooves. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 65 Install the rubber glass seal strip on the side of the glass. Note: Do not stretch the seal. Note: Install the seal all the way from the top to the bottom of the glass and cut off the excess. Slide the center glass into place. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 66: Install The Right-Hand Side Frames And The Second Glass

    Install the right-hand side lower corner frame piece with black M8x50 countersunk screws (3 pcs). Note: The seismic support bracket is optional. The maximum size of the anchor bolt is M10. Follow the local regulations regarding seismic anchoring. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 67 Slide the second side glass into place. Note: Tilt the glass to guide it into the groove. Install the guide pins (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 68 Note: One person holds the glass in place. Press the acoustic panel aside to reach the screw holes. Make sure that the acoustic panel returns to the original position. Install the guide pins (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 69 Install the right-hand side frame piece in place with M8x55 screws (3 pcs) and M8 washers (3 pcs). Tighten the screws on the right-hand side upper corner frame piece. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 70: Finalize The Installation Of The Backside Frames And Glasses

    Tighten the nylon screws (2 pcs each side) on the sides of the module with a flat head screwdriver. Note: The glass adjustment screws are only for pushing the glasses together. Tighten the screws until you feel resistance, then loosen half a turn. Do not overtighten. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 71 Seal the whole frame with wedge-shaped seal between the glasses and frames on the outside of the module. Tip: You can use glass washing liquid as a lubricant to help with the installation of the seal. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 72: Install The Frontside Frames And Glasses

    Tip: Line the piece with the other frame pieces with a rubber mallet. When the frame piece is in place, tighten the screws fully. 7.1 Install the corner and side frames Install the guide pins (12 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 73 Note: The floor corner frame pieces have a beveled edge on the door side. Note: The seismic support bracket is optional. The maximum size of the anchor bolt is M10. Follow the local regulations regarding seismic anchoring. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 74 Note: Press the acoustic panel aside to reach the bolt holes. Make sure that the acoustic panel returns to the original position. Install the side frame pieces with M8x55 bolts (3 pcs each) and M8 washers (3 pcs each). Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 75: Install The Side Glasses

    Push the roof up, if the glasses do not fit. Note: Make sure that the lock side glass with the strike plate is on the right side. Note: Push the wooden part of the glass even with the frame piece. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 76 Guide the hinge side glass into the grooves and slide it in place. Push the roof up, if the glasses do not fit. Note: Push the wooden part of the glass even with the frame piece. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 77 (2 pcs) on the floor module. Note: Press the acoustic panel aside to reach the screw holes. Make sure that the acoustic panel returns to the original position. Note: Make sure that the lock side glass is even. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 78: Finalize The Installation Of The Frontside Frames And Glasses

    Check the straightness of the hinge side glass frame with a spirit level. To straighten the wooden part of the glass, loosen one screw on the glass frames at a time, straighten the glass frame, and retighten the screw. Install the guide pins (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 79 Tighten the nylon screws (2 pcs each side) on the sides of the module with a flat-head screwdriver. Note: The glass adjustment screws are only for pushing the glasses together. Tighten the screws until you feel resistance, then loosen half a turn. Do not overtighten. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 80 Seal the side glasses with wedge-shaped seal between the glasses and frames. Note: Install the seal on the inside of the pod. Tip: You can use glass washing liquid as a lubricant to help with the installation of the seal. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 81: Install The Door

    8 Install the door 8.1 Prepare the door installation Put the carpet into place. Tip: Unroll the carpet and roll it the other side up before placing it. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 82 Note: Guide the right edge of the threshold to the right edge of the door frame. Note: The threshold and door frame seals are preinstalled. Make sure that the seals do not overlap. If they do, cut the seal to the correct length. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 83: Install The Door

    Note: Install the edge of the threshold 2 mm on top of the carpet edge. Note: Make sure that the seal does not overlap the threshold. If it does, cut the seal to the correct length. 8.2 Install the door Separate the hinges into two parts each. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 84 Attach the door leaves to the door with black 5x30 screws (4 pcs each). Note: The door leaves have two small holes in the side. Note: Make sure that the door leaves do not overlap the seal. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 85 Note: Make sure that the hinge pin is in the frame part of the door leaves. There are no holes in the door leaves. Note: Install the adjustment plate under the lower hinge only. Note: Make sure that the seal is not squashed between the hinge and the door frame. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 86 Warning: Lifting requires two persons. Make sure that the lower hinge falls into place. Note: Keep the door in the open position (180° angle). Note: Use a separate carpet in the installation. Set the carpet on the ground to protect the door. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 87: Install The Door Handles

    Push the handle with the spindle and rubber seal into place on the outside of the door. Push the handle into place on the inside of the door. Tighten the handles with M5x43 screws (2 pcs). Note: Do not overtighten. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 88 Note: Tighten the set screw. The resistance increases steadily until the screw pierces the spindle. In the final position, the head of the set screw is level with the handle surface. Note: Do not overtighten. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 89: Adjust The Door Height

    Before the adjustments, test the door and lift it 3 mm at maximum, if it catches on the threshold. a. Turn the bottom screw of the top hinge clockwise with a hex key. b. Adjust the bottom hinge to the same level as the top hinge. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 90 The key bounds back when it encounters resistance. Test the resistance before adjustment. Tighten a ¼ turn. To hold in position, hold the hex key on the hinge. Lock the spring in place with an M5x6 screw in the hole on the right-hand side. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 91: Adjust The Closing Speed Of The Door

    8.5 Adjust the closing speed of the door If you want the door to close faster, you can adjust it. Note: The closing of the door must take at least 1.5 seconds from a 70° angle. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 92 Repeat as needed. Note: The lock pin holds the spring in place so it does not unwind and break. Note: You can tighten the spring 6 x ¼ turns at the maximum after feeling resistance. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 93: Adjust The Automatic Door Seal

    The further the stick comes out of the door frame, the lower the door seal descends. The seal descends automatically when you close the door. Check with a flashlight that there is no gap under the door. If the light shines through from under the door, readjust the door seal. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 94: Install The Table And Electrics

    9 Install the table and electrics 9.1 Install the motion detector Install the magnets (2 pcs) on the ceiling beam with 4x20 screws (2 pcs). Install the motion detector DC cord. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 95 Note: Make sure that the cord of the detector is closer to the power column. Lift the motion detector into place so that it snaps onto the magnets. Note: Make sure that the cord is not caught between the motion detector and the magnets. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 96: Install The Seal And The Metal Sheets

    Install the black metal sheets with black 5x30 screws (20 pcs) on the inside of the pod. Note: Cut the seal. Leave it approximately 2 mm (1/16 in) under the metal sheet. Note: Install the sheets in a butt joint. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 97: Install The Back Profile Of The Power Column

    9.3 Install the back profile of the power column Install the angle iron to the back profile of the power column with a black M6x12 socket screw. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 98 Note: Use the ceiling felt center line as the midpoint reference. Note: Pull the cords through the hole in the profile and guide the mains power cord up on the left side of the angle iron. Leave the LAN cord on the floor. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 99 Attach the power column back profile to the floor module with an M8x20 screw and an M8 washer. Note: Make sure that the profile is straight before tightening the screw. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 100: Install The Front Profile Of The Power Column

    Install the cover plate for the plug in the opening. If the option does not include the table, install the petra plug. Slide the steel plate for the petra plug level with the lower edge of the installation opening. Note: Place the countersink holes upwards. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 101 Install the steel plate with M5x10 countersunk screws (2 pcs). Use a hex key. Install the petra plug in the opening and guide the cord to the top of the power column. Note: Push the plug against the steel plate. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 102 Slide the steel plate behind the petra plug cord on the upper edge of the installation opening. Push the plate tightly against the plug. Note: Place the countersink holes upwards. Install the steel plate with M5x10 countersunk screws (2 pcs). Use a hex key. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 103 • Griprose's rose and cover plate with M6x20 bolts (4 pcs) and M6 nuts (4 pcs) Note: The table and griprose/display are optional. Install the control panel in the control panel holder with M4x10 screws (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 104 Tighten the bolts by hand. 10. Connect the control panel cord to the control panel with an audible snap and guide the cord out from the top of the power column. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 105 M6x40 bolts and M6 connection nuts. Note: Guide the control unit cords to the roof on the left side of the power column and pull them out on the left side of the lamp opening. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 106: Install The Electrical Connections

    Pull the fan DC cords from the front of the pod to the back and into the pod from the lamp opening at the back. Guide the cords along the electrical channel. Note: Connect the fan cords at the front. Note: There are connectors for the fans and control unit at the back. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 107 Hook the control unit bracket onto the roof beam and set the control unit onto the bracket. The control unit has a magnet to fix it on the bracket. Note: Make sure that the connectors face downwards. Check that the control unit does not touch the bolt in the roof beam. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 108 Connect the motion detector DC cord to the PIR connector in the control unit. Connect the control panel cord to the BUS connector in the control unit. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 109 Connect the extension cord for the lamp to the LED 3 connector in the control unit. Connect the fan cords at the back and to the Fan connector in the control unit. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 110 Pull the power supply cord into the pod. If the option includes the table or display, connect the power cord for the PEAK socket and the power cord for the display from the power column to the splitter. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 111: Install The Table (Optional)

    10. Connect the power cord to the DC In connector in the control unit. 9.6 Install the table (optional) Install the leg of the table to the support bar of the table with M6x20 screws (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 112 Install the leg of the table to the table top with 5x25 screws (4 pcs). Install the table to the angle irons in the power column with 5x25 screws (2 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 113: Install The Display (Optional)

    Note: Insert the fixing mounts into the slots under the PEAK socket. Do not overtighten the screws. 9.7 Install the display (optional) Place plastic spacers (4 pcs) under the adapter plate and install the adapter plate to the display with M6x35 screws (4 pcs). Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 114 Note: Make sure that the angles of the adapter plate are at the lower edge of the display. Preload the mounting mechanism on the griprose. Snap the mechanism to the fixed middle position. Push the display to the griprose's rose. Note: The rose snaps into the down position. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 115: Install The Roof Cover Panels

    Note: Position the hole for the cables as close to the edge of the roof module as possible. Note: Place the countersink holes upwards. Note: Do not lean against the module. Make sure that your ladder is high enough. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 116 Note: Place the countersink holes upwards. Note: Do not lean against the module. Make sure that your ladder is high enough. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 117: Install The Lamps

    9.9 Install the lamps Install the lamp on the front module ceiling. The lamp attaches to the ceiling with magnets. Note: Connect the lamp to the extension power cord connector. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 118 Install the lamp on the back module ceiling. The lamp attaches to the ceiling with magnets. Note: Connect the lamp to the LED 1 connector in the control unit. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 119: Install The Cover Panels And The Body Covers

    10 Install the cover panels and the body covers 10.1 Install the roof cover plates Reinstall the cover plates (16 pcs) to the roof modules with 4x30 screws (16 pcs). Note: Place the countersink holes upwards. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 120: Install The Wall Cover Panels

    10.2 Install the wall cover panels Reinstall the small cover panels (8 pcs) to the wall modules with 4x30 screws (16 pcs). Note: Place the countersink holes upwards. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 121 Note: Place the countersink holes upwards. Note: Make sure that the grooves in the panels are on the outer edge of the panel and that the panels touch the wall module on the inner edge. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 122: Install The Bottom Body Covers

    Check that the cover has flanged edges. Install the bottom body covers (2 pcs each side) on the sides of the floor modules. Direct the edges of the covers against the flanges in the middle cover. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 123: Install The Wall Body Covers

    Check that the cover has flanged edges. Install the covers from the bottom to the top. Slide the covers slightly downwards and direct in the correct position. Note: Use a plastic chisel, if you must remove the cover. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 124: Install The Roof Body Covers

    Installation requires two persons: One guides the cover from the ladder, one from the floor. Guide the cover first to the middle of the roof. Then pull down and guide the lower edge to the groove on the wall. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 125 Note: The covers for the right-hand front and left-hand back corners are identical, as are the covers for the left-hand front and right-hand back corners. Note: Do not lift the cover from the opening. The narrow metal strip bends. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 126 Guide the cover first to the middle of the roof and direct the edges of the covers against the flanges in the middle cover. Then pull down and guide the lower edge into the groove on the wall. Note: Do not lift the cover from the opening. The narrow metal strip bends. Framery 2Q Installation Instructions info@frameryacoustics.com...

  • Page 127: Finalize The Installation Of The Body Covers

    10.6 Finalize the installation of the body covers Install the black cover plate on each side of the frontside floor module with black wronic 4.2x25 screws (4 pcs). Note: Do not install the screw in the middle of the module. Framery 2Q Installation Instructions info@frameryacoustics.com...
  • Page 128 4.2x25 screws (5 pcs). Note: The backside cover partly overlaps the frontside cover. Install the screw in the middle of the module through both back and front covers. Connect the main power cord to a power outlet. Framery 2Q Installation Instructions info@frameryacoustics.com...
