Operation Manual

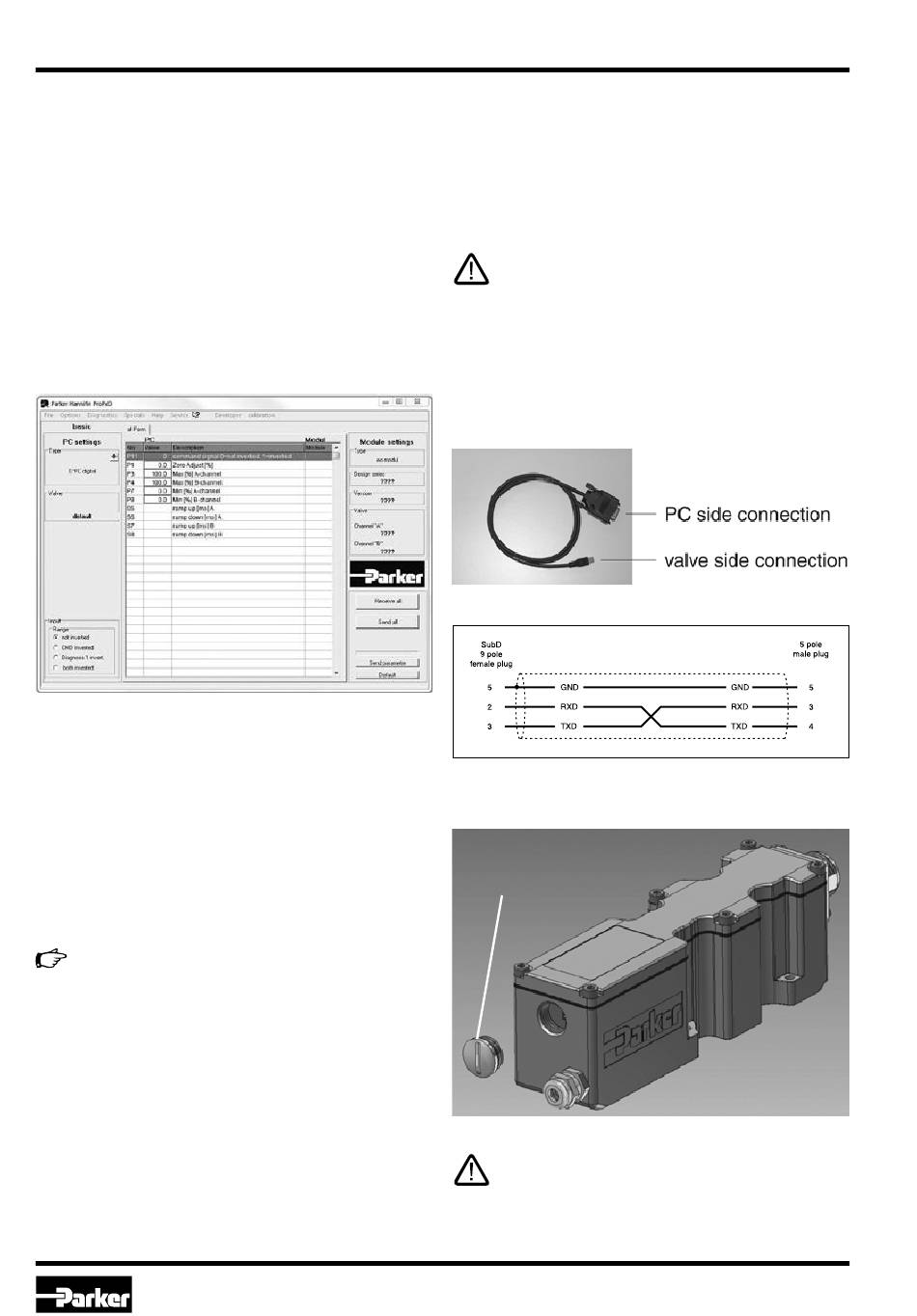

ProPxD parametrizing software

The ProPxD software allows quick and easy setting
of the digital valve electronics. Individual parameters
as well as complete settings can be viewed, changed
and saved via the comfortable user interface.
Parameter sets saved in the non-volatile memory
can be loaded to other valves of the same type or
printed out for documentation purposes.
See www.parker.com/isde section "Support" or
directly at www.parker.com/propxd for free software
download.
Parametrizing connection
Hardware requirements
• PC with operating system from Windows
upwards
• Interface RS232C
• display resolution min. 800 x 600
• connection cable between PC and electronic
module
• storage requirement approx. 40 MB
If your PC has no serial interface according
to RS232 standard, you require in addition
an USB-RS232 adapter for connection to the
USB interface.
D_FC 5715-686 UK 07.02.2019
Proportional DC Valves
Series D*FC, D*1FC
Cable specification
The cable which is required for the connection of
the valve electronic to a PC may be ordered un-
der code 40982923. The cable has to be inserted
between an unused serial port of the PC and the
5pole socket connector of the valve electronic
(parametrizing connector).
Attention! The valve electronic provides no
USB interface, but can only be parametrized
via an RS232 - connection. Therefore the
usage of USB standard cables is permitted
and may result in damaging of valve resp. PC.
Parametrizing cable
Ordering code: 40982923
®
XP
Parametering interface
Plug for
parametering interface
The cover plug has to be re-installed after
completion of the parametrizing work.
