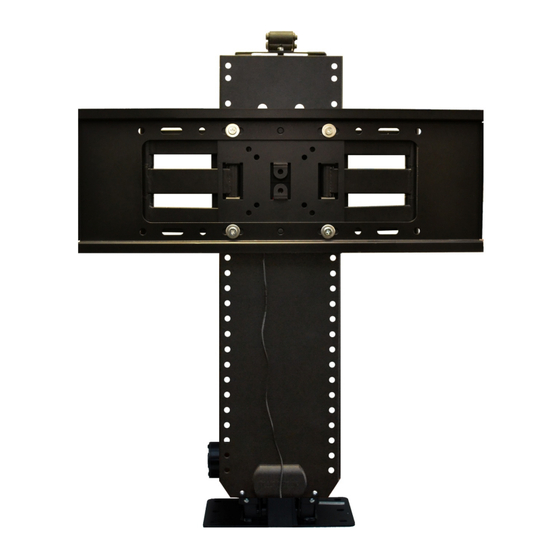

- Page 1 Whisper Lift II PRO Advanced Swivel TV Lift Manual...
-
Page 2: Table Of Contents
Whisper Lift II PRO Advanced Swivel TV Lift Table of Contents Contents About Your Touchstone Whisper Lift II PRO Advanced Swivel TV Lift ............3 Lift Features ................................3 Safety .................................... 4 IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS ..............4 ... -
Page 3: About Your Touchstone Whisper Lift Ii Pro Advanced Swivel Tv Lift
- Universal quick connect installation takes just minutes. Includes hardware kit with bolts and screws. - 3-way adjustable mounting system to ensure that the Whisper Lift II PRO Advanced Swivel TV Lift is compatible with almost all flat panel TVs in the market today. -
Page 4: Safety
Whisper Lift II PRO Advanced Swivel TV Lift Safety Mounting your flat screen TV to the Touchstone Whisper Lift II PRO Advanced Swivel TV Lift is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to ensure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual. -
Page 5: Lift Components & Tv Installation Hardware
If that is the case, these screws can be purchased at most hardware/home improvement stores. Tools In order to assemble the Whisper Lift II PRO Advanced Swivel TV Lift, you will need the following tools: - Philips-head screwdriver - size 4 metric hex wrench... -
Page 6: Assembling Your Whisper Lift Ii Pro Advanced Swivel Tv Lift
- adjustable wrench Instructions: The Whisper Lift II PRO Advanced Swivel TV Lift ships with 2 mounting brackets pre-installed on the back of the lift as shown in the picture below: Typically, these brackets do not require any adjusting by the customer. Should you need to adjust these brackets to level the lift, loose the nuts holding the bracket to the lift and move the bracket accordingly. -
Page 7: Operating The Whisper Lift Ii Pro Advanced Swivel Tv Lift
You do not need to point the remote control directly at the cabinet to operate the lift. Operating the Wired Remote A wired control is included with your Touchstone Whisper Lift II PRO Advanced Swivel TV Lift, which can be mounted inside of the cabinet and control the lift should you misplace the wireless remote control. -
Page 8: Mounting And Installing The Tv
Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV. - Page 9 Whisper Lift II PRO Advanced Swivel TV Lift Attaching TV Mounting Brackets to Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.
-
Page 10: Fasten Lift To Cabinet
Parts Needed: The Whisper Lift II PRO Advanced Swivel TV Lift has 8 mount points (2 on the back of the lift and 6 on the floor). Use the rear 2 mount points and at least 4 of the 6 floor mount points to mount the lift in your cabinet. -
Page 11: Installing Swivel Bracket On Tv Lift
Whisper Lift II PRO Advanced Swivel TV Lift Installing Swivel Bracket on TV Lift Tools Needed: - adjustable wrench - size 5 metric hex wrench Parts Needed During This Step: - TV Lift - swivel bracket - 4 large hex screws- size 5... -
Page 12: Installing Swivel Safety Sensor
Whisper Lift II PRO Advanced Swivel TV Lift Installing Swivel Safety Sensor Parts Needed During This Step: - swivel safety sensor - swivel safety sensor cable Instructions: 1. Extend the swivel bracket so that you have access to the sensor position on the swivel bracket. - Page 13 Whisper Lift II PRO Advanced Swivel TV Lift Installing Swivel Sensor – cont 3. Connect Blue and Brown wires to swivel sensor. Install the brown wire on the top connection and the blue wire on the bottom connection as shown below.
- Page 14 Whisper Lift II PRO Advanced Swivel TV Lift Installing Swivel Sensor – cont 5. When the swivel bracket is in the closed position, the swivel bracket will engage the sensor and allow the lift to run up and down. Swivel Sensor in Closed Position (side view) When the bracket is pulled away from the lift, the sensor will disengage and the lift will not be able to be operated.
-
Page 15: Hookup Lift Control Box And Power Supply
Whisper Lift II PRO Advanced Swivel TV Lift Hookup Lift Control Box and Power Supply Parts Needed During This Step: - Control box - Power supply - Wired remote Instructions: Control Box Connections Control Box Connections (side view) A = 12v Trigger Port B = IR Sensor Port www.touchstonehomeproducts.com... - Page 16 Whisper Lift II PRO Advanced Swivel TV Lift Hookup Control Box and Power Supply – cont. Installing Control Box 1. Attach the control box to your cabinet using the 4 screws provided. Attach Lift Cable into Control Box 1. Plug the lift motor cable into the Lift Cable Connection on the control box.
- Page 17 Whisper Lift II PRO Advanced Swivel TV Lift Hookup Control Box and Power Supply - cont Install Power Cable 1. To connect power cable from power supply to power cable on control box, line up the connections on each cable so they match and slide the plug on the control box end into the connection on the power supply.
- Page 18 Whisper Lift II PRO Advanced Swivel TV Lift Hookup Control Box and Power Supply - cont Install Swivel Sensor In order to operate the swivel, the sensor switch needs to be attached to the control box. 1. Remove plug from swivel sensor connection on control box.
- Page 19 Whisper Lift II PRO Advanced Swivel TV Lift Install Sensor If you plan to use the Whisper Lift II PRO Advanced Swivel TV Lift with an existing IR remote control, attach the IR sensor to port B on the side of the control box.
-
Page 20: Installing Tv On Swivel Bracket
Whisper Lift II PRO Advanced Swivel TV Lift Installing TV on Swivel Bracket Tools Needed: - Phillips-head screwdriver Instructions: 1. Using the internal wired control, move the lift to the full up position. The UP button is the button opposite of the cable side of the wired remote. - Page 21 Whisper Lift II PRO Advanced Swivel TV Lift Install TV on Swivel Bracket – cont. 3. After hanging the TV on the swivel bracket, center the TV on the bracket and install the locking screws to hold the TV in place.
-
Page 22: Setting Adjustable Roller Height
Whisper Lift II PRO Advanced Swivel TV Lift Setting Adjustable Roller Height Each Whisper Lift II PRO Advanced Swivel TV Lift comes with an adjustable roller assembly that allows you to set the maximum height of the lift. Tools Needed:... -
Page 23: Whisper Lift Ii Pro Advanced Swivel Tv Lift Features
The Whisper Lift II PRO Advanced Swivel TV Lift can be paired with your existing universal IR remote control. To pair a universal IR Remote control with the Whisper Lift II PRO Advanced Swivel TV Lift, please follow the directions below: 1. -
Page 24: Setting Lift Height
Whisper Lift II PRO Advanced Swivel TV Lift Features - cont Setting Lift Height With the Whisper Lift II PRO Advanced Swivel TV Lift, you can set the height of the lift, so that it stops at the same height every time. To set the lift height, do the following: 1. -
Page 25: Optional Accessories
Optional Accessories Assembling Component Shelf (optional) For your convenience, Touchstone Home Products offers a component shelf that will attach to the Whisper Lift II PRO Advanced Swivel TV Lift for storing components such as a DVD player, cable box, etc. - Page 26 Whisper Lift II PRO Advanced Swivel TV Lift Assembling Component Shelf – cont 2. Using the 2 remaining small nuts and bolts (D), attach the shelf brackets (C) to the lift. The shorter end of the shelf bracket attaches underneath of the shelf.
-
Page 27: Ir Repeater Kit (Optional)
Warranty Touchstone Home Products warrants the Whisper Lift II PRO Advanced Swivel TV Lift to be free from defects in material and workmanship for two years from date of purchase. The warranty includes all parts, motorized components, electronics, and metal. If the Whisper Lift II PRO Advanced Swivel TV Lift proves to be defective in material or workmanship during the warranty period, Touchstone Home Products will replace the defective part free of charge. - Page 28 Whisper Lift II PRO Advanced Swivel TV Lift www.touchstonehomeproducts.com 800.215.1990...
