Parameters
Note
Example

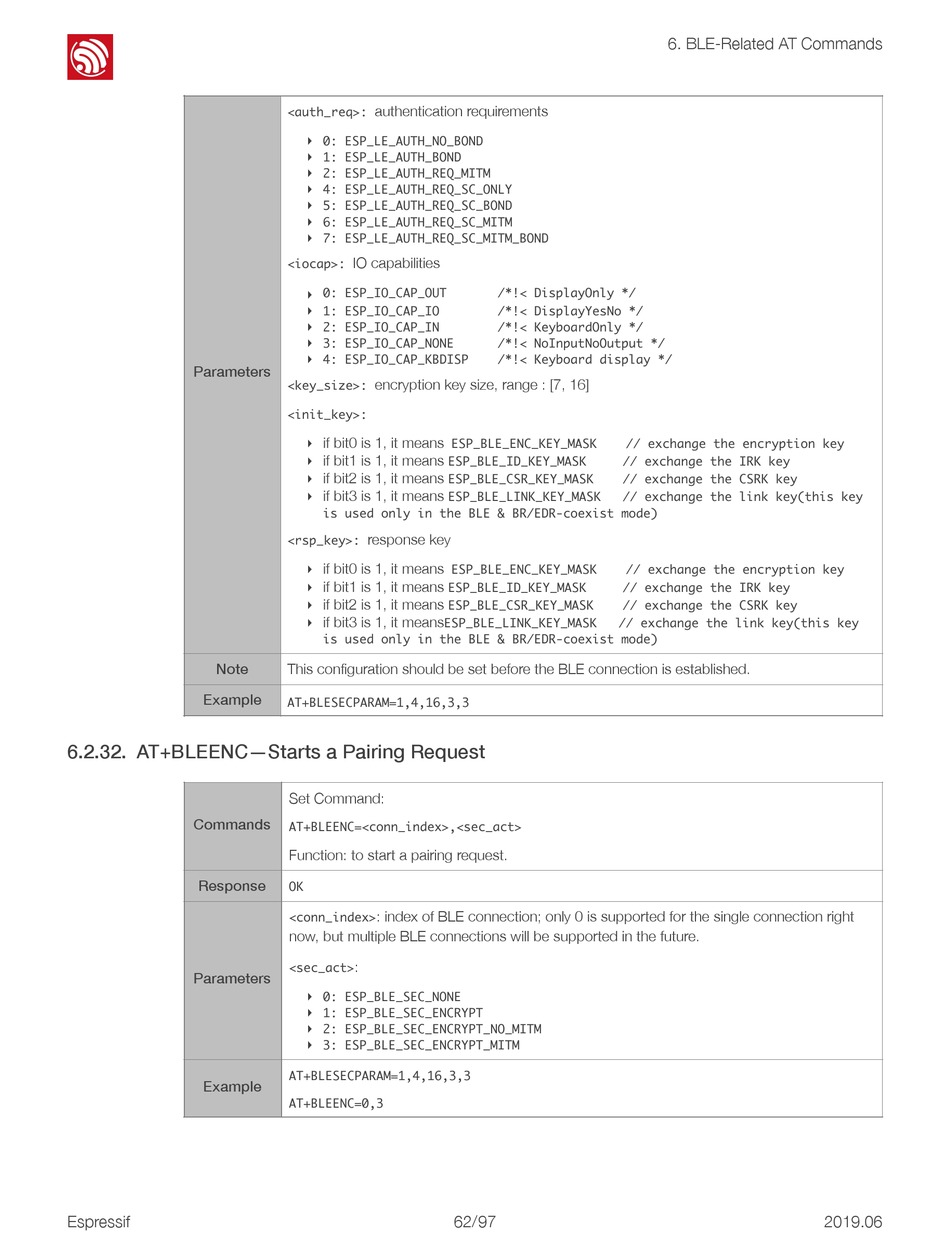

6.2.32. AT+BLEENC—Starts a Pairing Request
Commands
Response
Parameters
Example
Espressif
<auth_req>: authentication requirements
‣ 0: ESP_LE_AUTH_NO_BOND
‣ 1: ESP_LE_AUTH_BOND
‣ 2: ESP_LE_AUTH_REQ_MITM
‣ 4: ESP_LE_AUTH_REQ_SC_ONLY
‣ 5: ESP_LE_AUTH_REQ_SC_BOND
‣ 6: ESP_LE_AUTH_REQ_SC_MITM
‣ 7: ESP_LE_AUTH_REQ_SC_MITM_BOND
<iocap>: IO capabilities
‣ 0: ESP_IO_CAP_OUT /*!< DisplayOnly */
‣ 1: ESP_IO_CAP_IO /*!< DisplayYesNo */
‣ 2: ESP_IO_CAP_IN /*!< KeyboardOnly */
‣ 3: ESP_IO_CAP_NONE /*!< NoInputNoOutput */
‣ 4: ESP_IO_CAP_KBDISP /*!< Keyboard display */
<key_size>: encryption key size, range : [7, 16]
<init_key>:
‣ if bit0 is 1, it means ESP_BLE_ENC_KEY_MASK // exchange the encryption key
‣ if bit1 is 1, it means ESP_BLE_ID_KEY_MASK // exchange the IRK key
‣ if bit2 is 1, it means ESP_BLE_CSR_KEY_MASK // exchange the CSRK key
‣ if bit3 is 1, it means ESP_BLE_LINK_KEY_MASK // exchange the link key(this key
is used only in the BLE & BR/EDR-coexist mode)
<rsp_key>: response key
‣ if bit0 is 1, it means ESP_BLE_ENC_KEY_MASK // exchange the encryption key
‣ if bit1 is 1, it means ESP_BLE_ID_KEY_MASK // exchange the IRK key
‣ if bit2 is 1, it means ESP_BLE_CSR_KEY_MASK // exchange the CSRK key
‣ if bit3 is 1, it meansESP_BLE_LINK_KEY_MASK // exchange the link key(this key
is used only in the BLE & BR/EDR-coexist mode)
This configuration should be set before the BLE connection is established.
AT+BLESECPARAM=1,4,16,3,3
Set Command:
AT+BLEENC=<conn_index>,<sec_act>
Function: to start a pairing request.
OK
<conn_index>: index of BLE connection; only 0 is supported for the single connection right
now, but multiple BLE connections will be supported in the future.
<sec_act>:
‣ 0: ESP_BLE_SEC_NONE
‣ 1: ESP_BLE_SEC_ENCRYPT
‣ 2: ESP_BLE_SEC_ENCRYPT_NO_MITM
‣ 3: ESP_BLE_SEC_ENCRYPT_MITM
AT+BLESECPARAM=1,4,16,3,3
AT+BLEENC=0,3
62 97 ! /!
