Hitachi NEXT Series Instruction Manual page 118

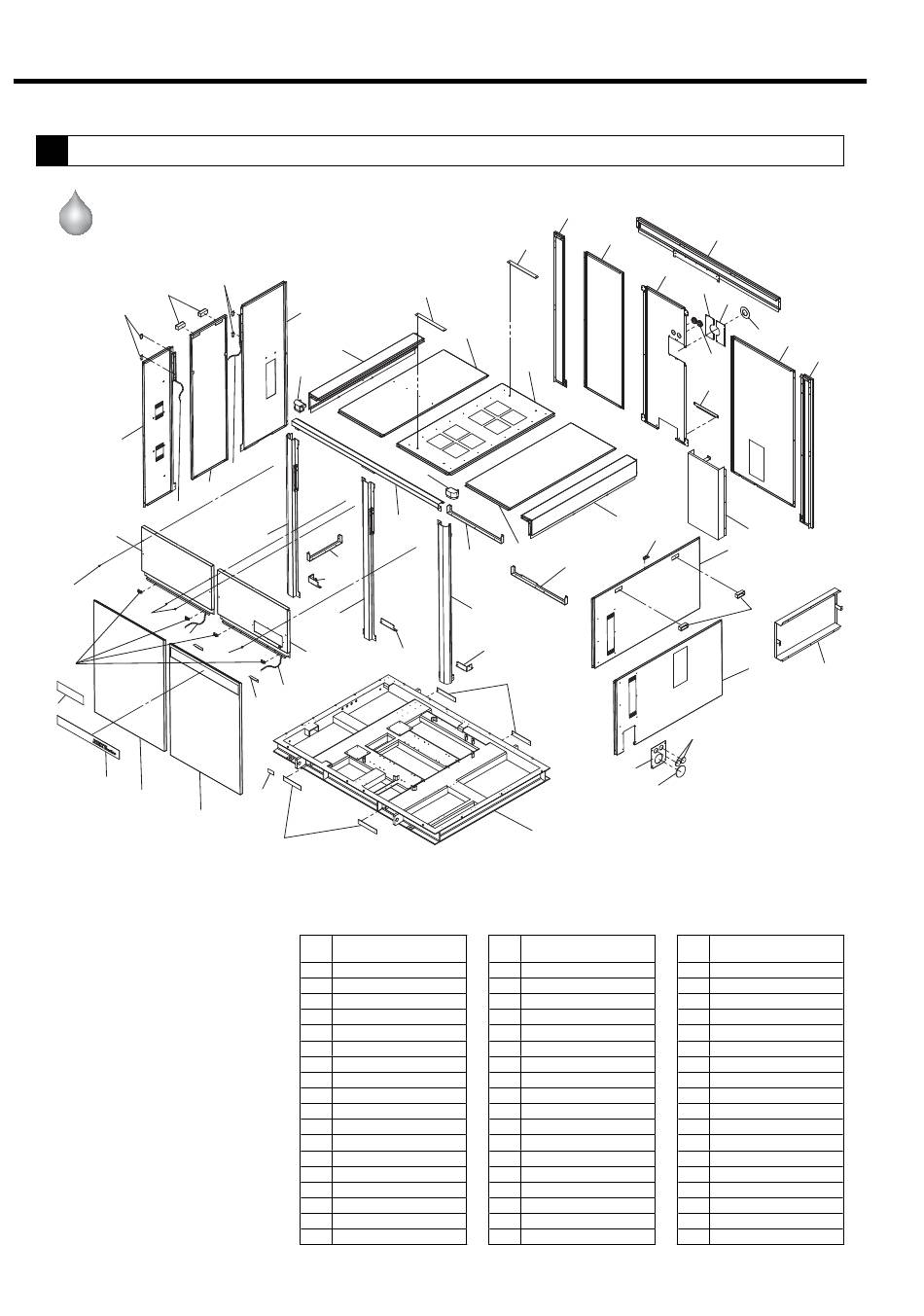

11. PARTS LIST
15 Enclosure (1)
Water-Cooled
938
E88
910
912
D25
906
H70
H70
D25
H70
D14
H97
H98
904
905
116
E88
907
951
H59
D25
943
984
981
944
953
D25
993
A72
A71
Ref.
Description
No.
904 Front Door
905 Front-Lower Panel
906 Front-Upper Panel
907 Left Panel (2)
908 Right-Upper Panel
909 Right-Lower Panel
910 Left Panel (1)
911 Rear Panel (2)
912 Left Door
913 Top Panel (1)
914 Top Panel (2)
924 Cover, power cord
925 Cover (1), piping
926 Cover (2), piping
929 Rubber Bush, control cable
938 Handle
939 Rubber Bush
940 Rubber Bush
970
H61
H61
914
913
H60
941
914
986
945
982
983
A71
942
Ref.
Description
No.
941 Top Frame
942 Common Base
943 Left-Corner Frame
944 Front Frame
945 Right-Corner Frame
946 Rear-Upper Frame
947 Rear-Center Frame
951 Left-Upper Frame
952 Right-Upper Frame
953 Instrument Panel
967 Rear Panel (1)
969 Right Frame
970 Left Frame
981 Support, Cover (1)
982 Support, Cover (2)
983 Support, Cover (3)
984 Support, Cover (4)
985 Support, Cover (5)
946
967
947
925
926
940
D91
952
H69
908
985
929
924
939
Ref.
No.
986 Support, Cover (6)
993 Support
994 Duct (3), ventilating fan
995 Duct (4), ventilating fan
A71 Fork Slot Cover
A72 Weste Oil Cover
D14 Magnet
D25 Chain
D91 Cover
E88 Magnet
H59 Left-Corner Cap
H60 Right-Corner Cap
H61 Seal Plate
H69 Support
H70 M6 Exterior Screw
H71 Magnet Rubber (1)
H97 Name plate for model
H98 Name plate for NEXT
H71
911
969
995
938
909
994
Description
