Summary of Contents for Lexus GS300 1998

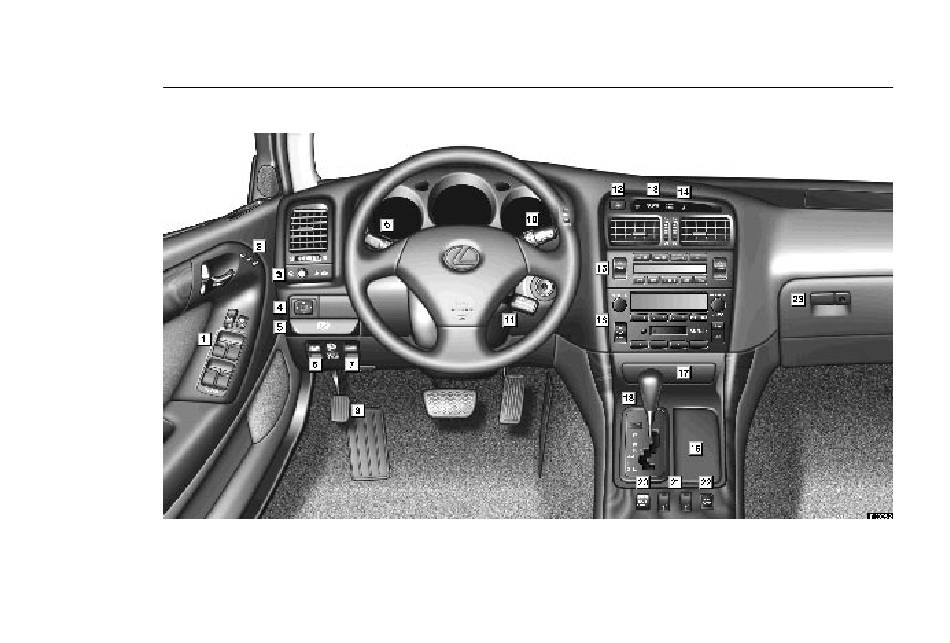

Page 1 PICTORIAL INDEX INSTRUMENT PANEL PG005–2...
Page 2 PICTORIAL INDEX Page Page Emergency flasher switch ....Door lock switch and power window switches ......32, 48 Clock .
Page 3 PICTORIAL INDEX INSTRUMENT CLUSTER (GS400 sold in U. S. A.) PG016...
Page 4 PICTORIAL INDEX Page Page Low washer fluid warning light ....Tachometer ......Slip indicator light .
Page 5 PICTORIAL INDEX INSTRUMENT CLUSTER (GS300 sold in U. S. A.) PG006...
Page 6 PICTORIAL INDEX Page Page Low washer fluid warning light ....Tachometer ......Slip indicator light .
Page 7 PICTORIAL INDEX INSTRUMENT CLUSTER (GS400 sold in Canada) PG017...
Page 8 PICTORIAL INDEX Page Page Low washer fluid warning light ....Tachometer ......Slip indicator light .
Page 9 PICTORIAL INDEX INSTRUMENT CLUSTER (GS300 sold in Canada) PG007...
Page 10 PICTORIAL INDEX Page Page Low washer fluid warning light ....Tachometer ......Slip indicator light .
Page 11 PICTORIAL INDEX SEAT AND STEERING WHEEL Page Tilt and telescopic steering adjustment switch ..Seat position, seat cushion angle and height control switch 111 Seatback angle control switch Lumbar support control switch ....PG003 For detailed information, refer to the description given in each...
Page 12 PICTORIAL INDEX EXTERIOR VIEW Page Rear window defogger . . . Trunk lid ... . . Hood ....Headlights .
Page 13 PICTORIAL INDEX...
Page 14: Basic Operation
BASIC OPERATION QUICK REFERENCE Driver’s seat ........Steering wheel .
Page 15 BASIC OPERATION – QUICK REF- ERENCE 1. DRIVER’S SEAT Seat adjustment Seat position Seat cushion angle BG001–3 Seat cushion height Seatback angle Lumbar support Head restraint height Head restraint angle...
Page 16: Steering Wheel
BASIC OPERATION – QUICK REF- ERENCE 2. STEERING WHEEL until the steering wheel reaches the desired position. D TILT STEERING WHEEL BG002–1 To tilt the steering wheel up or down to the desired angle, push the control switch in the required direction and release the button when the steering wheel reaches the desired angle.
Page 17 BASIC OPERATION – QUICK REF- ERENCE 3. AUTOMATIC TRANSMISSION OPERATION SELECTOR LEVER BG006 SELECTOR LEVER POSITION BG007 K Shift while pressing the brake pedal. (Ignition switch must be in the ”ON” position.)
Page 18 BASIC OPERATION – QUICK REF- ERENCE P: Parking, engine starting and key removal position R: Reverse position N: Neutral position D: Normal driving position (Shifting into overdrive possible) 4: Position for engine braking (Shifting into overdrive not possible)* 3, 2: Position for more powerful engine braking L: Position for maximum engine braking When the cruise control is being used, even if you downshift from ”D”...
Page 19 BASIC OPERATION – QUICK REF- ERENCE 4. HEADLIGHT AND TURN D HEADLIGHT SWITCH (FOR CANADA) SIGNAL With the ignition OFF SWITCH Parking, tail, license plate, side marker and instrument D HEADLIGHT SWITCH (FOR U.S.A.) panel lights turn on. Parking, tail, license plate, Headlights also turn on.
Page 20: Wiper Switch
BASIC OPERATION – QUICK REF- ERENCE 5. WIPER SWITCH High beam 00L014 Mist wiper operation Headlight flasher D TURN SIGNAL SWITCH Intermittent operation Right or left turn Low speed operation 00L015 00L016 Lane change (Right or left) High speed operation Washer on...
Page 21 BASIC OPERATION – QUICK REF- ERENCE...
Page 22 SECTION – INSTRUMENTS AND CONTROLS Keys and doors Keys ..........Engine immobiliser system .
Page 23 Master key (black) – The master key works in every Since the doors and trunk lid can be locked without a key, you lock. For your Lexus dealer to make you a new key should always carry a spare master key in case you with built–in transponder chip, your dealer will need...
Page 24 KEYS AND DOORS 11L003 Since a transponder chip is not built in this flat key, you NOTICE cannot start the engine with this key. Use this key to release the lock in case you accidentally lock your keys D Do not let the key case become bent as the key may fall inside the vehicle or trunk.
Page 25 KEYS AND DOORS 11L021-2 When using a key containing a transponder chip, observe the following precautions: D When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip.
Page 26 KEYS AND DOORS D When starting the engine, do not use the key with other transponder keys around (including keys of other vehicles) and do not press other key plates against the key grip. Otherwise the engine may not start, or may stop soon after it starts. If this happens, remove the key once and then insert it again after taking off other transponder keys (including keys of other vehicles) from the ring or while gripping or...
Page 27: Engine Immobiliser System
KEYS AND DOORS 11L023-3 ENGINE IMMOBILISER D Do not bend the key grip. SYSTEM D Do not cover the key grip with any material that cuts off electromagnetic waves. D Do not knock the key hard against other objects. D Do not leave the key exposed to high temperatures for a long period, such as on the dashboard and hood under the direct sunlight.
Page 28 For your Lexus dealer to make you a new key with built–in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of...
Page 29 KEYS AND DOORS For vehicles sold in U.S.A. FCC ID: MOZ RI–7ATY MADE IN JAPAN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 30: Wireless Remote Control
KEYS AND DOORS For vehicles sold in Canada WIRELESS REMOTE CONTROL* This device complies with RSS–210 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 31 NOTE: *This feature can be set inoperative as vehicle theft deterrent measure in case of the loss of the wireless remote control key. Ask your Lexus dealer for details. When you operate any button on the key, push it slowly and surely.
Page 32 Lexus dealer. NOTE: *The volume of beep sound can be changed. If you lose the wireless key, contact your Lexus dealer as soon **The buzzer can be set not to sound with any door not as possible to avoid the possibility of theft, or an accident.
Page 33 NOTE: *The volume of beep sound can be changed. **The interior light can be set not to come on or the duration of lighting can be changed. ***The time before automatic re–locking can be changed. Ask your Lexus dealer for details.
Page 34 When you keep the button pushed for about 1 second, you can unlock the trunk lid.* One beep sounds. This function does not work when the ignition key is in the ”ON” position. NOTE: *The operation method can be changed. Ask your Lexus dealer for details.
Page 35 This function does not work when the ignition key is in the roof can be set to slide open, tilt up or inoperative. Ask ”ON” position. your Lexus dealer for details. NOTE: *The alarm can be set not to sound. Ask your Lexus dealer for details.
Page 36 KEYS AND DOORS Push the ”UNLOCK” button until the windows and moon For vehicles sold in U.S.A. roof start to move. When you release the button, the windows and moon roof stop operating. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference...
Page 37 KEYS AND DOORS – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio / TV technician for help.
Page 38 KEYS AND DOORS For vehicles sold in Canada Replacing the battery When you replace the battery, prepare a lithium battery This device complies with RSS–210 of Industry and CR1616 and a special screwdriver. Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of...
Page 39 KEYS AND DOORS CAUTION Special care should be taken that small children do not swallow the removed battery or components. NOTICE When replacing the battery, be careful not lose the components, screws and O–ring. 11L028–1 1. Remove the screw, and then the cover while pushing it in the arrow direction.
Page 40 KEYS AND DOORS 11L029–1 2. Remove the module from the key frame. 11L030–1 3. Remove the 2 screws to take out the lid of the module. 4. Take out the discharged battery and put a new battery with the positive side up.
Page 41 KEYS AND DOORS DOORS NOTICE D Make sure the positive side and negative side of the Locking with key battery should be faced correctly. D Be careful not to bend the electrode of the battery insertion and that dust or oils do not adhere to the inside of the module.
Page 42 In the passenger’s door lock, turning the key once will unlock all doors simultaneously. NOTE: *Unlocking by a 2–time operation can be changed. Ask your Lexus dealer for details. 11G004...
Page 43 KEYS AND DOORS " 1 Lock 2 Unlock Push in the lock button to lock and unlock the door. When locked, the door cannot be opened with either the outside or inside door handle. Closing the door with the lock button pushed in will also lock the door.
Page 44 KEYS AND DOORS CAUTION Before driving, make sure the doors are closed and locked, especially when small children are in the vehicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the vehicle during an accident.
Page 45 KEYS AND DOORS Locking with power door lock switch 11G005 " 1 Lock 2 Unlock To lock all the doors simultaneously, push the power door lock switch on the front side. Pushing on the rear side will unlock them. The same switch is also equipped on the front passenger’s side.
Page 46 KEYS AND DOORS Locking with rear door child–protector 11G006–1 Whenever small children are in the vehicle, lock the rear door so that it does not open from the inside. To do this, turn the knob to the ”LOCK” position as shown and then close the door.
Page 47 KEYS AND DOORS...
Page 48 SECTION – INSTRUMENTS AND CONTROLS Switches Headlight switch ........Headlight dimmer and turn signal switch .
Page 49 SWITCHES 12L001 To turn the lights on, twist the knob on the end of the lever. FIRST CLICKSTOP: Only the parking, tail, license plate, side marker and instrument panel lights turn on. SECOND CLICKSTOP: Headlights also turn on. THIRD CLICKSTOP (”AUTO”): The headlights and all other lights automatically turn on depending on the darkness of the surroundings.* Vehicles sold in U.S.A.: When the headlights are on, the...
Page 50 SWITCHES 12G001...
Page 51 NOTE: *The operating condition or sensitivity can be ultimately turning off the other lights. changed. **The time before turning off the lights can be changed. Ask your Lexus dealer for details. NOTICE To prevent the battery from being discharged, do not leave the lights on longer than necessary when the engine is not running.
Page 52 TURN SIGNAL SWITCH your headlights do not dazzle other road users. If this system fails, the warning light in the instrument cluster comes on. If this occurs, have your vehicle checked by Lexus dealer. 12L003...
Page 53 SWITCHES For high beam, push the lever forward. Pull it back for low beam. For the headlight flasher, pull it further back. A blue light in the instrument cluster indicates high beam or headlight flasher is on. The headlight flasher works even when the headlight switch is off.
Page 54: Fog Light Switch
SWITCHES For signaling turns, move the lever up or down in the FOG LIGHT SWITCH conventional manner. The ignition key must be in the ”ON” position. The turn signal is self–cancelling after a turn, but after a lane change, you may have to cancel it by hand. You can also signal a lane change by moving the turn signal lever partway and holding it there.
Page 55 SWITCHES 12L006–1 " 1 Interval adjuster 2 Washer on For mist wiper operation (a single wipe), pull the lever toward you and release it. To turn the wipers on, move the lever down until you reach To make the washer squirt, push the button on the end of the desired speed setting.
Page 56 SWITCHES Shifting the windshield wiper position 12G006 " 1 Rest position 2 Retracted position The wiper blades retract under the hood when the wipers are turned off. If retraction is obstructed by snow, etc., at the bottom of the windshield, the wipers should be shifted from the retracted position to the rest position above the hood level.
Page 57 SWITCHES 12G007 To shift the windshield wipers from retracted to rest position, hold the connection of the wiper arm and wiper blade and pull it upward along the windshield glass. NOTICE To prevent the wiper blades from being deformed, be sure to hold the connection of the wiper arm and wiper blade securely.
Page 58 SWITCHES 12G008 To return the windshield wipers to retracted position, push the connection of the wiper arm and wiper blade downward. NOTICE To prevent the wiper blades from being deformed, be sure to hold the connection of the wiper arm and wiper blade securely.
Page 59: Canada Only
SWITCHES HEADLIGHT CLEANER SWITCH (CANADA ONLY) 12G009 To spray fluid on the headlights, push the switch with the headlights on. The ignition key must be in the ”ON” position. The low washer fluid warning light in the instrument cluster comes on when the fluid level in the tank becomes nearly empty.
Page 60: Defogger Switch
SWITCHES REAR WINDOW AND OUTSIDE REAR VIEW MIRROR DEFOGGER SWITCH 12G010 To turn the electric rear window defogger on, push the switch. The ignition key must be in the ”ON” position. The thin heater wires on the inside of the rear window and the heater panels in the outside rear view mirrors will quickly clear the surface.
Page 61 SWITCHES CAUTION Since the mirror surfaces can get hot, keep your hands off them when the switch is on. If further defrosting or defogging is desired, simply actuate POWER WINDOW SWITCHES the switch again. When the surface has cleared, push the switch once again to turn the defogger off.
Page 62 SWITCHES " 1 For driver’s window 2 For front passenger’s window 3 For left rear window 4 For right rear window To raise or lower the windows, use the switch on each door. The passengers’ windows can also be controlled by the switches on the driver’s door.
Page 63 SWITCHES Operating the switches Operating the window lock switch To raise or lower the window, pull the switch halfway up or push it halfway down. Automatic operation: To fully raise or lower the window automatically, pull the switch fully up or push it fully down. To stop the window partway, lightly push or pull the switch in the opposite direction and then release it.
Page 64 Operating the windows from outside the vehicle The windows can be operated using an ignition key.* NOTE: *This feature can be set inoperative. Ask your Lexus dealer for details. 12L043–1 Insert the ignition key into the key hole on the driver’s Jam protection function side.
Page 65 SWITCHES CAUTION D Never try jamming any part of your body to make the jam protection function work intentionally. D The jam protection function may not work when something gets caught just before the window fully closed. CAUTION To avoid serious personal injury, you must do the following. D Always make sure the head, hands and other parts of the body of all occupants are kept completely inside the vehicle before you close the power windows.
Page 66 SWITCHES EMERGENCY FLASHER SWITCH 12G005...
Page 67 SWITCHES To turn on the emergency flashers, push the switch. SEAT HEATER SWITCHES All the turn signal lights will flash. The emergency flashers will work with the engine running or off and with or without the ignition key. Turn on the emergency flashers to warn other drivers if you must stop your vehicle where it might be a traffic hazard.
Page 68 SWITCHES " 1 For driver’s seat 2 For front passenger’s seat There is a heater switch for each front seat. Push the front of the switch to turn the heater on and push the rear side to turn it off. The ignition key must be in the ”ON”...
Page 69 SWITCHES CAUTION Occupants must use caution when operating the seat heater because it may make them feel too hot or cause burns at low temperatures (erythema, varicella). Use extra caution for; D Baby, small child, elderly person, sick person or handicapped person D Persons who have delicate skin D Persons who are exhausted...
Page 70 SWITCHES...
Page 71 SECTION – INSTRUMENTS AND CONTROLS Gauges, meters and service reminder indicators Fuel gauge ........Engine coolant temperature gauge .
Page 72: Fuel Gauge
The gauge is displayed when the ignition switch is on and The indicator lamp goes off after driving several times. If the indicates the approximate quantity of fuel remaining in indicator lamp does not go off, contact your Lexus dealer as the tank. soon as possible.
Page 73 GAUGES, METERS AND SERVICE REMINDER INDICATORS ENGINE COOLANT TEMPERATURE GAUGE 13G009...
Page 74 GAUGES, METERS AND SERVICE REMINDER INDICATORS "Normal range TACHOMETER The gauge indicates the engine coolant temperature when the ignition switch is on. The engine operating temperature will vary with changes in weather and engine load. If the needle points to the red zone or higher, stop your vehicle and allow the engine to cool.
Page 75: Odometer And Trip Meter
GAUGES, METERS AND SERVICE REMINDER INDICATORS The tachometer indicates engine speed in thousands of ODOMETER AND TRIP METER rpm (revolutions per minute). Use it while driving to prevent engine overrevving. Driving with the engine running too fast causes excessive engine wear and poor fuel economy. Remember, in most cases the slower the engine speed, the greater the fuel economy.
Page 76 GAUGES, METERS AND SERVICE REMINDER INDICATORS 13G007 This meter displays the odometer and two trip meters. To SERVICE REMINDER change the mode indication, push the ”ODO/TRIP” INDICATORS AND WARNING button. BUZZERS The odometer records the total distance the vehicle has been driven.
Page 77 If parking brake is Stop and check. off, stop and check. Add engine oil. (Indicator and buzzer) Fasten driver’s Take vehicle to seat belts. Lexus dealer. (Indicator and buzzer) Take vehicle to Lexus dealer. Fasten passenger’s seat belts. Close all doors. Replace bulb.
Page 78 GAUGES, METERS AND SERVICE REMINDER INDICATORS Take vehicle to At a safe place, test your brakes by starting and stopping. Lexus dealer. D If you judge that the brakes still work adequately, drive cautiously to your nearest dealer or shop for repairs.
Page 79 Immediately stop Light your vehicle at a safe place and contact your Lexus dealer. If this is a case the brakes may not work properly. If they do not Once the ignition key is turned to ”ON” or ”START”, the work well, depress the brake pedal firmly.
Page 80 D If the belt is O.K., there is a problem somewhere in the malfunction somewhere in the parts monitored by the charging system. warning light system. Contact your Lexus dealer as soon as possible to service the vehicle. The engine ignition will continue to operate, however, until the battery is discharged.
Page 81 If it flickers or stays on while you are driving, pull off the road engine oil level” on page 371.) to a safe place and stop the engine immediately. Call a Lexus dealer or qualified repair shop for assistance. While driving on steep inclines or rough roads which causes...
Page 82 If the light comes on while you are driving, have your vehicle checked by your Lexus dealer as soon as possible. However, it is normal if the light goes out. The light will come on when the ignition key is turned to ”ON”, and will go off after about a few seconds.
Page 83 Have defective bulbs replaced as soon as possible. the automatic headlight leveling system. (l) Low Washer Fluid Warning Light If it comes on, have your vehicle checked by your Lexus dealer. This light comes on when the fluid level in the tank becomes nearly empty.
Page 84 If the ”VSC” warning light and ”VSC OFF” indicator light This buzzer reminds you to remove the key when you open come on, have your vehicle checked by Lexus dealer as soon the driver’s door with the ignition key in the ”ACC” or as possible.
Page 85 GAUGES, METERS AND SERVICE REMINDER INDICATORS 4. Turn the ignition key to ”ON”. The following service reminder indicators should come on. The lights other than the slip indicator light may come on for about 60 seconds after the engine is started. It is normal if they go out after a while.
Page 86: Instrument Panel Light Control
If any service reminder indicator or warning buzzer does not INSTRUMENT PANEL LIGHT function, either the bulb is burned out or circuit is in need of CONTROL repair. Have it checked by your Lexus dealer as soon as possible. 13G005 The brightness of the instrument panel lights is automatically adjusted depending on the brightness of your surroundings.
Page 88 INTERIOR EQUIPMENT SECTION – INSTRUMENTS AND CONTROLS Interior equipment Vanity mirrors ........Interior lights .
Page 89: Vanity Mirrors
INTERIOR EQUIPMENT VANITY MIRRORS 14G001 To use the vanity mirrors, swing the sun visor down and Sun visors open the cover. The vanity light comes on when you open the cover. 14G002...
Page 90: Interior Lights
INTERIOR EQUIPMENT To block out glare from the front , swing the sun visor INTERIOR LIGHTS down. To block out glare from the side, remove the sun visor from the hook and swing it to the side. To block out glare coming obliquely from behind you, slide the visor backwards.
Page 91 INTERIOR EQUIPMENT PERSONAL LIGHTS Front 14G004–1...
Page 92 INTERIOR EQUIPMENT Rear 14G006 To turn on the personal light, push the switch. To turn it off, push the switch again.
Page 93: Ignition Switch Light
INTERIOR EQUIPMENT IGNITION SWITCH LIGHT 14G005 For easy access to the ignition switch, the ignition switch light comes on when any of the doors are opened. The light remains on for about 15 seconds and goes out after all the doors are closed. However, the light goes out immediately when all the doors are locked or the ignition key is in the ”ACC”...
Page 94 INTERIOR EQUIPMENT CLOCK 14G007 The digital clock indicates the time with the ignition key CIGARETTE LIGHTER AND at the ”ACC” or ”ON” position. To reset the hour, press ASHTRAY the ”H” button. To reset the minutes, press the ”M” button. To adjust the time to the nearest hour, press the ”:00”...
Page 95 When finished with your cigarette, thoroughly extinguish it in the ashtray to prevent other cigarette butts from catching fire. After using the ashtray, push it back in completely. To remove the ashtray, just pull it up. Use a Lexus genuine cigarette lighter or equivalent for replacement.
Page 96 INTERIOR EQUIPMENT 14G009 "Rear ashtray To use the ashtray, pull on the lid. When finished with your cigarette, thoroughly extinguish it in the ashtray to prevent other cigarette butts from catching fire. After using the ashtray, push it back in or close the lid completely.
Page 97: Power Outlet
INTERIOR EQUIPMENT POWER OUTLET 14L020 The power outlet is designed for power supply for car NOTICE accessories. D To prevent the fuse from being blown, do not use the The ignition key must be in the ”ACC” or ”ON” position for the power outlet to be used.
Page 98 INTERIOR EQUIPMENT GLOVEBOX 14G010 " 1 Unlock 2 Open 3 Lock To open the glovebox door, pull the lever. To lock the glovebox door, insert the master key and turn it clockwise. With the tail lights on, the glovebox light will come on when the glovebox door is open.
Page 99: Garage Door Opener
INTERIOR EQUIPMENT GARAGE DOOR OPENER The garage door opener is manufactured under license from HomeLink and can be programmed to operate garage doors, estate gates, security lighting, etc. (a) Programming the garage door opener 14G015–1 " 1 Buttons 2 Indicator light The garage door opener has 3 buttons and can be programmed to operate 3 separate devices.
Page 100 INTERIOR EQUIPMENT 3. When the frequency and code is registered, the indicator light flashes rapidly. At this point, you can release both buttons. 4. To program the remaining buttons, repeat steps ”1” through ”3”. If you want to write a new program over the program set already, select a button you want to program and repeat the procedure from step ”1”.
Page 101 INTERIOR EQUIPMENT (b) Operating the garage door opener CUP HOLDERS Push the appropriate button to activate the garage door opener. The indicator light comes on. The garage door opener continues to send the signal for up to 20 seconds as long as the button is pushed.
Page 102 INTERIOR EQUIPMENT 14G011 "Front To use the cup holder, open the cup holder lid. You can use it as an accessory box by removing the holder inside.
Page 103 INTERIOR EQUIPMENT 14G012 "Rear To use the cup holder, push the cup holder portion of the center armrest in the rear seat. The cup holder is designed so that cups or cans fit snugly in the holes. CAUTION D Do not place anything else on the cup holder, as such item may be thrown about in the compartment and possibly injure people in the vehicle during sudden braking or an accident.
Page 104: Floor Mat
INTERIOR EQUIPMENT FLOOR MAT 14G014 Use a floor mat of the correct size. If the floor mat has a hole, then it is designed for use with a locking clip. Fix the floor mat and locking clip into the hole in the floor carpet.
Page 105 INTERIOR EQUIPMENT 14G013–1 CAUTION Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident.
Page 106: Luggage Stowage Precautions
INTERIOR EQUIPMENT LUGGAGE STOWAGE PRECAUTIONS When stowing luggage or cargo in the vehicle, observe the following: D Put luggage or cargo in the trunk when at all possible. Be sure all items are secured in place. D Be careful to keep the vehicle level. Placing the weight as far forward as possible helps maintain vehicle balance.
Page 107 INTERIOR EQUIPMENT NOTICE Do not load the vehicle beyond the vehicle capacity weight specified on the tire pressure label inside the glovebox lid.
Page 108 SECTION – INSTRUMENTS AND CONTROLS Exterior equipment Hood ..........Trunk lid .
Page 109 EXTERIOR EQUIPMENT 15G013 Insert your fingers under the hood, push up the auxiliary Before closing the hood, check to see that you have not catch lever and lift the hood. forgotten any tools, rags, etc. Then lower the hood and make sure it locks.
Page 110: Trunk Lid
EXTERIOR EQUIPMENT TRUNK LID 15G003–1 To unlock the trunk lid, insert the master key and turn it clockwise. To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed.
Page 111 EXTERIOR EQUIPMENT Trunk lid opener 15G004 " 1 Main switch 2 Operative 3 Inoperative To open the trunk lid while sitting in the driver’s seat, pull the lever with the main switch not pushed in.
Page 112 EXTERIOR EQUIPMENT 15G005 If you do not want to activate the trunk lid opener system, push in the main switch. To activate the system, insert the master key and turn it counterclockwise. To protect things put in the trunk, when you have your vehicle parked, push in the main switch.
Page 113: Fuel Tank Cap
EXTERIOR EQUIPMENT FUEL TANK CAP 15G006 1. To open the fuel filler door, pull the lever under the instrument panel. When refueling, turn off the engine. CAUTION D Do not smoke, cause sparks or allow open flames when refuelling. The fumes are flammable. D When opening the cap, do not remove the cap quickly.
Page 114 If the cap is not tightened securely, the malfunction indicator lamp comes on. Make sure the cap is tightened securely. The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Lexus dealer as soon as possible.
Page 115: Moon Roof
EXTERIOR EQUIPMENT In case the opener is not actuated 15G008–1 Pull the manual lever toward the back. MOON ROOF This is used in case the fuel filler door cannot be opened due to a discharged battery or other trouble. 15G011–1...
Page 116 EXTERIOR EQUIPMENT " 1 Open 2 Close To slide open the moon roof, push the switch toward the back. The moon roof will fully open. To stop partway, push the same switch or push the ”TILT” switch. The sun shade can be opened or closed manually. However, if you open the moon roof, the sun shade will be opened with the moon roof.
Page 117 To open the moon roof: Turn the key in the unlocking direction and hold it. NOTE: *This feature can be set inoperative, or sliding open or tilting up can be selected. Ask your Lexus dealer for details.
Page 118 EXTERIOR EQUIPMENT Jam protection function During closing operation, the moon roof stops and is open if something gets caught into the roof opening. If an impact is given to the moon roof, this function may work without anything caught. CAUTION D Never try jamming any part of your body to make the jam protection function work intentionally.
Page 119 EXTERIOR EQUIPMENT CAUTION To avoid serious personal injury, you must do the following. D While the vehicle is moving, always keep the head, hands and other parts of the body of all occupants away from the roof opening. Otherwise, you could be seriously injured if the vehicle stops suddenly or if the vehicle is involved in an accident.
Page 120 EXTERIOR EQUIPMENT...
Page 121 SECTION – INSTRUMENTS AND CONTROLS Comfort adjustment Front seats ........Head restraints .
Page 122: Front Seats
Such changes may disable the system, or cause the side airbags to inflate, resulting in death or serious injury. Consult your Lexus dealer. D Do not use accessories for the seats which cover the parts where the side airbags should inflate. Such accessories may prevent the side airbags from activating correctly, causing death or serious injury.
Page 123 COMFORT ADJUSTMENT Seat adjustment precautions Adjust the driver’s seat so that the foot pedals, steering wheel and instrument panel controls are within easy reach of the driver. CAUTION D Do not adjust the seat while the vehicle is moving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.
Page 124 COMFORT ADJUSTMENT 16G001–1 " 1 Seat position control switch, seat cushion angle and Adjusting seat position height control switch 2 Seatback angle control switch 3 Lumbar support control switch...
Page 125 COMFORT ADJUSTMENT 16G002 Move the control switch in the desired direction. Adjusting seatback angle Releasing the switch will stop the seat in that position. Do not place anything under the seat. It might interfere with the seat movement.
Page 126 COMFORT ADJUSTMENT 16G003 Move the control switch in the desired direction. Releasing the switch will stop the seatback in that position. CAUTION To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection in a frontal or rear collision when the driver and the passenger are sitting up straight and well back in the seats.
Page 127 COMFORT ADJUSTMENT Adjusting seat cushion angle and height 16G004–2 Move the control switch in the desired direction. Adjusting lumbar support Releasing the switch will stop the seat cushion in that position.
Page 128: Head Restraints
COMFORT ADJUSTMENT 16G005 Push the control switch on either side. HEAD RESTRAINTS The amount of lumbar support will change as long as the Front seats switch is pushed. 16G006–1 To raise the head restraint, pull it up. To lower it, press the lock release button and push the head restraint down.
Page 129 COMFORT ADJUSTMENT CAUTION D Adjust the top of the head restraint so that it is closest to the top of your ears. D After adjusting the head restraint, make sure it is locked in position. D Do not drive with the head restraints removed. Rear seats 16G007 "Outside rear seats...
Page 130 COMFORT ADJUSTMENT 16G009–1 "Center rear seat The head restraint is most effective when it is close to your head. Therefore, using a cushion on the seatback is not To raise the head restraint, pull it up. To lower it, press the recommended.
Page 131: Tilt And Telescopic Steering Wheel
COMFORT ADJUSTMENT TILT AND TELESCOPIC STEERING WHEEL Adjustment of steering wheel tilt 16G010 To adjust the tilt of the steering wheel, push the control switch upward or downward to set it to the desired position. CAUTION Do not adjust the steering wheel while the vehicle is moving.
Page 132 COMFORT ADJUSTMENT Adjustment of telescopic steering column 16G011 To adjust the steering column length, push the control switch forward or backward to set the steering wheel to the desired position. CAUTION Do not adjust the steering column while the vehicle is moving.
Page 133: Outside Rear View Mirrors
MIRRORS easy exit and entry. When the key is inserted in the ignition switch, the steering column returns to the previously set position. NOTE: *This feature can be set inoperative. Ask your Lexus dealer for details. 16G013...
Page 134 COMFORT ADJUSTMENT Adjust the mirror so you can just see the side of your vehicle in the mirror. When the inside rear view mirror darkens in ”AUTO” mode, the outside rear view mirrors also darken to reduce the reflection of the headlights of the following vehicle. For details, see ”Inside rear view mirror”...
Page 135 COMFORT ADJUSTMENT 16L017-1 " 1 Master switch 2 Control switch NOTICE To adjust the power rear view mirror, first place the master switch at ”L” (left) or ”R” (right), and push the If ice should jam the mirror, do not operate the control or control switch on the desired side.
Page 136 COMFORT ADJUSTMENT Folding rear view mirrors 16G014 To fold the rear view mirror, push backward. The rear view mirrors can be folded backward for parking in restricted areas. CAUTION Do not drive with the mirrors folded backward. Both the driver and passenger side rear view mirrors must be extended and properly adjusted before driving.
Page 137: Inside Rear View Mirror
COMFORT ADJUSTMENT INSIDE REAR VIEW MIRROR 16G015–1 Adjust the mirror so you can just see the rear of your When the outside air temperature is low, it may take a little vehicle in the mirror. longer for the mirror to darken in response to the detection of headlights.
Page 138: Seat Belts
An unrestrained child could suffer serious injury during emergency braking or a collision. Seat belt precautions Pregnant woman. Lexus recommends the use of a seat belt. Lexus strongly urges that the driver and passengers in the Ask your doctor for specific recommendations. The lap belt...
Page 139 COMFORT ADJUSTMENT CAUTION Persons should ride in their seats properly wearing their seat belts whenever the vehicle is moving. Otherwise, they are much more likely to suffer serious bodily injury in the event of sudden braking or a collision. When using the seat belts, observe the following: D Use the belt for only one person at a time.
Page 140 COMFORT ADJUSTMENT D Inspect the belt system periodically. Check for cuts, fraying, and loose parts. Damaged parts should be replaced. Do not disassemble or modify the system. D Keep the belts clean and dry. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners –...
Page 141 COMFORT ADJUSTMENT The seat belt length automatically adjusts to your size and the seat position. The retractor will lock the belt during a sudden stop or on impact. It also may lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around freely.
Page 142 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed. It cannot protect an adult occupant or your child from injury.
Page 143 COMFORT ADJUSTMENT CAUTION D High–positioned lap belts and loose–fitting belts both could cause severe injuries due to sliding under the lap belt during a collision or other unintended result. Keep the lap belt positioned as low on hip as possible. D For your safety, do not place the shoulder belt under your arm.
Page 144 Then make sure it remains untwisted as it from your Lexus dealer free of charge. retracts. Please contact your local Lexus dealer so that the dealer can order the proper required length for the extender. Bring the heaviest coat you expect to wear for proper measurement and selection of length.
Page 145 COMFORT ADJUSTMENT CAUTION When using the seat belt extender, observe the following. Failure to follow these instructions could result in less effectiveness of the seat belt restraint system in case of vehicle accident, increasing the chance of personal injury. D Never use the seat belt extender if you can fasten the seat belt without it.
Page 146 COMFORT ADJUSTMENT To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the ”PRESS” signs on the buckle release buttons of the extender and the seat belt are both facing outward as shown. You will hear a click when the tab locks into the buckle.
Page 147 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed. It cannot protect an adult occupant or your...
Page 148 COMFORT ADJUSTMENT SUPPLEMENTAL RESTRAINT SYSTEM (SRS) The Supplemental Restraint System (SRS) consists of driver and front passenger airbags, side airbags and seat belt pretensioners. The combination of these 3 systems is designed to provide further protection for the driver and front passenger when added to the primary protection provided by the seat belts.
Page 149 COMFORT ADJUSTMENT "Driver and front passenger airbags, and seat belt Seat belt pretensioners: In response to a severe frontal impact, the seat belts are pretensioners quickly drawn back in by the retractors so that the belts Driver and front passenger airbags: snugly restrain the driver and front passenger.
Page 150 The driver or front passenger too close to the steering wheel or dashboard during airbag deployment can be killed or seriously injured. Lexus strongly recommends that: D The driver sit as far back as possible from the steering wheel while still maintaining control of the vehicle.
Page 151 COMFORT ADJUSTMENT "Side airbags Side airbags: In response to a severe side impact, the side airbag for the driver or front passenger works together with the seat belt to help preventing or reducing injury by inflating, in order to decrease the impact mainly on the driver or front passenger’s chest.
Page 152 CAUTION SRS side airbags inflate with considerable force. To avoid potential death or serious injury during inflation of a side airbag, Lexus strongly recommends that the driver and front passenger; D Wear their seat belt. D Remain properly seated with their back against the seat at all times.
Page 153 COMFORT ADJUSTMENT 16G023 The driver and front passenger airbags and seat belt However, this threshold velocity will be considerably higher pretensioners are designed to activate in response to a if the vehicle strikes an object, such as a parked vehicle or sign severe frontal impact within the shaded area between the pole, which can move or deform on impact, or if it is involved arrows in the illustration.
Page 154 COMFORT ADJUSTMENT 16G024 " 1 Collision from the rear 2 Vehicle roll–over The driver and front passenger airbags and seat belt pretensioners are not designed to inflate if the vehicle is subjected to a rear impact, if it rolls over, or if it is involved in a low–speed frontal collision.
Page 155 COMFORT ADJUSTMENT 16G025 " 1 Collision from the side at an angle 2 Collision from the side to the vehicle body other than the passenger compartment The side airbags may not inflate if the vehicle is subjected to a collision from the side at an angle, or a collision to the side of the vehicle body other than the passenger compartment, which impact is not severe enough for the passenger compartment.
Page 156 COMFORT ADJUSTMENT 16G026 "Vehicle roll–over The side airbags are not designed to inflate if the vehicle is rolled over. If the impact on the body of the passenger compartment is not strong as illustrated above, the relevant side airbag may not inflate.
Page 157 COMFORT ADJUSTMENT 16G056–1...
Page 158 COMFORT ADJUSTMENT " 1 Side airbag module (airbag and inflator) Parts of the airbag module (steering wheel hub, dashboard, front seats) may be hot for several minutes, but the airbags 2 Front passenger airbag module (airbag and inflator) themselves will not be hot. The airbags are designed to 3 Side airbag sensor assembly inflate only once.
Page 159 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seat of the vehicle and properly restrained.
Page 160 COMFORT ADJUSTMENT 16G057 D Never put a rear–facing child restraint system on the front seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child.
Page 161 COMFORT ADJUSTMENT 16G059–2 "Move seat fully back D A forward–facing child restraint system should be allowed to put on the front seat only when it is unavoidable. Always move the seat as far back as possible, because the force of a deploying airbag could cause death or serious injury to the child.
Page 162 COMFORT ADJUSTMENT 16G029 D Do not sit on the edge of the seat or lean over the dashboard when the vehicle is in use. The airbags inflate with considerable speed and force; you may be killed or seriously injured. Sit up straight and well back in the seat, and always use your seat belt.
Page 163 COMFORT ADJUSTMENT 16G030–1 D Do not lean against the front door when the vehicle is in use. The side airbag inflates with considerable speed and force; you may be killed or seriously injured. D Do not apply excessive weight to the outer side of the front seats on vehicles with side airbags.
Page 164 COMFORT ADJUSTMENT 16G031 D Do not allow a child to stand up, or to kneel on the front passenger seat. The airbag inflates with considerable speed and force; the child may be killed or seriously injured. D Do not hold a child on your lap or in your arms. Use a child restraint system in the rear seat.
Page 165 COMFORT ADJUSTMENT 16G032 D Do not put objects or your pets on or in front of the dashboard or steering wheel pad that houses the driver and front passenger airbag system. They might restrict inflation or cause death or serious injury as they are projected rearward by the force of the deploying airbags.
Page 166 COMFORT ADJUSTMENT 16G033...
Page 167 Do not perform any of the following changes without great force, or the side airbag may not activate consulting your Lexus dealer. Such changes can correctly, resulting in death or serious injury.
Page 168 Even if the seat belt pretensioners should fail, the seat belts will operate conventionally. Contact your Lexus dealer as soon as possible to service the vehicle. D The light does not come on as described above.
Page 169 COMFORT ADJUSTMENT 16G034–1 In the following cases, contact your Lexus dealer as soon as possible: D Any of the SRS airbags have been inflated. D If either front seat belt does not retract or cannot be pulled out due to a malfunction or activation of the pretensioner.
Page 170: Child Restraint
D Lexus strongly urges use of a proper child restraint which conforms to the size of the child and is put on the rear seat. According to accident statistics, the child is safer when...
Page 171 COMFORT ADJUSTMENT Child restraint system D Never put a rear–facing child restraint system on the front seat. In the event of an accident, the force of the A child restraint system for a small child or baby must rapid inflation of the airbag can cause death or itself be properly restrained on the seat with the lap serious injury if a rear–facing child restraint system portion of the lap/shoulder belt.
Page 172 COMFORT ADJUSTMENT CAUTION D Never put a rear–facing child restraint system on the front seat. In the event of an accident, the force of the rapid inflation of the airbag can cause death or serious injury if a rear–facing child restraint system is put on the front seat. D Unless it is unavoidable, do not put a forward–facing child restraint system on the front seat.
Page 173 ”Top strap anchors and locations”. If your child restraint system does not provide any of the necessary parts, you can purchase the following items from your Lexus dealer. D CRS installation kit (Part No. 04731–22012) – contains 1 bolt, 3 types of spacer and 1 locking clip.
Page 174 COMFORT ADJUSTMENT Types of child restraint system Child restraint systems are classified into the following 3 types depending on the child’s age and size. (A) Infant seat (B) Convertible seat (C) Booster seat Install the child restraint system following the instructions provided by its manufacturer.
Page 175 COMFORT ADJUSTMENT (B) Convertible seat 16G035 (C) Booster seat 16G037...
Page 176 COMFORT ADJUSTMENT INSTALLATION WITH 3–POINT TYPE SEAT BELT (A) Infant seat installation 16G066 An infant seat is used in rear–facing position only.
Page 177 COMFORT ADJUSTMENT 16G057 CAUTION Never put a rear–facing child restraint system in the front seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child. 16G067...
Page 178 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed. It cannot protect your child from injury.
Page 179 COMFORT ADJUSTMENT 2. Fully extend the shoulder belt to put it in the lock mode. When the belt is then retracted even slightly, it cannot be extended. To hold the infant seat securely, make sure the belt is in the lock mode before letting the belt to retract.
Page 180 COMFORT ADJUSTMENT 16G069 3. While pressing the infant seat firmly against the seat cushion and seatback, let the shoulder belt retract as far as it will go to hold the infant seat securely.
Page 181 COMFORT ADJUSTMENT 16G070 CAUTION Push and pull the child restraint system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer. 16G042...
Page 182 COMFORT ADJUSTMENT 4. To remove the infant seat, press the buckle–release button (B) Convertible seat installation and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child passenger.
Page 183 COMFORT ADJUSTMENT 16G058–2 CAUTION D Never put a rear–facing child restraint system in the front seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child.
Page 184 COMFORT ADJUSTMENT 16G059–2 "Move seat fully back D A forward–facing child restraint system should be put on the front seat only when it is unavoidable. Always move the seat as far back as possible, because the force of a deploying airbag could cause death or serious injury to the child.
Page 185 COMFORT ADJUSTMENT 16G046 1. Run the lap and shoulder belt through or around the convertible seat following the instructions provided by its manufacturer and inserting the tab into the buckle taking care not to twist the belt. Keep the lap portion of the belt tight.
Page 186 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed. It cannot protect your child from injury.
Page 187 COMFORT ADJUSTMENT 16G048 3. While pressing the convertible seat firmly against the seat cushion and seatback, let the shoulder belt retract as far as it will go to hold the convertible seat securely.
Page 188 COMFORT ADJUSTMENT 16G049 CAUTION Push and pull the child restraint system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer. 16G050...
Page 189 COMFORT ADJUSTMENT 4. To remove the convertible seat, press the buckle–release (C) Booster seat installation button and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child passenger. 16G037 A booster seat is used in forward–facing position only.
Page 190 COMFORT ADJUSTMENT 16G052 "Move seat fully back...
Page 191 COMFORT ADJUSTMENT CAUTION A forward–facing child restraint system should be put on the front seat only when it is unavoidable. Always move the seat as far back as possible, because the force of a deploying airbag could cause death or serious injury to the child. Do not allow the child to lean over the front door or around the front door even if the child is seated in a child restraint system.
Page 192 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed. It cannot protect your child from injury.
Page 193 COMFORT ADJUSTMENT 16G054 2. To remove the child restraint system, press the Top strap anchors and locations buckle–release button and allow the belt to retract. 16G060 If your child restraint system requires the use of a top strap, latch the hook onto the anchor bracket and tighten the top strap.
Page 194 COMFORT ADJUSTMENT 16G061 " 1 26 mm (1.0 in.) 2 400 mm (15.7 in.) 1. Run your fingers across the trim of the filler panel to locate the holes underneath it in the positions shown above. 2. Make a hole in the covering directly above the hole in the filler panel.
Page 195 COMFORT ADJUSTMENT 16G062 " 1 Bolt 2 Anchor bracket 3 Spacer DRIVING POSITION MEMORY SYSTEM 3. Insert a 15 mm (0.6 in.) spacer, and tighten down the anchor bracket for your child restraint system with a bolt. The micro computer can memorize the position of the driver’s Torque the bolt to 16.5 –...
Page 196 COMFORT ADJUSTMENT 1. Adjust the driver’s seat , tilt and telescopic steering The beep sound means that the positions are recorded in the and outside rear view mirrors to the desired position. computer’s memory. 2. While pushing the ”SET” button, push button ”1” or By repeating these two steps and pressing the remaining ”2”...
Page 197 COMFORT ADJUSTMENT Conditions for memorized position activation D Ignition key ”ON” and shift lever in ”P” position. All parts of the memorized positions can be activated. However, if the brake pedal is being depressed, the seat position will not change. D Key not in ignition switch and within 30 seconds of opening driver’s door.
Page 198 COMFORT ADJUSTMENT CAUTION D Do not start the vehicle while the adjustments are being made. D Take care not to select the wrong button, or the seat could strike the rear passenger or hit your body against the steering wheel. If this happens, you can stop the movement by pressing another driving position memory switch, or depressing the brake pedal.
Page 199 SECTION – INSTRUMENTS AND CONTROLS Theft deterrent Theft deterrent system ....... Theft prevention labels .
Page 200: Theft Deterrent System
NOTE: *The system operating condition can be changed. Ask your Lexus dealer for details. The alarm blows the horn intermittently and flashes the headlights, tail lights and other exterior lights.
Page 201 1. Turn the ignition key to the ”LOCK” position and NOTE: *The turn signals can be set not to flash. Ask your remove it. Lexus dealer for details. The indicator light flashes by means of the engine The flashing indicator light will change to stay on when all the immobiliser system.
Page 202 5. Repeat this operation for the other doors and hood. When testing the hood, also check that the system is activated when the battery terminal is disconnected and then reconnected. If the system does not work properly, have it checked by your Lexus dealer.
Page 203: Theft Prevention Labels
THEFT DETERRENT THEFT PREVENTION LABELS (U.S.A.ONLY) 17E002 Your new vehicle carries theft prevention labels which are approximately 56 mm (2.20 in.) by 16 mm (0.63 in.). The purpose of these labels is to reduce the incidence of vehicle thefts by facilitating the tracing and recovery of parts from stolen vehicles.
Page 204 SECTION AIR CONDITIONING AND AUDIO Automatic air conditioning controls ....Audio system ........For vehicles equipped with Navigation System, please refer to the separate ”Owner’s Manual for Navigation System”.
Page 205 AIR CONDITIONING AND AUDIO AUTOMATIC AIR CONDITIONING CONTROLS 20G001–2 "The automatic air conditioning automatically maintains the NOTICE set temperature. To prevent the battery from being discharged, do not leave This air conditioning features automatic fan speed and air the air conditioning on longer than necessary when the flow control which automatically selects the most suitable engine is not running.
Page 206 AIR CONDITIONING AND AUDIO Driver side temperature control button Driver side temperature display (in degrees Fahrenheit or Centigrade) Front windshield button Fan speed display Outside temperature display (in degrees Fahrenheit or Centigrade) Air intake control button Air flow display Air conditioning on–off button Passenger side temperature control button Passenger side temperature display (in degrees Fahrenheit or Centigrade)
Page 207 AIR CONDITIONING AND AUDIO 20G002–1 "Air flow selection...
Page 208 AIR CONDITIONING AND AUDIO (a) Climate control SETTING OPERATION – automatic control 21L003-3 1. Push the ”AUTO” button. Air flow quantity, switching of the diffusers, on–off of the air conditioning, and switching of the air intake between RECIRCULATED AIR and OUTSIDE AIR are automatically adjusted.
Page 209 AIR CONDITIONING AND AUDIO 20G003–1...
Page 210 AIR CONDITIONING AND AUDIO 2. Use the ”TEMP” or ”PASSENGER TEMP” button to set the desired temperature. The ”TEMP” or ”PASSENGER TEMP” button is used to set the desired temperature. The temperature will be controlled on the driver and passenger sides simultaneously or individually.
Page 211 AIR CONDITIONING AND AUDIO 20G004–1 Driver side setting SETTING OPERATION – manual control Passenger side setting If manual air flow selection is desired – Mixed setting...
Page 212 AIR CONDITIONING AND AUDIO 21L006-3 The outlets from which air is delivered can be selected If quick heating or cooling is desired – manually by pushing the button. The function of each mode Push the ”TEMP” or ”PASSENGER TEMP” button on either is as follows: side and hold it until the maximum figure or minimum figure Panel –...
Page 213 AIR CONDITIONING AND AUDIO 20G005 " 1 Fan speed at low 2 Fan speed at high If manual switching of air intake is desired – The fan speed can be set to your desired speed by pushing the appropriate side of fan speed control button. The higher the fan speed is, the more air is delivered.
Page 214 AIR CONDITIONING AND AUDIO 20G006 Each time you push the air intake control button, the mode For normal use, it is best to keep the air intake control button changes in order from the RECIRCULATED AIR mode to set to OUTSIDE AIR mode. If recirculated air is used during AUTOMATIC mode to OUTSIDE AIR mode, then back to heating, the windows will fog up more easily.
Page 215 AIR CONDITIONING AND AUDIO 20G032 Each time you push the ”TEMP” button, the sensitivity changes from ”+3” down to ”–3”. If you do not operate any button for a few seconds or if you push the button other than the air intake control button and driver side temperature control button, the previous display returns.
Page 216 If the air conditioning compressor does not operate, the indicator of the ”A/C” button will blink. If the indicator of the ”A/C” button blinks even when the ”A/C” button is pushed again, have the compressor checked by your nearest Lexus dealer. Displaying the outside temperature –...
Page 217 AIR CONDITIONING AND AUDIO 20G007 To remove interior fog on the windshield – When the ”FRONT WINDSHIELD” button is pushed while operating in automatic mode, the air conditioning is set to Push the”FRONT WINDSHIELD” button. operate and the OUTSIDE AIR mode is set. To remove frost or exterior fog on the windshield –...
Page 218 AIR CONDITIONING AND AUDIO CAUTION Do not use the ”FRONT WINDSHIELD” button during cooled air operation in extremely humid weather. difference between the temperature of the outside air and that of the windshield could cause the outer surface of the windshield to fog up blocking your vision.
Page 219 AIR CONDITIONING AND AUDIO (c) Air filter The air filter may clog after long use and reduce air flow. You can inspect the filter easily. When you inspect and replace the air filter, be sure to turn off the fan. 20G008 1.
Page 220 AIR CONDITIONING AND AUDIO 20G009 2. Take out the air filter. If it is dirty, it should be replaced. To maintain the air conditioning efficiency, replace the air filter according to the maintenance schedule. (For scheduled maintenance information, please refer to the separate ”Owner’s Manual Supplement/Maintenance Schedule”.) NOTICE Do not drive with the air filter removed, or the efficiency...
Page 221 AIR CONDITIONING AND AUDIO (d) Operating tips D Make sure the air inlet grilles in front of the windshield are not blocked by leaves or other obstructions. D If air flow control is not satisfactory, check the dashboard vents. (See ”Center vents”, ”Side vents”, ”Lower vent” and ”Rear vents”.) D To help cool down the interior after parking in the hot sun, drive for the first few minutes with the windows open.
Page 222 AIR CONDITIONING AND AUDIO Center vents 20G010 The center vents may be opened or closed as shown. Side vents 20G011 The side vents may be opened or closed as shown.
Page 223 AIR CONDITIONING AND AUDIO Lower vent 20G012–1 The lower vent may be opened or closed as shown. Rear vents 20G013 The rear vents may be opened or closed as shown.
Page 224 AIR CONDITIONING AND AUDIO AUDIO SYSTEM Quick reference for your audio system (Type A) 21G004–1...
Page 225 AIR CONDITIONING AND AUDIO "The ”CD” button works only when your Lexus is equipped with an automatic changer. Turning the system on and adjusting volume Display of functions in CD mode (See page 216 for details.) : Disc selection Stopping and ejecting a cassette tape (See page 238 for details.)
Page 226 AIR CONDITIONING AND AUDIO CD mode: Direct access to a desired program (See page 241 for details.)
Page 227 AIR CONDITIONING AND AUDIO Quick reference for your audio system (Type B) 21G080–1 "The ”CD” button works only when your Lexus is equipped with an automatic changer.
Page 228 AIR CONDITIONING AND AUDIO Turning the system on and adjusting volume Display of functions in CD mode (See page 216 for details.) : Disc selection Stopping and ejecting a cassette tape (See page 238 for details.) (See page 228 for details.) Reversing Function buttons (See page 242 for details.)
Page 229 AIR CONDITIONING AND AUDIO Using your audio system: some basics This section describes some of the basic features of the Lexus audio system. Some information may not pertain to your system. Your audio system works when the ignition key is in the ”ACC”...
Page 230 AIR CONDITIONING AND AUDIO Push this knob to turn the audio system on and off. Turn this knob to adjust the volume. The system turns on in the last mode used. 21G081 "Type A "Type B Push ”AM”, ”FM1/2”, ”TAPE” or ”CD” to turn on that mode.
Page 231 AIR CONDITIONING AND AUDIO 21G079 In the ”TAPE” or ”CD” mode, the applicable functions are shown in the lowest part of the display. Push the switch just below to turn on each function. (b) Tone and balance How good an audio program sounds to you is largely determined by the mix of the treble, mid–range, and bass levels.
Page 232 AIR CONDITIONING AND AUDIO 21G007 "Type A Each time you push the ”AUDIO CONTROL” knob, the display changes as in the following. To adjust the tone and balance, turn the knob. BASS: Adjusts low–pitched tones. MID: Adjusts mid–pitched tones. TREB: Adjusts high–pitched tones. FADE: Adjusts the sound balance between the front and rear speakers.
Page 233 AIR CONDITIONING AND AUDIO 21G078 "Type B (c) Automatic sound levelizer ”BASS” knob: Use this knob to adjust low–pitched tones. ”MID” knob: Use this knob to adjust mid–pitched tones. ”TREBLE” knob: Use this knob to adjust high–pitched tones. ”BALANCE” knob: Use this knob to adjust the sound balance between the right and left speakers.
Page 234 For the installation of the window tint, consult with your Lexus dealer. (e) Your cassette player When you insert a cassette, the exposed tape should be to the...
Page 235 AIR CONDITIONING AND AUDIO (f) Your automatic changer NOTICE Do not oil any part of the cassette player, and do not insert anything except a cassette tape into the slot.
Page 236 AIR CONDITIONING AND AUDIO 21G001–1 If your Lexus is equipped with an automatic changer, it can play selected discs or continuously play all the discs set in the magazine. When you set discs into the magazine, make sure they face the correct way.
Page 237 AIR CONDITIONING AND AUDIO Radio operation (a) Listening to the radio 21G082 "Type A "Type B Push these buttons to choose either an AM or FM station. ”AM”, ”FM1” or ”FM2” appears on the display.
Page 238 AIR CONDITIONING AND AUDIO 21G009 Push this button on the upper side to step up the station (b) Presetting a station band or on the lower side to step down. Your radio automatically changes to stereo reception when a stereo broadcast is received. ”ST” appears on the display. If the signal becomes weak, the radio reduces the amount of channel separation to prevent the weak signal from creating noise.
Page 239 (c) Selecting a station 2. Push one of the station selector buttons ( 1–6 ) and hold Your Lexus has an electronic tuning radio (ETR). Tune in the it until a beep is heard. This sets the station to the button desired station using one of the following methods.
Page 240 AIR CONDITIONING AND AUDIO 21G011 Preset tuning: Push the button ( 1–6 ) for the station you want. The button number ( 1–6 ) and station frequency appear on the display. Manual tuning: Push the ”TUNE SEEK” button briefly. Each time you push the button, the radio will step up or down to another frequency.
Page 241 AIR CONDITIONING AND AUDIO 21G012 To scan all the frequencies: Push the ”SCAN” button. Cassette tape player operation ”SCAN” appears on the display. The radio will find the next station up the band, stay there for a few seconds, and then scan (a) Playing a cassette tape again.
Page 242 AIR CONDITIONING AND AUDIO When you insert a cassette tape, the exposed tape should be to the right. The player will automatically start when you insert a cassette tape. At this time, ”TAPE” appears on the display. If a metal or chrome equivalent cassette tape is put in the cassette player, the player will automatically adapt to it and ”METAL”...
Page 243 AIR CONDITIONING AND AUDIO "Type A "Type B (b) Manual program selection If a cassette is already in the slot, push the ”TAPE” button. Dolbyr Noise Reduction* feature: If you are listening to a tape that was recorded with Dolby* B or C Noise Reduction, push the button by the double–D symbol until the appropriate symbol appears on the display.
Page 244 AIR CONDITIONING AND AUDIO A " ”Program” button: Push the ” ” button to select the (c) Automatic program selection other side of a cassette tape. The display indicates which side is currently selected (Y indicates top side, B indicates bottom side).
Page 245 AIR CONDITIONING AND AUDIO ”RPT” button: The repeat feature automatically replays the current program. Push the ”RPT” button while the program is playing. When the program ends, it will automatically be rewound and replayed. Push the button again to turn off the repeat feature. There must be at least 5 seconds of blank space between programs for the repeat feature to work correctly.
Page 246 AIR CONDITIONING AND AUDIO 21G018 ”Automatic program selection” button: The automatic program selection feature allows you to program your cassette player to skip forward or backward to locate the song you want to hear. You can skip up to nine programs at a time. Push this button on the upper side to skip forward.
Page 247 AIR CONDITIONING AND AUDIO Push this button on the lower side to skip backward. Push the Compact disc player operation button until ”REW” and the number you want to skip appear The compact disc player is an optional accessory that your on the display.
Page 248 AIR CONDITIONING AND AUDIO 21G002 1. Pull the lever and open the glovebox door. 20E029–2 2. Push this button to eject the magazine.
Page 249 AIR CONDITIONING AND AUDIO 20L021 3. Pull out the tray while pushing the lock release button. 20L022 4. Put a disc on the tray with its label face down and push the tray back into the magazine. If the label faces up, the disc cannot be played. In this case, ”Err”...
Page 250 AIR CONDITIONING AND AUDIO 21G003–1 5. Insert the magazine into the player as indicated by the When the magazine is set completely, the system will be in a arrow head on the magazine and close the glovebox door. ”Load” cycle for approximately 10 seconds while the system searches for discs in the magazine.
Page 251 AIR CONDITIONING AND AUDIO (b) Playing a compact disc 21G084 "Type A "Type B (c) Selecting a desired disc Push the ”CD” button if the magazine is already loaded in the player. ”CD” appears on the display. The discs set in the magazine are played continuously, starting with disc number 1.
Page 252 AIR CONDITIONING AND AUDIO 21G020 Push the ”DISC” button to select the disc number. (d) Searching for a desired track Push the button and hold it until the desired disc number appears on the display. When you release the button, the player will start playing the selected disc from the first track.
Page 253 AIR CONDITIONING AND AUDIO Push the ”SCAN” button. (e) Searching for a desired disc ”SCAN” will appear on the display. The compact disc player will play the next track for 10 seconds, then scan again. To select a track, push the ”SCAN” button a second time. If the player reaches the end of the disc, it will continue scanning at track 1.
Page 254 AIR CONDITIONING AND AUDIO 21G022 Push the ”D. SCAN” button. (f) Selecting a desired track With ”D.SCAN” on the display, the program at the beginning of each disc will be played for 10 seconds. To continue listening to the program of your choice, push the ”D. SCAN” button a second time.
Page 255 AIR CONDITIONING AND AUDIO 21G023 ”TRACK” button: Use for direct access to a desired track. (g) Other compact disc player functions Push either side of the ”TRACK” button and hold it until the desired track number appears on the display. As you release the button, the player will start playing the selected track from the beginning.
Page 256 When a track is skipped or the system is inoperative, push the raised because of high external temperature. Remove the button to reset. magazine from the player to cool it. If the player still does not operate, take it to your Lexus dealer.
Page 257 AIR CONDITIONING AND AUDIO Car audio system operating hints Radio reception Usually, the problem with radio reception does not mean there is a problem with your radio – it is just the normal result of NOTICE conditions outside the vehicle. To ensure the correct audio system operation: For example, nearby buildings and terrain can interfere with D Be careful not to spill beverages over the audio system.
Page 258 AIR CONDITIONING AND AUDIO Station swapping – If the FM signal you are listening to is Use high–quality cassettes: interrupted or weakened, and there is another strong station D Low–quality cassette tapes can cause many problems, nearby on the FM band, your radio may tune in the second including poor sound, inconsistent playing speed, and station until the original signal can be picked up again.
Page 259 AIR CONDITIONING AND AUDIO Caring for your compact disc player and discs 20L037 D Use only compact discs labeled as shown. The player is intended for use with 12 cm (4.7 in.) discs only. D Extremely high temperature can keep your compact disc player from working.
Page 260 AIR CONDITIONING AND AUDIO 20L038 "Correct "Wrong D Handle compact discs carefully, especially when you set them into the magazine. Hold them on the edge and do not bend them. Avoid getting fingerprints on them, particularly on the shiny side. D Dirt, scrapes, warping, pin holes, or other disc damage could cause the player to skip or to repeat a section of a track.
Page 261 AIR CONDITIONING AND AUDIO 20L039 To clean a compact disc: Wipe it with a soft, lint–free cloth that has been dampened with water. Wipe in a straight line from the center to the edge of the disc (not in a circle). Do not use a conventional record cleaner or anti–static device.
Page 262 AIR CONDITIONING AND AUDIO 20L040 A new disc may have rough edges on its inner and outer perimeter. Remove the rough edges by pressing the side of a ball–point pen or pencil against the inner and outer edges of the disc as shown. If you continue to play a disc with rough edges, flakes will fall on to the signal side of the disc and cause sound skipping or other problems.
Page 263 AIR CONDITIONING AND AUDIO...
Page 264 SECTION – STARTING AND DRIVING Starting and driving Three–way catalytic converter ......Engine exhaust caution ......Before starting the engine .
Page 265 STARTING AND DRIVING Brake pad wear limit indicators ..... . . Types of tires ........THREE–WAY CATALYTIC CONVERTER 31G018–1...
Page 266 STARTING AND DRIVING 31G019–1 "GS300 Three–way catalytic converters are emission control devices installed in the exhaust system. It looks somewhat like a muffler, but its purpose is to reduce pollutants in the exhaust gas. CAUTION D Keep people and combustible materials away from the exhaust pipe while the engine is running.
Page 267 D Do not allow the engine to run at idle speed for more as possible. Remember, your Lexus dealer knows your than 20 minutes. vehicle and its three–way catalytic converter system best.
Page 268: Engine Exhaust Caution
STARTING AND DRIVING ENGINE EXHAUST CAUTION CAUTION D Avoid inhaling the engine exhaust. It contains carbon monoxide, which is a colorless and odorless gas. It can cause unconsciousness or even death. D Make sure the exhaust system has no holes or loose connections.
Page 269: Before Starting The Engine
STARTING AND DRIVING BEFORE STARTING THE D To allow proper operation of your vehicle’s ventilation system, keep the inlet grilles in front of ENGINE the windshield clear of snow, leaves, or other obstructions. 1. Check the area around the vehicle before entering it. D If you smell exhaust fumes in the vehicle, drive with 2.
Page 270 STARTING AND DRIVING IGNITION SWITCH WITH STEERING LOCK 31G001...
Page 271 If you leave the key in the ”ACC” or ”LOCK” position and open the driver’s door, a buzzer will remind you to remove the key.* NOTE: *The volume or interval of beep sound can be changed. Ask your Lexus dealer for details.
Page 272 STARTING AND DRIVING 31G002 ”LOCK” – Engine is off and the steering wheel is locked. The ignition key can be removed only at this position. To turn the key from ”ACC” to the ”LOCK” position, you must put the transmission selector lever in the ”P” position. Once you remove the key, the engine immobiliser system is automatically set.
Page 273: Parking Brake
STARTING AND DRIVING PARKING BRAKE 31G003–1 To set: Fully depress the parking brake pedal. To release: Pull the parking brake release lever. Before leaving your vehicle, firmly apply the parking brake. CAUTION Before driving, make sure the parking brake is fully released and that the parking brake reminder light is off.
Page 274: How To Start The Engine
STARTING AND DRIVING HOW TO START THE ENGINE If the weather is below freezing, let the engine warm up for a few minutes before driving. Do not leave the vehicle while the engine is warming up. Before cranking If the engine stalls ... 1.
Page 275 STARTING AND DRIVING AUTOMATIC TRANSMISSION Your automatic transmission has a shift lock system to minimize the possibility of incorrect operation. This means you can only shift out of ”P” position when the brake pedal is depressed with the ignition switch in ”ON” position.
Page 276 STARTING AND DRIVING 31G029...
Page 277 STARTING AND DRIVING "The shift position is displayed on the instrument cluster. GS400: P: Parking, engine starting and key removal position GS300: R: Reverse position P: Parking, engine starting and key removal position N: Neutral position R: Reverse position D: Normal driving position (Shifting into overdrive N: Neutral position possible) D: Normal driving position (Shifting into overdrive...
Page 278 STARTING AND DRIVING Correct use of the automatic transmission is explained in (a) Normal driving the following parts. (a) Normal driving (b) Using engine braking (c) Using the ”3”, ”2” and ”L” positions (d) Backing up (e) Parking (f) Good driving practice (g) Rocking your vehicle if stuck (h) If you cannot shift the selector lever...
Page 279 STARTING AND DRIVING 31G030 " 1 ”P” (Park) position 2 ”N” (Neutral) position 1. Start the engine as instructed in ”How to start the engine” on page 261. The transmission must be in ”P” or ”N”. The engine will not start in any drive position even if the ignition key is turned to ”START”.
Page 280 Your transmission has a driving pattern selector switch which allows you to select ”Power”, ”Normal” or ”Snow” mode to suit your driving condition. For ordinary driving, Lexus recommends that you use the ”Normal” position to improve fuel economy. 3. For more powerful acceleration and sporty driving, use the ”Power”...
Page 281 STARTING AND DRIVING 31G031 " 1 Brake pedal 2 ”D” (Drive) position 4. With your foot holding down the brake pedal, shift the selector lever to ”D”. Always use the ”D” position to improve fuel economy and quiet driving. Only in this position, shifting into the overdrive gear is possible.
Page 282 STARTING AND DRIVING 5. Release the parking brake and brake pedal. Depress (b) Using engine braking the accelerator pedal slowly for smooth starting. In normal cruising, the vehicle will start in the first gear and automatically shift up to the most suitable gear. On inclines, declines or winding roads, etc., the vehicle shifts up and down automatically according to the running conditions to obtain the suitable driving power and engine braking.
Page 283 STARTING AND DRIVING To use the braking power of the engine, downshift the Shift into the ”2” position. The transmission will transmission in the way described below: downshift to the second gear when the vehicle speed is or becomes lower than the speed listed below and more Shift into the ”4”...
Page 284 STARTING AND DRIVING CAUTION Be careful when downshifting on a slippery surface. The abrupt change in engine speed could cause the vehicle to spin or skid. 31G028–1...
Page 285 The gear position being used is shown on the instrument cannot downshift or upshift the transmission using the cluster. switches on the steering wheel. Consult with your Lexus Each time you push the switch located on the front of the dealer as soon as possible. The transmission works steering wheel, the transmission downshifts (from ”D”) to...
Page 286 STARTING AND DRIVING CAUTION Be careful when downshifting on a slippery surface. The abrupt change in engine speed could cause the vehicle to spin or skid. (c) Using the ”3”, ”2” and ”L” positions The ”3”, ”2” and ”L” positions are used for strong engine braking as described previously.
Page 287 STARTING AND DRIVING With the selector lever in ”L”, the transmission is engaged in the first gear. NOTICE D Be careful not to overrev the engine. Watch the tachometer to keep engine rpm from going into the red zone. The approximate maximum allowable speed for each position is given below for your reference: GS400 km/h (mph)
Page 288 STARTING AND DRIVING (d) Backing up 31G033 " 1 Brake pedal 2 ”R” (Reverse) position 1. Bring the vehicle to a complete stop. 2. With the brake pedal held down with your foot, shift the selector lever to the ”R” position. NOTICE Never shift into reverse while the vehicle is moving.
Page 289 STARTING AND DRIVING (e) Parking 31G034 " 1 Brake pedal 2 Parking brake pedal 3 ”P” (Park) position 1. Bring the vehicle to a complete stop. 2. Depress the parking brake pedal fully. 3. With the brake pedal held down with your foot, shift the selector lever to the ”P”...
Page 290 STARTING AND DRIVING (f) Good driving practice If the transmission repeatedly upshifts and downshifts between the fourth and overdrive gears when climbing a gentle slope, shift the selector lever to the ”4” position. Be sure to shift the selector lever to the ”D” position after climbing the slope.
Page 291 STARTING AND DRIVING (h) If you cannot shift the selector NOTICE If you cannot shift the selector lever even though the brake If you rock your vehicle, observe the following pedal is depressed, use the shift lock override button. For precautions to prevent damage to the transmission and instructions, see ”If you cannot shift automatic transmission other parts.
Page 292: Electronic Throttle Control System
3 Snow position The electronic throttle control system has 3 modes: Normal, Power and Snow modes. Normal mode: For ordinary driving, Lexus recommends that you use the normal mode to improve fuel economy. Power mode: For more powerful acceleration and sporty...
Page 293: Cruise Control
STARTING AND DRIVING In the power mode, the ”ECT PWR” light in the instrument CRUISE CONTROL cluster is on and the transmission is shifted up at higher vehicle speeds and shifted down more responsively than is the The cruise control allows you to cruise the vehicle at a normal mode.
Page 294 STARTING AND DRIVING Turning on the system 31G011 To operate the cruise control, push the main switch. This turns the system on. The indicator light in the instrument cluster shows that you can now set your desired cruising speed. Another push on the switch will turn the system completely off.
Page 295 If the preset speed automatically cancels out for other than foot off the accelerator pedal. If you need acceleration – for these reasons, have your vehicle checked by your Lexus example, when passing – depress the accelerator pedal dealer at the earliest opportunity.
Page 296 Cruise control failure warning If the ”CRUISE” indicator light in the instrument cluster flashes five times and then goes out when using the cruise control, it means that there is trouble in the cruise control system. Contact your Lexus dealer.
Page 297: Traction Control System
STARTING AND DRIVING TRACTION CONTROL SYSTEM The traction control system automatically helps control the spinning of the rear wheels which may occur when accelerating on slippery road surfaces, thus assisting driver to control the driving power of the rear wheels. 31G013 When you turn the ignition switch on, this system always turns on.
Page 298 STARTING AND DRIVING CAUTION Under certain slippery road conditions, full traction of the vehicle and power to the rear wheels cannot be maintained, even though the traction control system is in operation. Do not drive the vehicle under any speed or maneuvering conditions which will cause the vehicle to lose traction.
Page 299 STARTING AND DRIVING VEHICLE SKID CONTROL SYSTEM The vehicle skid control system helps provide comprehensive control of the systems such as an anti–lock brake system, traction control, engine control, etc. This system automatically controls the output of the brakes or engine to help prevent the vehicle from skidding when cornering on a slippery road surface or abrupt steering wheel operation occurs.
Page 300 STARTING AND DRIVING "Slip indicator light If the vehicle is going to skid during driving, the slip indicator light flashes and an alarm sounds intermittently. The vehicle skid control activates when the vehicle speed is about more than 15 km/h (9 mph). You may hear a slight clicking noise in the engine compartment for a few seconds when the engine is started or just after the vehicle is started.
Page 301 If the ”VSC” warning light and ”VSC OFF” indicator light come on, have your vehicle checked by Lexus dealer as soon as possible. The lights will come on when the ignition key is turned to ”ON”, and will go off after about a few seconds.
Page 302 4 tires should be the same. If you use the tires other than specified, or different type or size, the vehicle skid control system may not function correctly. When replacing the tires or wheels, contact your Lexus dealer.
Page 303: Brake System
If they do not work well, depress the brake pedal firmly. If the brake system warning light comes on, immediately stop your vehicle and contact your Lexus dealer. The brake system warning light may come on for about 60 seconds after the engine is started.
Page 304 STARTING AND DRIVING CAUTION D Do not pump the brake pedal if the engine stalls. Each push on the pedal uses up your brake fluid pressure reserve. D Even if the power assist is completely lost, the brakes will still work. But you will have to push the pedal hard – much harder than normal.
Page 305 STARTING AND DRIVING D Avoid high speeds on wet roads. The anti–lock brake D Driving on roads where the road surface is pitted or has system cannot eliminate the risk of hydroplaning and loss other differences in surface height. of tire friction. ”ABS”...
Page 306 Lexus dealer as soon as possible. If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your Lexus dealer as soon as possible to service the vehicle.
Page 307 While the ”ABS” warning light is on, if either of the following conditions occurs, immediately stop your vehicle at a safe place and contact your Lexus dealer. D The brake system warning light stays on even with the parking brake being released.
Page 308 If you hear a squealing or scraping noise while driving, have the brake pads checked and replaced by your Lexus dealer as soon as possible. Expensive rotor damage can result if the pads are not replaced when needed.
Page 309: Types Of Tires
STARTING AND DRIVING TYPES OF TIRES Determine what kind of tires your vehicle is originally equipped with. Summer tires Summer tires are high–speed capability tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow–covered or icy roads.
Page 310 STARTING AND DRIVING CAUTION D Do not mix summer and all season tires on your vehicle as this can cause dangerous handling characteristics, resulting in loss of control. D Do not use tires other than the manufacturer’s designated tires, and never mix tires or wheels of the sizes different from the originals.
Page 311 SECTION – STARTING AND DRIVING Driving tips Break–in period ........Operation in foreign countries .
Page 312: Operation In Foreign Countries
You need not follow a break–in schedule with your new If you plan to drive your Lexus in another country ... Lexus. But following a few simple tips for the first 1600 km First, comply with the vehicle registration laws.
Page 313 If they still do not work safely, pull to the side of the road and call a Lexus dealer for assistance. CAUTION D Before driving off, make sure the parking brake is fully...
Page 314: Winter Driving Tips
Page 413 tells you how to visually inspect the D Even if the legal speed limit permits it, do not drive battery. Your Lexus dealer and most service stations will be over 140 km/h (85 mph) unless your vehicle has pleased to check the battery charge level.
Page 315 DRIVING TIPS Use a washer fluid containing an antifreeze solution. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water. NOTICE Do not use engine antifreeze or any other substitute because it may damage your vehicle’s paint.
Page 316: Trailer Towing
DRIVING TIPS TRAILER TOWING 32G001 Lexus does not recommend towing a trailer with your HOW TO SAVE FUEL AND vehicle. It is not designed for trailer towing. MAKE YOUR VEHICLE LAST LONGER Getting more kilometer/mileage from a liter/gallon of fuel is easy –...
Page 317 DRIVING TIPS D Avoid unnecessary stopping and braking. Maintain a running smoothly, begin driving – but gently. Remember, however, that on cold winter days this may take a little steady pace. Try to time the traffic signals so you only longer.
Page 318 DRIVING TIPS Supplement/Maintenance Schedule”.) CAUTION Never turn off the engine to coast down hills. Your power steering and brake booster will not function without the engine running. Also, the emission control system operates properly only when the engine is running.
Page 319 SECTION IN CASE OF AN EMERGENCY If your engine stalls while driving ..... If your vehicle will not start ......If your vehicle overheats .
Page 320: If Your Engine Stalls While Driving
IN CASE OF AN EMERGENCY IF YOUR ENGINE STALLS WHILE DRIVING If your engine stalls while driving ..1. Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. 2. Turn on your emergency flashers. 3.
Page 321 Have the key checked at your See ”(b) Starting a flooded engine” for further instructions. Lexus dealer. If none of your keys work, the system is 2. If the engine still will not start, it needs adjustment or possibly broken.
Page 322 If you are unsure about how to follow this procedure, we strongly recommend that you seek help from your Lexus dealer, Roadside Assistance or Customer Service Assistance. (See ”Foreword”.). CAUTION D Batteries contain sulfuric acid which is poisonous and corrosive.
Page 323 IN CASE OF AN EMERGENCY NOTICE The battery used for boosting must be 12 V. Do not jump start unless you are sure that the booster battery is correct. 40G020–1 "GS400 5 Discharged battery 6 Booster battery...
Page 324 IN CASE OF AN EMERGENCY 2. If required, remove all the vent plugs from the booster battery. Lay a cloth over the open vents on the booster battery. (This helps reduce the explosion hazard, personal injuries and burns.) 3. If the engine in the vehicle with the booster battery is not running, start it and let it run for about 5 minutes.
Page 325: If Your Vehicle Overheats
IN CASE OF AN EMERGENCY IF YOUR VEHICLE CAUTION OVERHEATS When making the connections, to avoid serious injury, If your engine coolant temperature gauge indicates do not lean over the battery or accidentally let the overheating, if you experience a loss of power, or if you jumper cables or clamps touch anything except the hear a loud knocking or pinging noise, the engine has correct battery terminals or the ground.
Page 326 A: If steam is coming from your engine: Turn off the engine. Leave the hood closed until there is no sign of steam or coolant. Your engine could have been seriously damaged already. Call your Lexus dealer for assistance. CAUTION To help avoid personal injury, keep the hood closed until there is no steam.
Page 327 If the cooling fan is not operating or the coolant is not in the acceptable range, turn off the engine and call your Lexus dealer. If both conditions are O.K., after the engine coolant temperature has cooled to normal, continue driving your vehicle.
Page 328: If You Have A Flat Tire
IN CASE OF AN EMERGENCY IF YOU HAVE A FLAT TIRE 1. Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place – well away from the traffic. Avoid stopping on the center divider of a highway. Park on a level spot with firm ground.
Page 329 IN CASE OF AN EMERGENCY D Make sure to set the jack properly in the jack point. Raising the vehicle with jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the jack and cause personal injury. D Never get under the vehicle when the vehicle is supported by the jack alone.
Page 330 IN CASE OF AN EMERGENCY 40G021–1 " 1 Jack 2 Wrench 3 Spare tire 4 Jack handle 1. Get the jack, wrench and spare tire. To prepare yourself for an emergency, you should familiarize yourself with the use of the jack and each tool, and their storage locations.
Page 331 IN CASE OF AN EMERGENCY 40G001 " 1 Joint 2 When removing the jack, turn the joint by hand in the ”contract” direction until the jack is free. 3 When storing, turn the joint by hand in the ”expand” direction until the jack is firmly secured to prevent it from flying forward during a collision or sudden braking.
Page 332 IN CASE OF AN EMERGENCY 40G002 To remove the spare tire: Remove the spare tire cover. Loosen the bolt and remove it. When storing the spare tire, place it with the inner side of the wheel facing up. Then bolt the tire in place and install the spare tire cover to prevent the tire from flying forward during a collision or sudden braking.
Page 333 IN CASE OF AN EMERGENCY 40G003–1 2. Block the wheel diagonally opposite the flat tire to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block in front of the front wheels or behind the rear wheels.
Page 334 IN CASE OF AN EMERGENCY 40G004 3. Loosen all the wheel nuts. Always loosen the wheel nuts before raising the vehicle. Turn the nuts counterclockwise to loosen them. To get maximum leverage, fit the wrench to the nut so that the handle is on the right side, as shown above.
Page 335 IN CASE OF AN EMERGENCY 40G005–1 4. Position the jack at the jack points as shown. Make sure the jack is positioned on a level and solid surface.
Page 336 IN CASE OF AN EMERGENCY 40G006 5. After making sure no one is in the vehicle, raise it high enough so that the spare tire can be installed. Allow for the fact that you need more ground clearance when putting on the spare tire than when removing the flat tire. To raise the vehicle, insert the jack handle into the jack (it is a loose fit) and turn it clockwise.
Page 337 IN CASE OF AN EMERGENCY CAUTION Never get under the vehicle when the vehicle is supported by the jack alone; use vehicle support stands. 40G007 6. Remove the wheel nuts and remove the flat tire. Lift the flat tire straight off and put it aside.
Page 338 IN CASE OF AN EMERGENCY 40G008 Before putting on the wheel, remove any corrosion on the mounting surfaces with a wire brush or such. Installation of wheels without good metal–to–metal contact at the mounting surface can cause wheel nuts to loosen and eventually cause a wheel to come off while driving.
Page 339 IN CASE OF AN EMERGENCY 7. Reinstall all the wheel nuts finger tight. Align the holes in the wheel with the bolts. Then lift up the wheel and get at least the top bolt started through its hole. Wiggle the tire and press it back over the other bolts. Reinstall the wheel nuts and tighten them as much as you can by hand.
Page 340 IN CASE OF AN EMERGENCY 40G010 8. Lower the vehicle completely and tighten the wheel nuts. Turn the jack handle counterclockwise to lower the vehicle. Use only the wheel nut wrench to tighten the nuts. Do not use other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot.
Page 341 IN CASE OF AN EMERGENCY CAUTION D When lowering the vehicle, make sure all portions of your body and all other persons around will not be injured as the vehicle is lowered to the ground. D As soon as possible after changing wheels, have the wheel nuts tightened by torque wrench at 103 N·m (10.5 kgf·m, 76 ft·lbf.).
Page 342 IN CASE OF AN EMERGENCY 9. After changing the wheel, check the air pressure of the replaced tire. Stow all the tools, jack and flat tire securely. If the pressure of the replaced tire is low, drive slowly to the nearest service station and fill to the correct pressure.
Page 343 BE TOWED If towing is necessary, we recommend you to have it done by your Lexus dealer or a commercial tow truck service. In consultation with them, have your vehicle towed using either (a) or (b). Towing with a wheel lift type truck...
Page 344 IN CASE OF AN EMERGENCY (a) Towing with a wheel lift type truck D From front 40G012 D From rear Use a towing dolly under the rear wheels. NOTICE Never tow a vehicle with an automatic transmission from the front with rear wheels on the ground, as this may cause serious damage to the transmission.
Page 345 IN CASE OF AN EMERGENCY 40G013 Place the ignition key in the ”ACC” position. (b) Using a flat bed truck NOTICE D Do not tow with the key removed or in the ”LOCK” position, as the steering lock mechanism is not strong enough to hold the front wheels straight.
Page 346 IN CASE OF AN EMERGENCY 40G014 D Tie down points...
Page 347 IN CASE OF AN EMERGENCY 40E014 40G022 If your Lexus is transported by a flat bed, it should be tied down at locations A and B as shown above.
Page 348 IN CASE OF AN EMERGENCY 40G023 "Rear emergency towing eyelets D Tie down angle NOTICE Do not use the rear emergency towing eyelets. 40G015–1...
Page 349 IN CASE OF AN EMERGENCY If you use chains or wires to tie down your vehicle, the (c) Towing with a sling type truck angles shaded black must be at 45_. 40G016–1 NOTICE Do not tow with a sling type truck, either from the front or rear.
Page 350 40G026 If towing is necessary, we recommend you to have it done by your Lexus dealer or a commercial tow truck service. If towing service is not available in an emergency, your vehicle may be temporarily towed by a cable or chain secured to the emergency towing eyelet.
Page 351 IN CASE OF AN EMERGENCY CAUTION Use extreme caution when towing the vehicle. Avoid sudden starts or erratic driving maneuvers which would place excessive stress on the emergency towing eyelet and towing cable or chain. The eyelet and towing cable or chain may break and cause serious injury or damage.
Page 352: Selector Lever
IN CASE OF AN EMERGENCY IF YOU CANNOT SHIFT AUTOMATIC TRANSMISSION SELECTOR LEVER 40G024–1 If you cannot shift the selector lever, use the shift lock override button as follows: Turn the ignition key to ”LOCK” or ”ACC”. Make sure the parking brake is applied. Pry up the cover with a flat–bladed screwdriver or equivalent.
Page 353 For your safety, keep the brake pedal depressed. Many Lexus dealers can make a new key if you can give them the key number. Since your vehicle is equipped with Be sure to have the system checked by your Lexus dealer as the engine immobiliser system, the dealer will also need soon as possible.
Page 354 IN CASE OF AN EMERGENCY...
Page 355 SECTION MAINTENANCE Maintenance requirements ......General maintenance ....... . Does your vehicle need repairing? .
Page 356 General maintenance items are those day–to–day care practices that are important to your vehicle for proper Your Lexus vehicle has been designed to have fewer operation. It is the owner’s responsibility to ensure that the maintenance requirements with longer service intervals to general maintenance items are performed regularly.
Page 357 It is recommended that any replacement parts used for warranty, your Lexus dealer will promptly take care of it. maintenance or for the repair of the emission control Again, be sure to keep a copy of the repair order for any system be Lexus supplied.
Page 358: General Maintenance
Listed below are the general maintenance items that should be performed at the intervals specified. It is recommended that any problem you notice be brought to the attention of your Lexus dealer or qualified service shop for their advice. CAUTION Make these checks only where adequate ventilation can be obtained if you run the engine.
Page 359 MAINTENANCE Vehicle interior Seats Check that all front seat controls such as seat adjusters, Items listed below should be checked regularly, e.g. while seatback recliner, etc. operate smoothly. Check that the head performing periodic services, cleaning the vehicle, etc. restraints move up and down smoothly and that the locks hold Lights securely in any latched position.
Page 360: Engine Compartment
See page 376 for additional information. immediately. (See engine exhaust cautions in Section 3–1.) Battery Your Lexus has a maintenance free battery. You do not have to add distilled water. For longer life of the battery, however, see page 413 for additional information.
Page 361 MAINTENANCE DOES YOUR VEHICLE NEED REPAIRING? Be on the alert for changes in performance and sounds, and visual tip–offs that indicate service is needed. Some important clues are: D Engine missing, stumbling, or pinging D Appreciable loss of power D Strange engine noises D A fluid leak under the vehicle (however, water dripping from the air conditioning after use is normal.) D Change in exhaust sound (This may indicate a dangerous...
Page 362 MAINTENANCE Lexus dealer as soon as possible. It probably needs adjustment or repair. CAUTION Do not continue driving with the vehicle unchecked. It could result in serious vehicle damage and possibly personal injury.
Page 363 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Introduction Vehicle identification ....... Engine compartment overview (GS400) .
Page 364: Vehicle Identification
This number is on the left top of the instrument panel and can be seen through the windshield from outside. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.
Page 365 INTRODUCTION 61G006 The vehicle identification number (VIN) is also on the Certification Label. 61G007–2 "GS400 "GS300 The engine number is stamped on the engine block as shown.
Page 366 INTRODUCTION ENGINE COMPARTMENT OVERVIEW (GS400) Engine oil filler cap Engine oil level dipstick Brake fluid reservoir Fuse box Washer fluid tank Engine 61G008–2 coolant reservoir Power steering fluid reservoir Fuse box Battery...
Page 367 INTRODUCTION ENGINE COMPARTMENT OVERVIEW (GS300) Engine oil filler cap Engine oil level dipstick Brake fluid reservoir Fuse box Washer fluid tank Power 61G004–3 steering fluid reservoir Engine coolant reservoir Fuse box Battery...
Page 368 Performing do–it–yourself maintenance during the warranty period may affect your warranty coverage. Read the separate Lexus Warranty statement for details and suggestions. This Section gives instructions only for those items that are relatively easy for an owner to perform. As explained in Section 5, there are still a number of items that must be performed by a qualified technician with special tools.
Page 369 INTRODUCTION CAUTION D When the engine is running, keep hands, clothing, and tools away from the moving fan and engine drive belt. (Removing rings, watches, and ties is advisable.) D Right after driving, the engine compartment – the engine, radiator, exhaust manifold and power steering fluid reservoir, etc.
Page 370: Parts And Tools
NOTICE Here is a list of parts and tools you will need to perform D Remember that battery and ignition cables carry high do–it–yourself maintenance. Remember all Lexus parts are currents or voltages. Be careful of accidentally designed in metric sizes, so your tools must be metric.
Page 371 Non–maintenance batteries Checking the cartridge type fuses Tools: D Warm water Parts (if replacement is necessary): D Genuine Lexus fuse or equivalent with same amperage D Baking soda rating as original D Grease D Conventional wrench (for terminal clamp bolts)
Page 372 INTRODUCTION Adding washer fluid Parts: D Water D Washer fluid containing antifreeze (for winter use) Tools: D Funnel...
Page 373 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Engine Specifications (GS400) ......Specifications (GS300) ......Fuel .
Page 374 ENGINE SPECIFICATIONS (GS400) – GENERAL Model 1UZ–FE Type 8 cylinder V type, 4 cycle, gasoline Bore and stroke 87.5 X 82.5 mm (3.44 X 3.25 in.) Displacement 3969 cm (242.1 cu.in.) Valve clearance (engine cold) Intake 0.15 – 0.25 mm (0.006 – 0.010 in.) Exhaust 0.25 –...
Page 375 ENGINE Oil capacity Drain and refill with filter 5.2 L (5.5 qt., 4.6 lmp.qt.) without filter 4.9 L (5.2 qt., 4.3 lmp.qt.) API SH, ”Energy–Conserving II” or SJ, Oil grade ”Energy–Conserving” multigrade engine oil or ILSAC multigrade engine oil Recommended oil viscosity (SAE): –...
Page 376 ENGINE Spark plug – Make DENSO SK20R11 IFR6A11 – Gap 1.1 mm (0.043 in.) – ELECTRICAL SYSTEM Battery – Maintenance type battery Specific gravity reading at 20_C (68_F): 1.260 Fully charged 1.160 Half charged 1.060 Discharged Charging rates Quick charge 15A max.
Page 377 ENGINE SPECIFICATIONS (GS300) – GENERAL Model 2JZ–GE Type 6 cylinder in line, 4 cycle, gasoline Bore and stroke 86.0 X 86.0 mm (3.39 X 3.39 in.) Displacement 2997 cm (182.9 cu.in.) Valve clearance (engine cold) Intake 0.15 – 0.25 mm (0.006 – 0.010 in.) Exhaust 0.25 –...
Page 378 ENGINE Oil capacity Drain and refill with filter 5.4 L (5.7 qt., 4.8 lmp.qt.) without filter 5.1 L (5.4 qt., 4.5 lmp.qt.) API SH, ”Energy–Conserving II” or SJ, Oil grade ”Energy–Conserving” multigrade engine oil or ILSAC multigrade engine oil Recommended oil viscosity (SAE): –...
Page 379 ENGINE Spark plug – Make DENSO PK16TR11 BKR5EKPB11 – Gap 1.1 mm (0.043 in.) – ELECTRICAL SYSTEM Battery – Maintenance type battery Specific gravity reading at 20_C (68_F): 1.260 Fully charged 1.160 Half charged 1.060 Discharged Charging rates Quick charge 15A max.
Page 380 Your vehicle must use only unleaded gasoline. type cannot be obtained, you may temporarily use To help prevent gas station mixups, your Lexus has a smaller unleaded gasoline with an Octane Rating as low as 87 fuel tank opening. The special nozzle on pumps with (Research Octane Number 91).
Page 381 Gasohol is a mixture of gasoline and ethanol. If you use gasolines. The AAMA specification offers optimal fuel gasohol in your Lexus, be sure that it is unleaded, has an information for better vehicle performance and better octane rating no lower than 87 and does not contain more protection of your engine.
Page 382: Facts About Engine Oil Consumption
ENGINE FACTS ABOUT ENGINE OIL The amount of engine oil consumed depends on the viscosity of the oil, the quality of the oil and the way the CONSUMPTION vehicle is driven. More oil is consumed under driving conditions such as high Functions of engine oil speeds and frequent acceleration and deceleration.
Page 383 D Dispose of used oil and used oil filters only in a safe and acceptable manner. Do not dispose of used oil and used oil filters in household trash, in sewers or onto the ground. Call your Lexus dealer or a service station for information concerning recycling or disposal.
Page 384: Checking The Engine Oil
ENGINE CHECKING THE ENGINE OIL LEVEL 62G005–1 "GS400 "GS300 With the engine at operating temperature and turned off, check the oil level on the dipstick. 1. To get a true reading, the vehicle should be on a level spot. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine.
Page 385 ENGINE 62G006–1 1 Add oil 2 O.K. 3 Too full 4. Pull the dipstick out and look at the oil level on the end. If it is between the full level mark ( 5 ) and the low level mark ( 4 ), it is O.K.
Page 386 ENGINE 62G007–1 "GS400 "GS300 If the oil level is below or only slightly above the low level mark, add engine oil of the same type as already in the engine. Remove the oil filler cap and add engine oil a little at a time, checking the dipstick.
Page 387 ENGINE Engine oil selection Use API SH, ”Energy–Conserving II” or SJ, ”Energy–Conserving” multigrade engine oil or ILSAC multigrade engine oil. Recommended viscosity (SAE): 62L005–1 Temperature range anticipated before next oil change SAE 5W–30 is the best choice for your vehicle, for good Oil identification marks fuel economy, and good starting in cold weather.
Page 388 ENGINE 62L006–1 "API Service Symbol "ILSAC Certification Mark Either or both API registered marks are added to some oil containers to help you select the oil you should use. D The API Service Symbol is located anywhere on the outside of the container. The top portion of the label shows the oil quality by API (American Petroleum Institute) designation such as SJ.
Page 389: Checking The Engine Coolant Level
If you can find no leak, have your Lexus dealer test the cap lines on the tank. If the level is low, add ethylene–glycol pressure and check for leaks in the cooling system.
Page 390: Spark Plugs
Use only iridium–tipped spark plugs for your engine system is given on page 362. We recommend 50% solution performance and smooth drivability. be used for your Lexus, or a sufficient quantity to provide protection to about –35_C (–31_F). GS300 NOTICE Do not use alcohol type antifreeze or plain water alone.
Page 391 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Chassis Specifications (GS400) ......Specifications (GS300) ......Checking brake fluid .
Page 392 CHASSIS Suspension and chassis ......
Page 393 CHASSIS SPECIFICATIONS (GS400) – AUTOMATIC TRANSMISSION Fluid capacity Drain and refill 1.9 L (2.0 qt., 1.7 lmp.qt.) Fluid type Automatic transmission fluid Type T – IV or equivalent – DIFFERENTIAL Oil capacity 1.35 L (1.42 qt., 1.19 lmp.qt.) Oil type Hypoid gear oil API GL–5 Oil viscosity Above –18_C (0_F): SAE 90...
Page 394 CHASSIS – STEERING Freeplay Less than 30 mm (1.2 in.) Power steering fluid Automatic transmission fluid DEXRON II or III – TIRES AND WHEELS Tire size Type A: 225/55R16 94V Type B: 235/45ZR17 Tire inflation pressure Recommended cold tire inflation pressure 225/55R16 94V Front 220 kPa (2.2 kgf/cm...
Page 395 CHASSIS SPECIFICATIONS (GS300) – AUTOMATIC TRANSMISSION Fluid capacity Drain and refill 1.9 L (2.0 qt., 1.7 lmp.qt.) Fluid type Automatic transmission fluid Type T – IV or equivalent – DIFFERENTIAL Oil capacity 1.35 L (1.42 qt., 1.19 lmp.qt.) Oil type Hypoid gear oil API GL–5 Oil viscosity Above –18_C (0_F): SAE 90...
Page 396 CHASSIS Freeplay Less than 30 mm (1.2 in.) Power steering fluid Automatic transmission fluid DEXRON II or III – TIRES AND WHEELS (Type A) Tire size P215/60R16 94V Tire inflation pressure Recommended cold tire inflation pressure Front 210 kPa (2.1 kgf/cm or bar, 30 psi) Rear 210 kPa (2.1 kgf/cm...
Page 397: Checking Brake Fluid
CHASSIS Tire size 225/55R16 94V Tire inflation pressure Recommended cold tire inflation pressure Front 220 kPa (2.2 kgf/cm or bar, 32 psi) Rear 220 kPa (2.2 kgf/cm or bar, 32 psi) For sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by law, add 80 kPa (0.9 kgf/cm , 0.8 bar, 12 psi) to the front tires and rear...
Page 398 CHASSIS To check the fluid level, simply look at the see–through If you do not follow the procedure above, the reservoir may reservoir. The level should be between the ”MAX” and overflow. ”MIN” lines on the tank. Use only newly opened brake fluid. Once opened, brake fluid It is normal for the brake fluid level to go down slightly as the absorbs moisture from the air, and excess moisture can cause brake pads wear or when the fluid level in the accumulator is...
Page 399 CHASSIS CHECKING POWER STEERING FLUID (GS400) 63G003–1 Check the fluid level through the reservoir. If necessary, add automatic transmission fluid DEXRON II or III. If the vehicle has been driven around 80 km/h (50 mph) for 20 minutes (a little more in frigid temperatures), the fluid is hot (60_C –...
Page 400 CHASSIS 63G006–1 " 1 If hot O.K. 2 If hot add 3 If cold O.K. 4 If cold add Clean all dirt off the reservoir and look at the fluid level. If the fluid is cold, the level should be in the ”COLD” range. Similarly, if it is hot, the fluid level should be in the ”HOT”...
Page 401 CHASSIS CHECKING POWER STEERING NOTICE FLUID (GS300) Avoid overfilling, or the power steering could be damaged.
Page 402 CHASSIS 63G004–1 Check the fluid level on the dipstick. If necessary, add automatic transmission fluid DEXRON II or III. If the vehicle has been driven around 80 km/h (50 mph) for 20 minutes (a little more in frigid temperatures), the fluid is hot (60_C –...
Page 403 CHASSIS 63L003–1 " 1 If cold O.K. 2 If hot O.K. 3 Add fluid 1. Clean all dirt off the reservoir. 2. Remove the filler cap by turning it counterclockwise and wipe the dipstick clean. 3. Reinstall the filler cap. 4.
Page 404 CHASSIS CAUTION The reservoir may be hot so be careful not to burn yourself. NOTICE Avoid overfilling, or the power steering could be damaged.
Page 405: Checking Tire Pressure
If the tire pressure is excessively low, there is the possibility of wheel deformation and/or tire separation. So keep your tire pressures at the proper level. If a tire needs frequent refilling, have it checked by your Lexus dealer.
Page 406 CHASSIS High tire pressure produces a harsh ride, handling problems, excessive wear at the center of the tire tread, and a greater possibility of tire damage from road hazards. The following instructions for checking tire pressure should be observed: D The pressure should be checked only when the tires are cold.
Page 407: Rotating Tires
CHASSIS ROTATING TIRES 63L008-1 To equalize tire wear and help extend tire life, Lexus CHECKING AND REPLACING recommends that you rotate your tires approximately TIRES every 12000 km (7500 miles). However, the most appropriate timing for tire rotation may vary according When to replace your tires to your driving habits and road surface conditions.
Page 408 ”TWI” or ” ” marks molded on the sidewall of each tire. The tires on your Lexus have built–in tread wear indicators to help you know when the tires need replacement. When the tread depth wears to 1.6 mm (0.06 in.) or less, the indicators will appear.
Page 409 150 would wear one and a half (1 – 1/2) replaced. If you are not sure, consult with your Lexus dealer. times as well on the government course as a tire graded 100.
Page 410: Installing Snow Tires And Chains
If you need snow tires, select the same size, construction Tire selection and load capacity as the original tires on your Lexus. When replacing a tire, use only the same size and Do not use tires other than stated above. Since your vehicle...
Page 411 CHASSIS Snow tire installation Snow tires should be installed on all wheels. Installing snow tires on the rear wheels only can lead to an excessive difference in road grip capability between the front and rear tires which could cause loss of vehicle control. CAUTION D Do not drive with the snow tires incorrectly inflated.
Page 412 CHASSIS CAUTION D Do not exceed 50 km/h (30 mph) or the chain manufacturer’s recommended speed limit, whichever is lower. D Drive carefully avoiding bumps, holes, and sharp turns, which may cause the vehicle to bounce. D Avoid sharp turns or locked–wheel braking, as use of chains may adversely affect vehicle handling.
Page 413: Replacing Wheels
Also, bent wheels which have D Use only the Lexus wheel nuts and wrench designed for been straightened may have hidden structural damage and your aluminum wheels.
Page 414: Suspension And Chassis
CHASSIS SUSPENSION AND CHASSIS CAUTION Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous handling characteristics, resulting in loss of control.
Page 415 CHASSIS...
Page 416 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Electrical components Specifications ........Checking battery condition .
Page 417 ELECTRICAL COMPONENTS SPECIFICATIONS – FUSE LOCATION 64G004–1 " 1 Engine compartment – FUSES 2 Passenger’s side kick panel 3 Driver’s side kick panel 4 Engine compartment (Canada only)
Page 418 ELECTRICAL COMPONENTS 64G015 "Driver’s side kick panel 64G014 "Passenger’s side kick panel...
Page 419 ELECTRICAL COMPONENTS 64G013 "Engine compartment...
Page 420 ELECTRICAL COMPONENTS 64G026 "Engine compartment (Canada only)
Page 421 ELECTRICAL COMPONENTS FUSE CIRCUIT AMPERE WASHER Windshield washer FR FOG Fog lights Tail lights, Side marker lights, TAIL License plate lights, Parking lights SRS–ACC Back–up lights, Gauges and GAUGE meters, service reminder indicators and buzzers FUEL OPN Fuel filler door opener Power window system, D FR Door lock system,...
Page 422 ELECTRICAL COMPONENTS FUSE CIRCUIT AMPERE Stop lights, Anti–lock brake system, Traction STOP control system Cigarette lighter, Power outlet Power window, Door lock system, Wireless remote control, Theft ECU–IG deterrent system STARTER Starting system Multiport fuel injection system/sequential multiport fuel injection system, SRS, Anti–lock brake system, Vehicle skid control system, Cruise control system...
Page 423 ELECTRICAL COMPONENTS Interior lights, Personal lights, DOME Vanity lights, Trunk light, Clock SEAT HTR Seat heater FUSE CIRCUIT AMPERE No circuit No circuit ECU–B2 Power seat system Power window system, P RR Door lock system, DDOR Wireless remote control Power window system, Door lock system, Wireless remote control, ECU–B1...
Page 424 ELECTRICAL COMPONENTS TURN–HA Turn signal lights FUSE AMPERE CIRCUIT Multiport fuel injection system/sequential multiport fuel injection system, Emission control system ALT–S Charging system RADIO Audio NO.1 Vehicles sold in Canada: DRL NO.2 Daytime running light system H–LP L Vehicles sold in U.S.A.: Left–hand headlight (high beam) H–LP R Vehicles sold in U.S.A.:...
Page 425 ELECTRICAL COMPONENTS H–LP L Vehicles sold in Canada: Right–hand headlight (high beam) SPARE Spare fuse...
Page 426: Checking Battery Condition
ELECTRICAL COMPONENTS CHECKING BATTERY CONDITION Precautions CAUTION BATTERY PRECAUTIONS The battery produces flammable and explosive hydrogen gas. D Do not cause a spark by contacting the battery terminals with tools. D Do not smoke or light a match near the battery. The electrolyte contains poisonous and corrosive sulfuric acid.
Page 427 ELECTRICAL COMPONENTS Checking battery exterior D If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or burn, get medical attention immediately. D If electrolyte gets on your clothes, there is a possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary.
Page 428 ELECTRICAL COMPONENTS " 1 Terminals 2 Hold–down clamp NOTICE Check the battery for corroded or loose connections, D Make sure the engine and all accessories are turned cracks, or loose hold–down clamps. off before performing maintenance. 1. If the battery is corroded, wash it off with a solution of D When checking the battery, remove the ground cable warm water and baking soda.
Page 429 ELECTRICAL COMPONENTS (a) Checking by the fluid level lines (Maintenance type battery only) 64G002 " 1 Upper line 2 Lower line (b) Checking by the hydrometer The fluid (electrolyte) level must be between the upper and lower lines. When checking the fluid level, look at all six cells, not just one or two.
Page 430 RED – Add distilled water. (See ”Adding distilled water” on page 418.) Non–maintenance type battery BLUE – Good condition. WHITE – Charging necessary. Have the battery checked by your Lexus dealer. RED – Have the battery checked by your Lexus dealer.
Page 431 ELECTRICAL COMPONENTS Adding distilled water (Maintenance type battery only) 64L062 " 1 Low 2 O.K. 1. Remove the vent plugs. 2. Add distilled water to cells needing fluid. If the side of your battery is covered, check the water level by looking down directly above the cell as illustrated above.
Page 432 ELECTRICAL COMPONENTS BATTERY RECHARGING PRECAUTIONS During recharging, the battery is producing hydrogen gas. Therefore, before recharging: 1. Maintenance type batteries – Remove the vent plugs. 2. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable. 3.
Page 433 ELECTRICAL COMPONENTS CHECKING AND REPLACING NOTICE THE BLADE TYPE FUSES Never recharge the battery while the engine is running. Also, be sure all accessories are turned off.
Page 434 ELECTRICAL COMPONENTS 64G006–1 "Driver’s side kick panel 64G017 "Passenger’s side kick panel...
Page 435 ELECTRICAL COMPONENTS 64G005–2 "Engine compartment 1 Spare fuses 2 Pull–out tool 64G027 "Engine compartment (Canada only) 1. Turn the ignition switch off and open the fuse box lid. Determine which fuse may be causing the problem. The lid of the fuse box shows the name of the circuit for each fuse.
Page 436 ELECTRICAL COMPONENTS 64L013 2. Make sure the inoperative component is turned off. Pull the suspected fuse straight out with the pull–out tool and check it. If it has blown, push a new fuse into the clips.
Page 437 If the new fuse immediately blows out, there is a problem with try replacing the suspected fuse with one of the same value the electrical system. Have your Lexus dealer correct it as that you know is good. soon as possible.
Page 438 ELECTRICAL COMPONENTS CAUTION Never use a fuse with a higher amperage rating, or any other object, in place of a fuse. This may cause extensive damage and possibly a fire.
Page 439 If there is an overload in the circuits from the battery, the fuses are designed to blow before the entire wiring harness is damaged. NOTICE Before replacing the fuses, have the cause of electrical overload determined and repaired by your Lexus dealer.
Page 440 ELECTRICAL COMPONENTS CAUTION Always use a genuine Lexus fuse or equivalent for replacement. Never install an ordinary wire – even for a temporary fix. This may cause extensive damage and possibly a fire.
Page 441: Adding Washer Fluid
You may use plain water as washer fluid. However, in cold areas where temperatures range below the freezing point, use washer fluid containing antifreeze. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water. NOTICE Do not use engine antifreeze or any other substitute because it may damage your vehicle’s paint.
Page 442 ELECTRICAL COMPONENTS 64G020–1 " 1 Beam angle gauge (vertical movement) 2 Beam angle gauge (horizontal movement) Before checking the headlight aim: 1. Be sure that the body around the headlight is not deformed. 2. Park the vehicle on a level spot. 3.
Page 443 ELECTRICAL COMPONENTS 64G021–1 " 1 Bubble 2 Acceptable range Vertical movement gauge: The bubble of the gauge should not deviate from the center of the gauge by more than 2 marks to either side of the gauge.
Page 444 If it is necessary to replace a bulb, take your vehicle to your Lexus dealer as soon as possible. Use bulbs If the error is over the value specified above, take the vehicle with the bulb numbers and wattage ratings given in the table.
Page 445 ELECTRICAL COMPONENTS CAUTION D Do not disassemble, repair or take apart the low beam headlight bulbs, connector, power supply circuits and rotated components. Or you may be injured by electric shocks. Call your dealer when the headlights fail to work or have to be replaced or disposed of.
Page 446 ELECTRICAL COMPONENTS Light Bulbs Bulb No. Headlight (Low beam) Discharge bulb Halogen bulb Front turn signal light 1156 Headlight (High beam) Parking light ––– Fog light Front side marker light...
Page 447 ELECTRICAL COMPONENTS 64G024 Light Bulbs Bulb No. High mounted stoplight Trunk light License plate light ––– Tail/stop light ––– 5/21 Back–up light ––– Tail light ––– Rear turn signal light ––– Tail/stop light ––– 5/21...
Page 448 ELECTRICAL COMPONENTS 64G012...
Page 449 ELECTRICAL COMPONENTS Light Bulbs Bulb No. A: HB3 halogen bulbs B: D2R discharge bulbs Front personal lights ––– C: HB4 halogen bulbs D: Wedge base bulbs Vanity lights ––– E: Double end bulbs F: Single end bulbs Front interior lights –––...
Page 450 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Body Specifications ........Protecting your vehicle from corrosion .
Page 451 BODY SPECIFICATIONS – DIMENSIONS AND WEIGHT Overall length 4805 mm (189.2 in.) Overall width 1800 mm (70.9 in.) Overall height 1440 mm (56.7 in.)* Wheelbase 2800 mm (110.2 in.) Tread – Front 1535 mm (60.4 in.) – Rear 1510 mm (59.4 in.) Vehicle capacity weight (occupants + luggage) 400 kg (885 lb.) *: Unladen vehicle...
Page 452 BODY PROTECTING YOUR VEHICLE To help prevent corrosion on your Lexus, follow these guidelines: FROM CORROSION Keep your vehicle clean by regular washing. In addition, Proper care of your Lexus can help ensure long–term observe the following points. corrosion prevention.
Page 453: Washing And Waxing
WASHING AND WAXING accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is Washing your Lexus dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc. These should be transported in Keep your vehicle clean by regular washing.
Page 454 Polishing and waxing is recommended to maintain the Do not use gasoline or strong solvents, which may be original beauty of your Lexus’ finish. toxic or cause damage. Once a month or if the vehicle does not repel water well, apply 3.
Page 455: Cleaning The Interior
BODY CLEANING THE INTERIOR CAUTION D Be careful not to splash water or spill liquid on the floor. This may prevent the side airbags from activating correctly, resulting in serious injury. D Do not wash the vehicle floor with water, or allow water to get onto the floor when cleaning the vehicle interior or exterior.
Page 456 3. Wipe off the surface of the leather with a dry soft cloth. Allow the leather to dry in a ventilated shaded area. Excess The selected leather is used in your Lexus. Due to a leather of wet may cause the hardening or shrinking of the leather.
Page 457 BODY Synthetic Leather Areas D Dirt or sand adhered to the leather may damage the (Dash and sun visors) treated surface and cause it to wear earlier. Remove dirt or sand using a vacuum cleaner. The synthetic leather areas may be easily cleaned with a D If a stain should fail to come out with a neutral mild soap or detergent and water.
Page 458 If you have any questions about the cleaning of your D When cleaning the inside of the rear window, be Lexus, your local Lexus dealer will be pleased to answer careful not to scratch or damage the heater wires. them.
Page 459 SECTION REPORTING SAFETY DEFECTS FOR U.S. OWNERS Reporting safety defects for U.S. owners ....
Page 460 National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll–free: 1–800–25–LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

This manual is also suitable for:

Gs400 1998

Lexus GS300 1998 Owner's Manual

Quick Links

INSTRUMENT PANEL

Need help?

Questions and answers

Related Manuals for Lexus GS300 1998

Summary of Contents for Lexus GS300 1998

This manual is also suitable for:

Table of Contents
