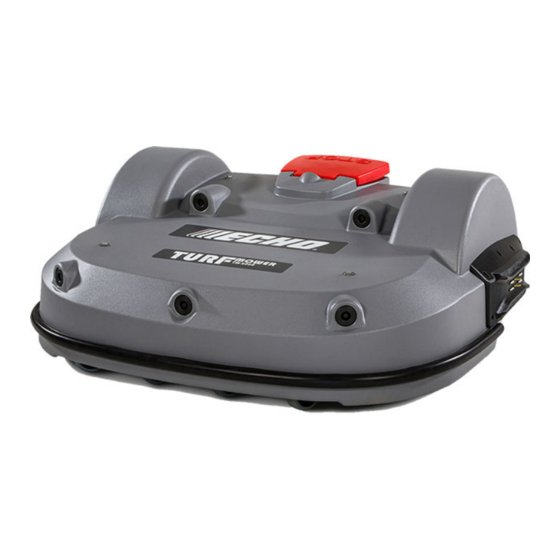

ECHO Robotics TM-2000 Technical Manual

Hide thumbs Also See for TM-2000:
Table of Contents

Advertisement

Quick Links

Download this manual
www.echorobotics.com
Technical Manual
Robotic Mower
TM-2000
P/N 99922205383
VERSION 1.0
05/28/2019
EN
ENGLISH
