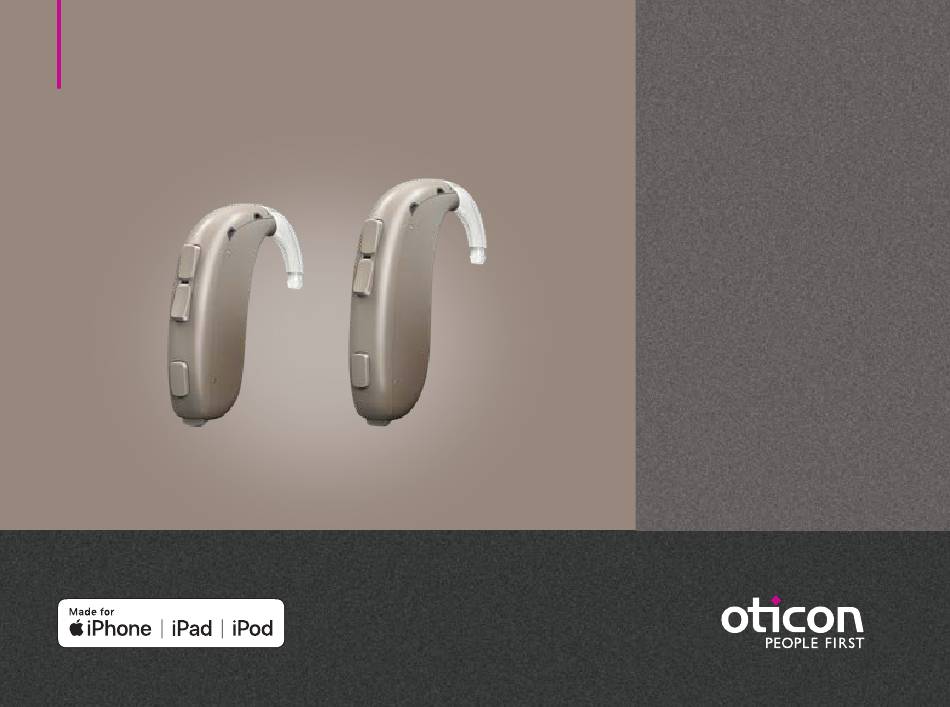

- Page 1 Instructions for use BTE SP BTE UP Oticon Xceed Oticon Xceed Play...
- Page 2 Model overview This booklet is valid for Oticon Xceed and Oticon Xceed Play in the following hearing aid models: BTE SP (Battery size 13) BTE UP (Battery size 675) FW 8 Oticon Xceed 1 GTIN: (01) 05707131357571 ...
- Page 3 Introduction to this booklet Intended use This booklet gives you guidance on how to use and maintain your new The hearing aid is intended to amplify and transmit sound to the ear and hearing aid. Please read the booklet carefully, including the Warnings thereby compensate for impaired hearing within moderate-to-severe to section.
-
Page 4: Table Of Contents
Table of contents Wireless accessories Other options About Tamper-resistant battery drawer Hearing aid parts and functions Tinnitus Identify left and right hearing aid Tinnitus SoundSupport™ (optional) MultiTool for handling batteries and cleaning Guidelines for tinnitus sound generator users Start-up Sound and volume adjustment Turn the hearing aid ON and OFF Limitation on use time When to replace the battery... -
Page 5: Hearing Aid Parts And Functions
Hearing aid parts and functions Microphone The handling of BTE SP and BTE UP is the same. Therefore the openings illustrations in this booklet only show the BTE SP. LED (optional) Sound in Program, volume, and battery status Sound hook Volume button Change volume Tube... -
Page 6: Identify Left And Right Hearing Aid
Identify left and right hearing aid MultiTool for handling batteries and cleaning It is important to distinguish between the left and the right hearing aid The MultiTool contains a magnet that makes it easier to replace the as they may be programmed differently. battery in the hearing aid. -
Page 7: Turn The Hearing Aid On And Off
Turn the hearing aid ON and OFF When to replace the battery The battery drawer is used to turn the hearing aid ON and OFF. To save When it is time to replace the battery, you will hear three alternate battery life, make sure your hearing aid is turned OFF when you are not tones repeated in moderate intervals until the battery runs out. -
Page 8: How To Replace The Battery
How to replace the battery 1. Remove 2. Uncover 3. Insert 4. Close MultiTool Fully open the Remove the sticky Insert the new battery Close the battery drawer. The The MultiTool can be used to change battery drawer. label from the side into the battery drawer. -
Page 9: Put On The Hearing Aid
Put on the hearing aid Caring for the hearing aid When handling the hearing aid, hold it over a soft surface to avoid Step 1 Step 2 damage in case you drop it. Clean the microphone openings Use the brush of the MultiTool to carefully brush debris away from the openings. - Page 10 Clean the mold Replace the tube Wash the mold The mold should be cleaned The tubing between the mold Step 1 Step 2 Step 3 regularly. Use a soft cloth to clean and the hearing aid should be its surface. Use the MultiTool wire replaced if it becomes yellow loop to clean the opening.
-
Page 11: Flight Mode
Flight mode Optional features and accessories When flight mode is activated, Bluetooth® is turned off. The hearing aid The features and accessories described in the following pages are will still be working. Pressing the push button on one hearing aid will optional. -
Page 12: Change Program
Change program Change volume Your hearing aid can have up to four different programs. You will hear The volume button allows you to adjust the volume. one to four tones when you change program depending on the program. You will hear a beep when you increase or decrease the volume. Optional LED Optional LED The number of green flashes indicates the selected program. -
Page 13: Mute
Continuous orange and green flashes indicate mute. To mute the hearing aid For information on compatibility, Press either end of the volume button please visit www.oticon.com/support/compatibility for at least four seconds. To reactivate, press either end of the button briefly. -
Page 14: Pair With Iphone
Pair with iPhone 1. Settings 2. General 3. Accessibility 4. Prepare 5. Select 6. Confirm pairing William’s Hearing Aids ✓ Oticon Xceed Bluetooth Bluetooth Pairing Request “William’s Hearing Aids” would like to pair with your iPhone Accessibility Cancel Pair MFi Hearing Devices... -
Page 15: Wireless Accessories
Android™ devices. can also be used as a remote phones. microphone. Remote Control 3.0 For more information visit www.oticon.com/support or contact your hearing care professional. TV Adapter 3.0 Offers the ability to change Streams sound directly from a TV... -
Page 16: Other Options
Other options Telecoil program Telecoil helps you hear better when using a telephone Allows you to receive speech or audio signals directly to your hearing aid with a built-in loop, or when you are in buildings with from a dedicated transmitter. To attach an FM receiver or an FM adapter teleloop systems such as theaters, churches, or lecture your HCP needs to replace the battery drawer. -
Page 17: Tamper-Resistant Battery Drawer
Tamper-resistant battery drawer Lock the battery Tool to unlock the Unlock the battery drawer battery drawer drawer To keep the battery out of reach of infants, small children, and people with learning difficulties, a tamper-resistant battery drawer should be used. Close the battery Use this small tool Insert the tip of the tool... -
Page 18: Tinnitus Soundsupport™ (Optional)
Tinnitus SoundSupport™ (optional) Guidelines for tinnitus sound generator users Intended use of Tinnitus SoundSupport These instructions contain information about Tinnitus SoundSupport, Tinnitus SoundSupport is a tool intended to generate sounds to provide which may have been enabled in your hearing aids by your hearing care temporary relief for patients suffering from tinnitus as part of a tinnitus professional. -
Page 19: Sound And Volume Adjustment
Sound and volume adjustment Mute If you are in a program for which Tinnitus SoundSupport is activated, Tinnitus SoundSupport is programmed by your hearing care professional the mute functionality will mute only the environmental sounds, and to match your hearing loss and preferences for tinnitus relief. It offers not the sound from Tinnitus SoundSupport. -
Page 20: Limitation On Use Time
Limitation on use time A) How to change Tinnitus SoundSupport volume in each ear separately Daily use To increase volume (on one hearing aid only), use a short press on the The volume levels of Tinnitus SoundSupport can be set to a level upper part of the push button repeatedly until desired level is reached. - Page 21 Important information for hearing care professionals about Tinnitus SoundSupport Device description If the volume control is activated Tinnitus SoundSupport is a module function that can be enabled in the A warning may be displayed if you activate the tinnitus volume control hearing aids by a hearing care professional.
-
Page 22: Tinnitus Soundsupport Warnings
Tinnitus SoundSupport warnings General warnings If your hearing care professional has As with any device, misuse of the sound For your personal safety and to ensure Choking hazards & risk of swallowing activated the sound generator Tinnitus generator feature could present some correct usage, you should familiarize batteries and other small parts SoundSupport, please pay attention to the... - Page 23 General warnings If a battery or hearing aid is swallowed, Therefore, do not use BTE UP in envi- The exposure values are well below Cochlear implants see a doctor immediately and contact the ronments with danger of explosions international accepted safety limits for If you are using a cochlear implant (CI) on National Poison Center at 1-800-222-1222 e.g.
- Page 24 General warnings X-ray/CT/MR/PET scanning, Power instrument Interference Connection to external equipment and electrotherapy Special care should be exercised when The hearing aid has been thoroughly The safety of the use of hearing aids when Remove your hearing aid before X-ray/CT/ selecting, fitting and using a hearing aid tested for interference, in accordance with connected to external equipment (with an...
- Page 25 General warnings Warning to hearing care professional (vi) Audiometric air-bone gap equal to or Special care should be exercised in selecting evaluated and that you may be considered A hearing care professional should advise greater than 15 decibels at 500 Hertz and fitting a hearing aid whose maximum a candidate for a hearing aid.
- Page 26 General warnings Federal law permits a fully informed adult Children with hearing loss to sign a waiver statement declining the In addition to seeing a physician for medical medical evaluation for religious or personal evaluation, a child with a hearing loss beliefs that preclude consultation with a should be directed to an audiologist for physician.
-
Page 27: Troubleshooting
Troubleshooting Symptom Possible causes Solutions Dead battery Replace the battery No sound Clogged mold Clean mold Microphones muted Unmute microphones Clogged sound outlet Clean mold Intermittent or Moisture Wipe battery with a dry cloth reduced sound Dead battery Replace the battery Mold inserted incorrectly Re-insert the mold Squealing noise... -
Page 28: Water And Dust Resistant (Ip68)
Water and dust resistant (IP68) Conditions of use Your hearing aid is dust tight and 1. Gently wipe off any water Operating conditions Temperature: +34 °F to +104 °F protected against ingress of water, 2. Open the battery drawer, remove Relative humidity: 5% to 93%, non-condensing which means it is designed to be worn the battery, and gently wipe off any... - Page 29 Mobile phone Some hearing aid users have reported a Whereas all hearing aids have acoustic acceptable, with the acoustic coupling The immunity of BTE SP and BTE UP is buzzing sound in their hearing aid when coupling, only the larger hearing aids indicating excellent performance and at least M2/T2.
-
Page 30: Technical Information
Additional information can be found in always below 15 nW (typically below the “Technical Data sheet” on -40 dBμA/m at a 10 meter distance). www.oticon.com The hearing aid also contains a radio transceiver using Bluetooth Low Energy (BLE) and a proprietary short-range radio technology both working at ISM band 2.4 GHz. - Page 31 Bluetooth logo Description of symbols used in this booklet Registered trademark of Bluetooth SIG, Inc. where any use of such requires a license. Warnings Made for Apple badges Text marked with a warning symbol must be read before using the device. Indicates that the device is compatible with iPhone, iPad and iPod touch.
-
Page 32: Warranty
International warranty Warranty Your hearing aid is covered by an inter- issued a warranty that goes beyond the Certificate national limited warranty issued by the clauses of this limited warranty. Please manufacturer for a period of 12 months consult him/her for further information. Name of owner: _______________________________________________________ from the date of delivery. -
Page 33: Your Individual Hearing Aid Settings
Your individual hearing aid settings To be filled out by your hearing care professional. Tinnitus SoundSupport: Limitation on use Settings overview for your hearing aid Left Right No limitation on use Change volume Program Start-up volume (Tinnitus) Max volume (Tinnitus) Change program Max _______ hours per day Max _______ hours per day... -
Page 34: Sound And Led Indicators
Sound and LED indicators ON/OFF Sound LED comments Different sounds and LED lights indicate the hearing aid status. The Shown one time Jingle different indicators are listed on the following pages. Volume Sound Your hearing care professional can set sound and LED indicators to Start-up volume 2 beeps match your preferences. - Page 35 Warnings Sound LED comments LED comments Accessories Sound Continuously 3 alternate FM and wireless Low battery 2 different tones flashing tones Continuous or programs repeated three FM and wireless times 4 descending Battery shut down 2 different tones programs tones LED comments Flight mode Sound...
-
Page 36: Technical Data
BTE SP 2CC Coupler measured according to American National Standard ANSI S3.22- 2014 and ANSI S3.55-2014/Part 5. Supply voltage: Battery Zinc Air 1.4 Volt 0 dB SPL ref. 20 mPa Oticon Xceed Oticon Xceed Peak OSPL90 139 dB SPL HF Average OSPL90 130 dB SPL OSPL90 –... - Page 37 BTE UP 2CC Coupler measured according to American National Standard ANSI S3.22- 2014 and ANSI S3.55-2014/Part 5. Supply voltage: Battery Zinc Air 1.4 Volt 0 dB SPL ref. 20 mPa Oticon Xceed Oticon Xceed Peak OSPL90 142 dB SPL HF Average OSPL90 130 dB SPL OSPL90 –...
- Page 38 BTE SP 2CC Coupler measured according to American National Standard ANSI S3.22- 2014 and ANSI S3.55-2014/Part 5. Supply voltage: Battery Zinc Air 1.4 Volt 0 dB SPL ref. 20 mPa Oticon Xceed Play Oticon Xceed Play Peak OSPL90 139 dB SPL...
- Page 39 BTE UP 2CC Coupler measured according to American National Standard ANSI S3.22- 2014 and ANSI S3.55-2014/Part 5. Supply voltage: Battery Zinc Air 1.4 Volt 0 dB SPL ref. 20 mPa Oticon Xceed Play Oticon Xceed Play Peak OSPL90 142 dB SPL...
- Page 40 0000208033000001...
