Related Manuals for Norton Clipper CS 451 E
Summary of Contents for Norton Clipper CS 451 E
- Page 1 CS 451 E OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS.2016.09.19 CS 451 E_MAN_EN...
- Page 3 SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: « Floor saw »: CS 451 E 400V – 5,5 kW Code : 70184601973 is in conformity with the following Directives : "MACHINES" 2006/42/CE ...
-
Page 4: Table Of Contents
OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS 451 E 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission... -
Page 5: Basic Safety Instructions
VERS.2016.09.19 CS 451 E_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS 451E is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. -
Page 6: Machine Plate
VERS.2016.09.19 CS 451 E_MAN_EN Rotation of the wheel in the indicated Rotation of the wheel in the indicated direction lowers the blade direction raises the blade Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine:... -
Page 7: General Description Of The Cs 451 E
You can lock the ON-OFF-switch using a padlock. 2 GENERAL DESCRIPTION OF THE CS 451 E Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations. -
Page 8: Layout

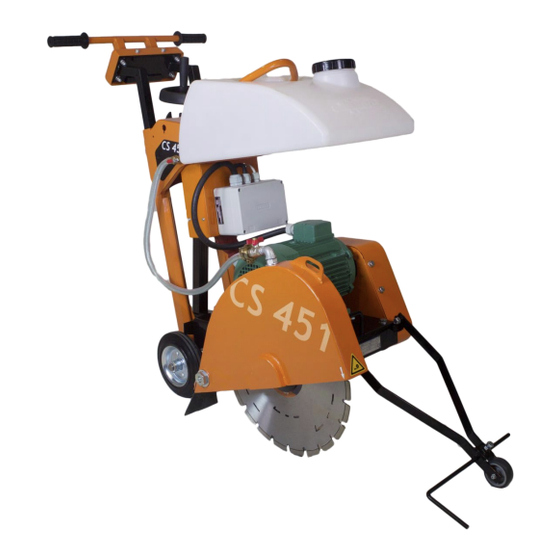

VERS.2016.09.19 CS 451 E_MAN_EN The Floor Saw CS451E you have chosen, is used for small repair works in concrete and asphalt, for cutting induction loops and installing cables as well as for cutting expansion joints. It can be used for either wet or dry cutting operations. Being of small construction, it can be transported in a car or van, the handle can be removed, reversed or retracted. -
Page 9: Technical Data
VERS.2016.09.19 CS 451 E_MAN_EN wheel clockwise or anti-clockwise will lower or raise the cutting blade. A depth gauge allows the operator to control precisely the depth of cut. The handle (3) is detachable or can be reversed for easy transportation. The height is adjustable. The pivoting frame (4), hinged on the rear axle, is supporting the engine, the blade shaft assembly, and the protecting guards. -
Page 10: Statement Regarding The Vibration Emission
Measured vibration Uncertainty K Tool used Model / code emission value a m/s Model / code CS 451 E Duo Extreme Ø450x25.4 70184601973 Values determined according to procedure described in annex F of EN 13862 Measurements are made with new machines. Real values in the field could vary the simple... -
Page 11: Statement Regarding Noise Emission
(Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744) EN ISO 11201) CS 451 E 88 dB(A) 2.5 dB(A) 105 dB(A) 4 dB(A) 70184601973 Values determined using the procedure described in the standard EN 13862. -
Page 12: Assembly And Commissioning
3.2 Tool assembly Only NORTON blades with a maximum diameter of 450 mm can be fitted on the CS 451 E. A blade with a maximum diameter of 450 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation... -
Page 13: Transport And Storing
To restart the machine after an emergency stop, turn the Star-Triangle-Switch on “0”. Then turn the ON-OFF-Switch on ON. 4 TRANSPORT AND STORING Take the following measures in order to transport and store the CS 451 E securely. 4.1 Securing for transport Before transporting the machine: ... -
Page 14: Operating The Cs 451 E
VERS.2016.09.19 CS 451 E_MAN_EN 5 OPERATING THE CS 451 E 5.1 Site of work Before you start working, please check the following points: Remove from the site anything, which might hinder the working procedure. Make sure the site is sufficiently well lit. -
Page 15: Maintenance And Service
To perform maintenance of the machine, always switch it off. Always wear a mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS 451 E, please follow the maintenance plan below: Regular service period... -
Page 16: Breakdowns: Causes And Cures
VERS.2016.09.19 CS 451 E_MAN_EN 7 BREAKDOWNS: CAUSES AND CURES 7.1 Breakdown-finding procedures Should any breakdown occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the ones described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source... -
Page 17: Circuit Diagram
VERS.2016.09.19 CS 451 E_MAN_EN 7.3 Circuit diagram CS451 E = 7,5A... -
Page 18: Customer Service
VERS.2016.09.19 CS 451 E_MAN_EN 7.4 Customer service When ordering spare parts, please mention: The serial number (7 digits). The code of the part or the position from the exploded view or spare parts list. The exact denomination. ... - Page 19 VERS.2016.09.19 CS 451 E_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
- Page 20 VERS.2016.09.19 CS 451 E_MAN_EN www.construction.norton.eu Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
