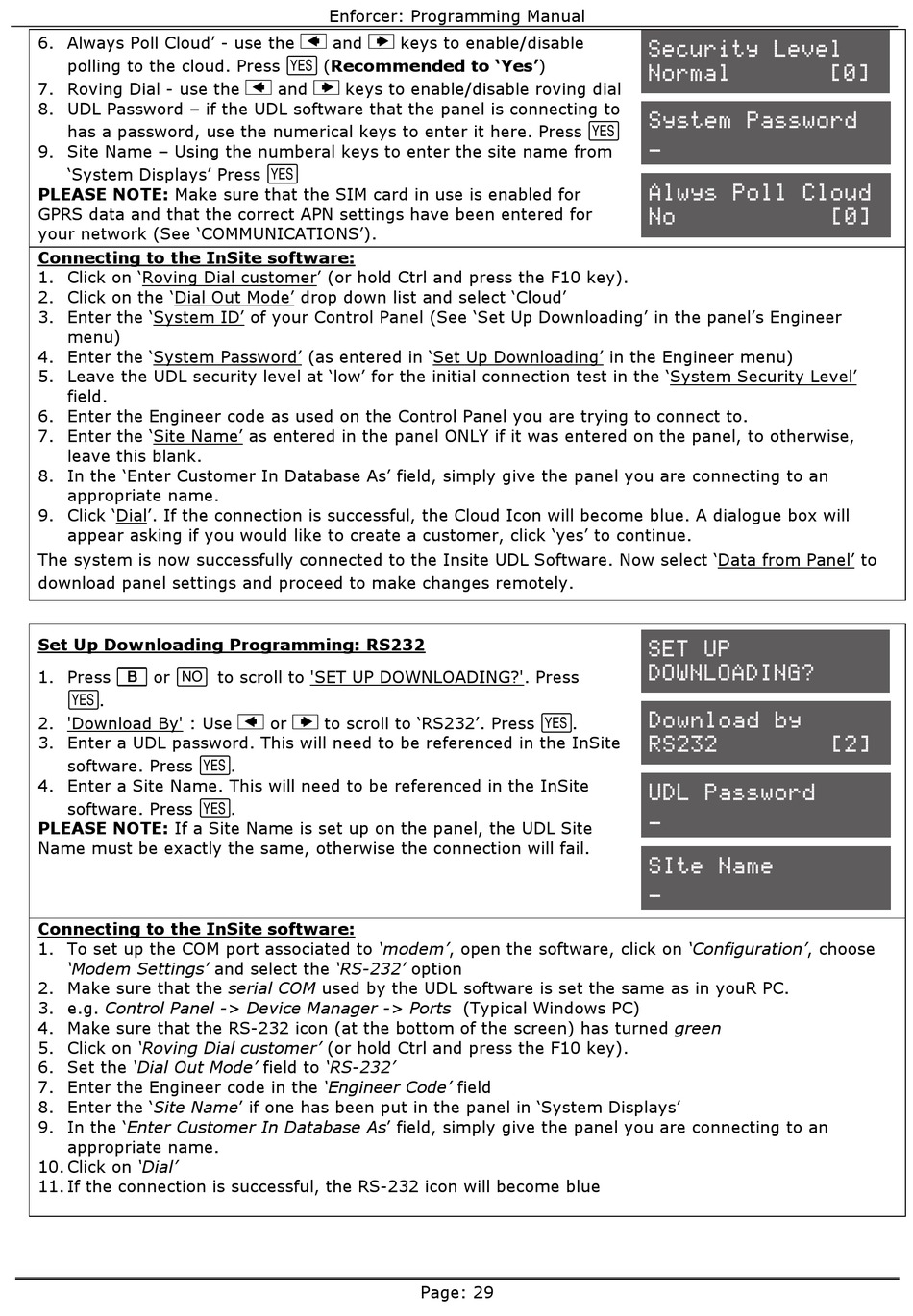

Pyronix ENFORCER Series Programming Manual page 29

6. Always Poll Cloud' - use the [ and ] keys to enable/disable
polling to the cloud. Press  (Recommended to 'Yes')
7. Roving Dial - use the [ and ] keys to enable/disable roving dial
8. UDL Password – if the UDL software that the panel is connecting to
has a password, use the numerical keys to enter it here. Press 
9. Site Name – Using the numberal keys to enter the site name from
'System Displays' Press 
PLEASE NOTE: Make sure that the SIM card in use is enabled for
GPRS data and that the correct APN settings have been entered for
your network (See 'COMMUNICATIONS').
Connecting to the InSite software:
1. Click on 'Roving Dial customer' (or hold Ctrl and press the F10 key).
2. Click on the 'Dial Out Mode' drop down list and select 'Cloud'
3. Enter the 'System ID' of your Control Panel (See 'Set Up Downloading' in the panel's Engineer
menu)
4. Enter the 'System Password' (as entered in 'Set Up Downloading' in the Engineer menu)
5. Leave the UDL security level at 'low' for the initial connection test in the 'System Security Level'
field.
6. Enter the Engineer code as used on the Control Panel you are trying to connect to.
7. Enter the 'Site Name' as entered in the panel ONLY if it was entered on the panel, to otherwise,
leave this blank.
8. In the 'Enter Customer In Database As' field, simply give the panel you are connecting to an
appropriate name.
9. Click 'Dial'. If the connection is successful, the Cloud Icon will become blue. A dialogue box will
appear asking if you would like to create a customer, click 'yes' to continue.
The system is now successfully connected to the Insite UDL Software. Now select 'Data from Panel' to
download panel settings and proceed to make changes remotely.
Set Up Downloading Programming: RS232
1. Press or to scroll to 'SET UP DOWNLOADING?'. Press
.
2. 'Download By' : Use [ or ] to scroll to 'RS232'. Press .
3. Enter a UDL password. This will need to be referenced in the InSite
software. Press .
4. Enter a Site Name. This will need to be referenced in the InSite
software. Press .
PLEASE NOTE: If a Site Name is set up on the panel, the UDL Site
Name must be exactly the same, otherwise the connection will fail.
Connecting to the InSite software:
1. To set up the COM port associated to 'modem', open the software, click on 'Configuration', choose
'Modem Settings' and select the 'RS-232' option
2. Make sure that the serial COM used by the UDL software is set the same as in youR PC.
3. e.g. Control Panel -> Device Manager -> Ports (Typical Windows PC)
4. Make sure that the RS-232 icon (at the bottom of the screen) has turned green
5. Click on 'Roving Dial customer' (or hold Ctrl and press the F10 key).
6. Set the 'Dial Out Mode' field to 'RS-232'
7. Enter the Engineer code in the 'Engineer Code' field
8. Enter the 'Site Name' if one has been put in the panel in 'System Displays'
9. In the 'Enter Customer In Database As' field, simply give the panel you are connecting to an
appropriate name.
10. Click on 'Dial'
11. If the connection is successful, the RS-232 icon will become blue
Enforcer: Programming Manual
Page: 29
Security Level
Normal
System Password
_
Alwys Poll Cloud
No
SET UP
DOWNLOADING?
Download by
RS232
UDL Password
_
SIte Name
_
[0]
[0]
[2]
