Summary of Contents for Challenge Battery Charger
-
Page 1: Battery Charger
Battery Charger Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS To ensure safe operation when using your battery charger, make sure you follow basic safety principles to reduce risk of personal injury, electric shock, and fire. Please read the following instructions prior to operating this product and keep for future use. -

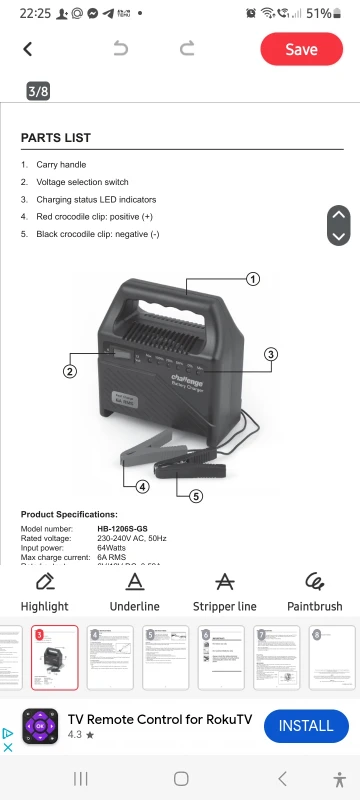

Page 3: Parts List
PARTS LIST 1. Carry handle 2. Voltage selection switch 3. Charging status LED indicators 4. Red crocodile clip: positive (+) 5. Black crocodile clip: negative (-) Model number: HB-1206S-GS Rated voltage: 230-240V AC, 50Hz Input power: 64Watts Max charge current: 6A RMS Rated output: 6V/12V DC, 3.52A Battery capacity:... -
Page 4: Operating Instructions
OPERATING INSTRUCTIONS INSTRUCTIONS FOR USE 1. Charging your battery It is essential to disconnect the battery from the car. This will avoid possible damage to the alternator. To avoid damage to the bodywork from possible spillage, remove the battery from the vehicle. We recommend the use of disposable gloves to do this as there is a high possibility of corrosive acid being on the outside of the battery. - Page 5 Note: Terminal post may be cleaned with a clean cloth 5. Charging You are now ready to charge your battery. Plug the battery charger into the mains supply and charging will commence. The LED indicators will clearly show the charging status. When only the 100% and MAX LED’s are still lit charging is complete.
- Page 6 IMPORTANT IMPORTANT! For Indoor use only For Lead Acid batteries only LEAD ACID Always check the battery terminal clips are connected correctly, before connecting the unit to the mains power - 5 -...
-
Page 7: Troubleshooting
TROUBLESHOOTING • Very cold battery If the battery to be charged is extremely cold (in temperature less than freezing (0°C/32°F) it cannot accept a high rate of charge, so the initial charge rate will be slow. The rate of charge will increase as the battery warms. WARNING: Do not attempt to charge a frozen battery. - Page 8 Read Instruction manual This product is guaranteed for domestic use only for a period of 12 months against faulty manufacture or materials. Any other use may invalidate the guarantee. This product is not guaranteed for hire purposes. This guarantee does not affect the statutory rights of the consumer. NOTE: These important safeguards and instructions cannot cover all possible conditions and situations that may occur.
Need help?
Do you have a question about the Battery Charger and is the answer not in the manual?
Questions and answers
Hiw di you know rhe swithch is in the 12 volt
The Challenge battery charger has a voltage selection switch. To determine if it is set to 12 volts, check the position of this switch. It should be set to the 12V marking on the charger. Additionally, you can confirm by measuring the output voltage with a multimeter, which should read approximately 12V if the switch is correctly set.
This answer is automatically generated
Do the leds go out as it charges or light up?
The LEDs on the Challenge battery charger stay lit while charging and indicate the charging status. When only the 100% and MAX LEDs remain lit, charging is complete.
This answer is automatically generated
How long to charge a 12v battery, when the battery is flat
