Beach Fire Log Set - Jøtul GI 545 DV Installation And Operation Instructions Manual

139919_GI 545 DV and DV MV 5/19
7.7 Install the Beach Fire Log Set
NOTE: Install firebox panel accessories before
installing the Log Set.
Install the log set in the order presented here. Note
that each log engages with with corresponding pins
as indicated in the photos below. Fig. 7.33 shows the
final arrangement. Use the rock wool fibers from the
Miscellaneous Hardware bag to simulate glowing
embers.
6
6
4

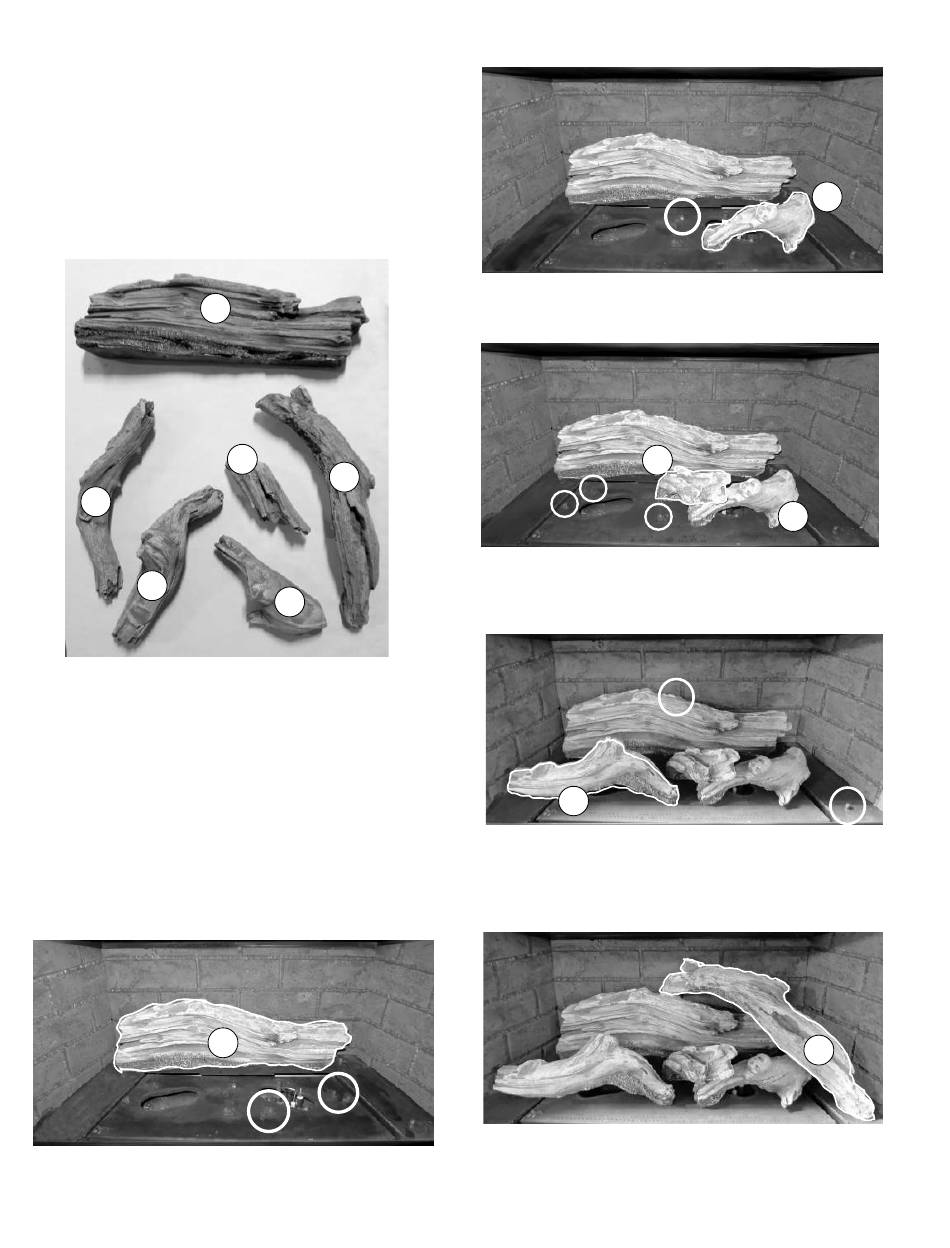

Figure 7.21.
GI 545 DV MV Beach Fire Log Set
#1 Rear Log
#2 Right Burner Log
#3 Right Cross Log
#4 Left Burner Log
#5 Right Top Cross Log
#6 Left Top Cross Log
Beach Fire Rocks -
see engraved identification numbers
#1 Left Skirt #3 Center Burner
#2 Left Burner #4 Right Burner
Figure 7.22. Engage the Rear Log #1 with the two steel
pegs located on rear burner skirt.
22
1
1
3
3
5
5
2
2
158100
226487
226488
226489
226490
226491
226492
#5 Right Skirt
1
Log 2 PINS
Log 3 PIN
Figure 7.23. Engage Right Burner Log #2 with the burner
pins indicated in fig. 7.22.
3
Log 4 PINS
Figure 7.24. Engage Right Cross Log #3 with the burner pin
indicated in fig. 7.23 as well as the matching notch in Log #2.
4
Figure 7. 25. Engage holes in the underside of Left Burner
Log #4 with the 3 corresponding burner pins indicated in
fig. 7.24.
Figure 7.26. Engage the underside of Right Top Log #5
with Pin 5 indicated in fig. 7.25 as well as the matching
seat on Log #1.
2
2
Log 5
SEAT
Log 5
PIN
5 5
