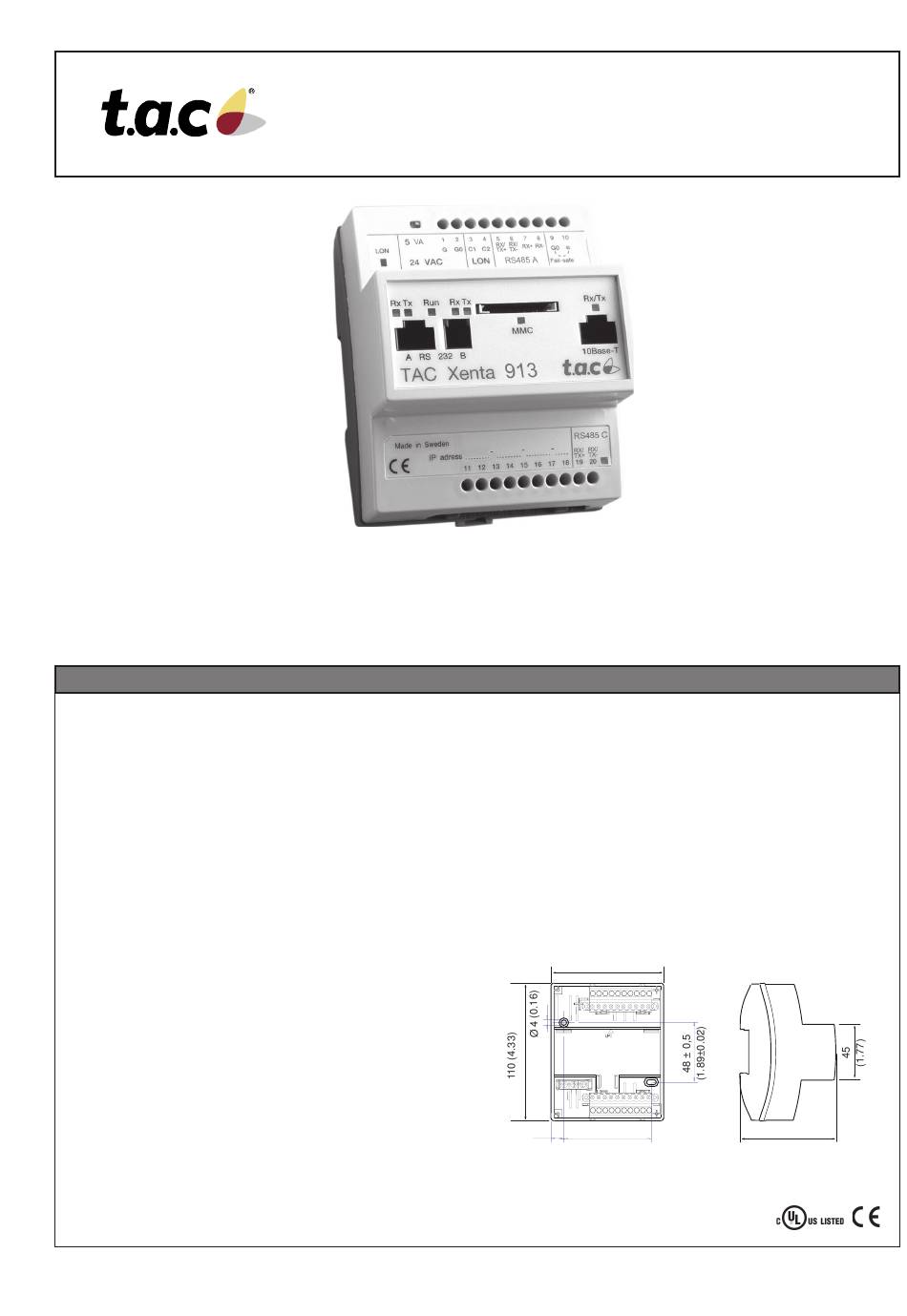

t.a.c. Xenta 913 Manual

The TAC Xenta 913 is a cost-effective way to integrate a
large variety of products into a TAC network. The TAC
Xenta 913 supports the most commonly-used open
protocols, like Modbus, BACnet and LonWorks. It also
supports some manufacturer-specific protocols.
TECHNICAL DATA
Supply voltage ............................. 24 V AC ±20%, 50/60 Hz
.................................................................. or 19–40 V DC
Power consumption ............................................... max 5 W
Transformer sizing ........................................................ 5 VA
Ambient temperature:
Storage .................... –20 °C to +50 °C (–4 °F to +122 °F)
Operation ................ ±0 °C to +50 °C (+32 °F to +122 °F)
Humidity ............................. max. 90% RH non-condensing
Mechanical:
Enclosure ............................................................ ABS/PC
Enclosure rating ....................................................... IP 20
Flammability class, materials ........................... UL 94 V-0
Dimensions ................................................. see diagram
Weight ..................................................... 0.2 kg (0.44 lb.)
Real time clock:
Accuracy at +25 °C ........................ ±12 minutes per year
Power failure protection ............................................ 72 h
Communication:
A: RS232 ........................... 2400 – 57600 bps, RJ45, 8-p
A: RS485 ......... 2400 – 57600 bps, async. terminal block
B: RS232 .......................................................... RJ10, 4-p
C: RS485 ............................. sync. (SDLC) terminal block
L W
ON ORKS ...........................................
Ethernet ..................................... TCP/IP, 10Base-T, RJ45
Subject to modification.
TAC Xenta
LonWorks
®
TP/FT-10, terminal block
1 (4)
®
913
Gateway
The TAC Xenta 913 reads values from the target network
and transfers them to a LonWorks network. Configuration is
carried out using the TAC XBuilder programming tool.
Agency Compliances:
Emission:
CE .................................................................. EN 50081-1
Immunity:
CE .............................................................. EN 61000-6-2
Safety:
CE .................................................................. EN 61010-1
UL 916 ..................................................... C-UL US Listed
Part numbers:
TAC Xenta 913 .............................................. 0-073-0835
Terminal part TAC Xenta 400 ....................... 0-073-0902
TAC Xenta: Programm. Serial Kit .................. 0-073-0920
90 (3.55)
2 3 4 5 6 7 8 10
12 13 14 15 16 17 18 20
70 ± 2,0
10,1
(0.40)
(2.75±0.08)
10 Mar 2004
77,4
(3.05)
0-003-2711-0 (EN)
