- Page 1 CLEANTEC INNOVATION LIMITED CARPET CLEANING MACHINE INSTRUCTION MANUAL Model: GEN4 E00-4-2050 READ INSTRUCTIONS CAREFULLY BEFORE OPERATING THE MACHINE...
-
Page 2: Table Of Contents
Brush Cleaning and Maintenance......... 5-0 Machine Maintenance ..........5-0 Daily Maintenance ..........5-0 Periodic Maintenance.......... 5-0 Annual Maintenance ..........5-0 Machine Troubleshooting..........5-1 Electrical Diagram............5-2 WARRANTY Cleantec Innovation Ltd Warranty Policy ...... 6-0 Warranty Card............6-1 Machine Warranty Request Form......... 6-2 SPARE PARTS LIST ............... -1.1-... -
Page 3: Introduction
INTRODUCTION This manual contains the following sections: - HOW TO USE THIS MANUAL - SAFETY - OPERATIONS - MAINTENANCE the HOW TO USE THIS MANUAL section will tell you how to find important information for ordering correct spare parts. Parts may be ordered from authorized envirodri dealers. -
Page 4: Machine Data Log/Overview
Phone Number: OVERVIEW The GEN4 Carpet Cleaning Machine is designed to maintain your carpet using the envirodri MicroSponges, dry carpet cleaning system. The machine has two counter rotating brushes that enable the envirodri Microsponges to be brushed into the carpet. The envirodri Microsponges encapsulate the dirt when being brushed into the carpet. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded/earthed outlet. -
Page 6: Hazard Intensity Level
HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices which COULD result in severe personal injury or... -
Page 7: Earthing And Grounding Instructions
EARTHING AND GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL Grounding Pin USE ONLY. GROUNDING CONNECTION USING AN ADAPTOR ELECTRICAL - USA: Grounded Outlet Metal Screw In the USA this machine operates on a Fig. A standard 15 amp 115V, 60 Hz, A.C. power Tab for Grounding circuit. - Page 8 > Earth: Green & Yellow Neutral (Blue) Earth (Green&Yellow) Live (Brown) WARNING Do not use the UK ‘G’type plug in conjunction with any type of adators Only operate the GEN4 envirodri machine with a Cord-set sertified and provided by the manufacturer -3.2-...
- Page 9 > Earth: Green & Yellow Live (Brown) Earth (Green&Yellow) Neutral (Blue) WARNING Do not use type ‘F’ plug in conjunction with any type of adaptors. Only operate the GEN4 envirodri machine with a Cord-set certified and provided by the manufacturer. -3.2-...
-
Page 10: Product Technical Specifications
PRODUCT TECHNICAL SPECIFICATIONS 1.SPECIFICATION OF US MACHINES DIMENSION/CAPACITY ITEM 120V Electrical 650W Nominal Power Rated Amperage 7.5 Amps 16 inches (40 cm) Brush Width Brush RPM 550 RPM Wheels 2 inches (5 cm) non-marking black 46 lbs. (21 kg) Dimensions - Weight Dimensions - Height with handle 44 inches(112 cm) 12 inches (30 cm) - Page 11 EARTHING AND GROUNDING INSTRUCTIONS Congratulations! You are nowthe proud owner of the GEN4 Dry Carpet Cleaning Machine. This machine is designed to maintain your carpet using the envirodri Dry Carpet Cleaning System. By using the envirodri MicroSponges you can perform regular light cleaning and grooming of your carpet very quickly, and have the carpet dry and ready for use immediately.
-
Page 12: Machine Operation
MACHINE OPERATION PRE-RUN MACHINE INSPECTION MACHINE SHUT-DOWN AND STORAGE Perform a pre-run inspection to find possible 1. Depress the ‘OFF’ foot switch to power off problems that could cause poor performance or machine as shown in the drawing provided. lost time from breakdown. Check the rating plate to confirm voltage and frequency is the same as 2. - Page 13 90˚ position and turn the machine on by pressing the ‘ON’ switch. CAUTION Do not use the GEN4 wheels to transport it over uneven surfaces. Only wheel the machine on even surface. The machine wheels have been for internal transportation ‘only’...
-
Page 14: Maintenance
MAINTENANCE BRUSH CLEANING AND MAINTENANCE After each session of carpet cleaning. the brushes and the brush housing should be cleaned. Before cleaning or changing the brushes, always unplug the machine from the power supply. Brushes are removed without tools. Tilt and rest the machine on the handle. Push the brush shafts through with your finger. - Page 15 MAINTENANCE > As component 5 is being pushed into the ‘Top Internal Hex Profile’, move the ‘Brush Top’ away from and towards component 2 and simultaneously turn the ‘Brush Top’ clock and anticlockwise. This will help to align and guide component 5A through the ‘Top Internal Hex Profile’...
-
Page 16: Machine Maintenance
MAINTENANCE MACHINE MAINTENANCE DAILY MAINTENANCE The GEN4 machine requires very little 1. Clean and inspect brushes. maintenance. Wipe down the machine periodically with a clean cloth and ensure motor air vents are 2. Clean and inspect brush housing and not obstructed. DO NOT spray water directly over machine. - Page 17 MAINTENANCE PROBLEM CAUSE SOLUTION No power to machine Dead electrical circuit breaker Check building circuit breaker in fuse box Faulty power cord Replace power cord Replace power switch Power switch failure Faulty circuit breaker Replace circuit breaker Electrical Shock Equipment not grounding Follow earthing and grounding instructions Receptacle not grounded...
-
Page 18: Electrical Diagram
ELECTRICAL DIAGRAM WHITE BLACK (15) -5.2-... -
Page 19: Cleantec Innovation Ltd Warranty Policy
The eventual substitution of the motor under warranty will therefore be effected only in case of tatal wear. If, after inspection of the returned machine or any part or parts, Cleantec Innovation Ltd in connection with the replacement or repair or any parts there of shall be at the buyer’s responsibility. -
Page 20: Spare Parts List
SPARE PARTS LIST MODEL GEN4 CONFIGURATIONS: E00-4-9001-US Model E00-4-9002-UK Model E00-4-9003-Europe Model E00-4-9004-China Model ▪ The Bearing Pack(Item 29) is composed of 5 of 35x17x10(6003) Bearings and 2 of 32x12x10 (6201) Bearings. ▪ The Machine Base Label Set (Item 43) is composed of the “ON” and “OFF” labels, the LOCKED/UNLOCKED label and the CAUTION label. - Page 21 Handle Spare Parts List QTY PER PACK ITEM NO. PART NO. DESCRIPTION Lower Handle Assembly E00-4-1002 E00-4-1010 Upper Handle Assembly E00-4-1003 Handle Linking Shaft E00-4-1004 Connecting Bar Gen 4 E00-4-1005 Handle Linking Shaft Cross Bar Assembly E00-4-4002 E00-4-4001 Carry Handle Assembly Locating Bush Top Handle E00-4-1013 Handle Grip...
- Page 22 Brushes QTY PER PACK PART NO. DESCRIPTION GEN 4G Gold Brush Gold and White Brush GEN4GW White (Standard) Brush GEN4W Black and White Brush GEN4BW Black Brush GEN4B 10m Cord Set JAPAN 50HZ JAPAN 60HZ EUROPE CHINA ITEM NO E00-4-2021 E00-4-2023 E00-4-2022 E00-4-2032...

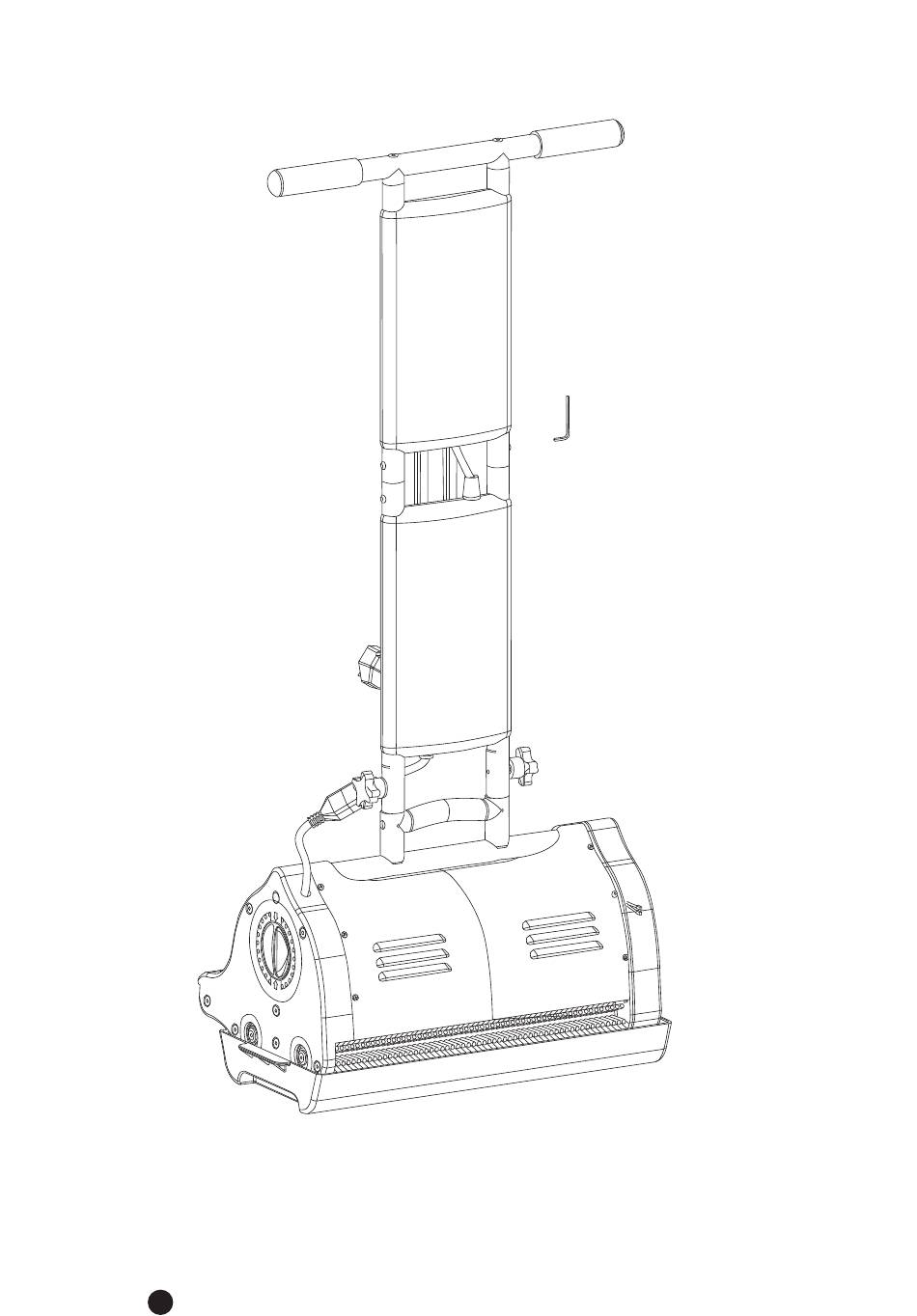

- Page 23 Handle SparePartsExplodedDiagram-1 GEN4Machine-SpareParts SHEET3OF7...
- Page 24 GEN4Machine-SpareParts SHEET 4OF7...
