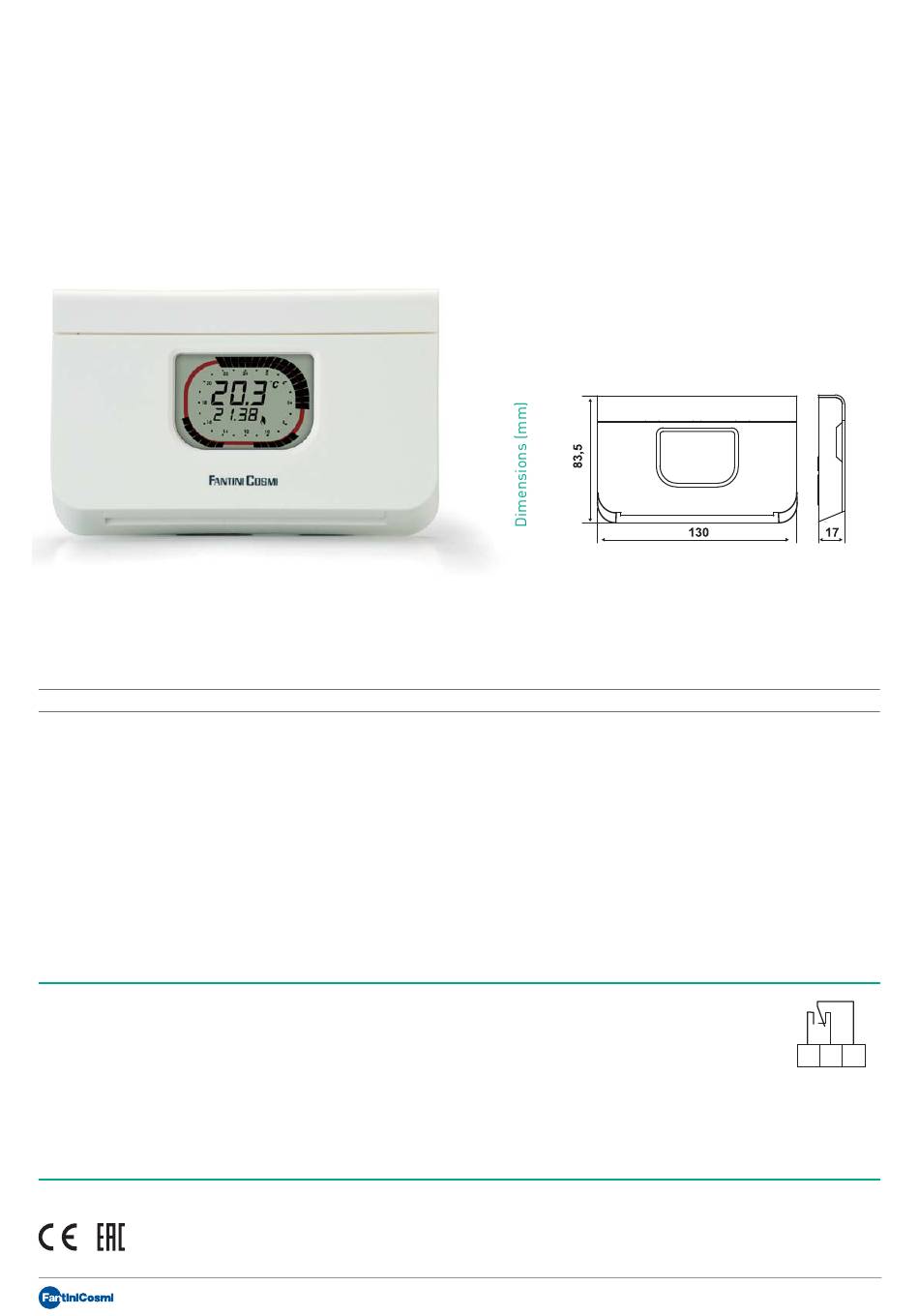

Intellitherm C58

Daily programmable thermostat, with batteries

Electronic programmable thermostats with microprocessor, with daily programming, to control heating and air-

conditioning installations.

Comfort and economy

regulation range

C58

2 ÷ 62 °C

ELECTRICAL FEATURES

Contacts rating: 5(3)A 250Vac.

Type of action: 1BU (micro disconnection)

Voltage-free switching contact.

Power supply with two 1,5 V AA alkaline long life batteries without connection to the electric circuit.

HOMOLOGATION AND STANDARDS

Complies with EN 60730-1, EN 60730-2-9 standards.

ErP classification: ErP Class IV; 2% (EU Reg. 811/2013 - 813/2013)

Differential*

Preset

antifreeze

0,25 K

5 °C

Body admissible

Power supply

ambient

temperature

45 °C

2 batteries AA

* Differential values are referred to a thermal gradient of 4K/h.

Contacts

rating

5(3)A-250Vac

Need help?

Do you have a question about the Intellitherm C58 and is the answer not in the manual?

Page 1 Intellitherm C58 Daily programmable thermostat, with batteries Electronic programmable thermostats with microprocessor, with daily programming, to control heating and air- conditioning installations. Comfort and economy Differential* Preset Body admissible Power supply Contacts regulation range antifreeze ambient rating temperature 2 ÷ 62 °C 0,25 K 5 °C...
Page 2 OFF SELECTION OR OFF WITH FROST PROTECTION SELECTION OPERATION HOURS OF THE INSTALLATION With Intellitherm C58 is possible to know for how many hours was “heat request”(relay closed-ON), the previous day and functioning beginning of the programmable thermostat (ie, after inserting the batteries or from a reset).
Page 3 OPERATION MODES Two preset programs: STANDARD AUTOMATIC PROGRAMS WITH THE TIME AND TEMPERATURE ALREADY PROGRAMMED IN AUTO 1 and AUTO 2 differentiated  THE FACTORY AUTO 1 20 C° 3 operation modes:  17 C° COMFORT keeps constant throughout the day and 5 C°...
