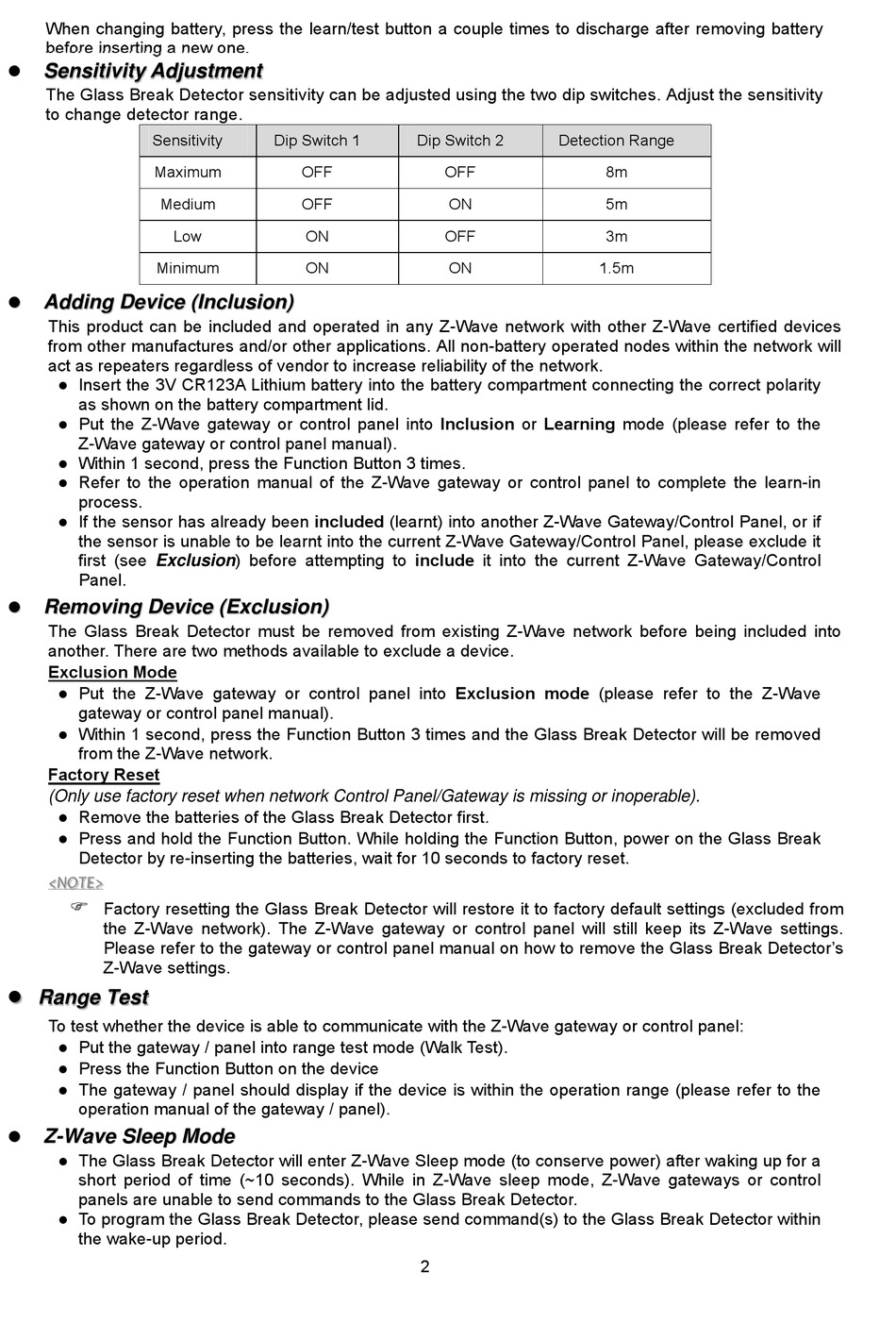

When changing battery, press the learn/test button a couple times to discharge after removing battery
before inserting a new one.
Sensitivity Adjustment
The Glass Break Detector sensitivity can be adjusted using the two dip switches. Adjust the sensitivity
to change detector range.
Sensitivity
Maximum
Medium
Minimum
A
d
d
i
n
g
D
e
v
i
c
A
d
d
i
n
g
D
e
v
i
c
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices
from other manufactures and/or other applications. All non-battery operated nodes within the network will
act as repeaters regardless of vendor to increase reliability of the network.
Insert the 3V CR123A Lithium battery into the battery compartment connecting the correct polarity
as shown on the battery compartment lid.
Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the
Z-Wave gateway or control panel manual).
Within 1 second, press the Function Button 3 times.
Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in
process.
If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if
the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it
first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control
Panel.
R
e
m
o
v
i
n
g
D
e
R
e
m
o
v
i
n
g
D
e
The Glass Break Detector must be removed from existing Z-Wave network before being included into
another. There are two methods available to exclude a device.
Exclusion Mode
Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave
gateway or control panel manual).
Within 1 second, press the Function Button 3 times and the Glass Break Detector will be removed
from the Z-Wave network.
Factory Reset
(Only use factory reset when network Control Panel/Gateway is missing or inoperable).
Remove the batteries of the Glass Break Detector first.
Press and hold the Function Button. While holding the Function Button, power on the Glass Break
Detector by re-inserting the batteries, wait for 10 seconds to factory reset.
<NOTE>
Factory resetting the Glass Break Detector will restore it to factory default settings (excluded from
the Z-Wave network). The Z-Wave gateway or control panel will still keep its Z-Wave settings.
Please refer to the gateway or control panel manual on how to remove the Glass Break Detector's
Z-Wave settings.
Range Test
To test whether the device is able to communicate with the Z-Wave gateway or control panel:
Put the gateway / panel into range test mode (Walk Test).
Press the Function Button on the device
The gateway / panel should display if the device is within the operation range (please refer to the
operation manual of the gateway / panel).
Z
-
W
a
v
e
S
l
e
e
p
Z
-
W
a
v
e
S
l
e
e
p
The Glass Break Detector will enter Z-Wave Sleep mode (to conserve power) after waking up for a
short period of time (~10 seconds). While in Z-Wave sleep mode, Z-Wave gateways or control
panels are unable to send commands to the Glass Break Detector.
To program the Glass Break Detector, please send command(s) to the Glass Break Detector within
the wake-up period.
Dip Switch 1
OFF
OFF
Low
ON
ON
e
(
I
n
c
l
u
s
i
o
n
)
e
(
I
n
c
l
u
s
i
o
n
)
v
i
c
e
(
E
x
c
l
u
s
i
o
n
)
v
i
c
e
(
E
x
c
l
u
s
i
o
n
)
M
o
d
e
M
o
d
e
Dip Switch 2
Detection Range
OFF
ON
OFF
ON
2
8m
5m
3m
1.5m
