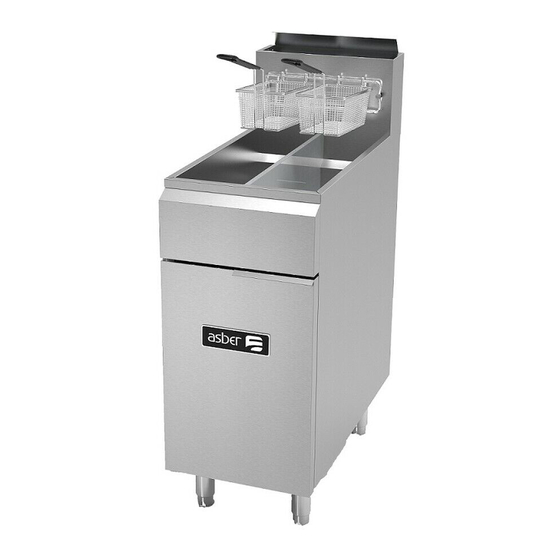

- Page 1 FRYER Manual Instructions AEF-3540S, AEF-2525, AEF-4050S, AEF-4050S Manual instructions Manueltalimatları Installation and Operation Kurulum ve Çalıştırma Manual de instrucciones Manuel d’instructions Uso y mantenimiento Installation et fonctionnement Bedienungshinweise Manual do instruções Installation und Betrieb Instalação e Operação...
-
Page 2: Table Of Contents
Transport, handling, unpacking, location....................3 Manufacturer´s identification label description..................3 Installation and assembly........................4 2.3.1 Uncrating............................4 2.3.2 Intallation of legs..........................5 How to install caster on fryer Asber......................6 Gas connections............................7 2.5.1 Manual shut off valve........................7 2.5.2 Pressure regulator...........................7 2.5.3 Testing de gas supply piping system. - Page 3 asberprofessional.com Draining the tank........................... 13 3.10 Daily filtering............................13 MAINTENANCE ..............................13 Cleaning..............................13 4.1.1 Daily: ............................. 14 4.1.2 Weekly: ............................14 4.1.3 Stainless Steel parts........................14 TROUBLE SHOOTING ..........................15 Warranty Terms............................17 6.1 Limited warranty............................17 7.- Conversion Instructions: ..........................
-
Page 4: Introduction
1.1 Introduction to machine &models. General ASBER Fryers are produced with high quality workmanship and material. Proper installation, operation and maintenance will result in many years of satisfactory performance. Before installing the fryer, thoroughly read this manual and carefully follow all instructions provided in this manual. -
Page 5: Important Safety Information
1.3 Specification chart: MODEL BTU’S LP AT 10’’ ORIFICE BTU’S NG AT ORIFICE BURNERS W.C. SIZE LP 5’’ W.C. SIZE NG FRYER AEF-3540 30,000 35,000 AEF-4050 S 30,000 35,000 AEF-5060 S 30,000 35,000 AEF-2525 S 30,000 35,000 asberprofessional.com... -
Page 6: Installation
INSTALLATION: 2.1 Transport, handling, unpacking,location. Upon receiving your new ASBER Equipment, check the package and the machine for any damages that may have occurred during transportation. Visually inspect the exterior of the package. If damaged, open and inspect the contents with the carrier. Any damage should be noted and reported on the delivering carrier’s receipt. -
Page 7: Installation And Assembly
asberprofessional.com Model Serial Number Gas Type 2.3 Installation and assembly. SHIPPING DAMAGE CLAIM PROCEDURE The equipment is inspected and crated by skilled personnel before leaving our factory. The transportation company assumes full responsibility for safe delivery upon acceptance of this equipment. If shipment arrives damaged: Visible loss or damage: Note on freight bill or express delivery and signed by person making delivery. -
Page 8: Intallation Of Legs
asberprofessional.com 2.3.2 Intallation of legs. LEGS ASSEMBLY: Mount Legs on bottom of product, the appliance may be further leveled with adjustment in • the foot of the leg. Installation on non-combustible floor shall be with factory • supplied legs or casters. asberprofessional.com... -
Page 9: How To Install Caster On Fryer Asber
2.4 How to install caster on fryer Asber. STEP 1: Turn furnishing in order to see fryer bottom. STEP 2: This is how the base frame must see. Important you will have 2 wheels with brake and 2 wheels no brake. Identify wheels with... -
Page 10: Gas Connections
2.5.2 Pressure regulator. Commercial cooking equipment must have a pressure regulator on the incoming service line for safe and efficient operation; the gas pressure regulator supplied by ASBER must be installed at the gas inlet of each piece of equipment. -
Page 11: Testing De Gas Supply Piping System
asberprofessional.com Testing de gas supply piping system 2.5.3 When test pressures exceed ½ PSI (3.45 kPa), the fryer and its individual shutoff valve must be disconnected from the gas supply piping system. When test pressures are ½ PSI (3.45 kPa) or less, the fryer must be isolated from the gas supply piping system by closing its individual shutoff valve. -
Page 12: Location
If the unit shuts down due to the overheating, do not try to relight the pilot until if the shortening temperature is below 300° F (149 C). If an overheating situation persists, contact your local Asber authorized service company for further assistance. - Page 13 asberprofessional.com Severe burns may be caused. Drain hot oil in metal containers, do not use plastic buckets or glass containers. Before first use. Cleaning New units are wiped down at the factory to remove any visible signs of dirt, oil, grease, etc. remaining from the manufacturing process.
-
Page 14: Lighting The Pilot
asberprofessional.com Step 2: Fill the unit tank with liquid shortening. • Step 3: Shortening level (see drawing above) should be between the min and max lines in the unit tank. • Step 4: Shortening will expand when heated. Do not fill the unit tank past the Maximumequipment. •... -
Page 15: Turning The Unit "On
asberprofessional.com Gas Valve Selection knob OFF position, drawing A Gas Valve Selection knob PILOT position, drawing B Gas Valve Selection knob ON position, 3.3 Turning the unit “ON”. 1. Set the thermostat and the gas tap dial on the combination gas valve to the “OFF” position. 2. -
Page 16: Fry Basket Guidelines
asberprofessional.com 3.7 Fry Basket Guidelines Do not overfill baskets. (See table for recommended basket capacities below) Carefully lower basket • into oil. When frying doughnuts and fritters, turn product only once during frying. • When cooking French fries or onion rings, shake the basket several times. •... -
Page 17: Daily
asberprofessional.com 4.1.1 Daily: 1. Remove and wash thoroughly all “loose” parts (basket hanger, baskets, crumb screen, etc.). 2. Wipe clean all exterior and interior accessible surfaces and parts. 3. Filter the liquid oil/shortening at the end of the day, replace if necessary. If fryer is under heavy use, filter more often during the day. -
Page 18: Trouble Shooting
asberprofessional.com 5. TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY Pilot will not light a. No gas a. Turn main b. Gas tap dial not set at “Pilot” valve “ON” position and depressed. b. Set gas tap dial on combination valve “Pilot”. Depress and hold while lighting. - Page 19 asberprofessional.com Oil/shortening a. Operatingtemperaturetoohigh. a. Set scorches b. Thermostatout of calibration propertemperature. breaks down. c. Oil/shorteningoverused. b. Re-calibrate d. Oil/shortening filtered c. Replace frequently. d. Replace Temperaturecannot a. Thermostat bulb out of proper a. Relocate be controlled position. secure b. Thermostatout of calibration. proper position.
-
Page 20: Warrantyterms
United States is excluded from this warranty. This warranty is limited to Product(s) sold to the original commercial user. The liability of ASBERis limited to, at ASBER's option, the repair or replacement of any part found by ASBERto be warranted herein. ASBERshall bear the normal labor charges for repair of replacement to the extent that such repair or replacement is performed within 35 miles of the office of an authorized service agency, within the continental United States and during regular (straight time) hours. -
Page 21: Conversion Instructions
7.- Conversion Instructions: 7.1Gas valve conversion: NOTE: This is aRobertshaw 7000 Series (MV) gas valve (LP) conversion kit for ASBER Fryer Model AEF-4050. 1. Turn OFF the fryer from the gas a. supply. 2. Partially depress and turn the gas knobthe OFF position. -
Page 22: Adjusting The Gas Pressure
asberprofessional.com 7.2 Adjusting the gas pressure: 1. Turn the gas valve knob to the OFF position. 2. Remove the pressure tap plug. 3. Screw the fitting for a gas pressure measuring device into the pressure tap hole. 4. Place the gas valve knob in the ON position, then turn the fryer on. When the burner lights and continues to burn, note the gas pressure and compare it to the pressure listed on the fryer rating plate. - Page 23 asberprofessional.com Conversion Kits Part Numbers: KITS (LP): S873137000 P N : P N : S 8 6 2 4 2 0 0 0 0 S 8 6 2 4 2 0 0 0 0 I d l e j e t p i l o t I d l e j e t p i l o t "...
- Page 24 ASBER USA ASBER MEXICO 13105 NW 47 Circuito Exportación 201 Opa-Locka, FL 33054 Parque Industrial Tres Naciones Phone: +1 (305) 779 – 0170 CP. 78395 San Luis Potosí, SLP Fax: +1 (305) 779 – 0173 Phone: +52 (444) 137 0500 info@asber.com.mx...
