Beam i580 User Manual

Smart remote

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

S MA RT REM OTE

UNIVERSAL

R E M O T E

i580

USER GUIDE

Table of Contents

Need help?

Do you have a question about the i580 and is the answer not in the manual?

Questions and answers

David Lach

February 23, 2025

Looking for blue ray code for LG blueray and Roku tv

Brandon

March 29, 2025

Need the code for a emerson dvd player

1 comments:

Mr. Anderson

March 29, 2025

The Beam i580 remote uses a code list for setup, but the specific code for a DVD player is not provided in the context. You need to refer to the included code list or use the Beam app for setup.

This answer is automatically generated

Summary of Contents for Beam i580

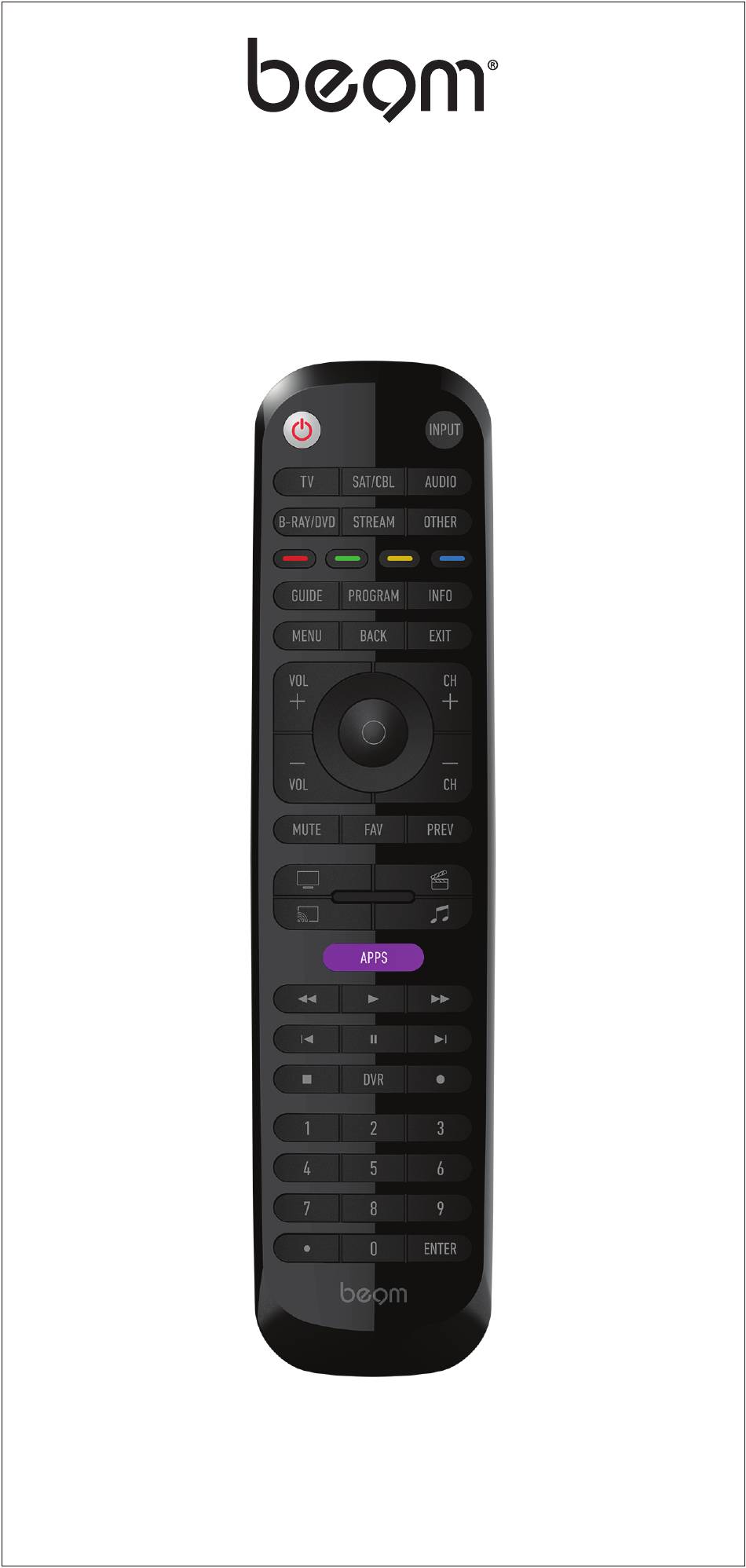

Page 1 S MA RT REM OTE UNIVERSAL R E M O T E i580 USER GUIDE...
Page 2: Table Of Contents
TABLE OF CONTENTS • GETTING STARTED BATTERIES • GETTING STARTED BUTTONS • PROGRAMMING YOUR BEAM REMOTE • OPTION 1. PROGRAMMING USING THE BEAM APP • OPTION 2. PROGRAMMING USING THE CODE LIST • OPTION 3. PROGRAMMING MANUALLY • ACTIVITIES • CUSTOM BUTTONS •...
Page 3: Getting Started Batteries
GETTING STARTED (BATTERIES) Thank you for choosing the Beam Universal Remote Control. This remote control can operate a wide range of electronic devices, works across most brands and models, and comes pre-programmed to operate many Samsung TVs (see the Programming Your Remote sections if your device is not compatible).
Page 4: Getting Started Buttons
GETTING STARTED (BUTTONS) POWER INPUT DEVICE CUSTOM CATEGORIES BUTTONS GUIDE INFO MENU PROGRAM BACK EXIT VOLUME CHANNEL FAVORITE CHANNELS PREVIOUS MUTE CHANNEL STATUS INDICATOR ACTIVITIES APPS VIDEO PLAYBACK CONTROLS NUMBER KEYPAD NOTE: Some of the buttons on the remote may not support all of the functions of the original device remote.
Page 5 GETTING STARTED (BUTTONS) POWER Turns your device On/Oﬀ and also serves as an indicator when the remote is being programmed INPUT Switches between the sources connected to INPUT your TV DEVICE CATEGORIES Use these buttons to select the device you want to control GUIDE Use to access the guide of satellite and cable...
Page 6: Programming Your Beam Remote
PROGRAMMING YOUR BEAM REMOTE There are 3 ways to program your Beam remote: 1. Programming by using the Beam app 2. Programming by using the included code list 3. Programming manually by copying buttons from your original remote...
Page 7: Option 1. Programming Using The Beam App
Download the app for free by following the steps below. Downloading and using the app 1. Search for “Beam Smart Remote” on either the Apple or Google app stores and then download it. 2. Make sure the Bluetooth on your smartphone is turned on, then open the app.
Page 8: Option 2. Programming Using The Code List
Before beginning, please make sure that the device you want to control is powered on and follow these three simple steps. NOTE: The Beam remote comes pre-programmed to operate many Samsung TVs. 1. Press and hold the PROGRAM button until the POWER button lights up red.
Page 9 Repeat this process for each device you wish to control. Code list and other helpful information available at: www.southerntelecom.com/beam If you are having trouble programming your Beam remote with the app or included code list, please try the manual programming option shown on the next page.
Page 10: Option 3. Programming Manually
When all else fails, this method is the sureﬁre way to get all the buttons of your original remote working on the Beam! It’s also a great way to improve one of the codes programmed using the app or code list methods.
Page 11 0.5” - 1.0” Beam remote 5. Press the button on the Beam remote which you want to program, you hear three beeps, and the Beam’s POWER button ﬂashes and will continue to ﬂash until the process has been completed. NOTE: You can't copy buttons to these buttons on your Beam remote: •...
Page 12 NOTE: Your Beam remote is capable of copying ANY remote control that uses IR commands. Please test all the buttons copied to the Beam remote, if any are not working as expected, please repeat steps 1-6, and make sure that both remotes are VERY CLOSE to each other when the buttons are copied.
Page 13 OPTION 3. PROGRAMMING MANUALLY Deleting copied buttons 1. Press and hold the PROGRAM button of the Beam remote until the POWER button lights up. 2. In DEVICE CATEGORIES, select the device you want RESET or delete the copied buttons from.
Page 14 OPTION 3. PROGRAMMING MANUALLY 4. Press “0” to delete all the copied buttons for the device selected in step 2. The LED of the POWER button will ﬂash twice, and you will hear a long beep. NOTES: You can press the PROGRAM button to exit anytime.
Page 15: Activities
2. Press the Activity button you want to set, and it will light up. The LED of the POWER button turns oﬀ. 3. Press the 1,2, or 3 button on the Beam remote, based on the desired preset number combination (see next page).
Page 16 ACTIVITIES WATCH TV: Preset 1: TV + SAT/CBL (Default) TV: Power, Input, Volume and Mute. SAT/CBL: Power + Everything else. Preset 2: TV + SAT/CBL + AUDIO TV: Power and Input. Audio: Power, Volume and Mute. SAT/CBL: Power + Everything else. Preset 3: TV + AUDIO TV: Power + Everything else.
Page 17: Custom Buttons
Your Beam remote can easily copy buttons from any other IR remote. This feature is helpful if there are buttons on your original remote that aren’t represented on the Beam remote or if you want to apply a favorite button and have it work regardless of the Device Category or Activity selected, e.g., use a CUSTOM Button to control your air conditioner...
Page 18 3 beeps, and the LED of the POWER button starts blinking. Power button 3. On your original remote, press and HOLD the button you want to copy until you hear a long beep and the Beam’s POWER button stops ﬂashing. Original remote...
Page 19 CUSTOM BUTTONS Deleting a Custom Button To delete a Custom button, follow the steps below. 1. Press and hold the CUSTOM button you need to program until you hear 3 beeps, and the LED of the POWER button starts blinking. Power button 2.
Page 20: Favorite Channels
FAVORITE CHANNELS For easy access to up to 10 of your favorite channels, follow the steps below. 1. Select a device from DEVICE CATEGORIES that controls the channels. The POWER button’s red indicator light will blink once. 2. Press and hold the PROGRAM button until the POWER button lights up red.
Page 21: Volume Lock
VOLUME LOCK Use this feature to lock a device to the remote’s volume control. For example, the remote can be in TV mode while the volume buttons control your sound bar. Enabling Volume Lock: 1. Press and hold the PROGRAM button until the POWER button lights up red.
Page 22: Channel Lock
CHANNEL LOCK Use this feature to lock a device to the remote’s channel control. For example, the remote can be in TV mode while the channel buttons control your satellite or cable box. Enabling Channel Lock: 1. Press and hold the PROGRAM button until the POWER button lights up red.
Page 23: Reset To Factory Default Settings
RESET TO FACTORY DEFAULT SETTINGS 1. Press and hold the PROGRAM button until the POWER button lights up red. The POWER button’s red indicator light remains on. 2. Press the INFO button. The POWER button’s red indicator light blinks once and remains on. 3.
Page 24: Troubleshooting
Activity mode is lit in red. I copied a button from my original remote but it’s not working • Beam is capable of copying any IR remote control button. However, sometimes it is necessary to repeat the copying procedure to get the button working properly- sometimes several attempts are required.
Page 25: Fcc Information
FCC INFORMATION This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 26: Limited Warranty
LIMITED WARRANTY 1-Year Limited Warranty Territory: United States/Canada LIMITED WARRANTY TO ORIGINAL CONSUMER This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: •...
