Arctica 4804iqSeries switch Installation Guide
1. The golden finger is inward and adown and aim at the fan rabbet of the back
machine flatly to the end. You can hear the lock sound of "click".
2. Pinch the sheet metal inward and draw the fan module forth when taking out it.
Caution!
The sheet metal edge of fan is thin, please watch your fingers when pinch, press,
insert and pull it.
WARNING! - Hazardous moving parts. Keep away from moving fan blades.

3.2.4.Connecting Console

Arctica 4804iq series provide a serial console port.

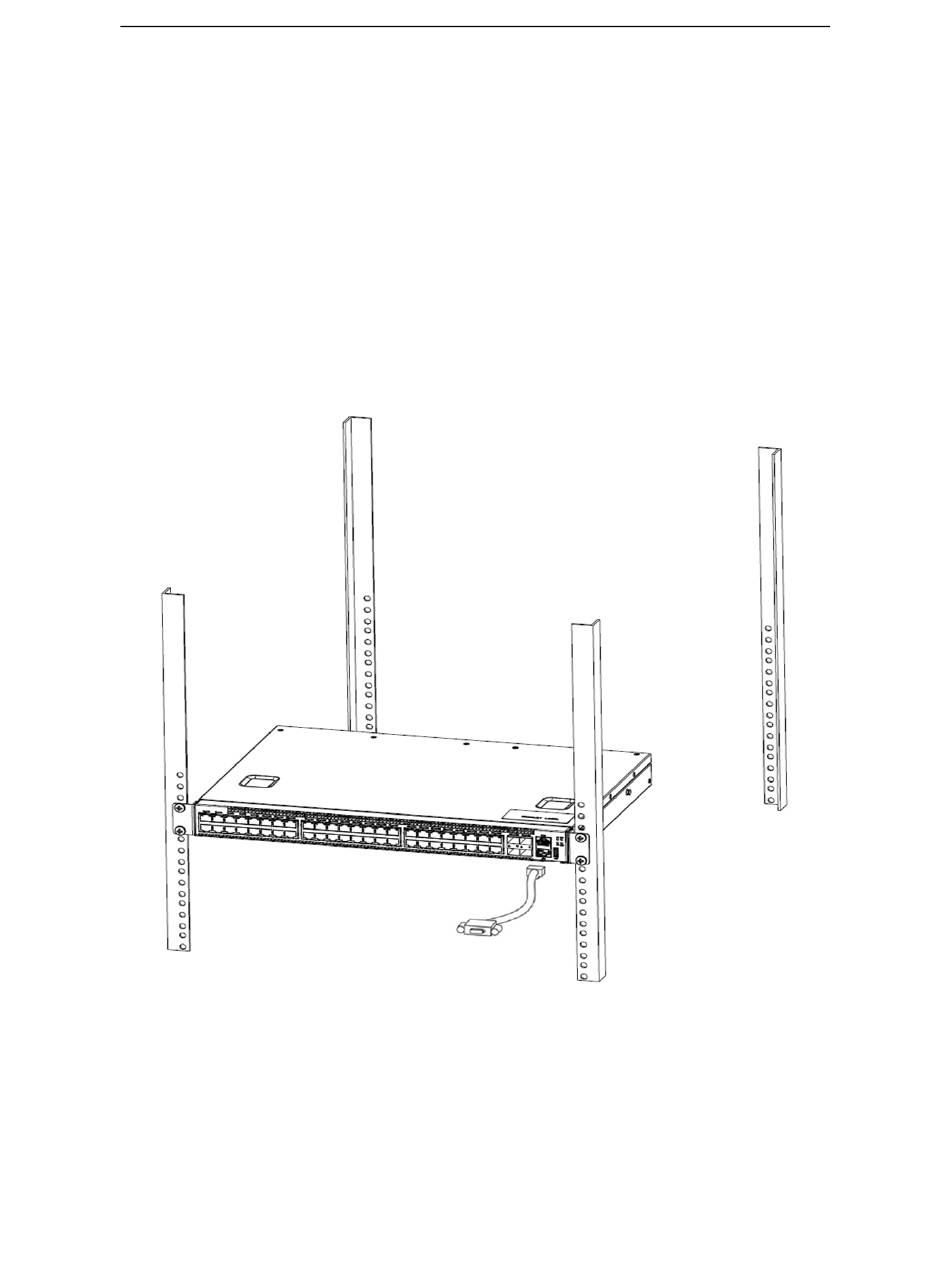

Figure 3-6 Connecting Console to Arctica 4804iq series switch
The connection procedure is listed below:
1. Find the console cable provided in the accessory kit. Attach the console cable end to
console port of the switch.
2. Connect the other side of the console cable to a character terminal (PC).
3. Power on the switch and the character terminal. Configure the switch through the
character terminal.
Chapter 3 Device Installation
