- Page 1 Guth Laboratories, Inc. MODEL 2100 SIMULATOR OPERATION MANUAL 590 North 67th Street Harrisburg, PA 17111-4511 717-564-5470 / 800-233-2338 ELEPHONE 717-564-2555 : www.guthlabs.com $5.00 EB SITE AT RICE...
- Page 2 © 1999 Guth Laboratories, Inc./all rights reserved...
- Page 3 C + .05 or better. The Guth Model 2100 Simulator is approved by the National Highway Traffic Safety Administration (NHTSA), published on their Conforming Products List (CPL), and is listed with Underwriters Laboratories, Inc. (UL), as meeting United States Safety Standards and Canadian Safety Standards (CUL).
- Page 4 HIGH INTENSITY LED DISPLAY: Provides maximum visibility of temperature and heater activity. RELIABLE AGITATOR MOTOR. AGITATOR PADDLE: Designed by Guth Laboratories, Inc. Offers maximum circulation and uniformity of solution. HEATER ELEMENT: Electronically protected from overheating when removed from solution or when temperature sensor is defective.

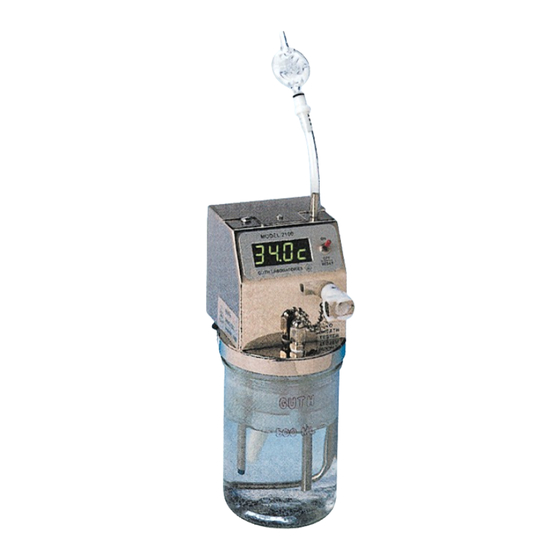

- Page 5 GUTH MODEL 21 00 SIMULATOR MODEL 21 00 RESET GUTH LABORATORIES, INC.
- Page 6 MODEL 21 00 REAR VIEW CAUTION REMOVE SOLUTION BEFORE MOVING INSTRUMENT REPLACE FUSE WITH BUSS TYPE GMW 1 amp @ 125 vac Fast Acting...
- Page 7 INSTRUCTIONS FOR USE OF THE GUTH MODEL 2100 ALCOHOL BREATH SIMULATOR: Add tubing and connector to the simulator. Remove the glass container from the simulator top housing. Pour 500 ml of Certified Simulator Solution into the simulator container. The Guth laboratory glass container has a 500 ml + 5% fill mark.
- Page 8 Several models of pumps are available through Guth Laboratories. If a low reading is obtained, check all tubing for leaks. Be sure the glass container is properly tightened to the metal top housing.
- Page 9 If there is no separation, return the unit to Guth Laboratories, Inc. (See instructions page 9). If there is a separation...Try another NIST thermometer (or) follow the instructions for rejoining a mercury separation. CAUTION: If a mercury thermometer is accidentally broken, be very careful. Mercury is poisonous..
- Page 10 SEPARATION IN THE CONTRACTION CHAMBER Separation of mercury in the contraction chamber is an entirely different problem. Many thermometers contain scale ranges which begin well above ambient temperatures. These thermometers are provided with a contraction chamber or enlargement which prevents the mercury from entering the bulb at ambient temperatures.
- Page 11 If you have been unsuccessful in reuniting the mercury column, or repairing the simulator in the field, please call our Product Service Department for assistance or a RMA (Return Material Authorization) number. GUTH LABORATORIES, INC. 590 NORTH 67th STREET HARRISBURG, PA 17111-4511...
- Page 12 IF THE SIMULATOR DISPLAYS AN ERROR: The Model 2100 provides internal diagnostics checking for several conditions which prevent the simulator from maintaining the correct temperature. When a condition or malfunction occurs, the simulator will deactivate the heater and the agitator motor. The simulator will alarm indicating a malfunction and display the error code.
- Page 13 The temperature of the solution is above 34.2 C or radio frequency interference (RFI) has been detected. REMEDY: Turn the simulator off and allow solution to cool. Turn the simulator on. If the condition continues to occur, simulator requires service*. Remove the source of radio interference or change location of the simulator.
- Page 14 REMEDY: Turn off the simulator and turn on. If the simulator does not heat, the heating element may be defective. Requires service* *REQUIRES SERVICE - Simulator must be repaired by a Guth certified technician or returned to Guth Laboratories, Inc. (Seeinstructions on page 9.)
- Page 16 RECORDS (SERIAL NUMBERS, CALIBRATION AND NOTES) NIST TRACEABLE THERMOMETER – SERIAL NUMBER___________________ CERTIFIED BY________________________________DATE_____________ TEST TEMPERATURE_______ C NIST TRUE TEMPERATURE_______ C MODEL 2100 – SERIAL NUMBER_________________________________ CALIBRATION CHECK DATE CHECKED BY NOTE: Only a Guth Laboratories, Inc. certified technician shall perform Field calibration.
- Page 17 UNDERWRITERS LABORATORIES, INC. UL SYMBOLS AND WARNINGS Power: 120 VAC 60Hz., 77 watts Mains supply fluctuation not to exceed ±10% of the nominal voltage. Do not position instrument so that it is difficult to disconnect the power cord. Disconnect power cord and empty solution before moving instrument. Disconnect power cord before changing solution.
