Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2018 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
18l
64357
Advertisement
Table of Contents
Related Manuals for Armstrong 64357
Summary of Contents for Armstrong 64357
- Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. Visit our website at: http://www.harborfreight.com 64357 Email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact and undamaged.
- Page 2 Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 64357...
-
Page 3: Important Safety Information
37″ to 80″ diagonal 100 x 100 200 x 100 200 x 200 VESA Compliance (in mm) 300 x 300 400 x 200 400 x 400 600 x 400 Item 64357 For technical questions, please call 1-888-866-5797. Page 3... -
Page 4: Installation Instructions
2. Set Wall Mount (1) against wall at desired height. Place a level (sold separately) on top of Wall Mount, adjust until level. Mark locations of mounting holes. Wall Wall Washer Mount (1) (19) Wall lag Bolt (17) Page 4 For technical questions, please call 1-888-866-5797. Item 64357... - Page 5 3. Insert Concrete Wall Anchors (18) into holes, making sure they are flush with wall surface. Concrete Concrete Wall anchor (18) 3-1/2″ Wall Wall Washer Mount (1) (19) Wall lag Bolt (17) Item 64357 For technical questions, please call 1-888-866-5797. Page 5...
- Page 6 TV Washers. Use TV Spacers if necessary. tV Spacer (13 or 14) Mounting (if necessary) Hole on tV tV Bolt (4 - 9) tV Washer (10 - 12) tV Plate Page 6 For technical questions, please call 1-888-866-5797. Item 64357...
- Page 7 TV Bolts and TV Washers. Use TV Spacers if necessary. tV Spacer (13 or 14) Mounting (if necessary) Hole on tV tV Washer tV Bolt (10 - 12) (4 - 9) Horizontal Item 64357 For technical questions, please call 1-888-866-5797. Page 7...
- Page 8 Mounting (10 - 12) Hole on tV tV Bolt (4 - 9) Vertical Bar (21) Horizontal Bar (20) Washer (23) Bar Bolt (22) tV Plate Washer Bar Bolt (23) (22) Page 8 For technical questions, please call 1-888-866-5797. Item 64357...
- Page 9 Nut over Notch on TV Mount and route Lower Posts through Lower Post Holes. tV Plate tV Plate Bolt (15) Washer (16) tV Plate 5. Route TV wires through clips. lower Posts notch Clips lower Post Holes Item 64357 For technical questions, please call 1-888-866-5797. Page 9...
-
Page 10: Please Read The Following Carefully
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 10 For technical questions, please call 1-888-866-5797. Item 64357... -
Page 11: Parts List
Wall Washer TV Bolt M8 x 20 Horizontal Bar TV Bolt M8 x 35 Vertical Bar TV Washer M4 Bar Bolt M6x8 TV Washer M6 Bar Washer M6 TV Washer M8 Item 64357 For technical questions, please call 1-888-866-5797. Page 11... -
Page 12: Limited 90-Day Warranty
limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Need help?
Do you have a question about the 64357 and is the answer not in the manual?
Questions and answers

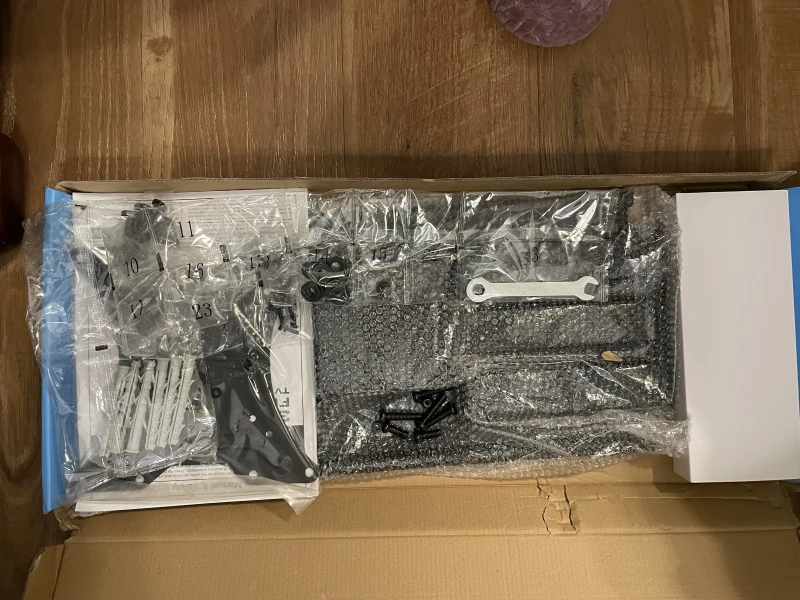

I need to screw package for mounting. I bought this from a individual, it’s brand new still in the bubble wrap, but the hardware is missing.
The Armstrong 37-80 inch Full Motion TV Wall Mount (part number 64357) includes numbered bags with screws and parts, making it easy to identify the correct hardware for installation. If you need a replacement screw package, you may check with Harbor Freight, where the mount was purchased, or contact their technical support at 1-888-866-5797 for assistance.
This answer is automatically generated
I installed wall mount which is level but tv is not level by about quarter inch. How to fix?
To fix a quarter-inch unlevel TV mounted on an Armstrong wall mount (part number 64357), follow these steps:
1. Loosen the Nuts: Use the included wrench to slightly loosen the nuts on both the upper and lower posts of the TV plate.
2. Adjust the Level: Carefully adjust the TV until it is level.
3. Tighten the Nuts Securely: Once the TV is level, tighten the nuts on the upper and lower posts to secure the position.
4. Check the Tilt Adjustment: If needed, also adjust the tilt by loosening the tilt adjustment nuts, setting the desired angle, and then tightening them again.
Ensure the TV is not forced into position, and avoid pressing directly on the screen.
This answer is automatically generated
