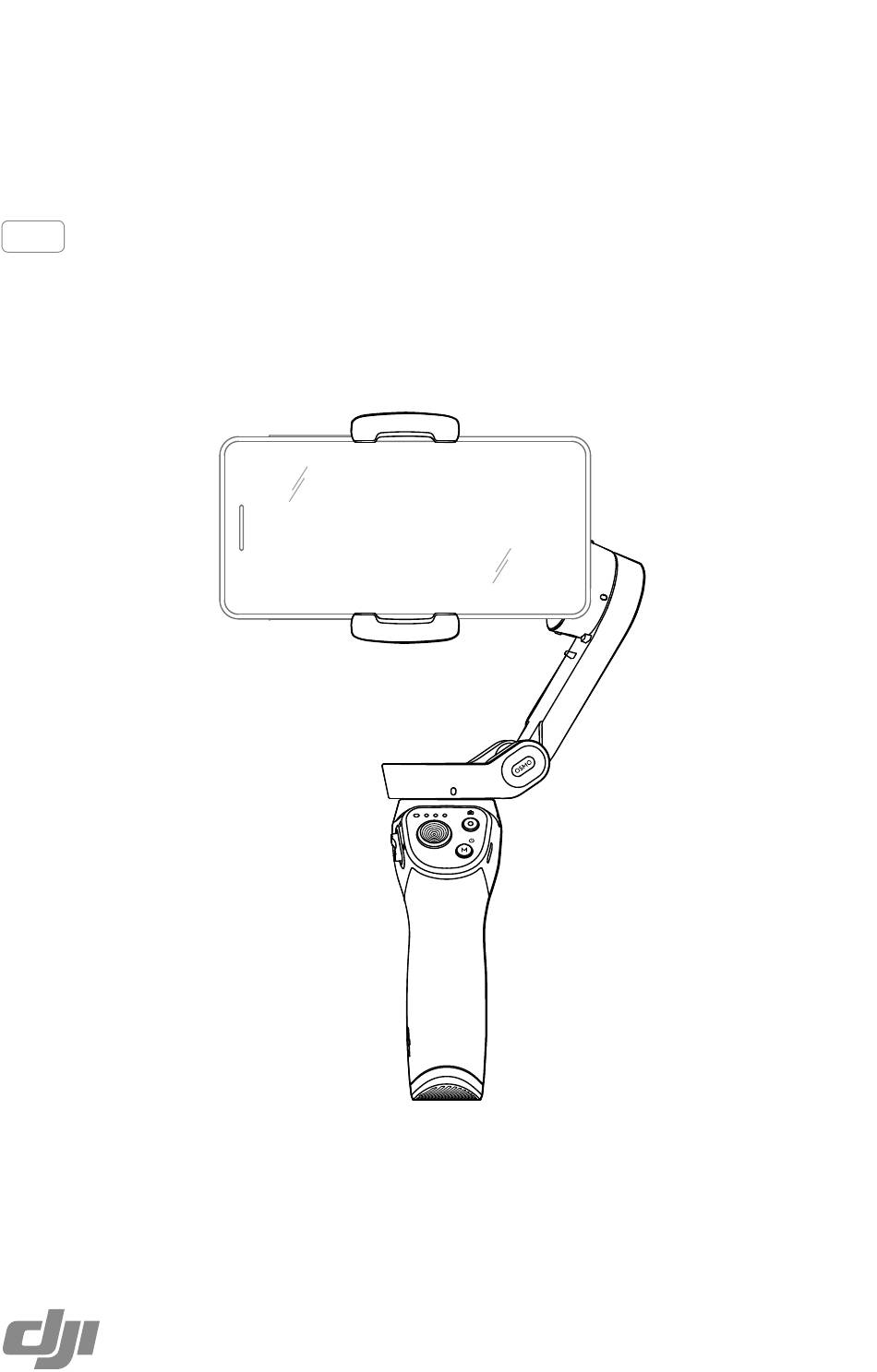

- Page 1 OSMO MOBILE 3 User Manual v1.0 2019.08...
-
Page 2: Using This Manual
Scan the QR code or search for "DJI Mimo" on the App Store or Google Play. The Android version of DJI Mimo is compatible with Android v6.0 and later. The iOS version of DJI Mimo is compatible with iOS v10.0 and later. -
Page 3: Table Of Contents
Download the DJI Mimo App Introduction Overview Getting Started Charging Mounting and Balancing a Mobile Phone Using Osmo Mobile 3 Controls and Operations Operation Modes DJI Mimo App Updating the Firmware Maintenance Specifications After-Sales Information © 2019 DJI OSMO All Rights Reserved. -
Page 4: Introduction
Lightweight and ergonomic, Osmo Mobile 3 puts seamlessly smooth video creation at your fingertips. Osmo Mobile 3 is easy to use and the mobile phone can be manually adjusted by hand in Follow mode. Get creative with features such as Story mode, ActiveTrack 3.0, Hyperlapse, Timelapse, and Pano... -
Page 5: Getting Started
Max. runtime: 15 hours* • Connect your mobile phone to the USB-A port. If Osmo Mobile 3 is powered on, the mobile phone will begin to charge. If Osmo Mobile 3 is powered off, press the M button once to start charging. -
Page 6: Using Osmo Mobile 3
• Hold the tilt motor and move the phone holder left or right until the mobile phone remains balanced when released. Make sure the mobile phone is properly installed and balanced on the holder of Osmo Mobile 3 before each use. - Page 7 There are three ways to use ActiveTrack 3.0: a. Drag a box on the screen in the camera view in DJI Mimo. A green box around the subject indicates ActiveTrack 3.0 is successfully enabled. Tap the X icon on the top corner to stop tracking.
- Page 8 Press once, and then press and hold to enter Sport mode. Release to exit. In Sport mode, the follow speed of the gimbal increases for capturing quick movements. 8. USB-C Charging Port Charge Osmo Mobile 3 by connecting a USB adapter to this port. Refer to the Charging section for more information. 9. USB-A Port The USB-A port can be used to charge mobile phones.
-
Page 9: Operation Modes
Hold Osmo Mobile 3 upside down to enter Underslung mode, in which the mobile phone can easily capture images from a lower position. Side Grip Mode Rotate Osmo Mobile 3 to the right or left by 90° to go from Upright to Side Grip mode. Upright Mode Underslung Mode Side Grip Mode Due to sensor noise, the handle may vibrate slightly when the gimbal is moving. -
Page 10: Dji Mimo App
OSMO MOBILE 3 User Manual DJI Mimo App Watch a live HD video feed on your mobile screen through the DJI Mimo app. The app also allows you to use Story mode, Hyperlapse, Timelapse, ActiveTrack 3.0, and Pano, or configure camera and gimbal settings in just a few taps. - Page 11 For Position Timelapse, set the interval and duration time and start to shoot. For Path Timelapse, up to four positions can be selected, and then the gimbal will travel through the positions in order. © 2019 DJI OSMO All Rights Reserved.
- Page 12 Gimbal Auto Calibration: reduces drift caused by nearby magnetic interference or human error. Do not touch the gimbal and hold Osmo Mobile 3 still and upright during calibration. General Settings Device Management, Device Name, Firmware Version, and SN.
-
Page 13: Updating The Firmware
Note that zooming is only available when using the back camera of your mobile phone. Updating the Firmware Use the DJI Mimo app to update the Osmo Mobile 3 firmware. It takes approximately three minutes to complete an update. How to Update Before starting an update, make sure that the battery level is at least 15% (at least two battery level indicators lit). -
Page 14: Maintenance
Mobile 3 when it is powered off. Rotate the pan and tilt axis to align with the marks on the gimbal, and then fold Osmo Mobile 3. Note that the hole on the pan motor should be matched with the marker on the arm. -
Page 15: After-Sales Information
2.5 hours (Measured with a 10W charger) Operating Time 15 hours (Under ideal conditions with the gimbal fully balanced) After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. For online support, please scan this code with Facebook Messenger... - Page 16 This content is subject to change. Download the latest version from www.dji.com/osmo-mobile-3 OSMO is a trademark of DJI. Copyright © 2019 DJI OSMO All Rights Reserved.
