TLE987x EvalBoard Rev1.2 User Manual
About this document
Scope and purpose
This user manual is intented to help users using the TLE987x Evalboard. This Evalboard is designed to evaluate
hardware and software functionalities of the TLE987x device family.
This manual provides additional information about the board's layout, jumper settings, interface and debug
options. It introduces the evaluation platform as well as how to write software and download it to the TLE987x.
Intended audience
This document is for everyone who works with the TLE987x Evalboard.
User Manual
Please read the Important Notice and Warnings at the end of this document
Rev. 1.0
www.infineon.com
page 1 of 20
2019-04-15
Advertisement
Table of Contents
Related Manuals for Infineon Technologies TLE987x EvalBoard
Summary of Contents for Infineon Technologies TLE987x EvalBoard
-
Page 1: About This Document
About this document Scope and purpose This user manual is intented to help users using the TLE987x Evalboard. This Evalboard is designed to evaluate hardware and software functionalities of the TLE987x device family. This manual provides additional information about the board’s layout, jumper settings, interface and debug options. - Page 2 TLE987x EvalBoard User Manual About this document Abbreviations and definitions Table 1 Abbreviations Abbreviation Definition BLDC Brushless direct current Bootstrap loader GH1, 2, 3 Gate high-side MOSFETs for phases 1, 2 GL1, 2, 3 Gate low-side MOSFETs for phase 1, 2...
-
Page 3: Table Of Contents
TLE987x EvalBoard User Manual Table of contents Table of contents About this document ........................1 Table of contents ..........................3 Concept ..........................4 Interconnects ........................5 Test points and LEDs ....................... 7 Jumper settings ........................8 Communication interfaces ..................... 10 LIN (via banana jack and uIO BSL) ...................... -
Page 4: Concept

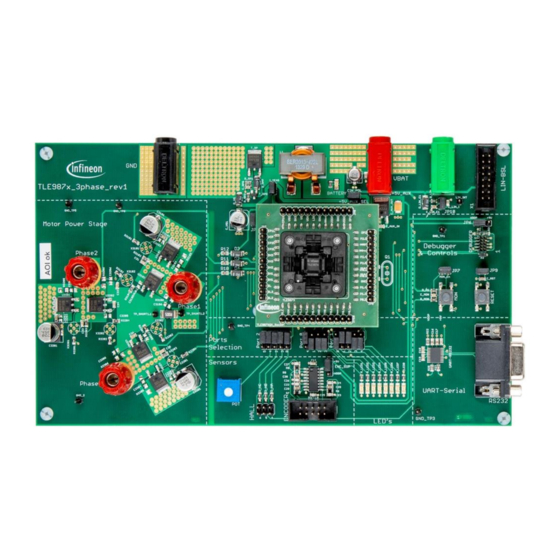

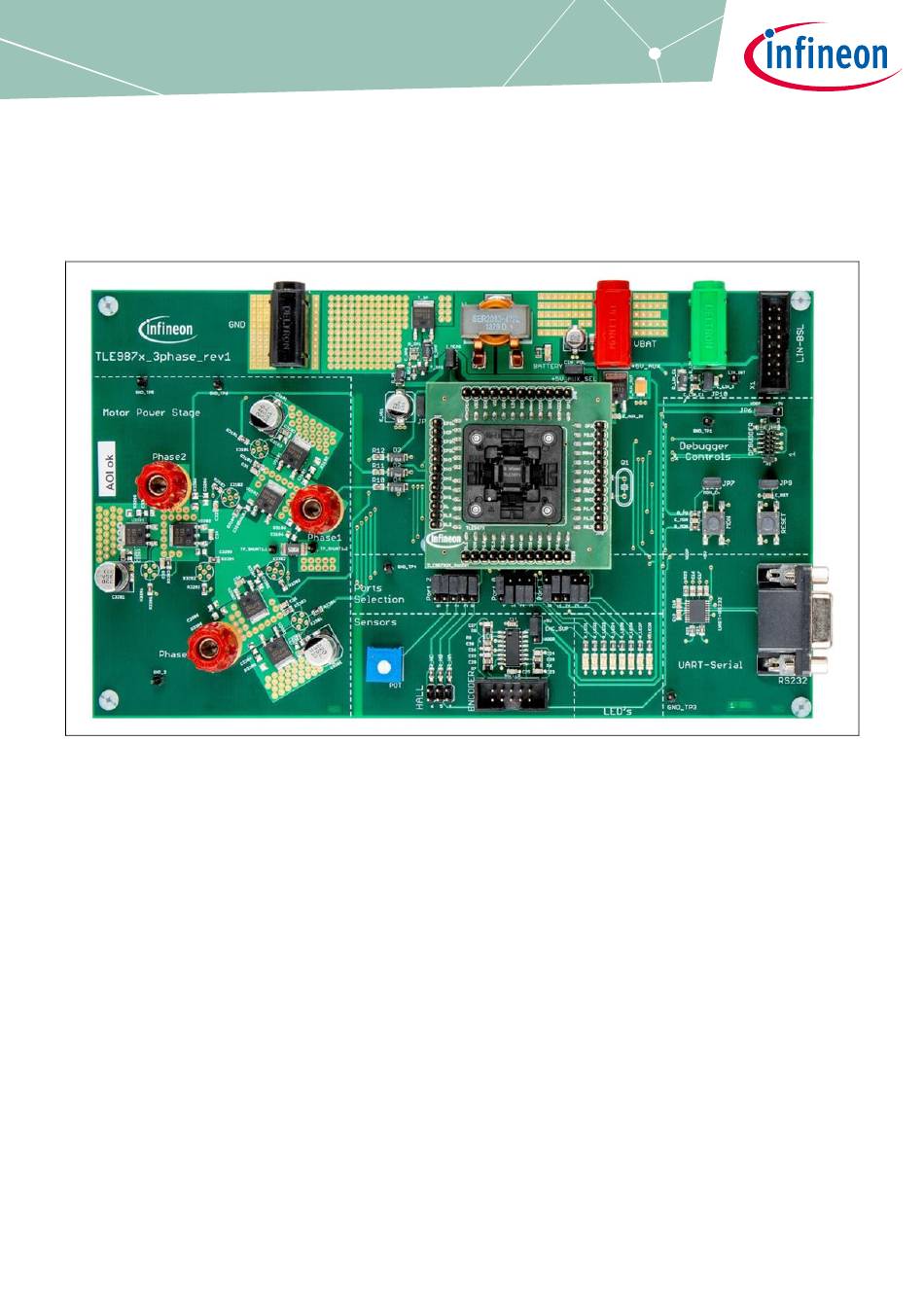

TLE987x EvalBoard User Manual Concept Concept Figure 1 Board concept This board is designed to provide a simple, easy-to-use tool for getting familiar with Infineon’s Embedded Power IC TLE987x devices. A socket provides the possibility to test and evaluate all ICs of the TLE987x family. -
Page 5: Interconnects
TLE987x EvalBoard User Manual Interconnects Interconnects Phase 2 Phase 1 Phase 3 Figure 2 Interconnects Banana jacks for ground, supply and LIN There are jacks in different colors for ground, supply (max. 28 V) and LIN communication via banana jack. The following jacks are available: GND (marked purple), VBAT (marked red) and LIN (marked green). - Page 6 TLE987x EvalBoard User Manual Interconnects n.c. n.c. n.c. VS_PRE RESET n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c. Figure 3 Pin configuration uIO BSL Pin header for SWD (marked blue) There is a 10 pin header (2 x 5) with 1.27 mm pitch on the evaluation board. This interface is meant to be used for debugging.
-
Page 7: Test Points And Leds
TLE987x EvalBoard User Manual Test points and LEDs Test points and LEDs Vbat LED LIN INT Shunt 1.1 Shunt 1.2 LEDs 1-8 Figure 5 Test points Several ground test points are provided. Test points Shunt 1.1 and Shunt 1.2 are provided at both sides of the shunt, which is 5 mR. -
Page 8: Jumper Settings
TLE987x EvalBoard User Manual Jumper settings Jumper settings I_MEAS +5V_AUX_SEL JP10 Port 2 Port 0 Port 1 Figure 6 Jumpers Table 2 Jumpers Close this jumper to connect MON button to MON input. Open it to disconnect MON button from MON input. - Page 9 TLE987x EvalBoard User Manual Jumper settings Jumper in position 2 Jumper in position 1 Figure 7 Jumper position Table 3 GPIOs’ function Port Position 1 Position 2 P0.1 LED 1 Encoder P0.2 LED 2 P0.3 LED 3 P0.4 LED 8 P1.0...
-
Page 10: Communication Interfaces
TLE987x EvalBoard User Manual Communication interfaces Communication interfaces LIN (via banana jack and uIO BSL) The device integrated LIN transceiver is connected to a banana jack and additionally to the uIO BSL interface. To integrate the device in a LIN network it is sufficient to use the single wire banana interface. The BSL interface is intended to program the device via LIN. -
Page 11: Software Toolchain
TLE987x EvalBoard User Manual Software toolchain Software toolchain Keil µVision 5 The recommended Integrated Software Development Environment is Keil® µVision5®. Infineon’s Embedded Power family is supported. For more information about the installation process, go to www.keil.com. Infineon ConfigWizard In addition to the IDE, Infineon provides a solution to speed-up the IC programming, the “ConfigWizard”. This tool is designed for code configuration in combination with the IDE. - Page 12 TLE987x EvalBoard User Manual Software toolchain Figure 8 Debug and flash configuration If the board is connected successfully, the Arm® IDCODE will be visible in the SW Device Window. If connection fails, “Connect & Reset Options” and “Port” window has to be checked.
-
Page 13: Technical Data
TLE987x EvalBoard User Manual Technical data Technical data Table 4 Technical data Voltage supply: max. 28 V Motor current: max. 20 A Pin ports: User Manual 13 of 20 Rev. 1.0 2019-04-15... -
Page 14: Optional Additional Placements
TLE987x EvalBoard User Manual Optional additional placements Optional additional placements C3103 R3105 C3104 R3106 C3106 C3205 R3304 R3303 Figure 9 Additional placements’ positions Values for these optional additional placements have to be determined depending on application. Table 5 Additional placements... - Page 15 TLE987x EvalBoard User Manual Optional additional placements Component Description C3206 Capacitor snubber low-side MOSFET phase 2 C3205 Gate drain capacitor low-side MOSFET phase2 R3305 Resistance snubber high-side MOSFET phase 3 C3304 Capacitor snubber high-side MOSFET phase 3 C3303 Gate drain capacitor high-side MOSFET phase 3...
-
Page 16: Schematics And Layout
TLE987x EvalBoard User Manual Schematics and layout Schematics and layout Schematic Figure 10 Schematics: Sheet 1 Figure 11 Schematics: Sheet 2 User Manual 16 of 20 Rev. 1.0 2019-04-15... - Page 17 TLE987x EvalBoard User Manual Schematics and layout Figure 12 Schematics: Sheet 3 Figure 13 Schematics: Sheet 4 User Manual 17 of 20 Rev. 1.0 2019-04-15...
- Page 18 TLE987x EvalBoard User Manual Schematics and layout Figure 14 Schematics: Sheet 5 User Manual 18 of 20 Rev. 1.0 2019-04-15...
-
Page 19: Layout
TLE987x EvalBoard User Manual Schematics and layout Layout Figure 15 Top layer Figure 16 Bottom layer User Manual 19 of 20 Rev. 1.0 2019-04-15... - Page 20 Email: erratum@infineon.com standards concerning customer’s products and any the product or any consequences of the use thereof use of the product of Infineon Technologies in can reasonably be expected to result in personal customer’s applications. injury. Document reference The data contained in this document is exclusively intended for technically trained staff.
