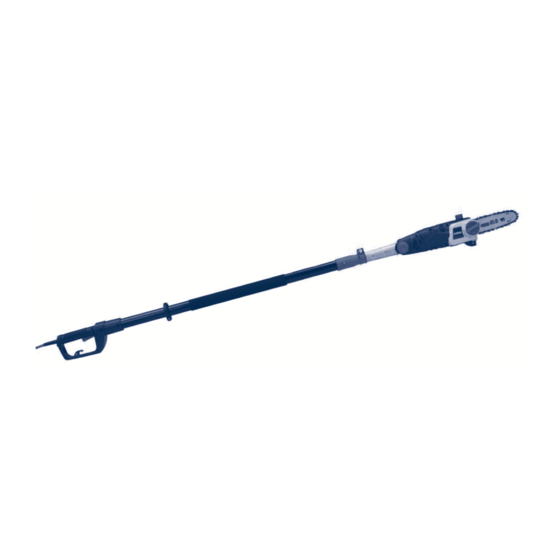

750W
ELECTRIC
POLE SAW S75EC2
YT4348
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your pole saw, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2070
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2070
Advertisement
Table of Contents
Related Manuals for Spear & Jackson S75EC2
Summary of Contents for Spear & Jackson S75EC2
- Page 1 ORIGINAL INSTRUCTION MANUAL 750W ELECTRIC POLE SAW S75EC2 YT4348 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2070 These instructions contain important information that will help you get the best from your pole saw, ensuring it is assembled correctly and safely.
- Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION......................04 Description of symbols...................04 General power tool safety warnings ..............05 Work area safety.....................05 Electrical safety....................05 Personal safety....................06 Power tool use and care.................07 Residual risks....................08 Intended use/Not intended use ..............08 IN THE BOX ........................09 Parts List ......................09 ASSEMBLE .........................10 PREPARE........................09 Oil filling......................10 Remove the bar sheath...................10... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Description of symbols Some of the following symbols may be used on your tool.Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident. -
Page 5: General Power Tool Safety Warnings
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine General power tool safety warnings WARNING Read all adapter plugs with safety warnings and all earthed (grounded) instructions. power tools. Unmodified Failure to follow the plugs and matching warnings and instructions outlets will reduce risk of may result in electric shock,... -
Page 6: Personal Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine tool outdoors, use an shoes, hard hat, or extension cord suitable hearing protection used for outdoor use. Use of a for appropriate conditions cord suitable for outdoor will reduce personal use reduces the risk of injuries. -
Page 7: Power Tool Use And Care
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine f) Dress properly. Do not and must be repaired. wear loose clothing or c) Disconnect the plug from jewellery. Keep your hair, the power source and/ clothing and gloves away or the battery pack from from moving parts. -
Page 8: Residual Risks
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine maintained power tools. suitable protective dust f) Keep cutting tools sharp mask is applied. and clean. Properly c) Damage to hearing if no maintained cutting tools suitable ear protection is with sharp cutting edges applied. -
Page 9: In The Box
IN THE BOX 1.Guide bar 9.Quick clip of telescopic pole 2.Saw chain 10.Sponge sleeve 3.Adjusting knob for saw chain 11.Seat for shoulder strap tension 12.Rear handle 4.Adjusting knob (red) for guide bar 13.Switch on/off tension 14. Lock-off button (at the other side 5.Cap of oil tank of machine) 6.Cover of guide bar and saw chain... -
Page 10: Assemble
ASSEMBLE The pole saw has been assembled in the standard delivery so no need for extra assembling steps. PREPARE 1. Oil filling Open the oil bottle (press the cap on the oil bottle and turn counterclockwise to open it ),then open oil tank cap to fill in the oil. -
Page 11: Adjust The Pole Length
PREPARE 5.Adjust the pole length Adjust the length of the pole saw according to working situation. Pull the lever of the quick clip to release the pole. Extend the pole to the desired length. Lock the pole in position by locking the quick clip lever and ensure that the pole is secure. -
Page 12: Settle Power Cord
PREPARE Then turn the knob clockwise to tighten and fix the head in the position. 7.Settle power cord The power cord should be wrapped around the cable clip to avoid long lines stumbling pedestrians or causing electric shock. Cable clip 8.Connect to the power source Insert the power cord/plug to the power source before starting to work. -
Page 13: Check The Oil Passes
OPERATE 1. Switch on/off To turn the tool ON, push and hold the safety lock 1.Safety lock button button with your thumb and then squeeze the trigger with your fingers. Once the tool is running. you release the safety lock button. Release the trigger switch to stop the chain. -
Page 14: Start Cutting
OPERATE 4. Start cutting · Cut lower branches first to allow the top branches more room to fall. · When pruning trees, it is important not to make the finishing cut next to the main limb or trunk until you have cut off the farthest lying limb. This will Load reduce the weight and prevent stripping the bark Second Cut... -
Page 15: Maintenance
MAINTENANCE Motor Cooling To avoid overheating and damage to the motor, always keep the cooling air vents clean and free of sawdust and debris. Adjust the chain tension Always check the chain tension before use, after the first cuts and regularly during use, approx. every 10 minutes. -
Page 16: Guide Bar Maintenance
MAINTENANCE · To move the chain forward, use a screwdriver. · Turn the bar over in the vice and repeat on all the other cutting edges. · Check that the depth limiter tooth does not stick out farther than the inspection tool and file any projecting parts with a flat file, rounding off the edges. -
Page 17: Transportation
MAINTENANCE free place. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 to 30°C. We recommend using the original package for storage or covering the product with a suitable cloth to protect it against dust. -
Page 18: Recycle And Disposal
TECHNICAL DATA Model number YT4348 Rated voltage 220-240V/50Hz Rated input power 750W No-load speed 5600/min Guide bar length 20cm Oil tank capacity 60ml Chain speed 11m/s The total length(from the end of handle 1.92~2.60m to top of guide bar) Protection class Degree of protection IPX0 Net weight(with chain and bar) -
Page 19: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre (call the helpline on 0345 605 2070) if you cannot solve the problem yourself! - Page 20 WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2070, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
- Page 21 AFTER SALES SUPPORT 0345 605 2070...
