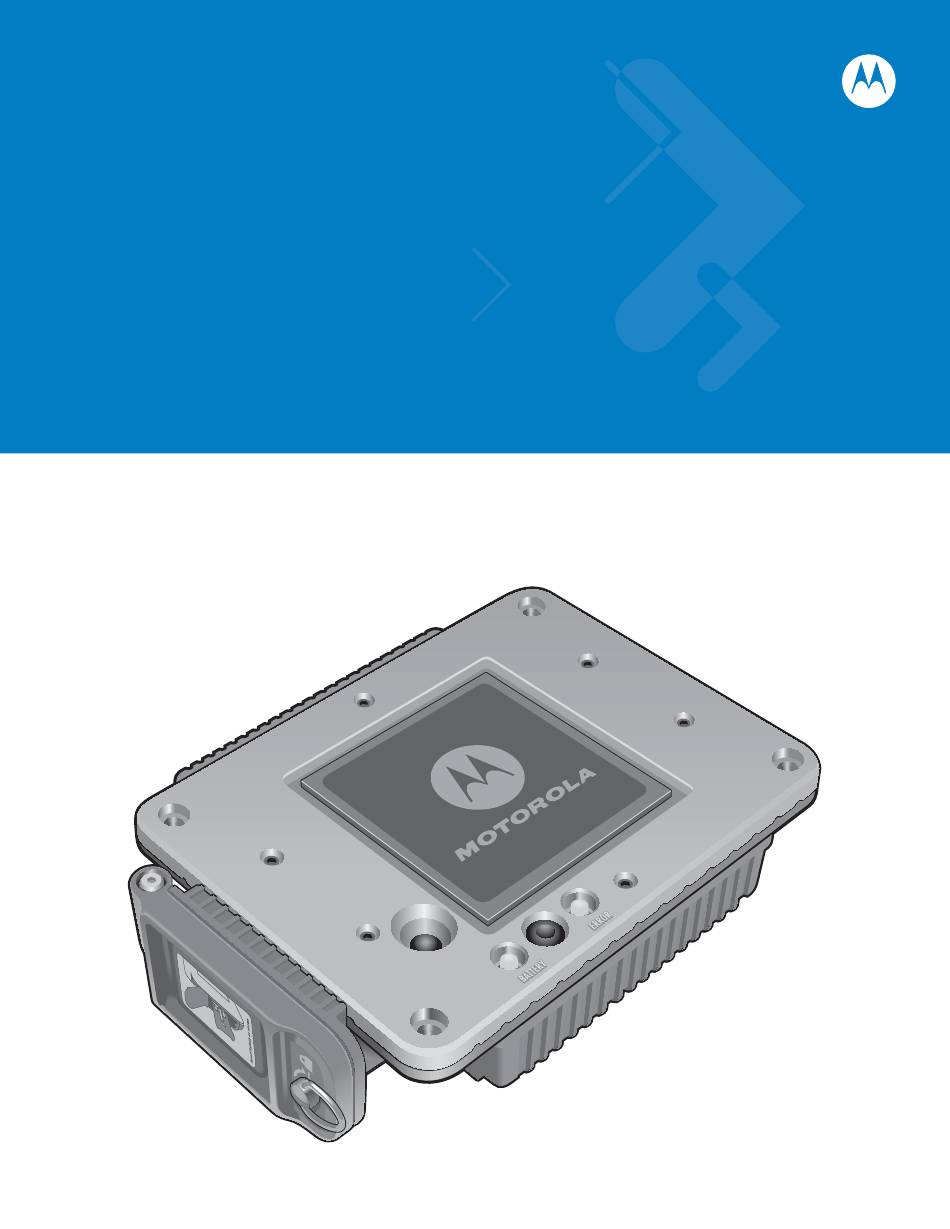

RD5000 RFID Reader
Integrator Guide

Advertisement

Table of Contents
loading

Summary of Contents for Motorola RD5000

  • Page 1 RD5000 RFID Reader Integrator Guide...
  • Page 3 RD5000 RFID Integrator Guide 72E-109786-01 Rev A March 2008...

  • Page 4: Patents

    Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Motorola.

  • Page 5: Revision History

    Revision History Changes to the original manual are listed below: Change Date Description -01 Rev A 10/2006 Initial Release -02 Rev A 1/2008 Added External Antenna Software Update Version 1.1 Updated Chapter 5, Wireless Applications Added new Demo Application in Chapter 7 Replaced Chapter 8, Bluetooth Setup...
  • Page 6 RD5000 RFID Integrator Guide...

  • Page 7: Table Of Contents

    Table of Contents Patents..............................ii Revision History............................ iii About This Guide Introduction ............................xiii Documentation Set ......................... xiii Configurations............................xiv Chapter Descriptions ..........................xv Notational Conventions......................... xv Related Documents and Software ......................xvi Service Information..........................xvi Support Information ........................xvi Chapter 1: Getting Started Introduction ............................
  • Page 8 RD5000 Installation ..........................2-1 Mounting Location .......................... 2-1 Installing The Motorola Mounting Brackets ..................2-2 Installing The Shock Isolators on The Motorola Mounting Brackets ..........2-6 Locally Fabricated Mounting Platform .................... 2-7 Mounting Platform Fabrication ....................2-7 Installing The Shock Isolators on The Locally Fabricated Mounting Platform ....... 2-8 Mounting The Reader ........................
  • Page 9 Table of Contents Chapter 5: Wireless Applications Introduction ............................5-1 Signal Strength Icon ..........................5-2 Turning the WLAN Radio On and Off ....................5-3 Windows CE 5.0 with Fusion 2.4 and Higher ................. 5-3 Find WLANs Application ........................5-4 Profile Editor Wizard ..........................5-5 Profile ID ............................
  • Page 10 Chapter 6: Application Deployment for WinCE 5.0 Software Installation on Development PC ................... 6-1 Required System Configurations ....................6-2 DCP for RD5000 ..........................6-2 To install the DCP for RD5000: ....................6-3 Components ..........................6-3 Platform SDK ..........................6-4 Symbol Mobility Developer Kits ..................... 6-5 SMDK for C Contents and Locations ..................
  • Page 11 Table of Contents AirBEAM Smart ............................ 6-19 AirBEAM Package Builder ......................6-19 AirBEAM Smart Client ........................6-19 AirBEAM License ........................6-20 Configuring the AirBEAM Smart Client ..................6-20 Packages(1) Tab ........................6-20 Packages(2) Tab ........................6-21 Server Tab ..........................6-21 Misc(1) Tab ..........................
  • Page 12 RD5000 RFID Integrator Guide Launching the GeminiRFID Demo Application ..................7-28 Reading Tags ..........................7-29 Selecting Tags ..........................7-30 Clearing the Display ........................7-30 Saving Tag Data ..........................7-31 File Menu ............................7-31 About ............................7-32 Log ............................7-32 Reboot ............................. 7-32 Settings ............................
  • Page 13 Table of Contents Bluetooth Settings ..........................8-21 Device Info Tab ..........................8-21 Services Tab ..........................8-22 Dial-Up Networking Service ..................... 8-22 File Transfer Service ........................ 8-23 OBEX Object Push Service ..................... 8-24 ..............................8-24 Personal Area Networking Service ..................8-24 Serial Port Service ........................
  • Page 14 RD5000 RFID Integrator Guide...

  • Page 15: About This Guide

    NOTE Screens and windows pictured in this guide are samples and may differ from actual screens. Documentation Set The documentation set for the RD5000 RFID reader is divided into guides that provide information for specific user needs. • Microsoft Application Guide - describes how to use Microsoft developed applications.

  • Page 16: Configurations

    RD5000 RFID Integrator Guide NOTE The RD5000 User Guide information is presented in the Quick Start Guide. Configurations This guide covers the following configurations: Data Operating Configuration Radios Memory Other Capture System RD5000 WLAN: 802.11a/b/g 64 MB RAM RFID Windows...

  • Page 17: Chapter Descriptions

    Parameters, describes the Motion/Proximity sensor setting for the RFID reader. Notational Conventions The following conventions are used in this document: • “RFID Reader”, “reader” or “mobile computer” refers to the Motorola RD5000 RFID reader. • Italics are used to highlight the following: • Chapters and sections in this guide •...

  • Page 18: Related Documents And Software

    • RD5000 RFID Reader DCP Update, available at: http://support.symbol.com. • Device Configuration Package and Platform SDK for 9090c50 (for RD5000 with Windows CE 5.0), available http://support.symbol.com. • ActiveSync software, available at: http://www.microsoft.com. For the latest version of this guide and all guides, go to: http://support.symbol.com.

  • Page 19: Chapter 1 Getting Started

    Chapter 1 Getting Started Introduction This chapter provides an overview of the RD5000 RFID reader, explains how to charge the battery and how to start the reader. Figure 1-1 on page 1-2 provides the reader parts location and Figure 1-2 on page 1-3 provides the locations of the reader ports and connectors.

  • Page 20: Connections And Ports

    Battery Door Battery Power Error RFID Sensor Button Antenna Door Latch RD5000 RFID Reader Figure 1-1 Connections and Ports The RD5000 RFID reader has connections for: • Power input (battery charging) and serial communication • USB communication • External antenna...
  • Page 21 LAN Antenna External Power, Battery Charging and Serial Communications mini-USB Port External Antenna Connector RD5000 RFID Reader Ports/Connectors and Antenna Locations Figure 1-2 RD5000 RFID Reader Ports/Connections Table 1-1 Port/Connectors Description Power/Serial Connection for external power, battery charging and serial communications.

  • Page 22: Accessories

    RD5000 RFID Reader DCP Update, available at: http://support.symbol.com. Device Configuration Package and Platform SDK for 9090c50 (for RD5000 with Windows CE 5.0), available at: http://support.symbol.com. Getting Started In order to start using the reader for the first time: •...

  • Page 23: Installing And Removing The Battery

    Getting Started 1 - 5 Installing and Removing the Battery Installing the Battery Before using the reader, install the battery into the reader. If the battery was fully charged before installation the unit is ready to use. If the battery is not charged when it was installed then it must be charged in the unit prior to use. Rotate the door latch (see Figure 1-1 on page 1-2) counterclockwise 1/4 turn to disengage the battery door...

  • Page 24: Removing/Replacing The Main Battery

    Removing the Main Battery Figure 1-4 NOTE When main battery door is opened and closed or if the battery is replaced, RD5000 RFID reader may not properly power itself back on. To power up the reader, manually initiate a cold boot (see...

  • Page 25: Charging The Battery

    Getting Started 1 - 7 Charging the Battery Charging the Main Battery and Memory Backup Battery Before using the reader for the first time, connect the reader to the optional power supply (see Figure 1-5 on page 1-8) and charge the battery until the amber charge indicator light remains lit (see Table 1-3 on page 1-5) for charge status indications).

  • Page 26: Serial Communications

    1 - 8 RD5000 RFID Integrator Guide Serial Communications Serial communications are connected in the same way that the battery charging is connected. Except that the Charging Cable with Serial Communications (see Figure 3-7 on page 3-8) is used instead of the Charging Cable.

  • Page 27: Charging Spare Batteries

    Getting Started 1 - 9 RD5000 LED Indicators (Continued) Table 1-3 LED Indication Description ERROR LED Green Normal operation. Green-Flash Red Indicates a momentary error condition. Red Blinking Service the reader. Charging Spare Batteries Use the following accessories to charge spare batteries (outside of the reader): •...

  • Page 28: Connect A Usb Cable

    1 - 10 RD5000 RFID Integrator Guide Connect a USB Cable The USB port is protected by the USB port cover. To access the USB port, remove the USB port cover. CAUTION With the USB port cover removed the reader should only be operated in a clean, dry environment (for setup and configuration only).

  • Page 29: Connect An External Antenna

    Getting Started 1 - 11 Connect an External Antenna The external antenna looks very similar to the RD5000 and it provides a remotely mounted antenna location (see Figure 3-13 on page 3-11). When the reader is used without an external antenna the external antenna port is protected by the 50 ohm termination resistor/cover.
  • Page 30 1 - 12 RD5000 RFID Integrator Guide Connect the external antenna to the external antenna port as shown in Figure 1-9. Reader External Antenna Connector Connect an External Antenna Cable to the Reader Figure 1-9 Connect the external antenna to the external antenna port as shown in Figure 1-10.

  • Page 31: Starting The Reader

    Host Computer Display Setup The RD5000 does not have a display. To view the system menus use an application such as the Microsoft Remote Display Control for Pocket PC. For more information and the Remote Display Control for Pocket PC download go http://www.microsoft.com/downloads/...

  • Page 32: Status Icons (Windows Ce 5.0)

    1 - 14 RD5000 RFID Integrator Guide Status Icons (Windows CE 5.0) at the bottom of the window displays the active programs, current time, battery status and Taskbar communication status. Status Icons Desktop Button Start Button Open Programs Taskbar Figure 1-11 Status icons are shown in the taskbar to indicate present status of the reader.

  • Page 33: Resetting The Reader

    Hold down the Power button (see Figure 1-1 on page 1-2) for approximately five seconds. As soon as the reader battery LED turns off release the Power button. As the RD5000 starts to perform a warm boot it beeps twice.

  • Page 34: Performing A Cold Boot

    1 - 16 RD5000 RFID Integrator Guide Performing a Cold Boot A cold boot restarts the reader and erases all user stored records and entries that are not saved in flash memory (Application and Platform folders). Never perform a cold boot unless a warm boot does not solve the problem.

  • Page 35: Chapter 2 Installation

    Introduction The RD5000 RFID reader is designed for use on a mobile platform such as a forklift. The unit may be used both indoors and outside and is resistant to outside elements such as sun, rain, snow and splashed water. The RD5000 RFID reader requires a mounting platform.

  • Page 36: Installing The Motorola Mounting Brackets

    Installing The Motorola Mounting Brackets The Motorola mounting brackets are designed to provide the proper clearances, as well as provide protection from a flat object impacting the reader. The brackets are designed to be welded in place and a welding jig is available for this purpose.
  • Page 37 Installation 2 - 3 Attach the welding jig to the shock isolators using the four allen head screws and the four lock washers. The mounting brackets are identical so either bracket can be used on the left or right hand sides. Welding Jig Allen Head Screws (4) Lock Washers (4)
  • Page 38 2 - 4 RD5000 RFID Integrator Guide Tack weld the mounting brackets in the six locations marked (see Figure 2-3). The welds should be 1/2 inch to 3/4 inch long, with a 1/4 inch bead and 1/16 inch penetration. Tack Welds (6 places)
  • Page 39 Installation 2 - 5 Finish welding the mounting brackets (see Figure 2-4) with a 1/4 inch bead and 1/16 inch penetration. Finish Welds Finish Welding the Brackets Figure 2-4 Clean and inspect the welds. Re-weld any areas that require touch-up. Allow the brackets to cool before continuing with the installation.

  • Page 40: Installing The Shock Isolators On The Motorola Mounting Brackets

    Repeat the shock isolator mounting procedure for all four shock isolators. Shock Isolator (4) Lock Washer (4) Nut (4) Mounting Bracket (2) Mounting the Shock Isolators Figure 2-5 The mounting brackets are ready to accept the RD5000 RFID reader. Proceed to Mounting The Reader on page 2-9.

  • Page 41: Locally Fabricated Mounting Platform

    2 - 7 Locally Fabricated Mounting Platform NOTE The locally fabricated mounting platform is only used when the Motorola mounting brackets are not (or cannot) be used. The mounting platform may be locally fabricated, or the Motorola mounting brackets may be used (recommended) as the mounting platform.

  • Page 42: Installing The Shock Isolators On The Locally Fabricated Mounting Platform

    2 - 8 RD5000 RFID Integrator Guide Installing The Shock Isolators on The Locally Fabricated Mounting Platform The locally fabricated mounting platform must provide the proper clearances (see Figure 2-6 on page 2-7). Attach the shock isolators (provided with the reader) using the post side of the shock isolator as appropriate for the mounting platform design.

  • Page 43: Mounting The Reader

    2 - 9 Mounting The Reader The steps provided are to mount the RD5000 RFID reader to the Motorola mounting brackets. Adjust the steps accordingly if a fabricated platform is being used. Prior to starting the installation confirm that the reader has been configured for the local wireless network and that the battery has been fully charged.
  • Page 44 2 - 10 RD5000 RFID Integrator Guide Slide the reader under the mounting bracket far enough to clear the external antenna terminating resistor and lower the reader onto the shock isolators. External Antenna Terminating Resistor Mounting the RD5000 RFID Reader Figure 2-8 Slide the reader over the shock isolators to align the shock mount holes with the reader mounting holes.
  • Page 45 Installation 2 - 11 RD5000 RFID Reader Final Installation Figure 2-9 Once all of the allen head screws are in place, use a 3/16 inch allen wrench and a 7/16 open end wrench to tighten the allen screws and the shock isolator nuts to a torque of 3.3 ft.-lbs.

  • Page 46: External Antenna Installation

    The external antenna must be professionally installed. Select an accessible mounting location that is free from obstructions that might inhibit reading. The external antenna uses the same mounting brackets or mounting platform that the RD5000 uses. The location should not subject the external antenna to possible damage during loading and unloading of products.

  • Page 47: Chapter 3 Accessories

    Chapter 3 Accessories Introduction The RD5000 RFID reader and the MC9000 Series mobile computers share some of the same accessories. These accessories provide a wide variety of product support capabilities. Accessories include a power supplies, spare batteries and battery charging solutions. The RD5000 accessories include: •...

  • Page 48: Power Supply

    RD5000 RFID Integrator Guide Power Supply The Motorola approved power supply output rated at12 Vdc and a minimum of 3.33 A is required to maintain warranty coverage and regulatory approvals. The power supply is certified to EN60950-1 with SELV outputs. Use of an alternative power supply will invalidate any approval given to this device and may be dangerous.

  • Page 49: Four Slot Spare Battery Charger

    Four Slot Spare Battery Charger Figure 3-1 Setup CAUTION Use only a Motorola approved power supply output rated 15 VDC and minimum 5 A. Use of an alternative power supply will void the product warranty and may cause product damage. Power Port DC Cable...

  • Page 50: Spare Battery Charging With The Four Slot Spare Battery Charger

    3 - 4 RD5000 RFID Integrator Guide Spare Battery Charging with the Four Slot Spare Battery Charger Connect the charger to a power source as shown in Figure 3-2. Insert the battery into a spare battery charging slot and gently press down on the battery to ensure proper contact.

  • Page 51: Universal Battery Charger (Ubc) Adapter

    Accessories 3 - 5 Universal Battery Charger (UBC) Adapter This section describes how to use the UBC adapter to charge a spare battery. The UBC can be used with a power supply as a standalone spare battery charger or it can be used with the four station UBC2000 to provide charging to simultaneously charge up to four spare batteries.

  • Page 52: Setup

    RD5000 RFID Integrator Guide Setup CAUTION Use only a Motorola approved power supply output rated 15 VDC and minimum 1.5 A. Use of an alternative power supply will void the product warranty and may cause product damage. DC Cable AC Line Cord...

  • Page 53: Charging Cable

    Charging error, check placement of RFID reader/spare battery. CHARGING Yellow Normal charge. Charging Cable The Charging Cable is used to connect the power supply to the RD5000. The pin-outs for the Power/Serial Connector are provided in Table 3-3. Power Supply Connector...

  • Page 54: Charging Cable With Serial Communications

    RD5000 RFID Integrator Guide Charging Cable With Serial Communications The Charging Cable With Serial Communications is used to connect the power supply to the RD5000 and provide serial communications between the RD5000 and a local computer. The pin-outs for the Power/Serial Connector are...

  • Page 55: Usb Communications Cable

    Accessories 3 - 9 USB Communications Cable The USB Communications Cable is a standard USB to USB mini cable and may be purchased locally. USB Connection Setup (Windows CE 5.0) Ensure that ActiveSync was installed on the host computer and a partnership was created (see Chapter 4, ActiveSync).
  • Page 56 Upon connection, synchronization occurs automatically. USB Connection Setup (Windows CE 5.0) The RD5000 USB setup is controlled through the CTLPanel. The default setting is USB, to confirm or change the setting perform the following. From the RD5000 main window (see...

  • Page 57: External Antenna

    Accessories 3 - 11 USB Settings Window Figure 3-12 Click OK to exit the Comm Settings window and click Exit to exit the Control Panel window. External Antenna The external antenna provides a remotely mounted antenna location. The internal and the external antenna can operate independently from each other and can even have different power settings.
  • Page 58 3 - 12 RD5000 RFID Integrator Guide...

  • Page 59: Chapter 4 Activesync

    Chapter 4 ActiveSync Introduction To communicate with various host devices, install Microsoft ActiveSync (version 4.1 or higher) on the host computer. Use ActiveSync to synchronize information on the reader with information on the host computer. Changes made on the reader or host computer appear in both places after synchronization. NOTE When a reader with Windows Mobile 5.0 is connected to a host computer and an ActiveSync connection is made, the WLAN and WWAN radios (if applicable) are disabled.

  • Page 60: Connect The Rd5000 Usb Communications Cable

    4 - 2 RD5000 RFID Integrator Guide Connect the RD5000 USB Communications Cable Connect the RD5000 Communications cable to the RD5000 and the host computer, see Serial Communications on page 1-8 Connect a USB Cable on page 1-10. Setting Up an ActiveSync Connection (with no Partnership) on the Host Computer After ActiveSync installation is complete, the ActiveSync Setup Wizard sets up communications between the RFID reader and host computer.
  • Page 61 ActiveSync 4 - 3 Select the No radio button in the Set up a Partnership window. Click Next. If the ActiveSync Not Connected window (see Figure 4-3) displays, proceed to step 6. If the ActiveSync Connected window (see Figure 4-7) displays, proceed to step 11. Get Connected Window Figure 4-2 In the ActiveSync Not Connected window, select File >...
  • Page 62 4 - 4 RD5000 RFID Integrator Guide Select the Allow USB connections, check box. ActiveSync Connection Settings Window Figure 4-4 Click on OK. The ActiveSync Add/Remove Programs Window displays. Select any required programs to be added and click OK. The ActiveSync Connecting Window displays.
  • Page 63 ActiveSync 4 - 5 The ActiveSync Connecting Window displays until ActiveSync connects. ActiveSync Connecting Window Figure 4-6 When Active Sync has connected, the ActiveSync Connected window displays. ActiveSync Connected Window Figure 4-7 The ActiveSync Connected window indicated that ActiveSync has successfully connected.

  • Page 64: Setting Up A Partnership

    4 - 6 RD5000 RFID Integrator Guide Setting up a Partnership After ActiveSync installation is complete, the ActiveSync Setup Wizard sets up a partnership to synchronize information between the RFID reader and host computer and customize synchronization settings. Before setting up a partnership between the RFID reader and host computer, refer to the Chapter 3, Accessories for a list of the accessories that can be used.
  • Page 65 ActiveSync 4 - 7 Select any required programs to be added and click on OK. The Select Number of Partnerships Window displays. Add/Remove Programs Window Figure 4-10 Select the appropriate radio button for the number of computers to be included in the partnership. Click Next, the Select Synchronization Settings window displays.
  • Page 66 4 - 8 RD5000 RFID Integrator Guide To synchronize a particular type of information, select its check box. To stop synchronization of that information, clear its check box. Select any required synchronization items and click Next. The Connecting window displays (may be very brief).
  • Page 67 ActiveSync 4 - 9 ActiveSync Not Connected Window Figure 4-14 In the ActiveSync Connection Settings window, select the Allow USB Connections check box and click Connect. The ActiveSync Connecting window (see Figure 4-13) displays (may be very brief). ActiveSync Connection Settings Window Figure 4-15 When the synchronization is complete the Setup Complete window (see Figure...
  • Page 68 NOTE The first ActiveSync operation must be performed with a local, direct connection. To retain partnerships after a cold boot, capture partnership registry information in a .reg file and save it in the Flash File System, detailed information is provided in the SMDK Windows CE Help File for Motorola RFID readers, Deployment on page 6-7 for the SMDK information.

  • Page 69: Rfid Reader Setup

    ActiveSync. USB Connection Setup (Windows CE 5.0) The RD5000 USB setup is controlled through the CTLPanel. The default setting is USB, to confirm or change the setting perform the following.
  • Page 70 4 - 12 RD5000 RFID Integrator Guide On the RFID reader double-click the icon and double-click to display the Ctl Panel Comm Settings Comm window. Settings Comm Settings Window Figure 4-20 With Port highlighted, use the left and right arrow buttons to select the value.

  • Page 71: Chapter 5 Wireless Applications

    Wireless Local Area Networks (WLANs) allow readers to communicate wirelessly and send captured data to a host device in real time. The RD5000 RFID reader supports the IEEE 802.11a, 802.11b and 802.11g standards. Before using the reader on a WLAN, the facility must be set up with the required hardware to run the wireless LAN and the reader must be configured.

  • Page 72: Signal Strength Icon

    5 - 2 RD5000 RFID Integrator Guide Windows CE 5.0 Wireless Applications Menu Figure 5-1 Signal Strength Icon icon in the task tray indicates the wireless signal strength as follows: Signal Strength Wireless Applications Icons, Signal Strength Descriptions Table 5-1...

  • Page 73: Turning The Wlan Radio On And Off

    Wireless Applications 5 - 3 Turning the WLAN Radio On and Off Windows CE 5.0 with Fusion 2.4 and Higher To turn the WLAN radio off click the icon and select Signal Strength Disable Radio Disable Radio Enable Radio Figure 5-2 Disable and Enable Radio To turn the WLAN radio on click the icon and select...

  • Page 74: Find Wlans Application

    5 - 4 RD5000 RFID Integrator Guide Find WLANs Application Use the application to discover available networks in the vicinity of the user and reader. To open the Find WLANs application, click the icon > . The window displays. Find WLANs...

  • Page 75: Profile Editor Wizard

    Wireless Applications 5 - 5 Encryption Icon Table 5-3 Icon Description WLAN is an infrastructure network, with no encryption. WLAN is an Ad-Hoc network, with no encryption. WLAN access is encrypted and requires a password. WLAN is an Ad-Hoc network, with encrypted access and requires a password.

  • Page 76: Operating Mode

    5 - 6 RD5000 RFID Integrator Guide Profile ID Fields Table 5-4 Field Description Name The name and (WLAN) identifier of the network connection. Enter a user friendly name for the reader profile used to connect to either an AP or another networked computer. Example: The Public LAN.
  • Page 77 > setting is not used. For a single profile that can Options Regulatory Country be used in multiple countries, with infrastructure that supports 802.11d (including Motorola infrastructure), set the Profile Country to . Under > , select Allow Any Country...

  • Page 78: Ad-Hoc

    5 - 8 RD5000 RFID Integrator Guide Ad-Hoc Use the dialog box to select the required information to control mode. This dialog box does not Ad-Hoc Ad-Hoc appear if mode is selected. To select Ad-Hoc mode: Infrastructure Select a channel number from the drop-down list.

  • Page 79: Authentication

    Wireless Applications 5 - 9 Authentication Use the dialog box to configure authentication. If mode is selected, this dialog box is not Authentication Ad-Hoc available and authentication is set to by default. None Select an authentication type from the drop-down list and click .
  • Page 80 5 - 10 RD5000 RFID Integrator Guide Select a tunneled authentication type from the drop-down list. See Table 5-8 Table 5-9. Select the check box if a certificate is required. If the TLS tunnel type selected requires a user User Certificate certificate, the check box is already selected.

  • Page 81: User Certificate Selection

    Wireless Applications 5 - 11 TTLS Tunneled Authentication Options (Continued) Table 5-9 TTLS Tunneled Description Authentication MS CHAP v2 MS CHAP v2 is a password based, challenge response, mutual authentication protocol that uses the industry standard Message Digest 4 (MD4) and Data Encryption Standard (DES) algorithms to encrypt responses.

  • Page 82: Server Certificate Selection

    5 - 12 RD5000 RFID Integrator Guide ********* Credentials Dialog Box Figure 5-10 Enter the (password), and information in their respective text boxes. User: Pwd: Server: Click Retrieve. A dialog indicates the status of the certificate retrieval. Progress Click ok to exit.

  • Page 83: Credential Cache Options

    Wireless Applications 5 - 13 Browse Server Certificates Figure 5-12 Locate a certificate: For Windows Mobile, select a different folder, if applicable, using the drop-down list. Click the Folder certificate filename. The certificate installs automatically. For Windows CE, navigate to the folder where the certificate is stored. Click the certificate filename and then click ok.
  • Page 84 5 - 14 RD5000 RFID Integrator Guide Prompt for Login at Dialog Box Figure 5-14 If the reader does not have the credentials, it prompts the user to enter a username and password. If the reader has the credentials (previous entered via a login dialog box), it uses these credentials unless the caching options require the reader to prompt for new credentials.

  • Page 85: User Name

    Wireless Applications 5 - 15 Click the radio button to check credentials at a set time interval. Interval Enter the value in minutes in the box. Click the radio button to check credentials at a set time. At (hh:mm) Click Next. The dialog box appears.

  • Page 86: Advanced Identity

    5 - 16 RD5000 RFID Integrator Guide Click . The dialog box displays. See Encryption on page 4-17. Next Encryption Advanced Identity Use the dialog box to enter the 802.1X identity to supply to the authenticator. This value can be 63 Advanced ID characters long and is case sensitive.
  • Page 87 Wireless Applications 5 - 17 Encryption Options Table 5-11 Encryption Description Open Select Open (the default) when no data packet encryption is needed over the network. Selecting this option provides no security for data transmitting over the network. 40-Bit WEP Select 40-Bit WEP to use 40-bit key length WEP encryption.

  • Page 88: Key Entry Page

    5 - 18 RD5000 RFID Integrator Guide Key Entry Page If either is selected the wizard proceeds to the key entry dialog box unless the 40-Bit WEP 128-Bit WEP check box was selected in the dialog box (see Figure 5-20 on page 5-16).

  • Page 89: Ip Address Entry

    Wireless Applications 5 - 19 IP Address Entry Use the dialog box to configure network address parameters: IP address, subnet, gateway, DNS, IP Address Entry and WINS. IP Address Entry Dialog Box Figure 5-23 IP Address Entry Table 5-13 Encryption Description DHCP Select Dynamic Host Configuration Protocol (...
  • Page 90 5 - 20 RD5000 RFID Integrator Guide Select the check box, then click to display the dialog box. Enter the Advanced NEXT Advanced Address Entry Gateway, DNS, and WINS address. Click without selecting the check box to display the NEXT...

  • Page 91: Transmit Power

    Wireless Applications 5 - 21 Transmit Power drop-down list contains different options for Ad-Hoc and Infrastructure mode. Automatic (i.e., Transmit Power use the current AP settings) and Power Plus (use higher than the current AP settings) are available for mode. Infrastructure Adjusting the radio transmission power level enables the user to expand or confine the transmission area with respect to other wireless devices that could be operating nearby.

  • Page 92: Battery Usage

    5 - 22 RD5000 RFID Integrator Guide Battery Usage Use the dialog box to select power consumption of the wireless LAN. There are three settings Battery Usage available: CAM, Fast Power Save, and MAX Power Save. Battery usage cannot be configured in Ad-Hoc profiles.

  • Page 93: Changing Profiles

    Wireless Applications 5 - 23 Profile Icons Table 5-19 Icon Description No Icon Profile is not selected, but enabled. Profile is disabled. Profile is cancelled. A cancelled profile is disabled until a connect or login function is performed through the configuration editor. Profile is in use and describes an infrastructure profile not using encryption.

  • Page 94: Editing A Profile

    5 - 24 RD5000 RFID Integrator Guide Manage Profiles Figure 5-31 Click and hold a profile and select from the pop-up menu to set this as the active profile. Once selected, Connect the reader uses the authentication, encryption, ESSID, IP Config, and power consumption settings configured for that profile.

  • Page 95: Ordering Profiles

    Wireless Applications 5 - 25 Ordering Profiles Click and hold a profile from the list and select to order the profile. If the current profile Move Up or Move Down association is lost, the reader attempts to associate with the first profile in the list, then the next, until it achieves a new association.

  • Page 96: Signal Strength Window

    5 - 26 RD5000 RFID Integrator Guide window contains the following options. Click the option to display the option window. Wireless Status • Signal Strength - provides information about the connection status of the current wireless profile. • Current Profile - displays basic information about the current profile and connection settings.

  • Page 97: Current Profile Window

    Wireless Applications 5 - 27 Signal Strength Status Table 5-20 Field Description Signal Displays the Relative Signal Strength Indicator (RSSI) of the signal transmitted between the AP and reader. As long as the Signal Quality icon is green the AP association is not jeopardized.

  • Page 98: Ipv4 Status Window

    5 - 28 RD5000 RFID Integrator Guide Current Profile Window Figure 5-36 Current Profile Window Table 5-21 Field Description Profile Name Displays the current profile name the reader uses to communicate with the AP. ESSID Displays the current profile ESSID name.
  • Page 99 Wireless Applications 5 - 29 IPv4 Status Window Figure 5-37 IPv4 Status Fields Table 5-22 Field Description IP Type Displays the IP type for the current profile: . If the IP type is DHCP, leased IP DHCP Static address and network address data appear for the reader. If the IP type is Static, the values displayed were input manually in the tab on page...

  • Page 100: Wireless Log Window

    5 - 30 RD5000 RFID Integrator Guide Wireless Log Window window displays a log of recent activity, such as authentication, association, and DHCP renewal Wireless Log completion, in time order. Save the log to a file or clear the log (within this instance of the application only). Click the auto-scroll feature to automatically scroll down when a new items is added to the log.

  • Page 101: Wireless Diagnostics Application

    Wireless Applications 5 - 31 Versions Window Figure 5-39 The window displays software version numbers for the following: • Configuration Editor (Fusion 2.4 and lower only) • Fusion Build • LoginService • PublicAPI (Fusion 2.5 and higher only) • Photon10 •...

  • Page 102: Icmp Ping Window

    5 - 32 RD5000 RFID Integrator Guide Wireless Diagnostics Window Figure 5-40 window contains the following options. Click the option to display the option window. Wireless Diagnostics • ICMP Ping - tests the wireless network connection. • Trace Route - tests a connection at the network layer between the reader and any place on the network.

  • Page 103: Trace Route Window

    Wireless Applications 5 - 33 Trace Route Window traces a packet from a computer to a host, showing how many hops the packet requires to reach the Trace Route host and how long each hop takes. The utility identifies where the longest delays occur. Trace Route window allows testing a connection at the network layer (part of the IP protocol) between the Trace Route...

  • Page 104: Options

    5 - 34 RD5000 RFID Integrator Guide Table 5-23 for the definitions of the icons next to the AP. Current Profile Window Table 5-23 Icon Description The AP is the associated access point, and is set to mandatory. The AP is the associated access point, but is not set to mandatory.

  • Page 105: Regulatory Options

    Wireless Applications 5 - 35 check boxes are selected by default. AP Networks Ad-Hoc Networks OP Mode Filtering Options Table 5-24 Field Description AP Networks Select the check box to display available AP networks and their signal AP Networks strength within the (see Find WLANs Application on page Available WLAN Networks...

  • Page 106: Band Selection

    Deselect this to manually configure the IP in the standard Windows IP window. Enabled by default. Auto Time Config Enables automatic update of the system time. Network association updates the device time based on the time set in the AP. This proprietary feature is only supported with Motorola infrastructure. Enabled by default.

  • Page 107: Change Password

    Wireless Applications 5 - 37 Change Password to require a password before editing a profile. This allows pre-configuring profiles and Change Password prevents users from changing the network settings. The user can use this feature to protect settings from a guest user.

  • Page 108: Export

    5 - 38 RD5000 RFID Integrator Guide Export NOTE For Windows CE 5.0 devices, exporting options enables settings to persists after cold boot. For Mobile 5.0 devices, exporting options enables settings to persists after clean boot. See Persistence on page 5-39 more information.

  • Page 109: Persistence

    Wireless Applications 5 - 39 Persistence Export options and profiles to provide cold boot persistence for Windows CE 5.0 devices and clean boot persistence for Mobile 5.0 devices. Save the exported registry files in the folder to use them on a cold Application boot or clean boot and restore previous profile and option settings.

  • Page 110: Log On/Off Application

    5 - 40 RD5000 RFID Integrator Guide Log On/Off Application When the user launches the application, the reader may be in two states; the user may be logged onto Log On/Off the reader by already entering credentials through the login box, or there are no user logged on. Each of these states have a separate set of use cases and a different look to the dialog box.
  • Page 111 Wireless Applications 5 - 41 Log On/Off Options (Continued) Table 5-29 Field Description Network Username and The Network Username and Network Password fields are used as credentials for the Password Fields profile selected in the Wireless Profile field. Currently these fields are limited to 159 characters.
  • Page 112 5 - 42 RD5000 RFID Integrator Guide...

  • Page 113: Chapter 6 Application Deployment For Wince 5.0

    NOTE The RD5000 uses the The SMDK for C is a development tool used to create native C and C++ applications for all Motorola RFID readers. It includes documentation, header files (.H), and library files (.LIB) for native code application development that targets Motorola value-add APIs.

  • Page 114: Required System Configurations

    Microsoft Windows Mobile 2005 SDK DCP for RD5000 There are two ways to download the DCP for RD5000, the Top-down method and the Search method: The Top-down method, DCP for RD5000 download: Go to the Support Central web site, http://support.symbol.com:...

  • Page 115: To Install The Dcp For Rd5000

    Application Deployment for WinCE 5.0 6 - 3 To install the DCP for RD5000: Save the .exe file to the development computer. Locate the .exe file on the development computer, double-click the file, and follow the install screen prompts. Components Table 6-1 lists the DCP components.

  • Page 116: Platform Sdk

    On the Software Downloads web page select: RFID On the RFID web page select: RD5000 On the RD5000 web page, under Software Downloads select: Platform SDK for 9090c50. The Search method, for the SDK download (see Figure 6-2): Go to the Support Central website, http://support.symbol.com:...

  • Page 117: Symbol Mobility Developer Kits

    On the RFID web page select: RD5000 On the RD5000 web page, under Software Downloads select: Symbol Mobility Developer Kit. Select the latest version, then download the .exe file to the development computer. The Search for the SMDK download method (see...

  • Page 118: Smdk For C Contents And Locations

    6 - 6 RD5000 RFID Integrator Guide SMDK for C Contents and Locations Table 6-2 lists the components of the SMDK for C. SMDK for C Contents and Locations Table 6-2 Components Directory Location API Help file and Readme file \Program Files\Symbol Mobility Developer Kit vx.x for C\...

  • Page 119: Deployment

    Application Deployment for WinCE 5.0 6 - 7 Deployment With the appropriate accessory, software, and connection, the RFID reader can share information with the host device. This chapter provides information about installing software and files on the RFID reader. Download/Install software using: •...
  • Page 120 6 - 8 RD5000 RFID Integrator Guide ActiveSync Explorer Figure 6-5 Double-click the folder to expand the contents of the folder. My Pocket PC Contents Figure 6-6 Use Explorer to locate the host computer directory that contains the file to download. Tap that directory in the left pane to display its contents in the right pane.

  • Page 121: Adding Programs

    Application Deployment for WinCE 5.0 6 - 9 Adding Programs Install the appropriate software on the host computer before installing it on the RFID reader: Download the program to the host computer (or insert the CD or disk that contains the program into the host computer).

  • Page 122: Creating Hex Images

    Using standard windows drag and drop operations, files can be added and deleted from the script window. The DCP for RD5000 includes scripts used by Motorola to build the standard factory installed Platform and Application partitions provided on the RFID reader. The standard Platform partition contains drivers while the Application partition contains demo applications and optional components.

  • Page 123: Starting Terminal Configuration Manager

    Application Deployment for WinCE 5.0 6 - 11 Starting Terminal Configuration Manager Click the Windows start menu TCM icon (Symbol Device Configuration Packages, RD5000) to start TCM. The window appears displaying two child windows: . The window contains a newly...
  • Page 124 6 - 12 RD5000 RFID Integrator Guide TCM Components (Continued) Table 6-3 Icon Component Function Save button Save the current script file. Large icons button View the current script items as large icon. Small icons button View the current script items as small icon.

  • Page 125: Defining Script Properties

    Application Deployment for WinCE 5.0 6 - 13 TCM Components (Continued) Table 6-3 Icon Component Function Send button Download the hex image to the RFID reader. Tile button Arrange the sub-windows in a tiled orientation. Build and Send Build the current script into a set of hex images and send the hex images to the RFID reader.

  • Page 126: Creating The Script For The Hex Image

    A script file can be created from scratch or based on an existing script file. Click Create to create a new script or click Open to open an existing script (for example, a script provided in the DCP for RD5000). If an existing script is opened and changes are made, saving the changes overwrites the original script.

  • Page 127: Copying Components To The Script

    Saving changes to an existing Save Save As script writes over the original script. To use a Motorola-supplied standard script as a base and save the changes in a new script, use the function. Save As Building the Image Once the script is created, the hex image defined by the script can be built.

  • Page 128: Downloading Partitions To The Rfid Reader

    (C:\Program Files\Symbol Device Configuration Packages\RD5000c50\V1.1) in to temp folder of the RD5000 device. To copy entire folder, set the memory allocation to 31MB for each program and storage memory. Run OSUpdate utility by double clicking on RD5kc50BenColor_TEMP file on RD5000. A remote control tool like pocket controller can be used.

  • Page 129: Flash Storage

    This way, it is possible to override Registry changes made by the Platforms partitions folders. Take care when using Regmerge to make Registry changes. The DCP for RD5000 contains examples of .reg files.

  • Page 130: Copyfiles

    “>”. The following example from the file application.cpy is contained on the demo application partition included in the DCP for RD5000. It can also be obtained from the Support Central web site at http://support.symbol.com/.

  • Page 131: Airbeam Smart

    AirBEAM Smart The AirBEAM Smart product allows specially designed software packages to be transferred between a host server and Motorola wireless handheld devices. Before transfer, AirBEAM Smart checks and compares package versions, so that only updated packages are loaded. AirBEAM Smart resides on radio-equipped client devices and allows them to request, download, and install software, as well as to upload files and status data.

  • Page 132: Airbeam License

    6 - 20 RD5000 RFID Integrator Guide AirBEAM License The AirBEAM Smart Client is a licensed software product. A license key file stored on the client device enables the AirBEAM Smart Client's version synchronization functionality. Build the license key file into AirBEAM Smart Client's image, or download it in a special AirBEAM package.

  • Page 133: Packages(2) Tab

    Application Deployment for WinCE 5.0 6 - 21 NOTE Do not enter inadvertent trailing spaces on the Packages(1) tab. Information entered in these fields are case and space sensitive. Packages(2) Tab Use this tab to specify the package name of the last four of eight packages to load during the AirBEAM synchronization process.

  • Page 134: Misc(1) Tab

    6 - 22 RD5000 RFID Integrator Guide Server Tab Table 6-6 Field Description IP Address The IP Address of the server. It may be a host name or a dot notation format. Directory The directory on the server that contains the AirBEAM package definition files. All AirBEAM package definition files are retrieved from this directory during the package synchronization process.

  • Page 135: Misc(2) Tab

    Application Deployment for WinCE 5.0 6 - 23 Misc(1) Tab Table 6-7 Field Description Auto-load Use this drop-down list to specify how to invoke the AirBEAM Smart Client when the client device is rebooted. Options are: Disable: the AirBEAM Smart Client is not invoked automatically during the boot sequence.

  • Page 136: Misc(3) Tab

    6 - 24 RD5000 RFID Integrator Guide Misc(2) Tab Table 6-8 Field Description Auto-retry Use this field to specify whether the AirBEAM Smart Client automatically retries if synchronization fails. If this feature is enabled, the AirBEAM Smart Client displays a pop-up dialog indicating the retry attempt.

  • Page 137: Synchronizing With The Server

    Application Deployment for WinCE 5.0 6 - 25 Misc(3) Tab Table 6-9 Field Description Use DHCP server This check box control specifies whether the AirBEAM Smart Client uses the DHCP response option 66 to specify the IP address of the FTP/TFTP server. If enabled, special RF network registry settings are required to force the DHCP server to return the "TFTP server name"...

  • Page 138: Airbeam Staging

    6 - 26 RD5000 RFID Integrator Guide AirBEAM Staging The AirBEAM Smart staging support simplifies the process of staging custom or updated operating software onto mobile devices directly from manufacturing. The staging support is part of the AirBEAM Smart CE Client integrated in the mobile computer.

  • Page 139: Chapter 7 Rfid Applications

    Procedures are not device specific and are intended to provide a functional overview. The RD5000 does not have a display. To view the system menus use an application such as Microsoft’s Remote Display Control for Pocket PC. For more information see Host Computer Display Setup on page 1-13.

  • Page 140: Rfidsocketbridge

    The RFIDSocketBridge registry file restores the demo settings after a cold boot. If this file is edited, the settings will not be implemented until a cold boot occurs. Alternatively, on some Motorola devices, the registry file can be launched. When this is done, a prompt appears asking the user to choose whether to merge these settings into the registry.

  • Page 141: Rfiddemo Application

    Perform the following procedures to setup and use the RFIDDemo application: • Setup the local host computer display. The RD5000 does not have a display, a host computer must be setup to use the RD5000 menus. • Setup the LAN host.

  • Page 142: Using Rfiddemo To Forward/Log Tags To Remote Device

    7 - 4 RD5000 RFID Integrator Guide Using RFIDDemo to Forward/Log Tags to Remote Device By default, the RFIDDemo does not display or log tags. The RFIDDemo beeps each time a tag is read. The RFIDDemo can be configured to log tags: •...

  • Page 143: Launching The Rfiddemo Application

    RFID Applications 7 - 5 Launching the RFIDDemo Application Set up the remote display software to display the reader menus on the host computer. From the Main Window (see Figure 7-2) double-click the RFIDDemo application icon to start the RFIDDemo application. It also displays battery status and the air protocols supported by the device.

  • Page 144: File Menu Options

    7 - 6 RD5000 RFID Integrator Guide File Menu Options The RFIDDemo File Menu Options include: • About • Device Settings • MPS Settings • Tag Access Parameters • Program Tag • Exit File Menu Options Window Figure 7-4 About...

  • Page 145: Device Settings

    RFID Applications 7 - 7 Device Settings The RFIDDemo behavior is configurable. Click on Settings from the RFIDDemo Load Window on page 7-5 or from File->Device Settings, RFID- Settings window appears. These settings are persistent and will be restored on a device cold boot.

  • Page 146: Registry Settings Description

    The RFIDDemo registry file restores the demo settings after a cold boot. If this file is edited, the settings will not be implemented until a cold boot occurs. Alternatively, on some Motorola devices, the registry file can be launched. When this is done, a prompt appears asking the user to choose whether to merge these settings into the registry.
  • Page 147 RFID Applications 7 - 9 Registry File Example Table 7-2 ; ***************************************************************************************************** ; RFIDDemo Registry File. This file will restore the demo settings after a cold boot. ; If you edit this file, the settings will not take affect until a cold boot occurs. Alternatively, ;...
  • Page 148 7 - 10 RD5000 RFID Integrator Guide Registry File Example (Continued) Table 7-2 ; If this is set, then the demo will attempt to contact an RFID reader at this address. "RFIDDEMO_READER_IP_ADDRESS"="" ; Attenuation level for reading tags. 0 is full power, 255 is low power. (Use hex values 00 - FF) "RFID_READCAP_RF_ATTENUATION"=dword:00000000...
  • Page 149 RFID Applications 7 - 11 Registry File Example (Continued) Table 7-2 ; SL bit of the tag to be accessed "RFID_DEVCAP_SEL"=dword:00000000 ; Session to be used for tag access "RFID_DEVCAP_SESSION"=dword:00000000 ; Starting Q for tag access operation "RFID_DEVCAP_STARTING_Q"=dword:00000006 ; Target Inventory for tag access operation "RFID_DEVCAP_TARGET_INVENTORY"=dword:00000000 ;...

  • Page 150: Mps Settings

    7 - 12 RD5000 RFID Integrator Guide MPS Settings The RFIDDemo behavior is configurable. Click on Settings from the RFIDDemo Load Window on page 7-5 or from File->Device Settings, RFID- Settings window appears. These settings are persistent and will be restored on a device cold boot.

  • Page 151: Proximity Initiated Tag Read

    RFID Applications 7 - 13 Proximity Initiated Tag Read With the Proximity On (see MPS Settings on page 7-12) the reader automatically turns on and reads tags and turns off (to conserve power) based on the proximity events (detect and clear). The proximity value is displayed in the Proximity and Motion Initiated Tag Read window (see Figure 7-8) and a blue...

  • Page 152: Tag Access Parameters

    7 - 14 RD5000 RFID Integrator Guide Tag Access Parameters Click on Tag Access Params from the RFIDDemo Load Window on page 7-5 or from File->Tag Access Params, the Tag Access Parameters window appears. Tag Access Parameters Window Figure 7-9 Reader Settings: •...
  • Page 153 RFID Applications 7 - 15 • Target 0x00: Modify Session S0 inventoried flag. 0x01: Modify Session S1 inventoried flag. 0x02: Modify Session S2 inventoried flag. 0x03: Modify Session S3 inventoried flag. 0x04: Modify SL flag. • Remove Select Record Index Index of the record selected to be removed from the list.

  • Page 154: Program Tag

    7 - 16 RD5000 RFID Integrator Guide Program Tag Click on Program Tag from the RFIDDemo Load Window on page 7-5 or from File->Program Tag, RFID- Program Tag window appears. Program Tag Window Figure 7-10 Reader Program Tag Settings: •...
  • Page 155 RFID Applications 7 - 17 • Tag Mask If select record is to be added to a memory bank other than EPC, then the memory bank bits for which select record is being added are provided here. • Mask bank Sets the mask bank where the selected record is to be added: 0x01: EPC 0x02: TID...

  • Page 156: Lock Options

    7 - 18 RD5000 RFID Integrator Guide Lock Options Click on Lock Options from the RFIDDemo Load Window on page 7-5 or from File->Lock Options, RFID- Lock Options window appears. Lock Options Window Figure 7-11 The Lock Options provide the option of locking/unlocking all or individual memory banks. In the reserved memory bank, access password and kill password can be locked or unlocked separately.

  • Page 157: Tag Locking

    RFID Applications 7 - 19 Tag Locking Tag locking is a two step process: • Write the tag access password (see Figure 7-10 on page 7-16) • Lock the tag (see Figure 7-11 on page 7-18) To write the access password first enter the access password of the tag: Read the tag.
  • Page 158 7 - 20 RD5000 RFID Integrator Guide To write to a locked tag Read the tag. Click on the tag, it appears in EPC Mask field. The tag is now selected for operations. Select the EPC memory bank as the target memory bank (since the EPC ID field is locked in this example).

  • Page 159: Read Tags

    RFID Applications 7 - 21 Read Tags Click the Start Reading button, the unit starts to read tags. As the tags are read the values are displayed on the RFID - Read Window. RFID - Read Window Figure 7-12 Click the Remove SR button and the selected record is removed from the list. This command is not accepted when read is going on.

  • Page 160: Test Applications And Utilities

    7 - 22 RD5000 RFID Integrator Guide Test Applications and Utilities Integrators can use the RFID Test applications and Utilities for product settings and as an aid in the product integration. Use the utilities to change and/or set the device parameters and to test applications.
  • Page 161 Demo and Test Applications Windows Figure 7-17 NOTE Only the Applications that are applicable to the reader can be launched. The remaining Motorola applications are not applicable to the reader. The RFIDDemo application and utilities are described in the Symbol Application Guide for Symbol Devices, p/n...

  • Page 162: Rfidflash Utility

    7 - 24 RD5000 RFID Integrator Guide RFIDFlash Utility The RFIDFlash utility is used to update the RFID module firmware. To access the RFIDFlash utility set up the remote display software to display the reader menus on the host computer. From the Main Window (see Figure 7-2) click Start - Programs - Windows Explorer to access the Explorer application.
  • Page 163 RFID Applications 7 - 25 Click Browse for Flash File and the Select Files window appears. RFIDFlash Loader Windows Figure 7-20 Scroll to the flash file and click to select, click OK. The Select Files window appears RFIDFlash Loader Windows Figure 7-21 Click Start Flash to download the flash update file.

  • Page 164: Atmelflasher Utility

    7 - 26 RD5000 RFID Integrator Guide AtmelFlasher Utility The AtmelFlasher utility is used to update the Atmel micro controller. To access the AtmelFlasher utility set up the remote display software to display the menus on the host computer. From the Main Window (see...
  • Page 165 RFID Applications 7 - 27 Click Start, the AtmelFlasher performs the flash and the message Success displays for the status. AtmelFlasher Window Figure 7-24...

  • Page 166: Launching The Geminirfid Demo Application

    7 - 28 RD5000 RFID Integrator Guide Launching the GeminiRFID Demo Application Set up the remote display software to display the reader menus on the host computer. From the reader main window double-click the RFIDDemo application icon to start the RFIDDemo application.

  • Page 167: Reading Tags

    RFID Applications 7 - 29 Reading Tags When the mobile computer trigger is pressed, the mobile computer interrogates all of the tags within the radio frequency (RF) field of view. For each new tag found, the mobile computer beeps once and displays a tag icon in the main RFID Tag window.

  • Page 168: Selecting Tags

    7 - 30 RD5000 RFID Integrator Guide Selecting Tags The Tag window can display up to 20 tags. If more than 20 tags are found, the application allows the user to page forward and backward through the list of icons representing the tags found.

  • Page 169: Saving Tag Data

    RFID Applications 7 - 31 Saving Tag Data A list of read tags can be saved on the mobile computer. The application saves the tag list to the "\My Documents" folder and names the file RFIDTaglist.csv. The file is a .csv format (comma separated text file). This file format can be read by MS Excel, or other applications that support .csv.

  • Page 170: About

    7 - 32 RD5000 RFID Integrator Guide About Click File - About to view the application version number, the RFID DLL version number, the RFID reader module firmware version number, date code, and serial and port information. RFID - About Window Figure 7-27 Click File - Log to display the Log menu.

  • Page 171: Settings

    RFID Applications 7 - 33 Settings The Settings window is used to set the number of iterations to read tags. To set the class type(s) to read (Gen2 is on by default). The settings window is also used to set and test read/write power. Click File - Settings to display the Settings window.

  • Page 172: Gen2 Operational Settings

    7 - 34 RD5000 RFID Integrator Guide Gen2 Operational Settings The Gen2 Operational Settings window is used to configure the Gen2 tag operational parameters. Click File - Gen2 Settings to display the Gen2 Operational Settings window. Gen2 Operational Settings Window...

  • Page 173: Mode Menu

    RFID Applications 7 - 35 Mode Menu Click the Mode menu to use the Inventory method to read tags, locate a tag, program a tag, scan a bar code, or write a tag. Mode menu options offer all of the operations available by clicking an icon on the main Tags window menu bar.

  • Page 174: Program Tag

    7 - 36 RD5000 RFID Integrator Guide Program Tag This option can be used to program Gen2 RFID tags. Gen2 tags can be programmed, erased, locked and killed. Each tag contains 88 or 120 bits, which includes the EPC number (64 or 96 bits), CRC, and Kill Code. Locking, and killing tags requires a Kill Code which is 1 byte (8 bits) long.
  • Page 175 RFID Applications 7 - 37 NOTE For a successful tag read, the allowable read distance from the front of the mobile computer scan exit window to the tag is 0.2 ft - 10 ft (0.061 m to 3.1 m). Click Erase to erase an unlocked tag. Click Lock to lock a tag so that it cannot be changed.
  • Page 176 7 - 38 RD5000 RFID Integrator Guide...

  • Page 177: Chapter 8 Bluetooth Setup

    Readers with Bluetooth capabilities can exchange information (e.g., files, appointments and tasks) with other Bluetooth enabled devices such as phones, printers, access points and RFID readers. Motorola readers with Bluetooth technology use the StoneStreet One Bluetooth stack. To program Bluetooth within the reader refer to the StoneStreet One SDK.

  • Page 178: Adaptive Frequency Hopping

    When AFH is enabled, the Bluetooth radio “hops-around” (instead of through) the 802.11b high-rate channels. AFH coexistence allows Motorola readers to operate in any infrastructure, AFH is always enabled. The Bluetooth radio in this reader operates as a Class 2 device power class. The maximum output power is 2.5mW and the expected range is up to 32.8 feet (10 meters).

  • Page 179: Turning The Bluetooth Radio Mode On And Off

    Bluetooth Setup 8 - 3 Turning the Bluetooth Radio Mode On and Off Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the radio is off, the reader can not be seen or connected to by other Bluetooth devices. Turn on the Bluetooth radio to exchange information with other Bluetooth devices (within range).

  • Page 180: Bluetooth Power States

    8 - 4 RD5000 RFID Integrator Guide Bluetooth Power States Cold Boot When a cold boot is performed on the reader, Bluetooth turns off. It is normal to see the Bluetooth icon appear and disappear, as well as a wait cursor, when initialization proceeds in all modes.

  • Page 181: Bluetooth Profiles

    Bluetooth Setup 8 - 5 Bluetooth Profiles The reader is loaded with a number of Bluetooth services profiles. These profiles can be loaded or removed from memory. If a profile is not used, it can be removed to save memory. To load or remove profiles: NOTE On Windows CE 5.0 devices, BTExplorer must be disabled prior to changing profiles.

  • Page 182: Modes

    8 - 6 RD5000 RFID Integrator Guide Modes The BTExplorer application has two mode for managing Bluetooth connections: Wizard Mode and Explorer Mode. The Wizard Mode is for novice Bluetooth users and the Explorer Mode is for experienced Bluetooth users.
  • Page 183 Bluetooth Setup 8 - 7 Figure 8-5 Select Remote Device Window NOTE Devices discovered previously are listed to save time. To start a new device discovery, click and hold and select Discover Devices from the menu. Select a device from the list and then click .
  • Page 184 8 - 8 RD5000 RFID Integrator Guide Connection Summary Window Figure 8-7 Click to connect to the service. Connect The following actions are available in the drop-down list (actions may vary depending upon configurations): • Explore Services on Remote Device •...

  • Page 185: Explorer Mode

    Bluetooth Setup 8 - 9 Explorer Mode window is streamlined and easy to navigate and provides greater control to users familiar with BTExplorer Bluetooth functionality. The menu bar provides quick access to the options and tools used to connect to devices. Explorer Mode Window Figure 8-8 Use the “click and hold”...

  • Page 186: Discovering Bluetooth Device(S)

    8 - 10 RD5000 RFID Integrator Guide Discovering Bluetooth Device(s) Follow the steps below to discover Bluetooth devices. The reader can receive information from discovered devices, without bonding. However, once bonded, an exchange of information between the reader and a bonded device occurs automatically when the Bluetooth radio is turned on.

  • Page 187: Bonding With Discovered Device(S)

    Bluetooth Setup 8 - 11 Discovered Devices Listed in Untrusted Folder Figure 8-11 Bonding with Discovered Device(s) A bond is a relationship created between the reader and another Bluetooth device in order to exchange information in a secure manner. Creating a bond involves entering the same PIN on the two devices to bond. Once a bond is created, and the Bluetooth radios are turned on, the devices recognize the bond and are able to exchange information without re-entering a PIN.

  • Page 188: Renaming A Bonded Device

    8 - 12 RD5000 RFID Integrator Guide PIN Code Request Window Figure 8-13 In the text box, enter the PIN number (between 1 and 16 characters) and then click PIN Code: On the remote device, enter the same PIN number.

  • Page 189: Deleting A Bonded Device

    Bluetooth Setup 8 - 13 Rename Device Selection Dialog Box Figure 8-15 window appears. Change Device Name Change Device Name Window Figure 8-16 Enter a new name for the bonded device in the text box. Click Deleting a Bonded Device If it is no longer necessary to connect with a device, delete it from the window.

  • Page 190: Accepting A Bond

    8 - 14 RD5000 RFID Integrator Guide Delete a Bonded Device Figure 8-17 A confirmation dialog appears. Click Accepting a Bond When a remote device wants to bond with a reader, give permission by entering a PIN when requested. Ensure that the reader is set to discoverable and connectable. See Bluetooth Settings on page 8-21.

  • Page 191: Discovering Services

    Bluetooth Setup 8 - 15 Discovering Services Before services can be used, discover the available remote devices and then bond to those devices. To determine what services are available on a bonded remote device: Click the icon and select Bluetooth Show BTExplorer window, click and hold on the remote device and select from the pop-up menu.

  • Page 192: File Transfer Services

    8 - 16 RD5000 RFID Integrator Guide File Transfer Services NOTE Shared folders are a security risk. To transfer files between the reader and another Bluetooth enabled device: Ensure the reader is discoverable and connectable. See Bluetooth Settings on page 8-21.

  • Page 193: Delete File

    Bluetooth Setup 8 - 17 Delete File To delete a file from the remote device: Click and hold on the file and select Delete In the dialog box click Delete Remote Device File Get File To copy a file from a remote device: Click and hold on the file and select .

  • Page 194: Obex Object Push Services

    8 - 18 RD5000 RFID Integrator Guide OBEX Object Push Services Object Exchange (OBEX) is a set of protocols allowing objects such as Contacts or pictures to be shared using Bluetooth. To exchange contact information with another Bluetooth enabled device: Ensure the reader is discoverable and connectable.

  • Page 195: Headset Services

    Click . The picture is sent to the other device and a confirmation dialog box appears on the other device to accept the picture. A dialog appears. Send Picture Click Headset Services Headset services are not enabled on the RD5000.

  • Page 196: Serial Port Services

    8 - 20 RD5000 RFID Integrator Guide Serial Port Services By default, COM ports COM4, COM5 and COM9 are Bluetooth virtual ports. If an application NOTE opens one of these ports, the Bluetooth driver activates and steps through a Bluetooth connection setup.

  • Page 197: Bluetooth Settings

    Bluetooth Setup 8 - 21 Bluetooth Settings Use the window to configure the operation of the application. Click > BTExplorer Settings BTExplorer Tools Settings window appears. BTExplorer Settings Device Info Tab Use the tab to configure the Bluetooth connection modes. Device Info BTExplorer Settings - Device Info Tab Figure 8-25...

  • Page 198: Services Tab

    Edit Local Service Select the appropriate information and then click . See the following paragraphs for detailed information on the available services. Dial-Up Networking Service Dial-up Networking Services are not enabled on the RD5000.

  • Page 199: File Transfer Service

    Bluetooth Setup 8 - 23 File Transfer Service File transfer allows files to be browsed by other Bluetooth devices. File Transfer Information Window Figure 8-28 Service Name Displays the name of the service. Service Security Select the security type from the drop-down list; None, Authenticate or Authenticate/Encrypt. Root Directory Select the directory that other Bluetooth devices can access.

  • Page 200: Obex Object Push Service

    8 - 24 RD5000 RFID Integrator Guide OBEX Object Push Service OBEX Object Push allows contacts, business cards, pictures, appointments, and tasks to be pushed to the device by other Bluetooth devices. OBEX Exchange Information Window Figure 8-29 Service Name Displays the name of the service.

  • Page 201: Serial Port Service

    Select the COM port. Select COM1 to use a modem or other device that is connected to the connector on the bottom of the reader. Local Baud Rate Select the communication baud rate. Local Port Options Select the port option. Headset Service Headset services are not enabled on the RD5000.

  • Page 202: Security Tab

    8 - 26 RD5000 RFID Integrator Guide Security Tab To adjust the security settings for an individual service, select the tab first, then select the individual Services service, then Properties BTExplorer Settings - Security Tab Figure 8-32 Use PIN Code Automatic use of the PIN code entered in the text box.

  • Page 203: Discovery Tab

    Bluetooth Setup 8 - 27 Discovery Tab Use the tab to set and modify discovered devices. Discovery BTExplorer Settings - Discovery Tab Figure 8-33 Inquiry Length Sets the amount of time that the reader takes to discover Bluetooth devices in the area. Name Discovery Mode Select either Automatic...

  • Page 204: Virtual Com Port Tab

    8 - 28 RD5000 RFID Integrator Guide Virtual COM Port Tab Use the tab to select the COM ports for Bluetooth communication. Virtual COM Port BTExplorer Settings - Virtual COM Port Tab Figure 8-34 COM4:Bluetooth Enable or disable COM Port 4.

  • Page 205: Miscellaneous Tab

    Bluetooth Setup 8 - 29 Miscellaneous Tab BTExplorer Settings - Miscellaneous Tab Figure 8-36 Highlight Connections Select the connection type to highlight when connected. In the Wizard Mode, the only option is . In the Favorites None Explorer Mode options are None Tree View Only List View Only...

  • Page 206: Tag Logging Setup Using Rfid Demo Example

    RD5000 and for the VRC (the example other terminal): On the RD5000: Active sync the RD5000 and use a tool like SOTI Pocket Controller tool to display of RD5000 windows on a local Go to Start menu->Settings->Control Panel->System and click the Device name tab. Enter RD5000 as the device name and click OK, and then click X to get on default device screen.
  • Page 207 Bluetooth Setup 8 - 31 Change the Set Connectibility option to Connectable. Right click on RD5000; again and go to Settings->Services tab. Click Add and Add Serial Port service. Set Service name as Serial Port5 and select COM5: Physical Device Settings Window Figure 8-39 Click OK to exit and minimize BT Explorer.
  • Page 208 (This is local port on VRC, by default COM4,5,9 are BT ports). Communications Window Figure 8-40 The Select Remote Device Window displays the BT discovered devices. Select the RD5000 and click Next. Select Remote Device Window Figure 8-41 A serial port selection screen displays. Set the local port (on VRC) to connect to COM5: and click Next.
  • Page 209 Bluetooth Connection Window Figure 8-44 Return to the RD5000, run the RFIDDemo application and Start Reading tags. Remote Tag Data Window Figure 8-45 On VRC, the same tag data is displayed.
  • Page 210 8 - 34 RD5000 RFID Integrator Guide...

  • Page 211: Chapter 9 Maintenance & Troubleshooting

    Particular care should be taken where the device is charged in a non-commercial environment. • Do not use incompatible batteries and chargers. For any questions about the compatibility of a battery or a charger, contact Motorola Enterprise Mobility support. See Service Information on page i-xvi for contact information.

  • Page 212: Troubleshooting

    Do not place battery into a microwave oven or dryer. • Do not dispose of batteries in fire. • If battery or equipment is suspected, call Motorola Enterprise Mobility support to arrange for inspection. See Service Information on page i-xvi for contact information. Troubleshooting...
  • Page 213 Battery is low. If the reader stops reading check the battery level. When the battery is low, the reader shuts off. Note: If the reader is still not reading, contact the distributor or Motorola.

  • Page 214: Bluetooth Connection

    9 - 4 RD5000 RFID Integrator Guide Bluetooth Connection Troubleshooting Bluetooth Connection Table 9-2 Problem Cause Solution RFID reader cannot Too far from other Bluetooth Move closer to the other Bluetooth device(s), within a range find any Bluetooth devices. of 10 meters.

  • Page 215: Appendix A: Technical Specifications

    Appendix A Technical Specifications Technical Specifications The following tables summarize the RFID reader intended operating environment and general technical hardware specifications. RFID Reader The following table summarizes the reader’s technical specifications. RD5000 Technical Specifications Table A-1 Item RD5000 Physical and Environmental Characteristics Dimensions 7 in.
  • Page 216 A - 2 RD5000 RFID Integrator Guide RD5000 Technical Specifications (Continued) Table A-1 Item RD5000 User Environment Operating Temperature -4°F to 122°F (-20°C to 50°C) Battery Charging 32° to 104° F / 0° to 40° C ambient temperature range Temperature Storage Temperature -40°...
  • Page 217 Technical Specifications A - 3 RD5000 Technical Specifications (Continued) Table A-1 Item RD5000 Peripherals and Accessories Charging Four Slot Spare Battery Charger, Universal Battery Charger Adapter, Charging Cable, Charging Cable with Serial Communications. Power Supply 12 Vdc and a minimum of 3.33 A, certified to EN60950-1 with SELV outputs.
  • Page 218 A - 4 RD5000 RFID Integrator Guide...

  • Page 219: Appendix B Motion Sensor Parameters

    Appendix B Motion Sensor Parameters Introduction The Motion/Proximity sensor API for the RD5000 includes a MPS_CMD_MOTION_SET_THRESHOLD command that allowed the setting of an acceleration threshold used to determine whether a motion event had occurred. Modifications to the motion sensing algorithm have made it desirable to allow the reconfiguration of several parameters to optimize the code for different environments and this has been implemented using an extension of this single API call.

  • Page 220: Possible Extensions

    B - 2 RD5000 RFID Integrator Guide Set Minimum Velocity for Motion Start Event Table B-2 X value expressed as 100 * value in ft/sec. (Default is 0.5 ft/sec.) Y value expressed as 100 * value in ft/sec. (Default is 0.5 ft/sec.) Z value expressed as 100 * value in ft/sec.

  • Page 221: Parameter Details

    There are three sets of parameters that govern the basic operation of the motion sensing subsystem. Within each set, there is a parameter that applies to each of the three axes, X, Y and Z. Alignment of the axes in reference to the RD5000 unit is as shown in Figure B-1.
  • Page 222 B - 4 RD5000 RFID Integrator Guide Min Detection Parameters: These parameters govern minimum change in velocity to be detected by the device for calculation of resultant velocity in respective axes. Refer to Set Minimum Detectable Velocity Change (Table B-1 on page B-1) to set values through the API.

  • Page 223: Index

    Index Numerics package builder ......6-19 staging ....... 6-26 802.11 ESSID .
  • Page 224 ......xvi DCP for RD5000 ... . . xvi, 4, 6-14, 6-17, 6-18 infrastructure .
  • Page 225 Index - 3 LEAP ........5-9 radios .
  • Page 226 Index - 4 RD5000 RFID Integrator Guide SMDK for C ....... . 6-1 SMDK for eVC4 .
  • Page 228 1-800-927-9626 http://www.symbol.com MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their registered owners. © Motorola, Inc. 2008...

Table of Contents
