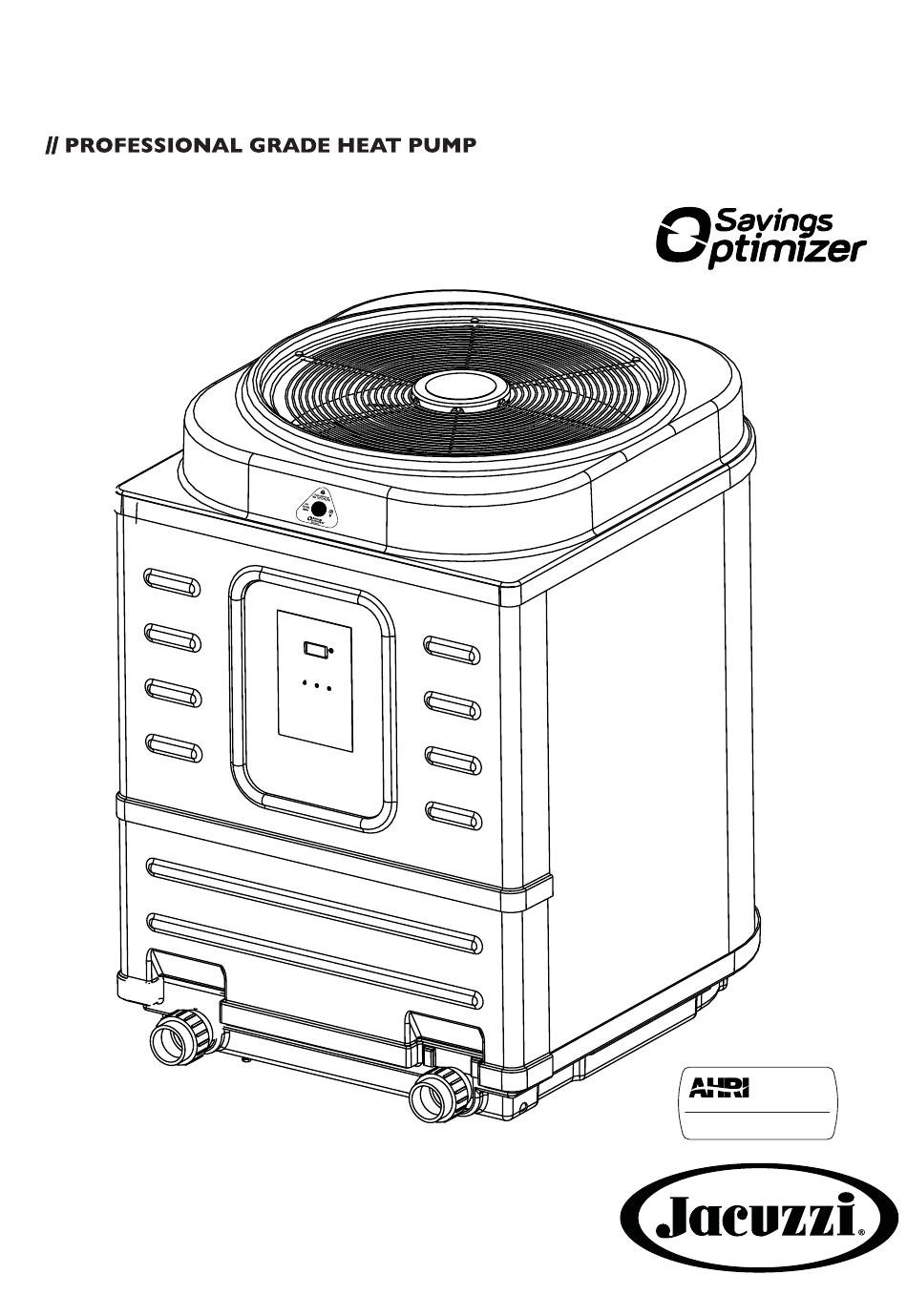

- Page 1 J-SERIES HEAT PUMP CERTIFIED www.ahridirectory.org Heat Pump Pool Heaters AHRI Standard 1160...
- Page 2 JACUZZI® J-SERIES Commercial Grade Pool Heat Pumps Save up to $2,000 annually. JHX140 JHX127 Extend the life of the heat pump. Reduce noise! JHX85 JHX60 LEADING EDGE TECHNOLOGY Consistentiy heat your pool and extend your swimming season with our full line of heat pumps! The most efficient way to heat your pool or spa! 100% pure, commer-...
-
Page 3: Specifications
SPECIFICATIONS JHX140 JHX127 JHX85 JHX60 LPM Part Number 85452 85451 85450 Heat Exchanger Construction TITANIUM TITANIUM TITANIUM TITANIUM Temp Control DIGITAL DIGITAL DIGITAL DIGITAL Ideal for Pools up to: (Gallons) 45,000 40,000 25,000 16,000 2 & 3 Wire 2 & 3 Wire 2 &... -
Page 4: Stay Connected
AUTOMATION Save Money Our app tells you how much you're spending to heat your pool, so you can adjust your heating schedule and save! Surprises Something wrong with your heater or pump? Find out in real time with custom emails and notifications sent to your phone. -
Page 5: Attention Installer
Attention Installer NOTICE: Read all instructions before installation. Unit is Pre-wired for 230 only! If 208 Volts, please follow the instructions below: ALL INSTALLATION AND WORK MUST BE PERFORMED BY A CERTIFIED ELECTRICIAN AND PER ALL LOCAL BUILDING AND ELECTRICAL CODES . WARNING... - Page 6 Unit Setups: Heat Pumps Require the Following: ( Please See Owner’s Manual for All Details) -Water Flow, Water Flow & Water Flow!!! ( Require: 25 to 80GPM & Recommend: 40 to 80GPM) ( Vary per Model) -Proper Voltage (Switch Wire Location on Transformer if 208 Volts) ...
-
Page 7: Important Safety Instructions
Operating Instructions Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. -
Page 8: Unit Location
Installation Procedures (continued) THE UNIT MUST BE TRANSPORTED IN THE UP- RIGHT POSITION AT ALL TIMES AND MUST NOT BE DROPPED OR TAILGATED. DAMAGE TO THE UNIT DURING TRANSPORTATION IS NOT THE RESPONSIBILITY OF THE MANUFACTURER. IF UNIT IS CLOSER THAN 18 INCHES, THE MANUFACTURER IS NOT RESPONSIBLE FOR BAD, WORN OR SEIZED FAN MOTORS AND CAPACITORS. - Page 9 Installation Procedures (continued) Overheating, short- circuiting and fire damage will result from inadequate wiring. 77 278 2797 Failure to do so could cause Figure 3 - Front Panel overheating, short-circuiting, fire damage and will also void the Warranty. Failure to torque the L1 and L2 leads may cause overheating or short- circuiting which could result in fire...
- Page 10 Installation This section allows you to run the heat Procedures pump at set intervals during the day. If (continued) you have a time clock, and would like to use it please refer to the Time Clock Override section. factory with the TCE feature installed, but set to the “off”...
- Page 11 TIME CLOCK OVERRIDE (TCO) OPERATION All wiring and electrical connections must be performed by a qualified electrician. Installation must be in accordance with local and national codes. This section allows you the option of INSIDE CONTACTOR using an existing time clock with the HEAT FOR THE heat pump.
-
Page 12: Application Guidelines
Application Guidelines (All Models) MAINTENANCE POOL BLANKETS WEATHER CONDITIONS SEASONAL SHUTDOWNS Troubleshooting Guide To maintain a valid warranty, a record of annual maintenance must be kept and provided when redeeming the warranty. DIAGNOSTICS If you decide to rinse down the evaporator coils yourself, disconnect all power to the entire equipment pad before you rinse it. - Page 13 Unit is running but not cooling: Unit runs continuously: Troubleshooting Guide (continued) Unit is cycling: Unit is not running (All Models): Unit is running but not heating: the top...
- Page 16 Notes...
-
Page 17: Limited Warranty
LIMITED WARRANTY Heating Solutions manufactures its products with the highest standards of workmanship, using the best materials available through state of the art processes. Heating Solutions warrants its products as follows: LIMITED WARRANTY: HEATING SOLUTIONS WARRANTS ITS PRODUCTS TO BE FREE FROM DEFECTS IN MATERIAL AND/OR WORKMANSHIP FOR A PERIOD OF TWO (2) YEARS (PARTS ONLY) FROM ORIGINAL DATE OF PURCHASE. - Page 18 single family dwelling. Proof of purchase receipt will be required to execute any warranty claim. Original owner agrees to prepay all shipping charges, if applicable or necessary. PROCEDURE FOR A WARRANTY CLAIM In order to obtain the benefits of this warranty, the consumer who made the original purchase must visit their local Leslie’s Swimming Pool Supplies store or contact the Service Department help desk at 1-844-615-8994 as soon as possible after a discovery of the defect, but in no event later than the expiration date of the warranty period provided in this warranty.
Need help?
Do you have a question about the J Series and is the answer not in the manual?
Questions and answers

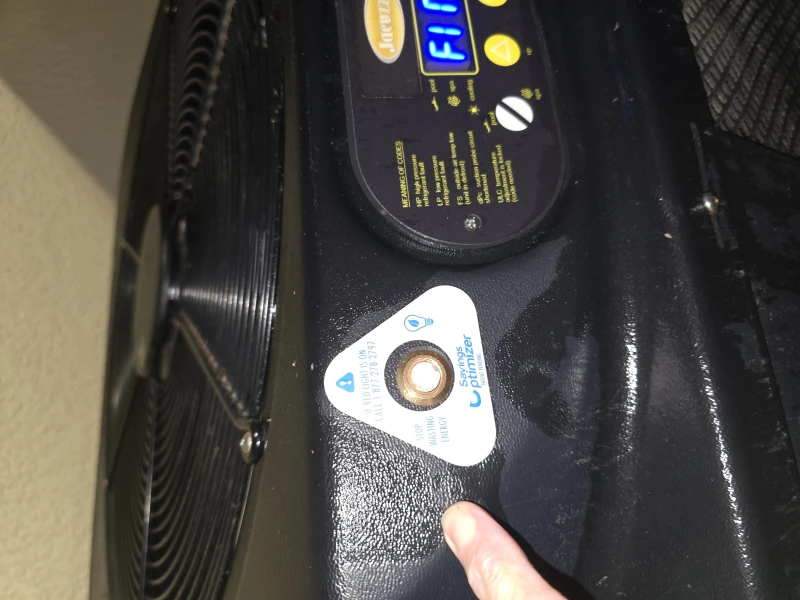

I have a JHX127 heat pump and wile the unit is running there is a yellow flashing light to the left side of the control panel....it says if it's red call for service...what dose yellow mean?
