Summary of Contents for Comcast XCAM2

  • Page 1 XCAM2 + XW4 User’s Guide...

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION....................1 Overview ..........................1 Physical Details - xCam2....................2 Physical Details - XW4 ...................... 4 Package Contents ......................5 CHAPTER 2 BASIC SETUP ....................6 System Requirements ......................6 Installation ......................... 6 Wall Mounting ........................9 Installation Guidance ......................

  • Page 5: Chapter 1 Introduction

    This Chapter provides information of the xCam2 's features, components and capabilities. Overview Congratulations on the purchase of your new xCam2 . The xCam2 is a True Day/Night IP camera that features high definition 1920 x 1080p video resolution and 802.11ac WiFi connectivity.

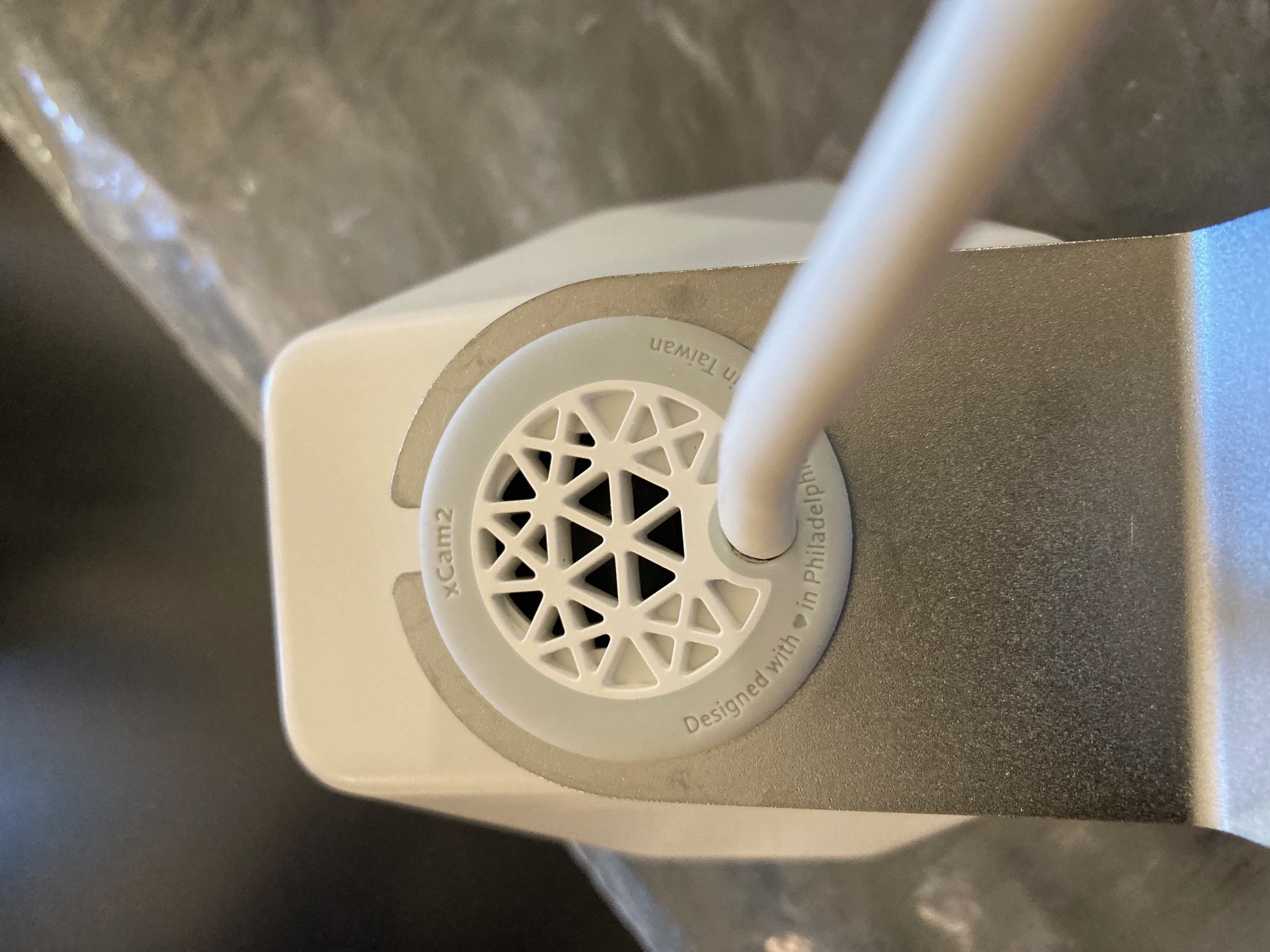

  • Page 6: Physical Details - Xcam2

    Flashing (Double Blink White) - The xCam2 is connected to router and ready to pair. 2-Way Voice (Slow Blink Blue) – Someone is talking On (Solid Amber) - The xCam2 is not connected to a router or has trouble connecting.
  • Page 7 This RJ-45 connector is used for power connection when the camera RJ-45 Jack is under wireless mode. A customized PoE (Power over Ethernet) splitter. When pressed and released the reset button, the xCam2 will reboot Reset Button (restart). To restore the factory default values: Power On.

  • Page 8: Physical Details - Xw4

    Physical Details - XW4 LAN Port To be connected to the RJ-45 jack of xCam2 for power feed and data exchange. This button has the following function: Reset Button • Reset to manufacturer default valued and reboot. When pressed and held over 5 seconds, the settings of the XW4 will be set to their default values.

  • Page 9: Package Contents

    The following items should be included in the package: If any of these items are damaged or missing, please contact your dealer immediately. xCam2 Unit (with Stand and Ethernet RJ-45 pigtail) * 1 Screw/Anchor x 2 Screw diameter: 3.5 ; Length: 25mm Anchor inner diameter: 2.9mm ;...

  • Page 10: Chapter 2 Basic Setup

    Make sure the Router and the Touch Panel are both powered on and synchronized before adding your xCam2 . This step is required when an xCam2 is used for the FIRST time. It only needs to be done ONCE in order to configure the wireless settings for the xCam2 .
  • Page 11 Press WPS button to connect to the XW4 and the Home Gateway. Check and make sure that the Power LED is on. Click "Next" button. The Touch Panel will start adding the xCam2 . 8. Click "Accept" button. 9. Click "Next" button.

  • Page 12: Physical Installation

    Physical Installation Figure 4: Installation 1. Move the xCam2 to where it is to be placed. 2. Connect the customize PoE cable of xCam2 to the XW4. 3. Plug XW4 in AC source (110V only). 4. Check and make sure that the Power LED is on.

  • Page 13: Wall Mounting

    Wall Mounting *Note: Please make sure that the xCam2 is configured and added to the network before permanent mounting. 1. Use the electric drill for boring two holes in the desired position where you would like to install the xCam2 .
  • Page 14 Note: The following steps are recommended: a. Mount the camera with the screw first. b. Adjust the angel by moving the opening of the stand. Install the other screw after the adjustment. 4. Ensure that the xCam2 is secured firmly.

  • Page 15: Installation Guidance

    Installation Guidance *Note: - While xCam2 is water resistant, it is must to limit exposure to rain. - Where possible, install xCam2 under building overhang to limit exposure to the elements. - The camera is only to be connected to PoE networks without routing to outside plants.

  • Page 16: Appendix A Specifications

    $ $ SSHQGL[ $ 6SHFLILFDWLRQV Spec xCam2 Model xCam2 Dimensions 88mm (W) x 97mm (H) x 83mm (D) (with stand) Operating Temperature -20° C to 50° C Video compression H.265 and MJPEG Network Interface 1 Ethernet 10/100BaSCT (RJ45 pigtail) Storage Temperature -20°...

  • Page 17: Regulatory Approvals

    Regulatory Approvals FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 18: Disposal Instructions

    Manufacturer Contact Information Please contact Tina_Chen@Sercomm.com or Alice_Lin@Sercomm.com for warranty/customer support. Label Information xCam2 Deice Label Sample (Label size: 29.5*15mm) IP55 XW4 Deice Label Sample (Label size: 21*20.5mm) xCam2 Box label Sample (Label size: 45*45mm) XW4 Box label Sample (Label size: 45*45mm)
